Electric Fan Conversion Question

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

OP
OP
Dantheman-2003

Dantheman-2003

Full Access Member
Joined
Jan 3, 2022
Posts
135
Reaction score
136
Location
Placerville, Ca
Yes, there should be a double ground wire on the OEM harness. It's a ring terminal with TWO ground wires on it, one of those leads up to the relay/fuse block, and the second wire goes directly to the plug for fan #2. That plug has a blue and black, the other fan has gray and yellow wires. From the factory, the ring terminal is grounded to the frame on the passenger side, in the area right behind the bumper bracket. I grounded mine in the same area. I just attached mine to the bolt that holds the horn bracket to the frame right there on the passenger side frame rail.
It appears that you cut the harness just below the fans, that explains why you are missing the rest of the ground wire. You only have one wire connected to your relay/fuse block now. The other half of that wire, and the ground for fan #2 were cut off .
Yes correct. That’s exactly what happened. I hacked it outta that Yukon right before it was towed away. Time was of the essence.
So question is now, do I just junk this hacked up OEM harness and purchase a kit on eBay? Or is there a way to add a ground to the relay/fuse box, then connect to the frame?

OP
OP
Dantheman-2003

Dantheman-2003

Full Access Member
Joined
Jan 3, 2022
Posts
135
Reaction score
136
Location
Placerville, Ca
Yes, there should be a double ground wire on the OEM harness. It's a ring terminal with TWO ground wires on it, one of those leads up to the relay/fuse block, and the second wire goes directly to the plug for fan #2. That plug has a blue and black, the other fan has gray and yellow wires. From the factory, the ring terminal is grounded to the frame on the passenger side, in the area right behind the bumper bracket. I grounded mine in the same area. I just attached mine to the bolt that holds the horn bracket to the frame right there on the passenger side frame rail.
It appears that you cut the harness just below the fans, that explains why you are missing the rest of the ground wire. You only have one wire connected to your relay/fuse block now. The other half of that wire, and the ground for fan #2 were cut off .
Also, I looked everywhere. I never saw a double ground anywhere. Appreciate the feedback.


ncalvo

Full Access Member
Joined
Jun 17, 2019
Posts
164
Reaction score
463
Location
FL

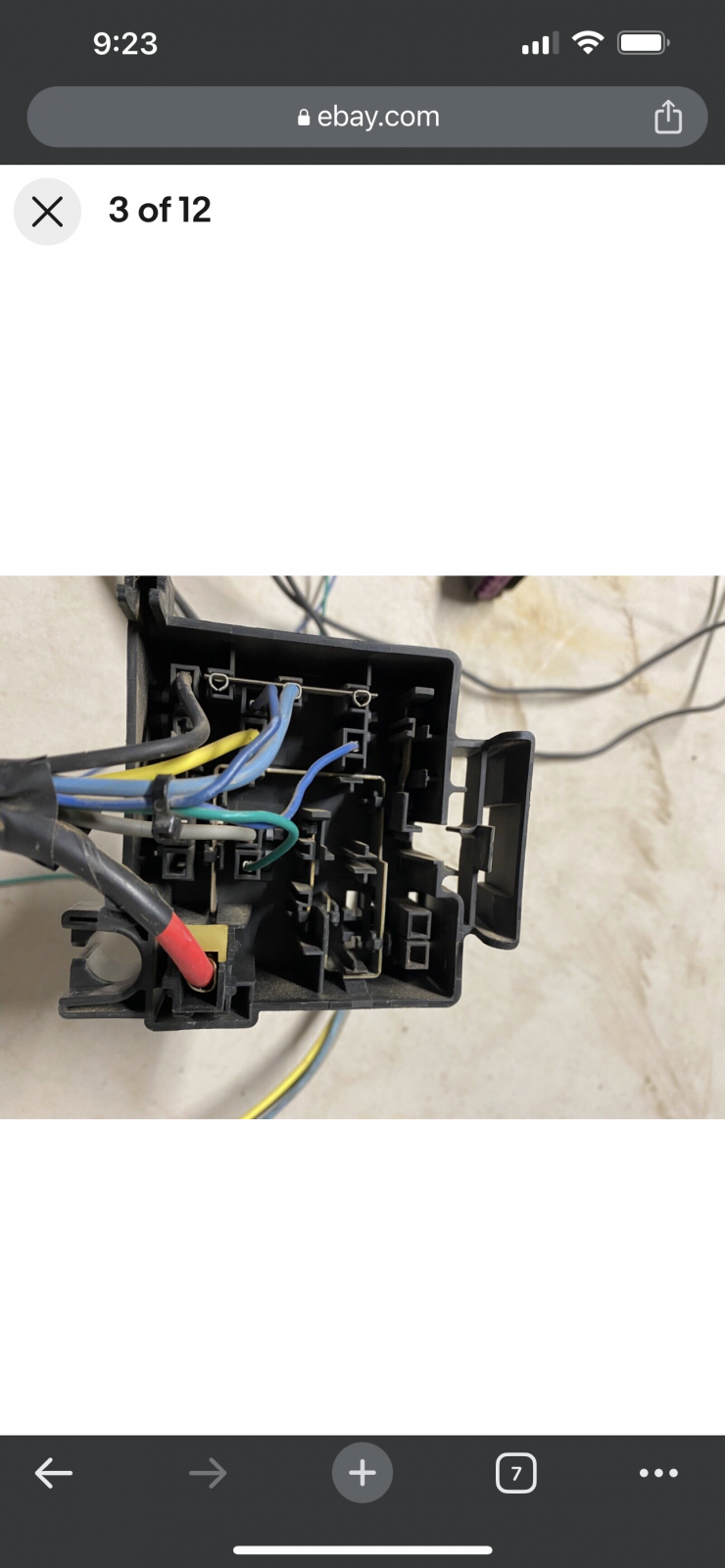

15215145 is the fuse box cover with accommodation for the OEM fan harness. Lift the main one up and slide the fan one in next to it on the right if you’re looking at it from the DS fender. You’ll see the area the circular part fits over. The non e-fan cover will fit over the harness, you just won’t have fuse or relay access without taking the whole thing out. This has a small removable piece on top.


Haven’t had any luck finding a pic of where the grounds come out of the OEM harness, yet. Tried to find a view on my old GMSI but no dice. Someone should be able to find a wiring diagram for that box, though.
Awesome, thank you for that part number, just what I was looking for found it on ebay for $28


Sam Harris

Supporting Member
Joined
Sep 26, 2018
Posts
7,423
Reaction score
14,884
Location
Texas
Doing my efans soon, I have an oem harness, where did you put your fuse box?
I bought mine on eBay. It was NIB, GM & just over $20 shipped. Unfortunately, looking again the other day, I didn’t find any. Might have to source it elsewhere. I was also looking for the p/n, and couldn’t find it. I still have the original in the box it came in. I’ll check for the p/n on that box..

ETA: @mattbta beat me to it.


ScottyBoy

Full Access Member
Joined
Jun 27, 2010
Posts
2,581
Reaction score
1,754
Location
Shreveport, La
Where do your 2 grounds trace back to on the harness?

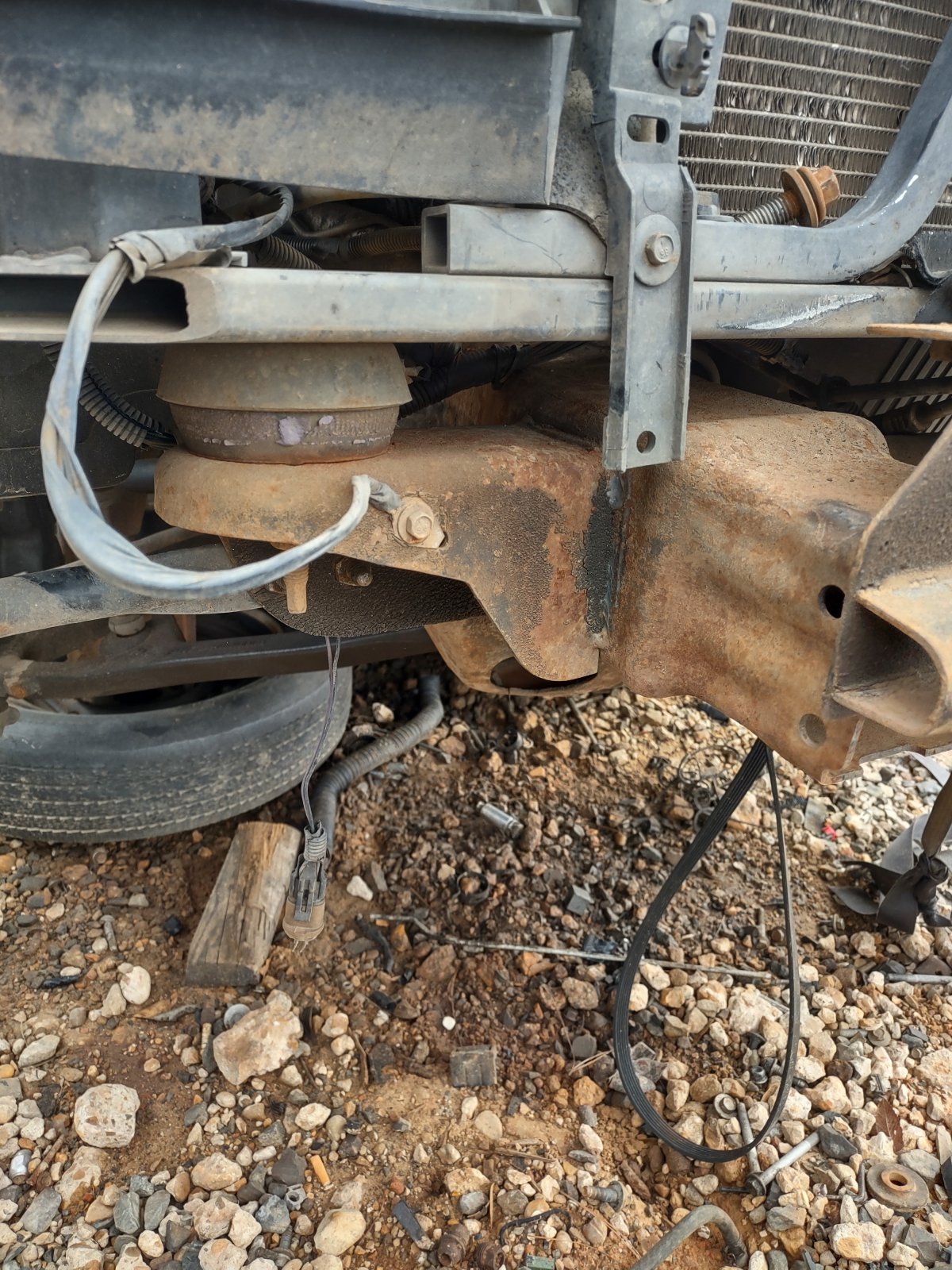

The double wire ground on the 05+ trucks is a ring terminal attached to the factory side frame rail just above the passenger side frame horn/bumper bracket. It's difficult to see it unless you are specifically looking for it.
I attached mine in the same general area. I grounded it to the bolt that holds the horn to the passenger side frame. And you know that's a good ground because the horn is grounded through that same bolt.


Sam Harris

Supporting Member
Joined
Sep 26, 2018
Posts
7,423
Reaction score
14,884
Location
Texas
The double wire ground on the 05+ trucks is a ring terminal attached to the factory side frame rail just above the passenger side frame horn/bumper bracket. It's difficult to see it unless you are specifically looking for it.
I attached mine in the same general area. I grounded it to the bolt that holds the horn to the passenger side frame. And you know that's a good ground because the horn is grounded through that same bolt.
Thanks for this. I’ll move mine next time I’m doing some work on her.


mattbta

Full Access Member
Joined
Jun 19, 2012
Posts
1,070
Reaction score
1,941
Location
Frisco, TX
Thanks for this. I’ll move mine next time I’m doing some work on her.
Yeah, I tried to use the original/factory spot on mine with a bolt i forced in, but it didn't work (fans wouldn't turn on), so for now I punted and put it on the same spot driver side where two other grounds are. Now to either buy a proper bolt for the factory location or use this spot @ScottyBoy mentioned since I didn't reduce the length of the ground wires. Thanks.
