Driver seat and pedals stuck on preset 2

[Big Mama]

I know I saw this and I think it was traced to the memory controller. My 07 Denali only does this when my wife hits her preset now it’s stuck for 5’1” woman and I’m 6’2”. Anyone recall this? I’m headed out now to dive in looking for codes and fuses. She’s no longer allowed to drive it. Happy Fathers Day All.



[Big Mama]

Update:fuses for memory seat and driver panel/remote both good. Checked ground on B pillar also good. No codes battery cables and all grounds solid. Connector under seat solid.



[Doubeleive]

get in and set the seat, pedals and mirrors how you want it then press and hold in preset 1 until you hear it beep, that will reset preset 1 and preset 2 will stay the same as it is unless you change it also



[PG01]

Exactly, I think either you or her held your setting button too long and it set to her position...try it and let us know..... ps my wife does it all the time



[Big Mama]

Sorry I didn’t explain that well. The seat won’t move at all using the switches on the side or the presets. Hard to believe all 3 motors went bad at once along with the pedals.



[Fless]

If your truck has the easy entry feature, try setting that in the DIC and see if the seat moves when you unlock with the remote.



[Big Mama]

Thanks. Tried several combinations of turning exit seating off/on memory seats off/on locking and unlocking with no change. The only thing I didn’t reset was factory settings.



[Big Mama]

Any other ideas before ordering the controller?



[Fless]

Disconnect the seat power (and/or remove the seat) and power it independently. See if it will move without the controller. It should, if the motors and switches are good.



[PG01]

If say unplug it for a little while, the seat, like steve said, give It about 15 min and plugger back in.... see where that gets ya..



[Big Mama]

Thanks gave it a go and no luck. Tried disconnecting seat, which is a PITA with seat all the way down, tried disconnect battery no luck. Do y’all know where the memory module is? I’m going to try disconnecting the wires to the memory buttons for the heck of it. Know any manual methods to move seat without screwing it up?



[Doubeleive]

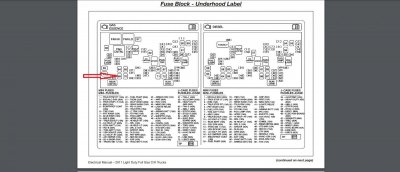

Check the fuse box, underhood #69 60amp



[Doubeleive]

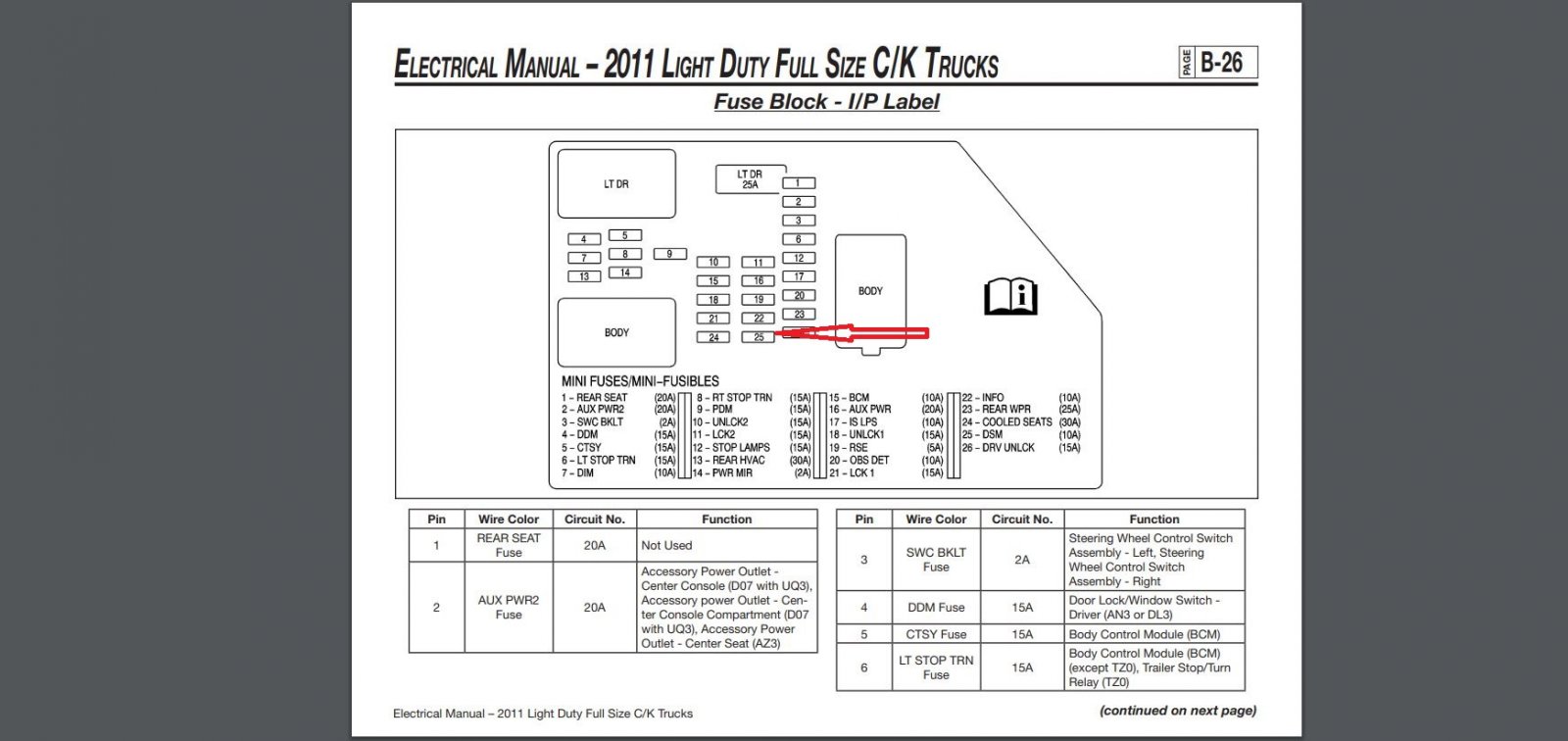

also check # 25 left side dash fuse block



[Doubeleive]

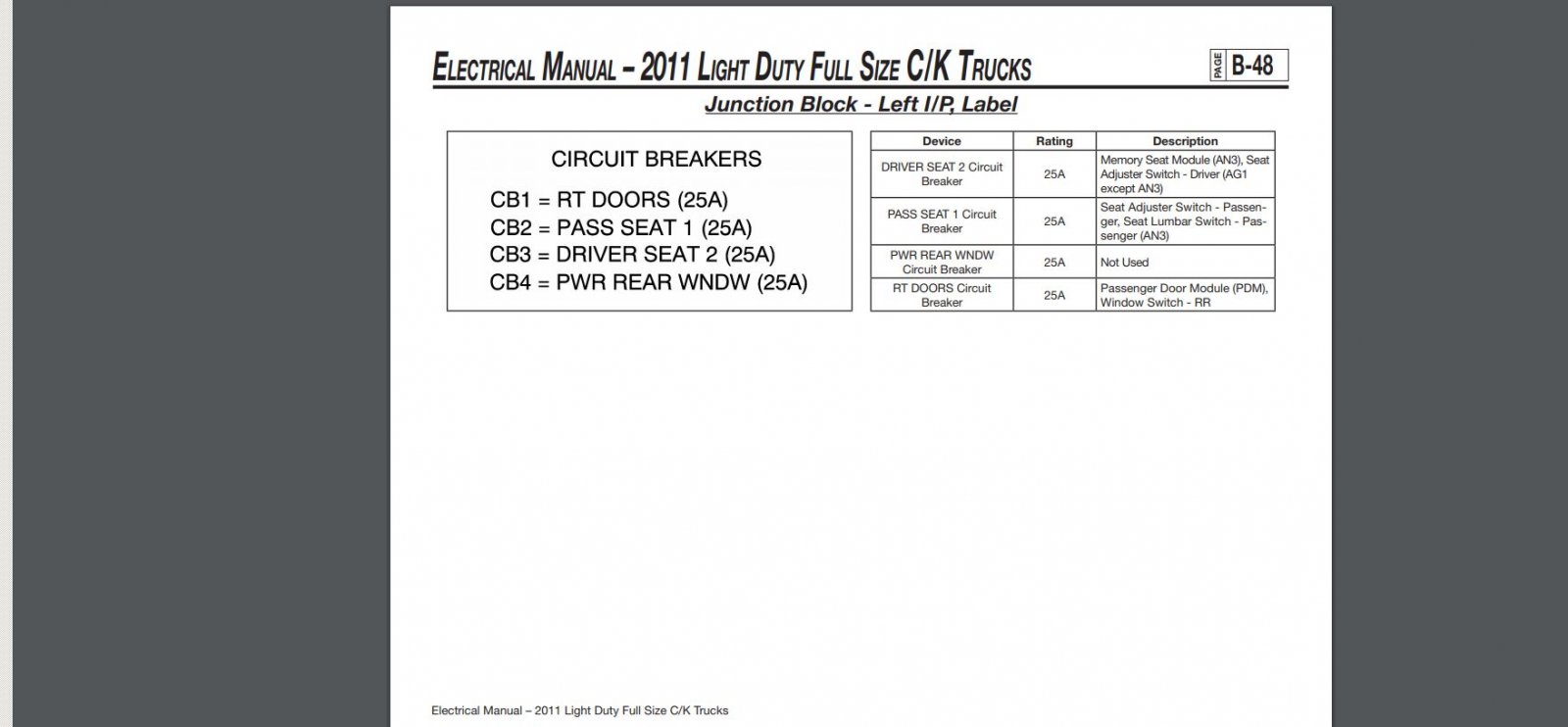

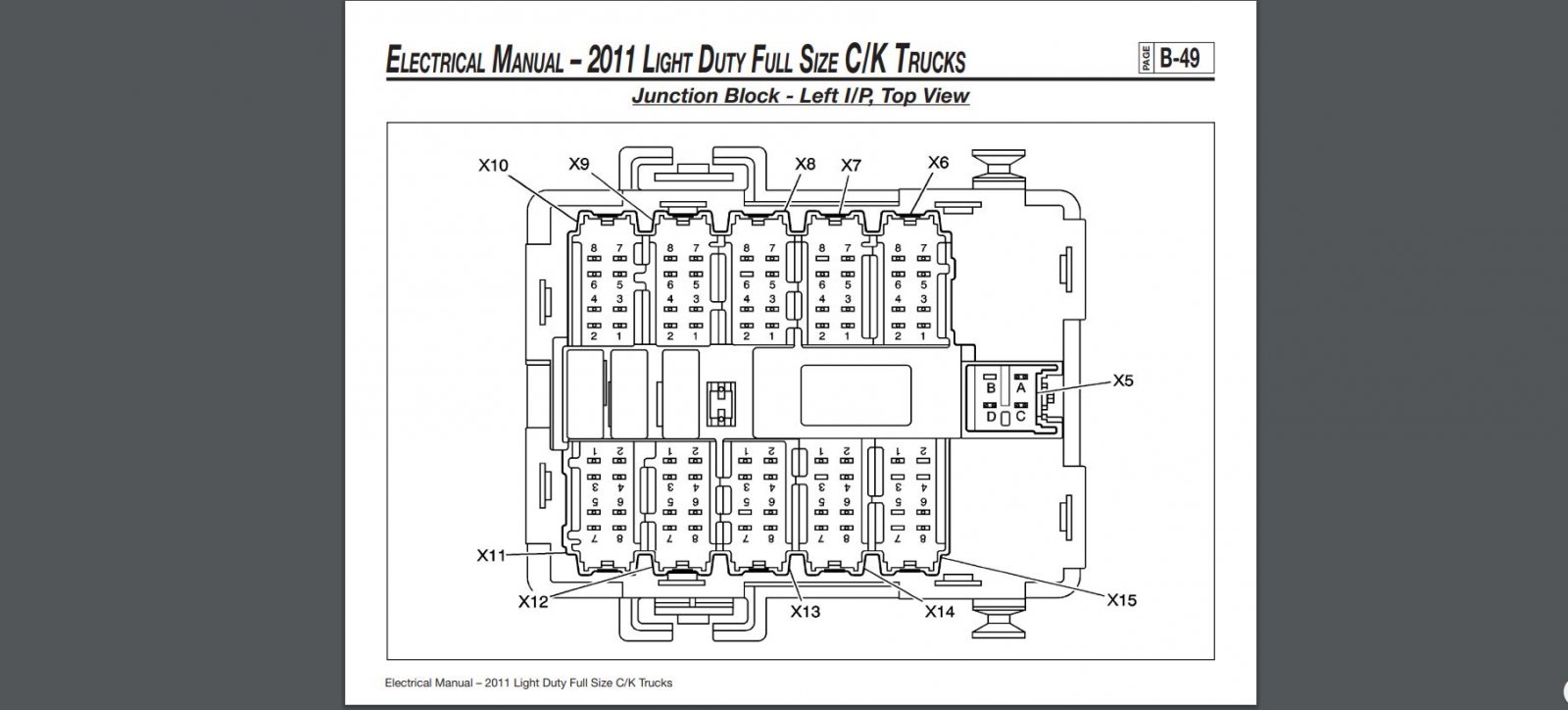

and looks like there is also a circuit breaker in the drivers left floor junction box, -circuit breaker 3 -CB3



[iamdub]

Checked your grounds? Isn't there a ground wire under the seat for the motor and/or controls circuit(s)? You may need to unbolt the seat and tilt it back to have a clear view of the underside.



[swathdiver]

I know I saw this and I think it was traced to the memory controller. My 07 Denali only does this when my wife hits her preset now it’s stuck for 5’1” woman and I’m 6’2”. Anyone recall this? I’m headed out now to dive in looking for codes and fuses. She’s no longer allowed to drive it. Happy Fathers Day All.

Mine has been acting up too. Sometimes the seat won't go back upon exit and won't come forward and pressing the memory buttons does nothing. Other times it works just fine. Code comes up B2375 5A and B2375 06 which is for the Horizontal Position Sensor for the left seat. Last time I looked, that was part of the Memory Seat Module (MSM) (don't remember for sure) and that thing is embedded inside the driver's seat. Needless to say with summer here, I'm not touching it until the weather cools.

Manual controls work and we tested the connector and it was fine as well. I wonder if the movement or people's feet causes a loose connection?



[Big Mama]

Checked your grounds?

if it’s the same one the ground is on the B pillar about 8 inches off the floor and it looks good I didn’t check under hood fuses or relays or the others Wes mentioned. Will do this morning. Thanks

if it’s the one I saw on the B pillar it looked great but I didn’t notice the junction box Wes mentioned so I’ll double check. Thanks



[Big Mama]

Mine has been acting up too. Sometimes the seat won't go back upon exit and won't come forward and pressing the memory buttons does nothing. Other times it works just fine. Code comes up B2375 5A and B2375 06 which is for the Horizontal Position Sensor for the left seat. Last time I looked, that was part of the Memory Seat Module (MSM) (don't remember for sure) and that thing is embedded inside the driver's seat. Needless to say with summer here, I'm not touching it until the weather cools.

Manual controls work and we tested the connector and it was fine as well. I wonder if the movement or people's feet causes a loose connection?

Thanks James, I’m on the other end with it stuck all the way down and forward so even getting to the front bolts is a bear. Going to try some things this morning and I’ll report back. Does anyone know if there’s a way to manually move the seat?



[iamdub]

Thanks James, I’m on the other end with it stuck all the way down and forward so even getting to the front bolts is a bear. Going to try some things this morning and I’ll report back. Does anyone know if there’s a way to manually move the seat?

Use external 12v source to power the motors individually.



[swathdiver]

Thanks James, I’m on the other end with it stuck all the way down and forward so even getting to the front bolts is a bear. Going to try some things this morning and I’ll report back. Does anyone know if there’s a way to manually move the seat?

A Tech-2 might do it or make up some wires with (alligator clips?) out to the battery and power the motors direct like Chris mentioned.
