DIY Alignment 07 Tahoe 4WD

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

iamdub

Full Access Member
Joined
Apr 23, 2016
Posts
20,712
Reaction score
44,433
Location
Li'l Weezyana
My man!

I dropped mine with spindles and struts and replaced all the arms (new bushings and BJs) at the same time. I kept the original alignment settings even after I elongated the slots to use the Belltech cams so I'd have a solid baseline. I used two large ("12 Ton") HF jack stands as my anchors for the string and just did one side at a time. Squared the front off the rear using a stainless metric ruler, aligning the ruler mark with the center of the string for as much precision as possible. For camber, I used a digital angle finder (https://www.amazon.com/Klein-Tools-935DAG-Electronic-Measures/dp/B07ZWW3BW5). I cut a piece of angle iron to span the wheel lips, covered it with painter's tape so it wouldn't scratch the wheel and stuck the angle finder to the center (magnetic). I didn't have a solid way to measure and set the caster, so I erred for more positive caster. I actually have too much, but it's mostly harmless. I hade all four wheels on matching stacks consisting of a concrete block and 2x8s. I put cheap cookie sheets under the front wheels to make turning the wheels by hand easy. I don't recall the toe-in I set, but I wanna say it was 1/16". I don't recall if that was per side or total (1/32" per side). I brought two large crescent wrenches with me on the first test drive to stop at the park and fine-tune the toe to center the steering wheel. I'd adjust each side as evenly as possible, taking from one and giving that same amount to the other, to maintain the toe but "push" the steering wheel whichever way until it was level/centered.

All this was intended to get it within a safe range to drive to an alignment shop. ~25K miles later, I've yet to touch it. Tires wear evenly, it doesn't pull, steering wheel is straight and the only odd feeling is when backing and turning due to the excessive positive caster making it act like negative caster would when rolling forward. I'm not finished with the suspension stuff so I'll adjust out some of that caster then.

OP
OP
89Suburban

89Suburban

Bull in the china shop
Supporting Member
Joined
Jan 10, 2013
Posts
12,843
Reaction score
35,169
Location
SE PA
HUGE difference of readings on a super flat troweled floor. Dang.


Going R/R to R/F listening to thing that should not be:








6B3B2E0E-0534-4268-B3EC-594BD6FC1CDB.jpegC6AE7E9D-8F7E-470D-BAB9-BBC2A653B834.jpeg67D2DC3F-ACB7-4FFE-9212-30A2700DFC6D.png


Joseph Garcia

Supporting Member
Joined
Aug 2, 2018
Posts
6,386
Reaction score
8,312
Very interesting and innovative techniques. Thank you for sharing. (I will continue to go to my alignment shop, though. LOL)

Joined
Apr 11, 2018
Posts
6,282
Reaction score
12,258
Location
St. Louis
So how hard is it to adjust the camber? I know the upper control arm bolts have those curved washer thingys and I'm guessing the bushing is off center. What do you actually do, loosen the bolts and use a prybar or something to move the control arm at the bushing in/out/up/down/etc then tighten back up?

OP
OP
89Suburban

89Suburban

Bull in the china shop
Supporting Member
Joined
Jan 10, 2013
Posts
12,843
Reaction score
35,169
Location
SE PA
So how hard is it to adjust the camber? I know the upper control arm bolts have those curved washer thingys and I'm guessing the bushing is off center. What do you actually do, loosen the bolts and use a prybar or something to move the control arm at the bushing in/out/up/down/etc then tighten back up?

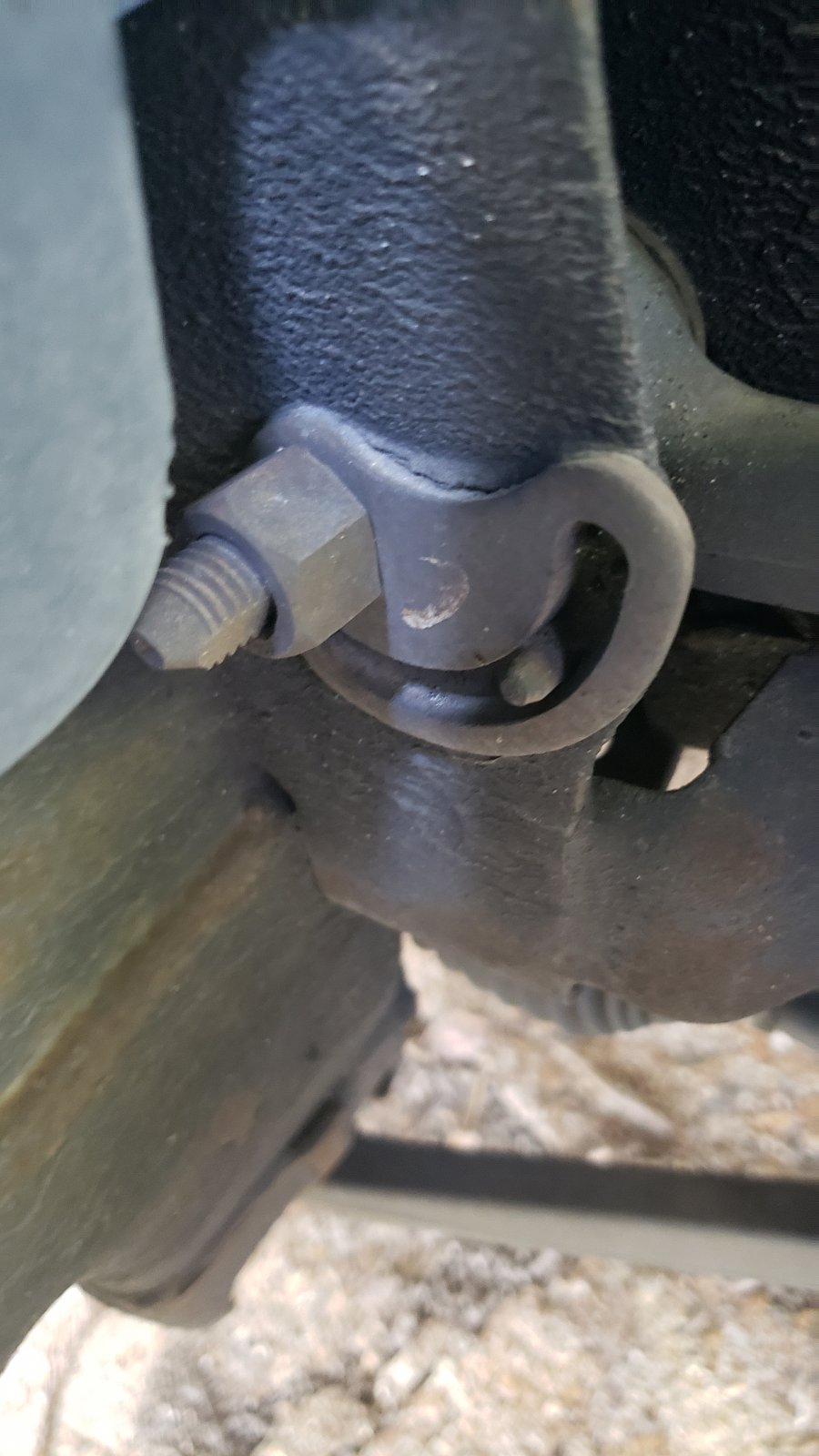

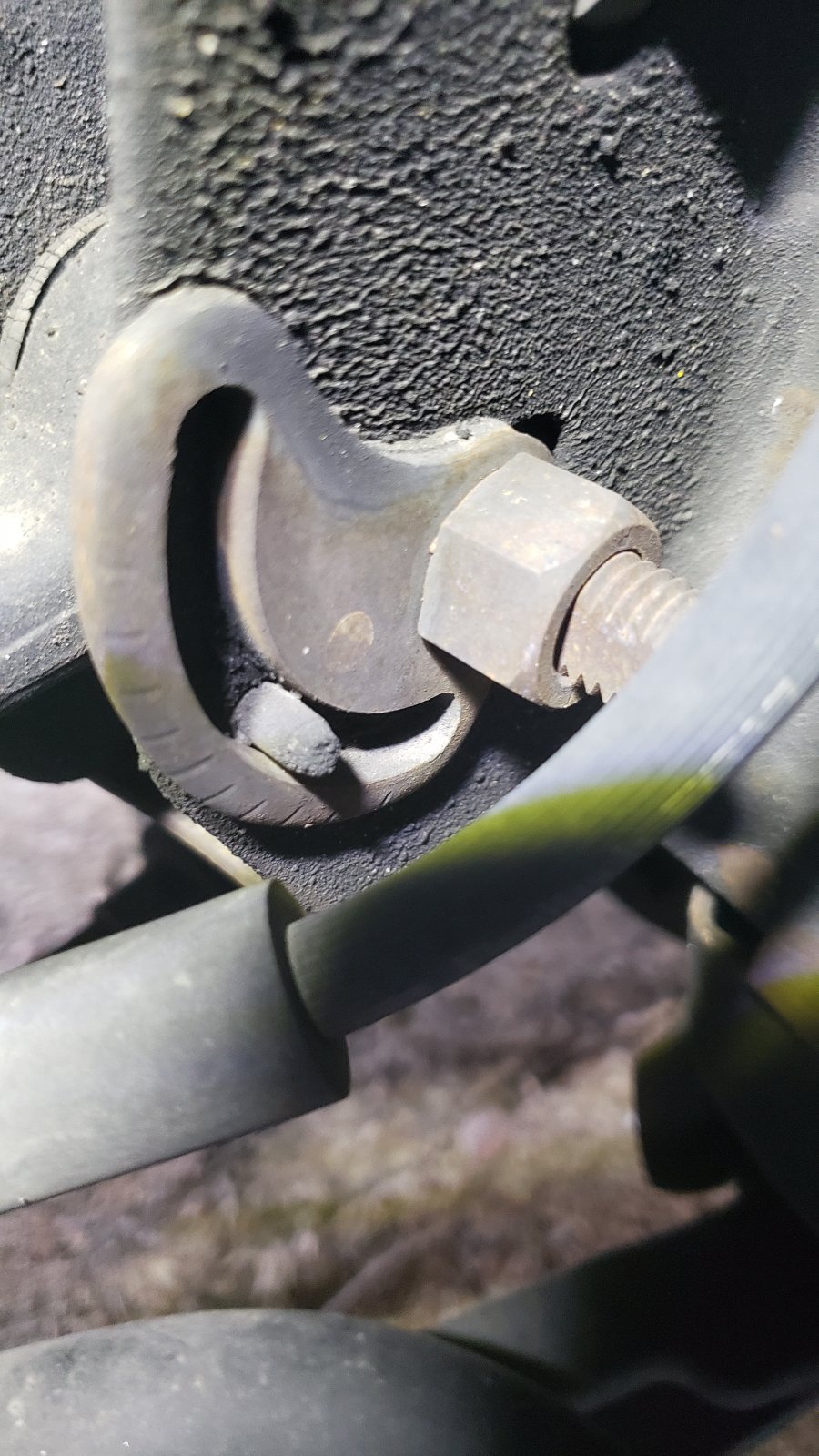

The 2 mounting bolts are straight, the bolt holes in the frame are slotted. There are small pins that stick out of the frame that the slot of the 4 washer keys slide on. Depending which way you turn the bolt head pulls the a-arm in or out. You adjust front to back for the castor and in or out for camber.


Attachments

  • IMG_0859.JPG
    356.4 KB · Views: 6
  • IMG_0860.JPG
    205.8 KB · Views: 6
