2007 Yukon Ipad in Dash project

[ovasquez]

Here is my little 2 month project:

1. new custom center console with 10" Alpine Type-R and a/c controls
2. relocate my amps from under old center console to under second row seats

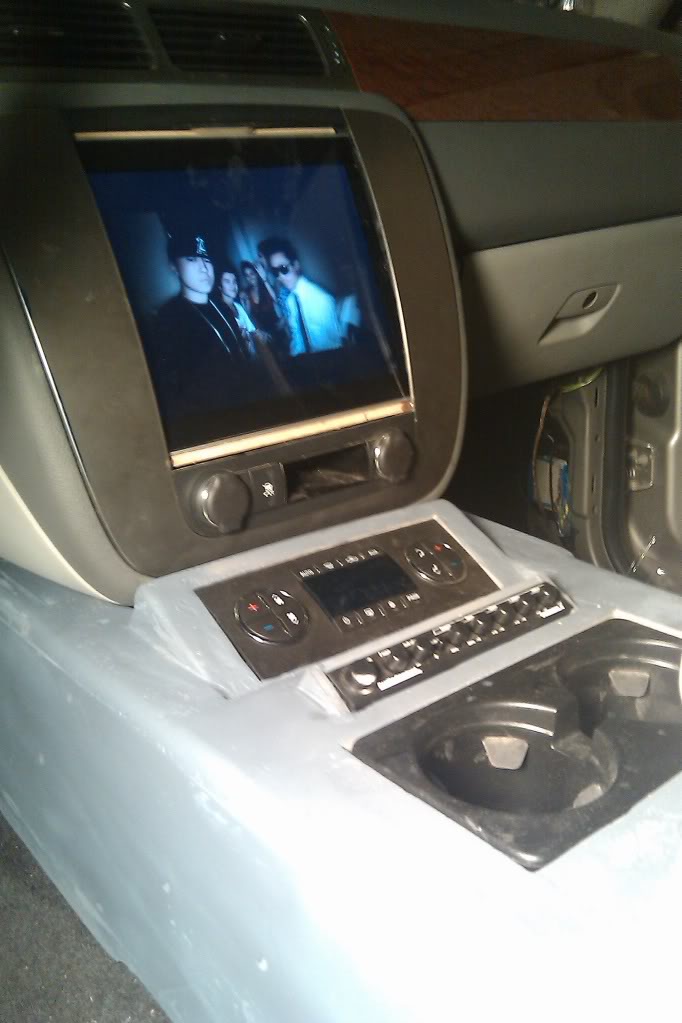

3. fabricate and modify dash bezel to hold ipad with motorization to make removable.

System......
- Ipad 3g
- Audiocontrol 3.1
- 1-Alpine PDX4.100
- 1-Alpine PDX5
- 2-Alpine PDX1.1000
- 2-Alpine 12" Type-X subs behind 3rd row seat
- 1-Alpine 10" Type-R sub in new center console
- 2-Pairs Alpine 6.5" Type-X Pro Components
- 2-Pairs JL Audio 3.5" Coax mid/highs
- Kicker 0-Gauge 3000 watt wiring
- Kicker & Stinger RCA

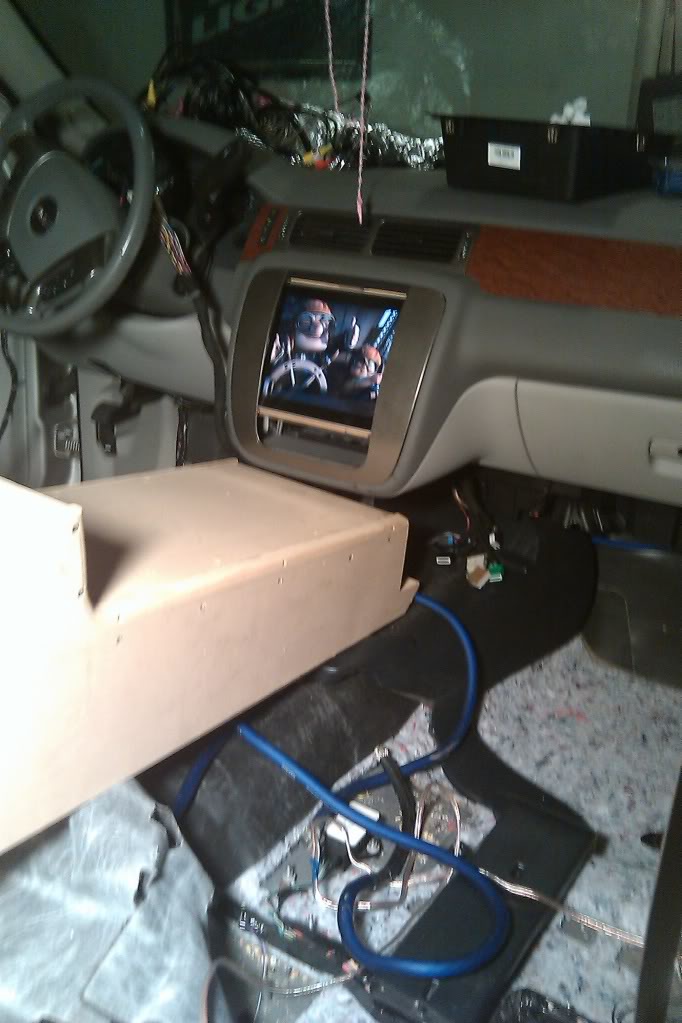

Here are some progress shots

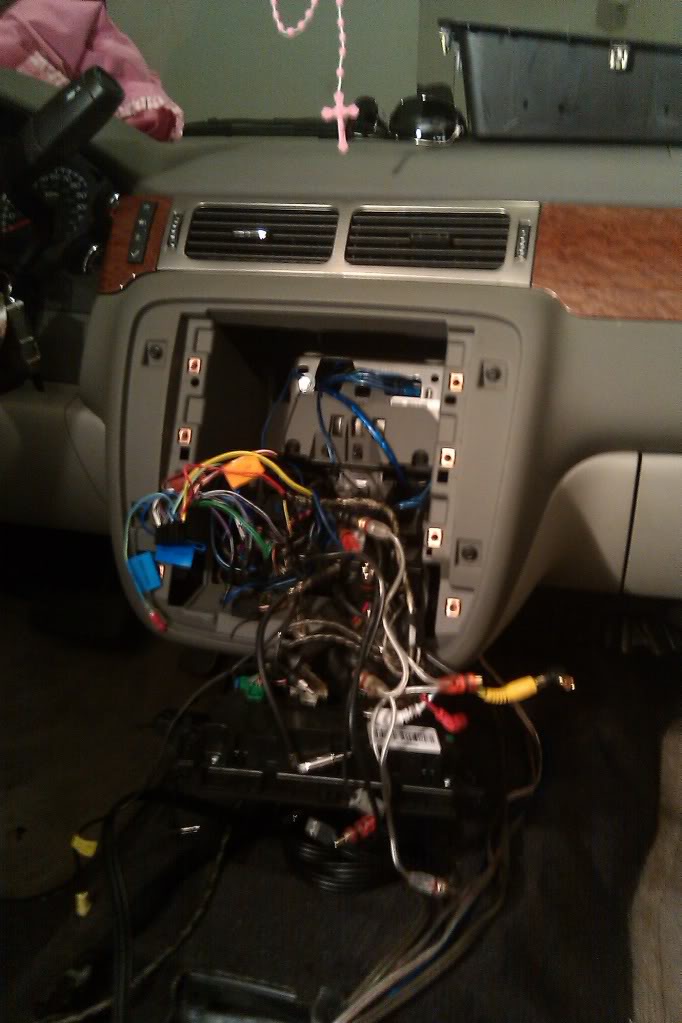

Tear Down

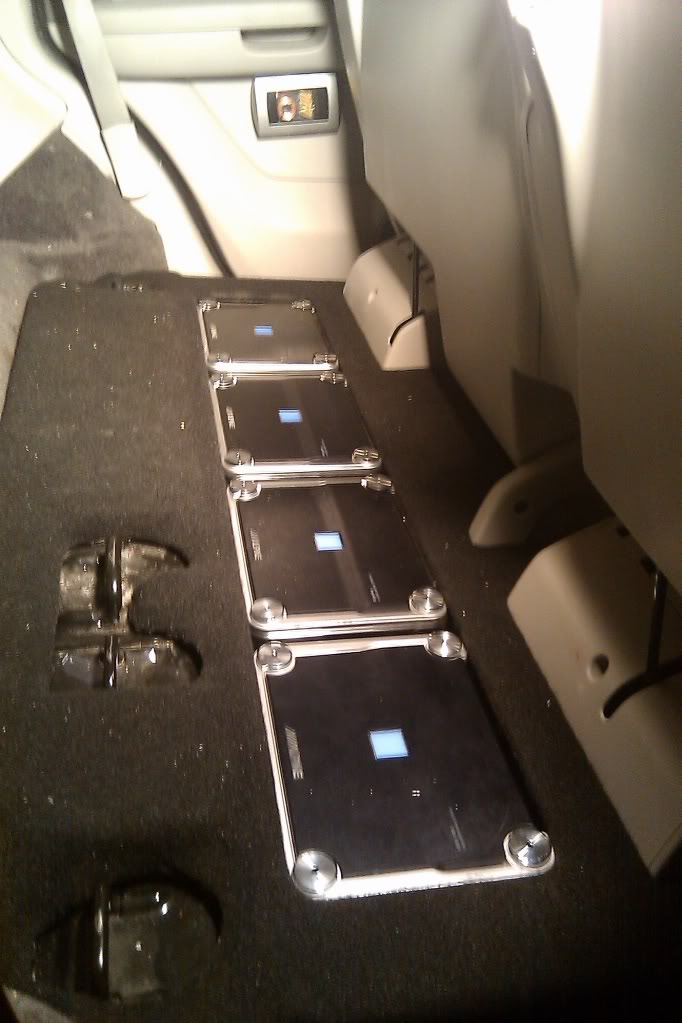

New Amp set up

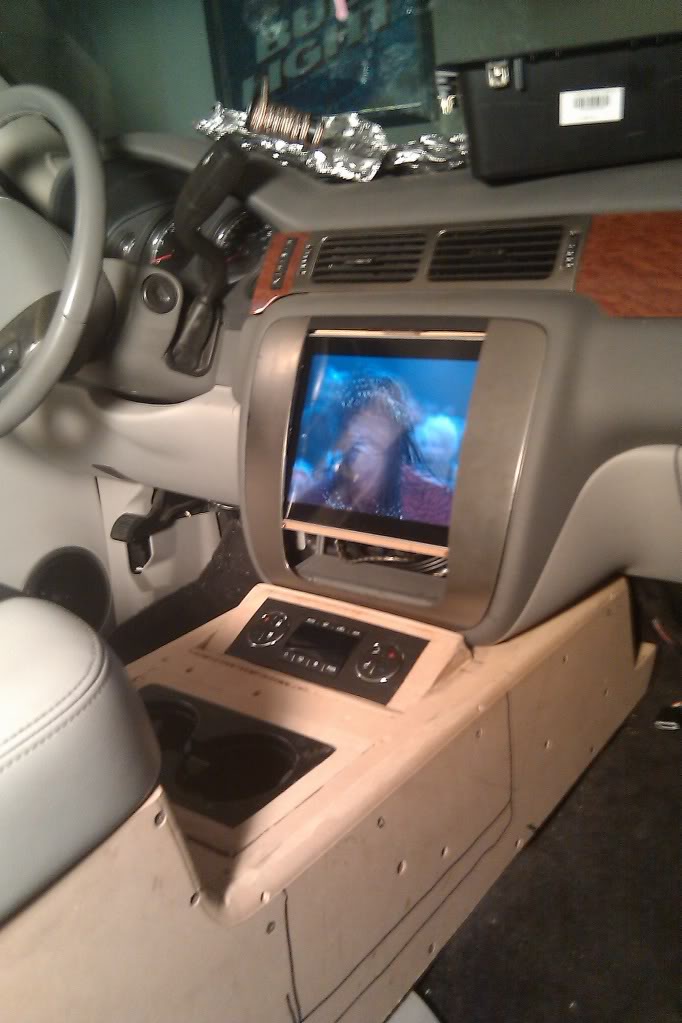

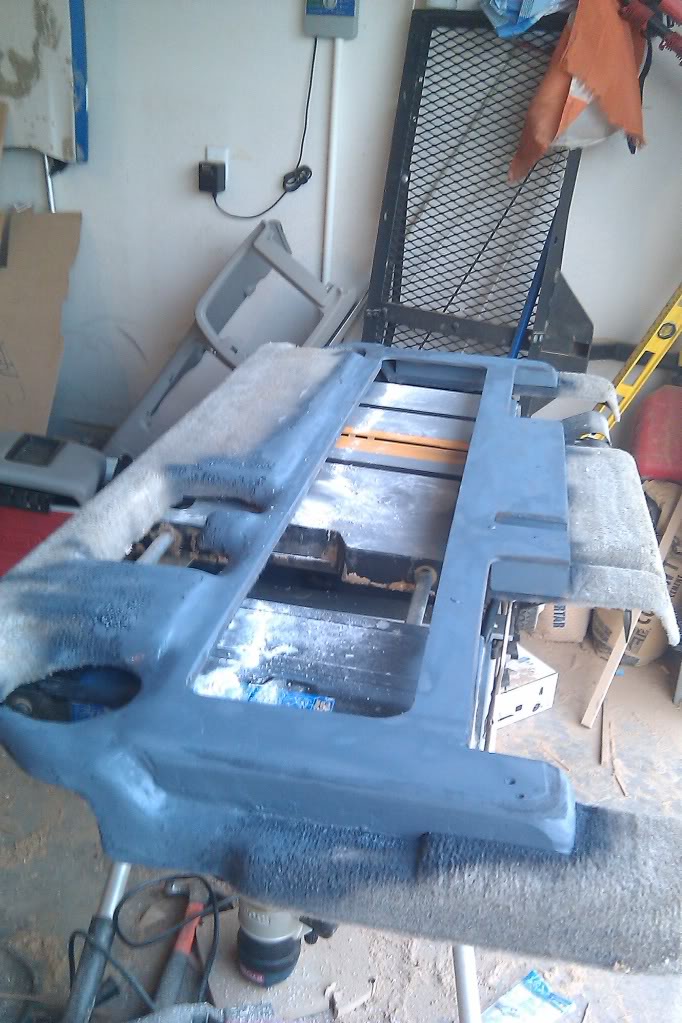

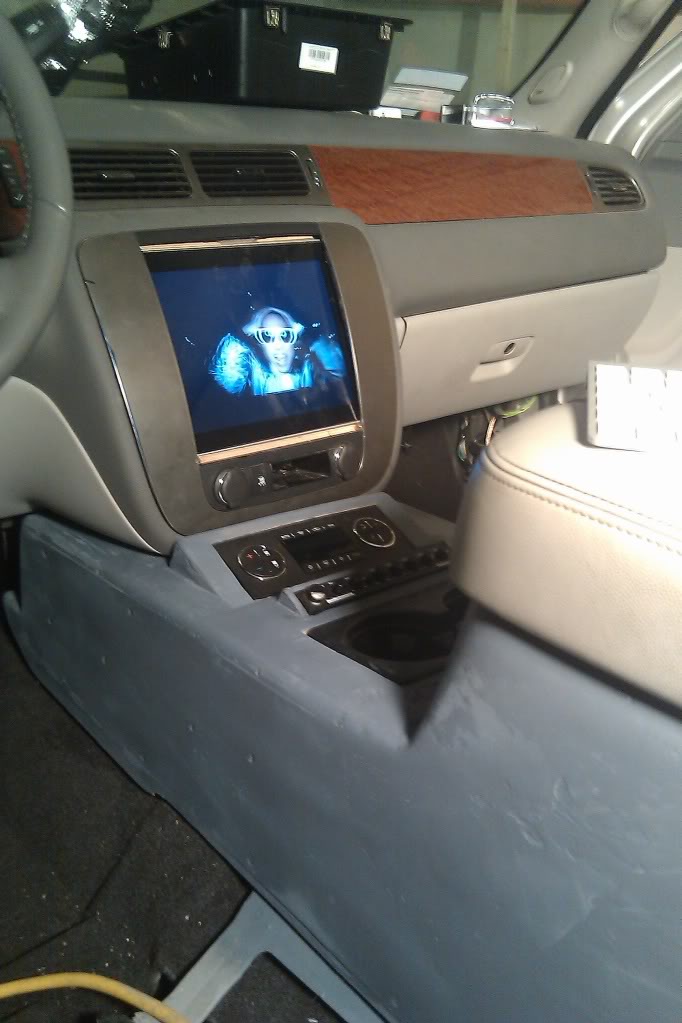

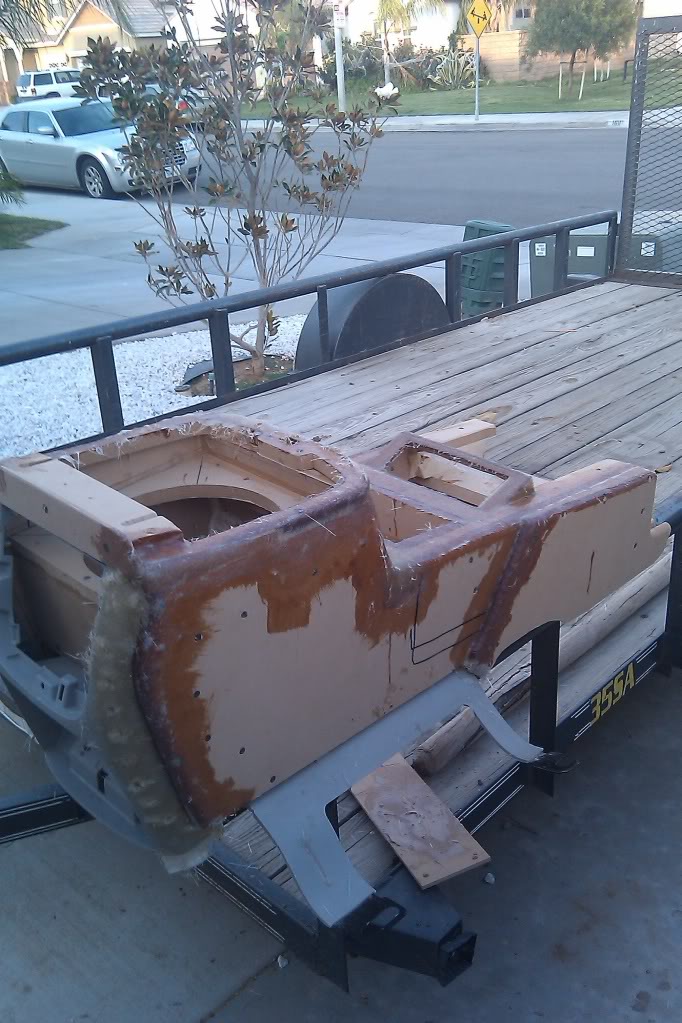

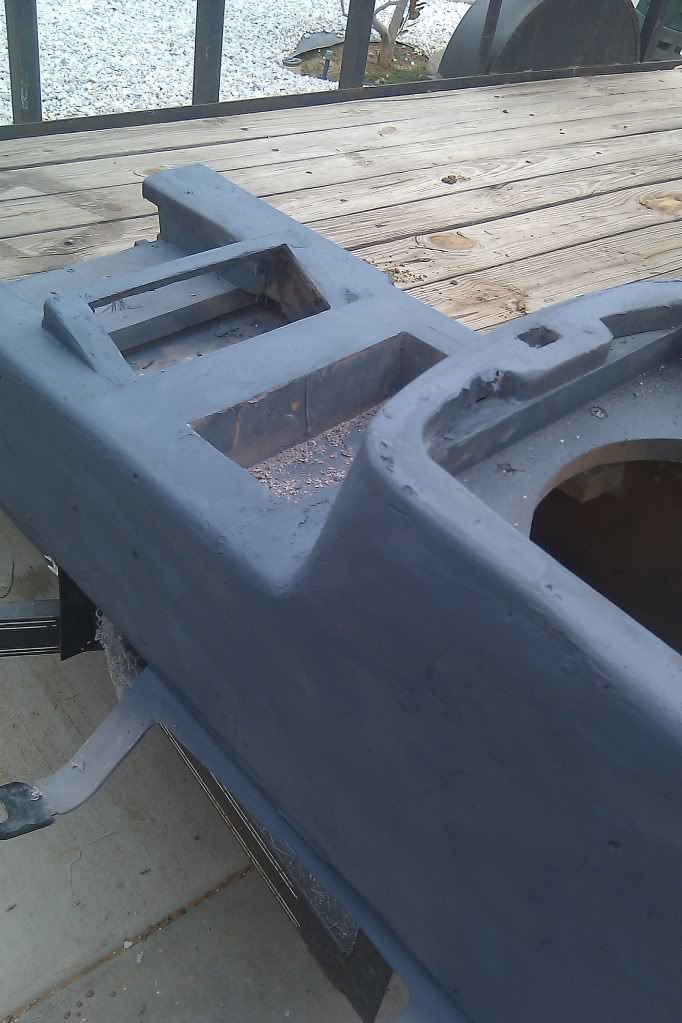

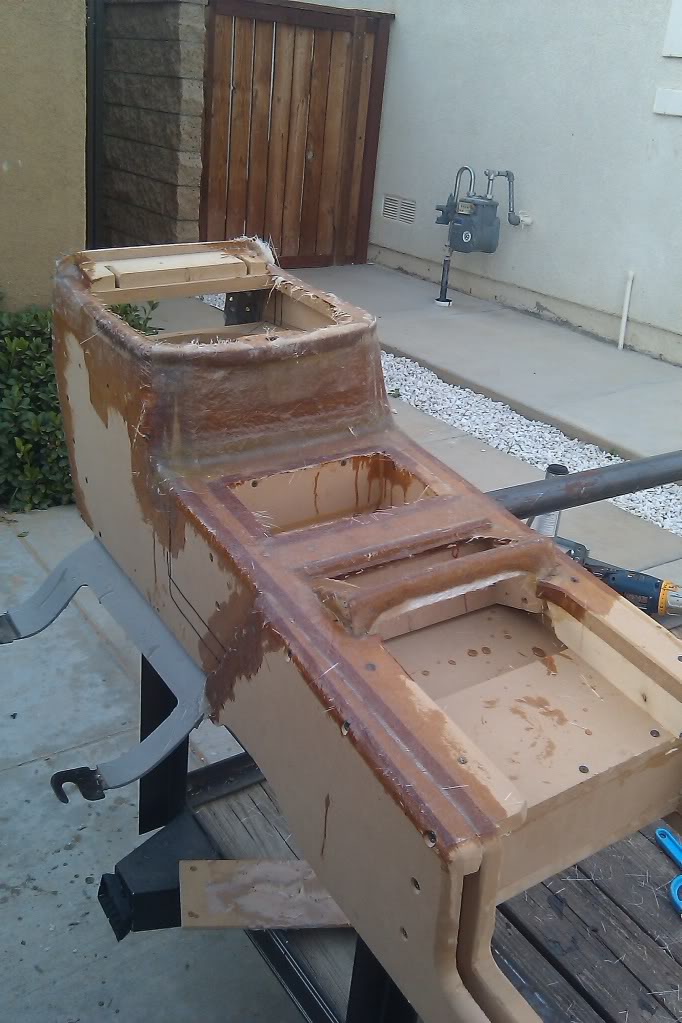

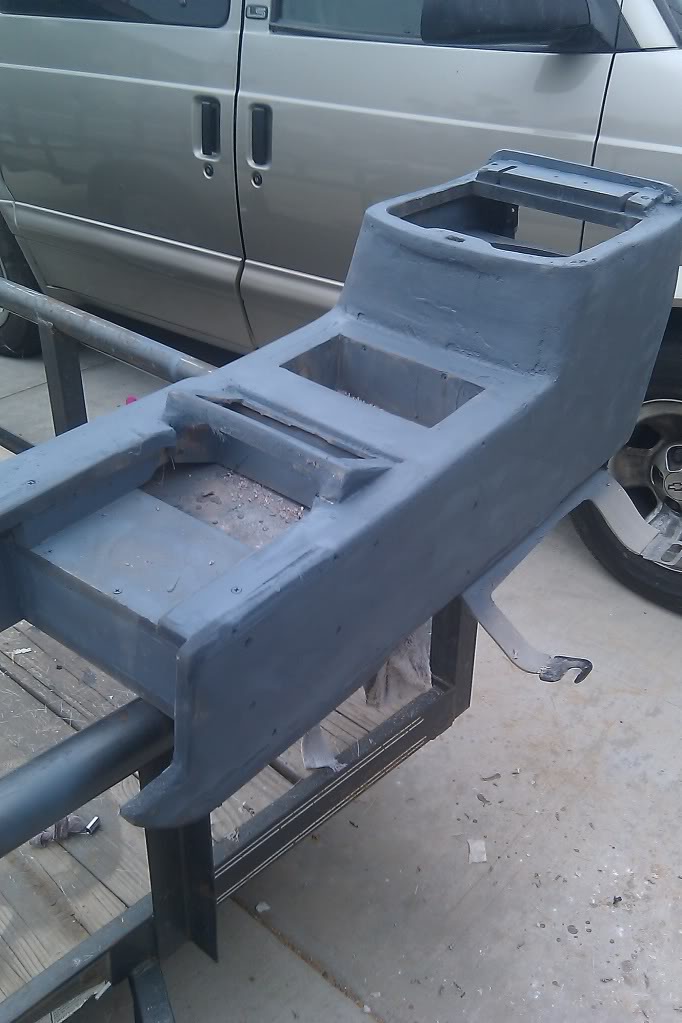

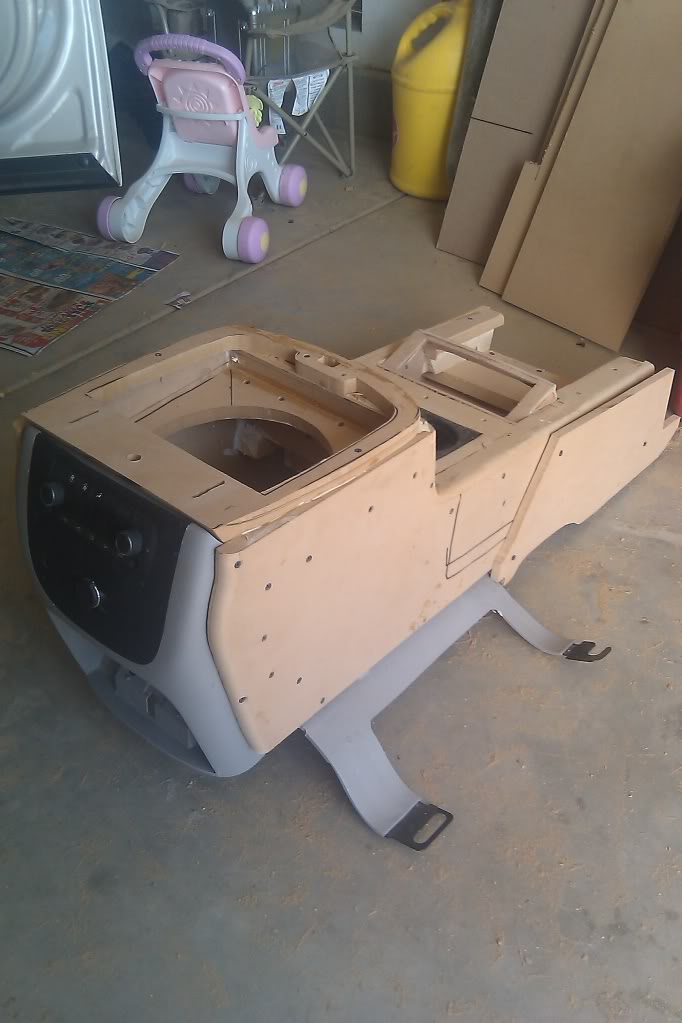

Console progress shots











more updates to come. Still need bodyshop to finish the console smooth and paint to match exterior. Still need to finish the dash fabrication...



[Effeckt]

This looks awesome! I'll keep an eye out to see the finished product. Nice work!



[puckhead]

Dang! Nice build! Cant wait for it to get finished!



[ovasquez]

thanks guys....



[Modded]

Nics build bro, looking good so far!
I'm staying tuned for this one!



[SabrToothSqrl]

Wow

Holy crap load of work bat man, but, wow... nice...

I want an ipad, but i'm waiting for version 2 or whatever comes next for it...



[ovasquez]

Holy crap load of work bat man, but, wow... nice...

I want an ipad, but i'm waiting for version 2 or whatever comes next for it...

Thanks.... I have a feeling that the next version will have a side-mount dock connector as well, which would make my install easier...... I'm just an inpatient sob!



[LazyAssLou]

Oh wow! That is nice!!



[sumo]

sick!



[BabyHuey]

How do you connect all this equipment to your ipad? i've been curious every sicne people started installing these in vehicles? What type of inputs does it have?
