Hello,

*As of 2.16.2023 is a work in progress. I will update post and photos as I complete.

This will be my second radio install, first was a 2001 suburban. I know there are lots of instructions out there, but I have not found anything that really detailed my plan. I am not going to get too specific about harnesses and removing seats, trims etc.. but happy to answer questions if I can.

I had installed a aftermarket Boss double din previously, and was not too worried about quality at the time, I really just wanted Bluetooth and a backup camera. But after install, I am really not happy with the sound and decided to go all in, as I have never installed a traditional amplifier, subwoofer setup.

The Truck:
Bose system with “luxury amplifier” (this matters because this amp has the programming for the door chimes.. I am just going to delete and not worry about it) The stock subwoofer is located under the front console for those who do not know, as well is the amplifier. Yes... it is a pain to remove and wish GM would have made that easier, but honestly if you have tools and some knowledge its really not that bad.. I had both seats and console out in like an hour.. (might take you longer if you have never removed seats before. Proper air tools are a must.
The Plan:
I want to keep stock look without any extras bouncing around the back taking up space. I still haul sheets of plywood and building materials often and don’t want anything in the way. Pretty much why I bought this truck.
ADD additional subwoofer in the rear left, (This is where the stock sub is on 2001, 2002 and maybe 2003?). Replace console subwoofer with aftermarket unit.
All seats and carpet removed and sound deadening added to whole vehicle. (I also pressure washed carpet while at it.)
I will be running a Skar Audio 4 channel 100 watt rms amp for the door speakers, and a 1,200 watt monoblock to power both subwoofers. I also will be setting up a dual battery system and hooking up a power inverter while I am at it.

Subwoofer Box for the Rear: Note The Tahoes and Yukons are different than the Suburbans and XL. You will need to go to a junk yard or Craigslist and find a 2001, 2002 (maybe 2003) Suburban or Yukon Xl. And take the stock box from that for the rear.
-The retro fit is fairly easy. Pickup a nut clip thingy at the hardware store for the top right bolt. That one lines up in stock position. The top left bolt I just ran a self-tapping screw through. Careful your fuel filler line! The bottom of box has little tabs, but the stock holes are not there. I carefully marked my spot and cut/snipped/pried a slot for it to fit. Again, watch out for fuel filler line! Add some padding/ sound deadener and drive it in.
This box fits a stock 8” subwoofer (with sligh mod.). I only found 1 or 2 options that would fit this. It is VERY shallow, 3” top mount depth. I purchased a Kicker 48CWRT84. Mounting depth 2.75”. This leaves ¼” clearance behind the sub. You will need to modify mounting hole very slightly so that it will fit into recess. Like a 1/16” or less around the edge. I just traced it with a knife and took a little router with a straight bit and got it done. Easy peasy.

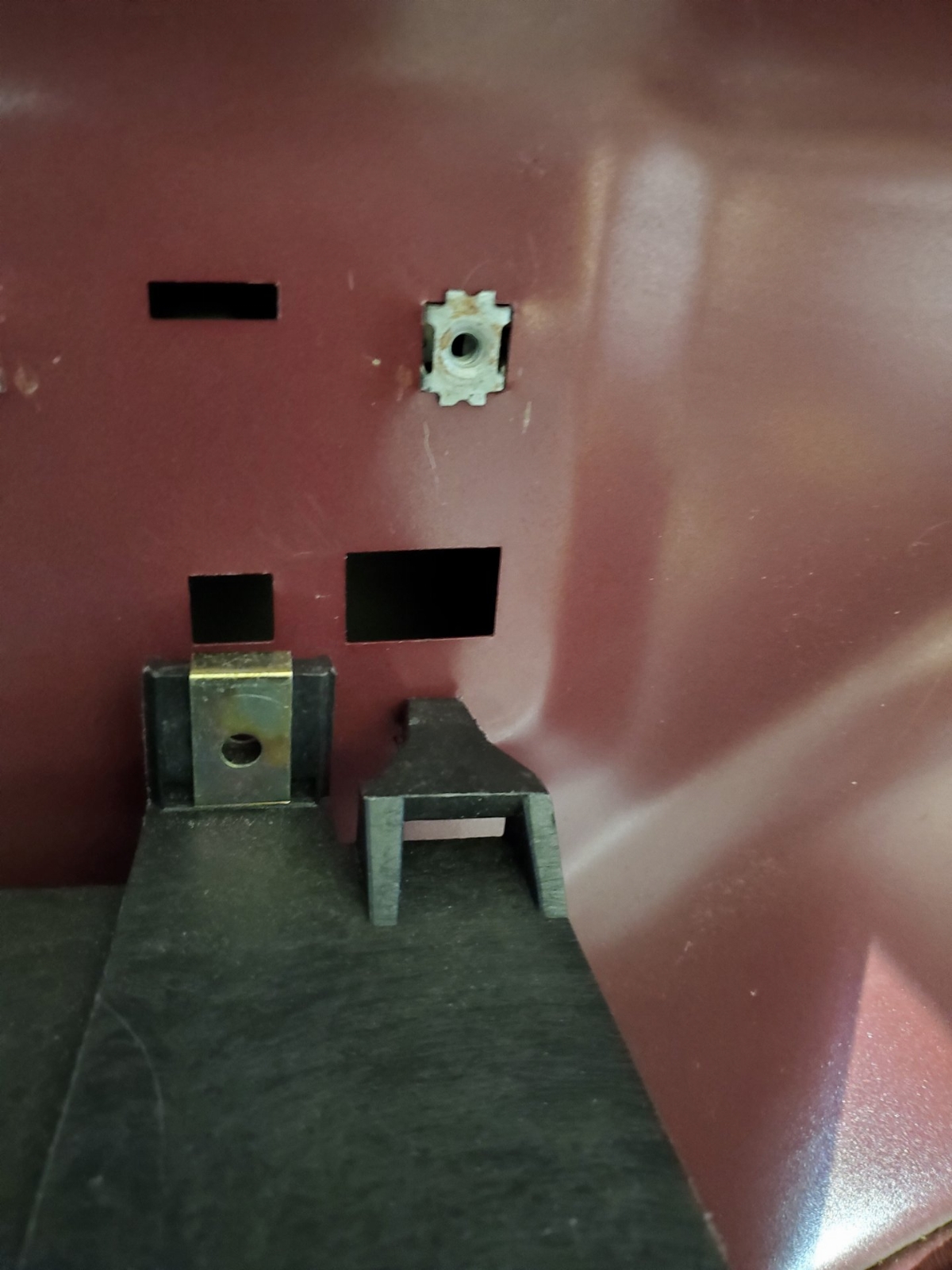

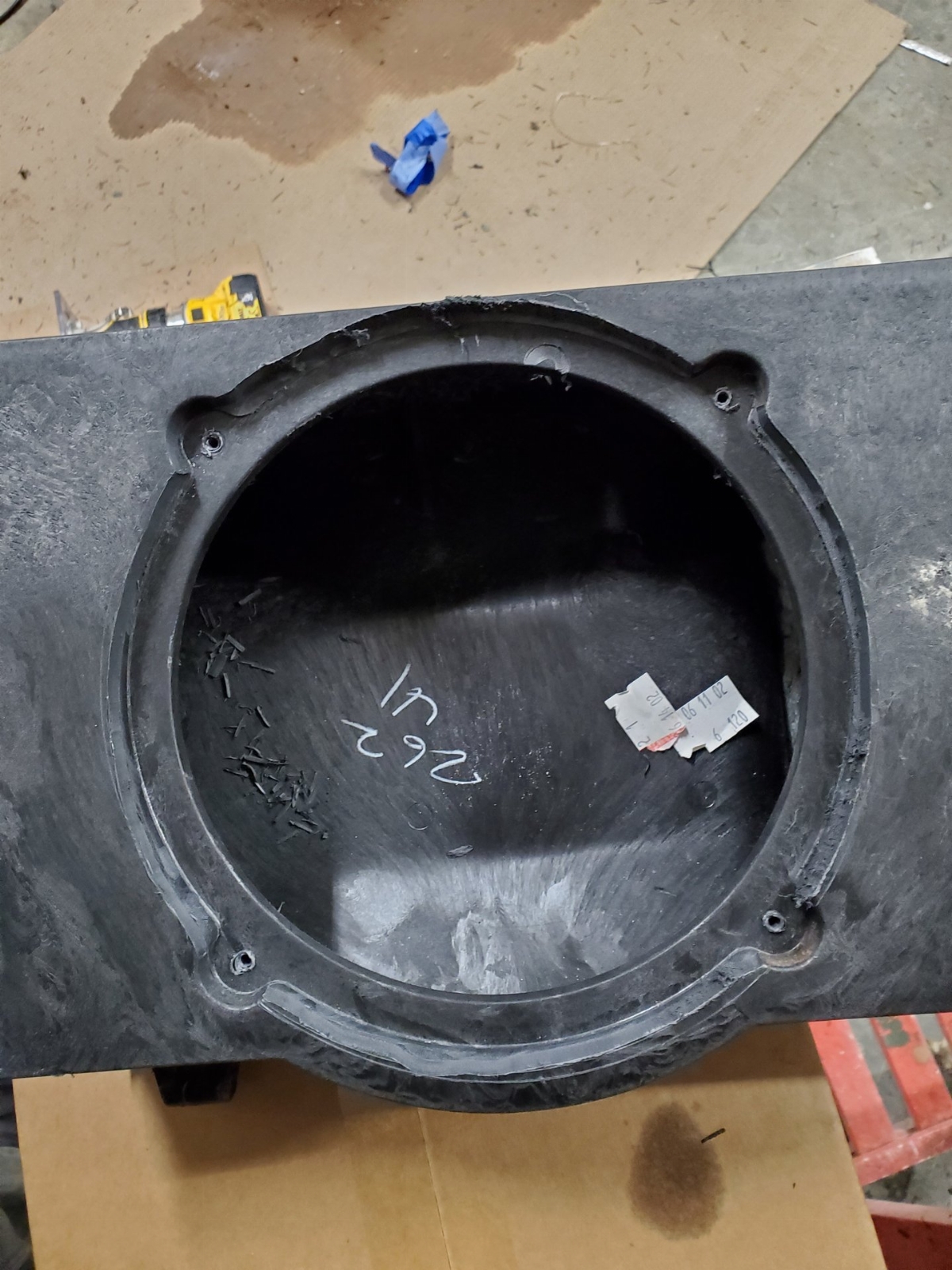

* "stock" mounting holes top right of rear sub box Slightly enlarged inset for new subwoofer.
Front (stock) subwoofer:

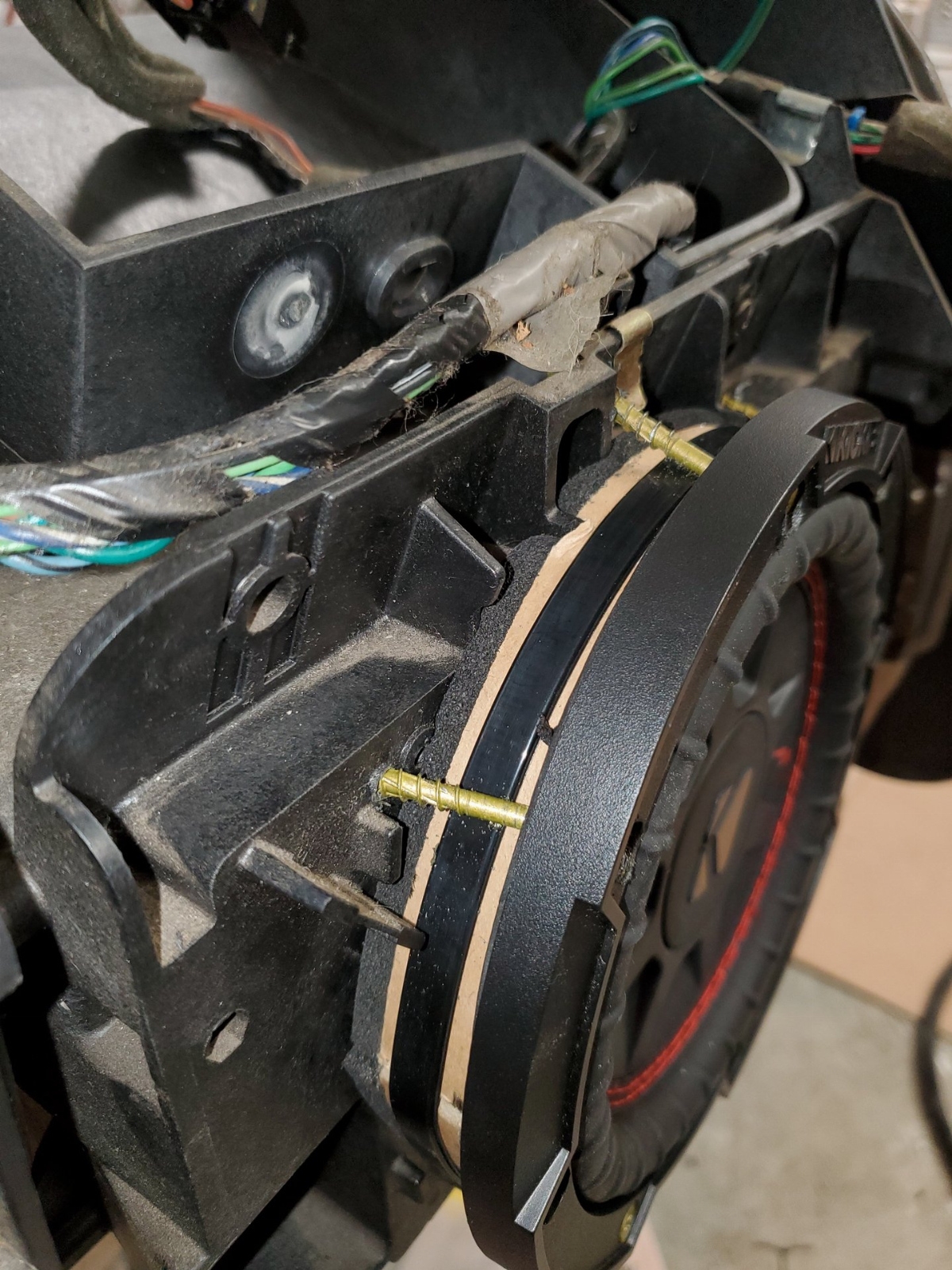

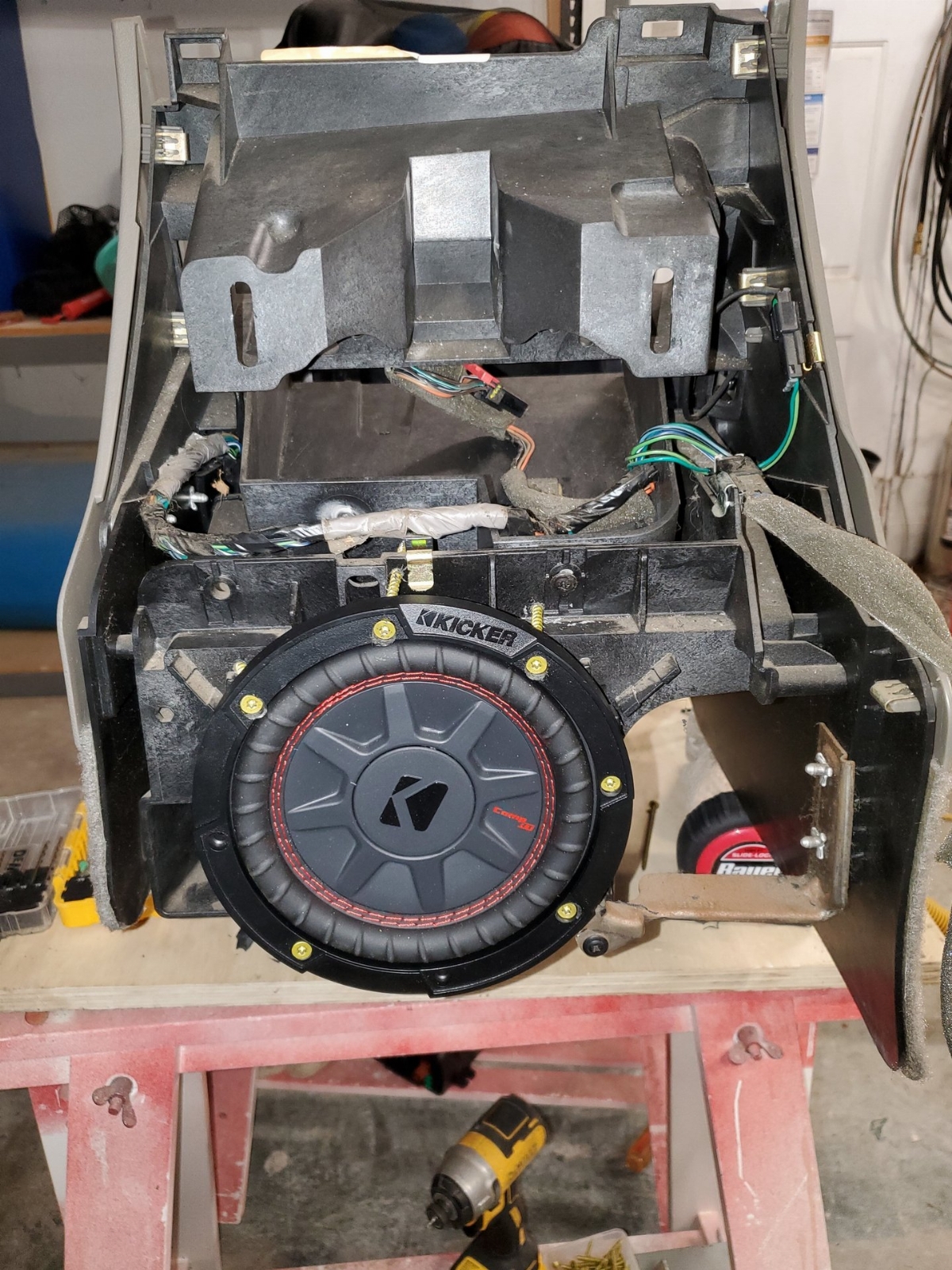

This one took a little more creativity. I purchased a 6.75” kicker shallow. Problem is that newer subwoofers tend to have a wide magnet/ base. This created clearance issues inside the mounting box. (see pictures)..So what I did was I took the outer mounting ring from my junkyard subwoofer. (made of durable cardboard stuff with foam ring). Cut it down to fit around the 6” sub and strapped it tight with a fatty zip tie and some speaker glue. This basically makes the subwoofer stick out further to eliminate clearance issues inside. Then just predrilled holes for screws wherever I could, and mounted the sucker in there tight. There was also a little hot glue involved (rear also, as I got a little off on my routing.) The stock box is ported, but the kicker called for sealed box, so I will fill the port with expanding foam. Hopefully it holds up over time, but its Great Stuff.

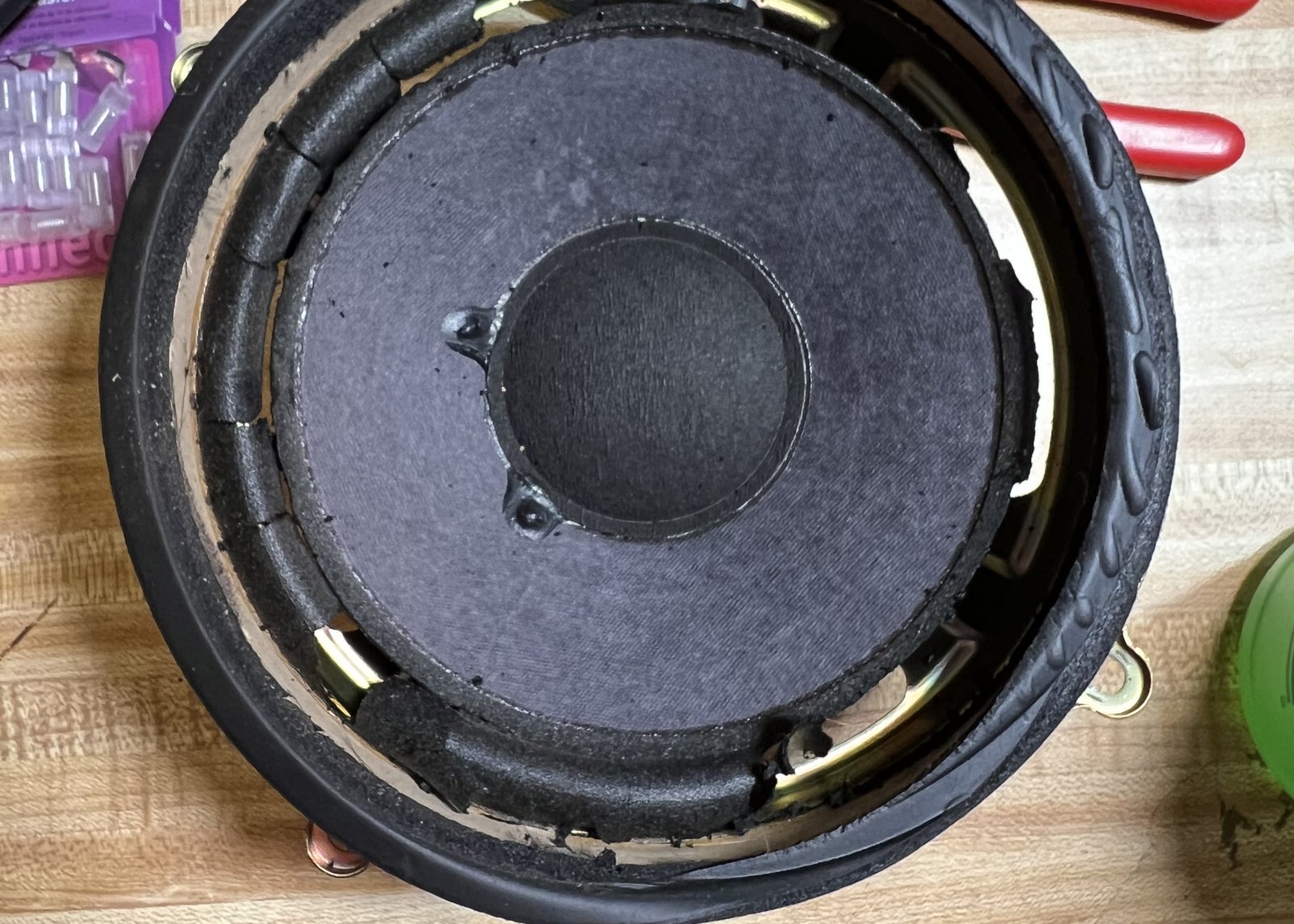

*Note the ring with zip tie. Still need to foam fill the port in this photo.
Front (door speakers) Amplifier:

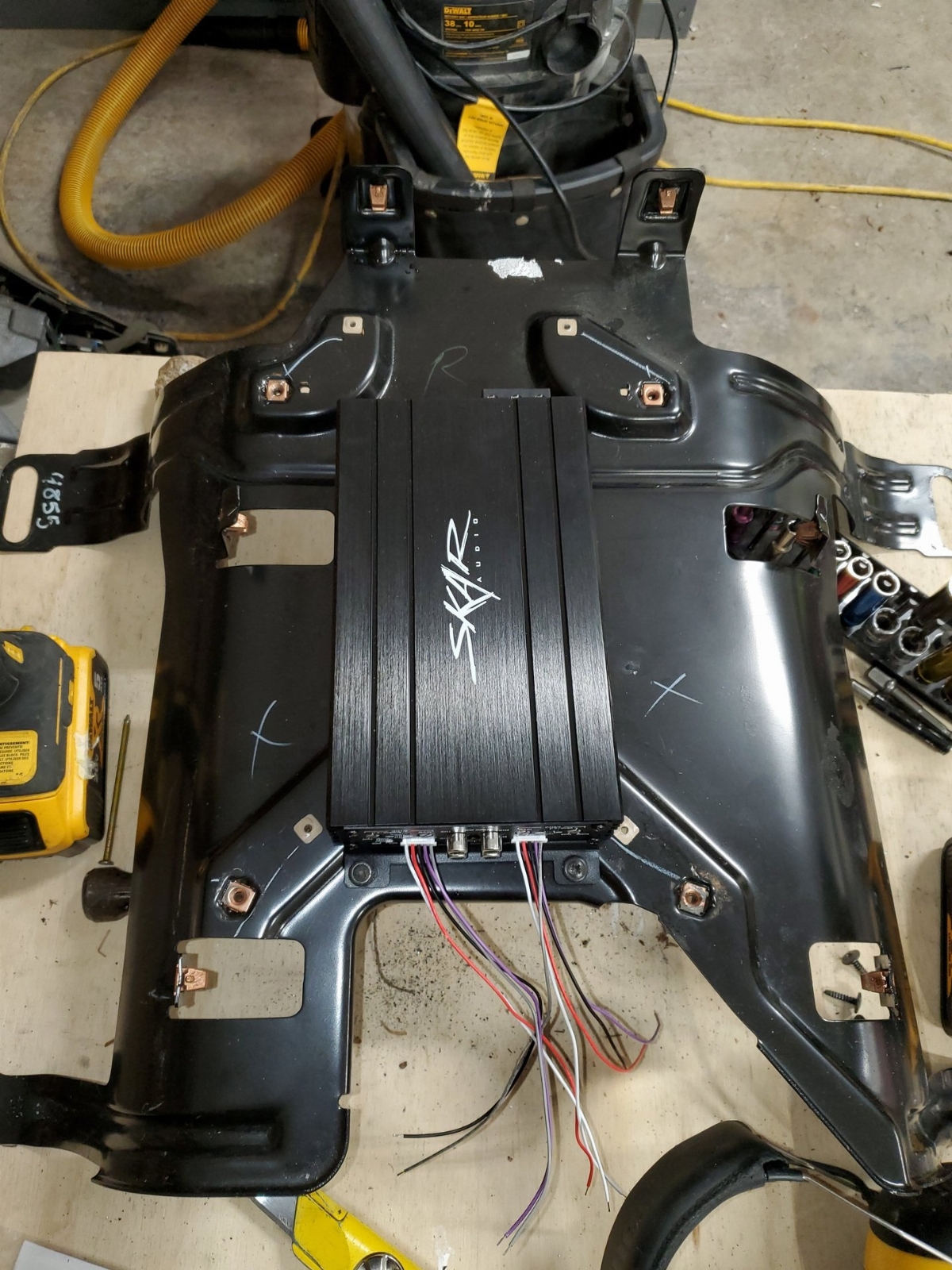

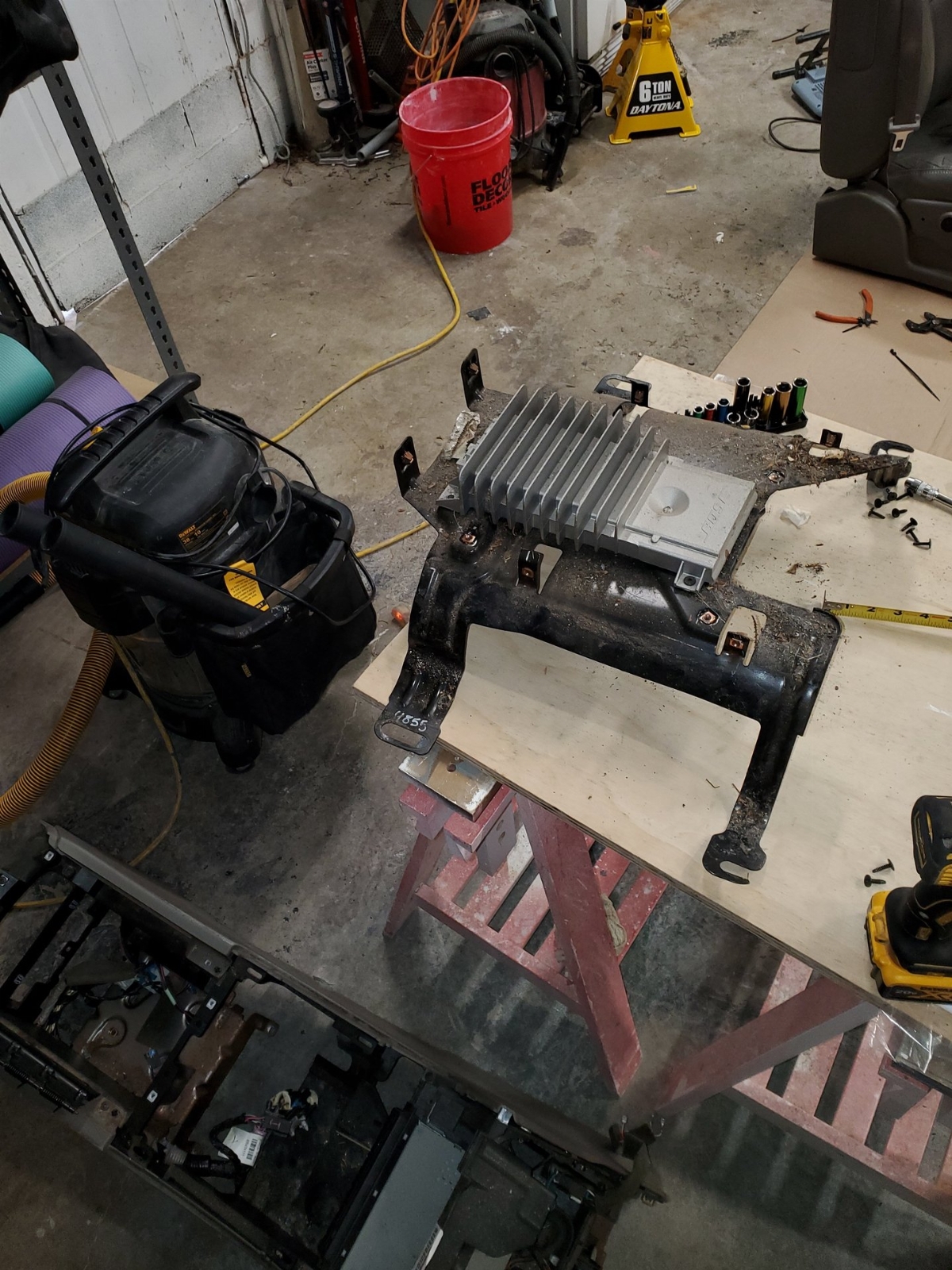

I mounted the 4 channel amp in place of the stock amp. I bought a metra wire harness and wired up the amplifier outputs to it to make install easy. I did need to de-pin the Metra harness and rearrange the wires to make it work. This is easier than you think, so don’t be intimidated. There was a great article somewhere how to do it. (how I learned to build harness for my 2001). I will see if I can find. I am not running new wires to door speakers, hopefully I don’t regret that.) Look up a wire schematic online, its fairly straight forward… Though I am a little confused about D pillars as there is only 1 output for Right Rear… I will update if/ when I figure this out. The twiddlers I removed are showing 12 ohms resistance, so I think they are done for. Planning to replace these later. Already deep in project and want to finish what I have first..

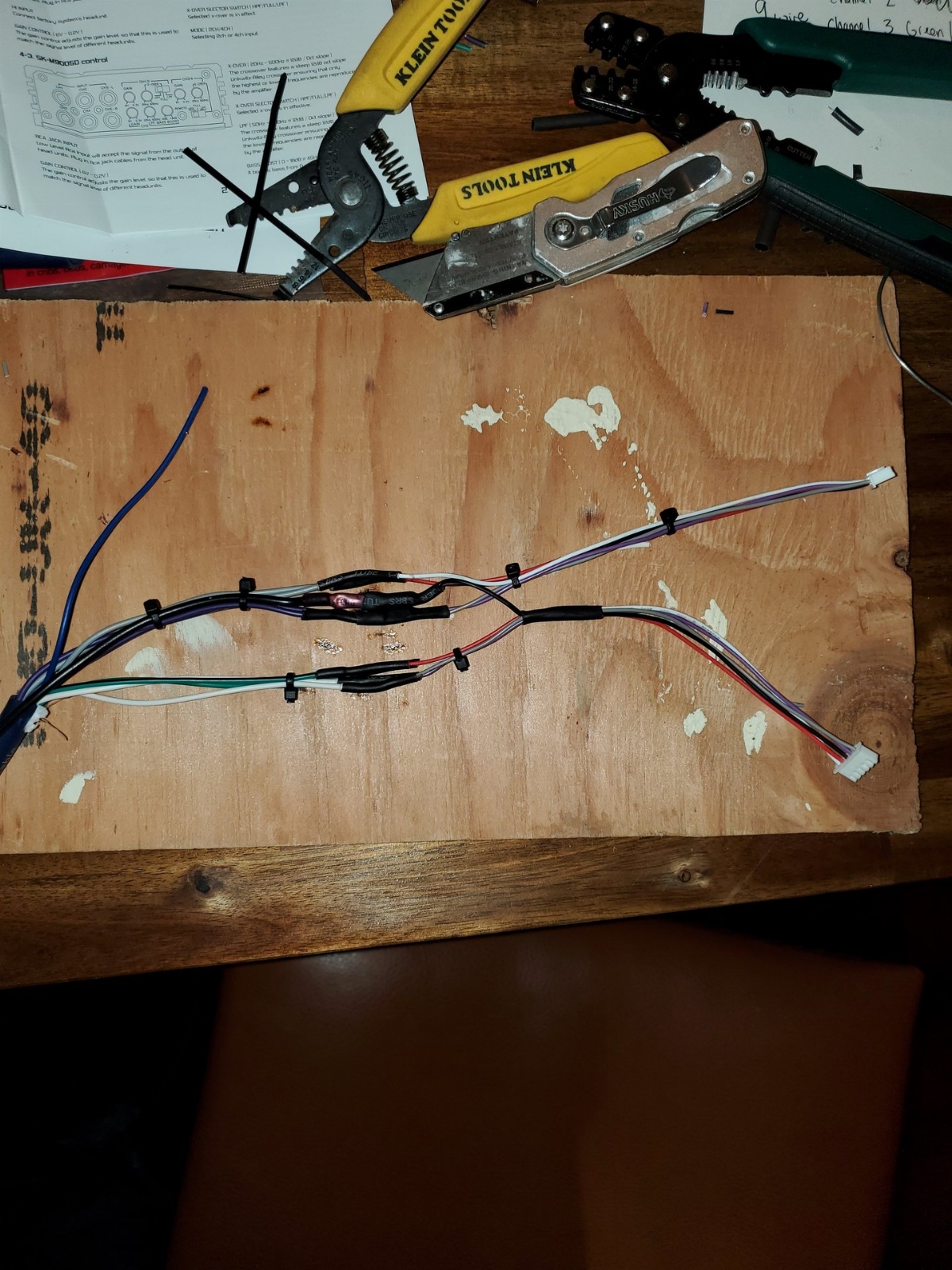

For inputs I bought some 9 wire and soldered to the amplifier High inputs harnesses, and then ran directly to the head unit outputs. Blue amp signal wire goes to 4 channel and then will split off to rear amplifier. Same will be for the main power wire. Ground goes to seat bolt.

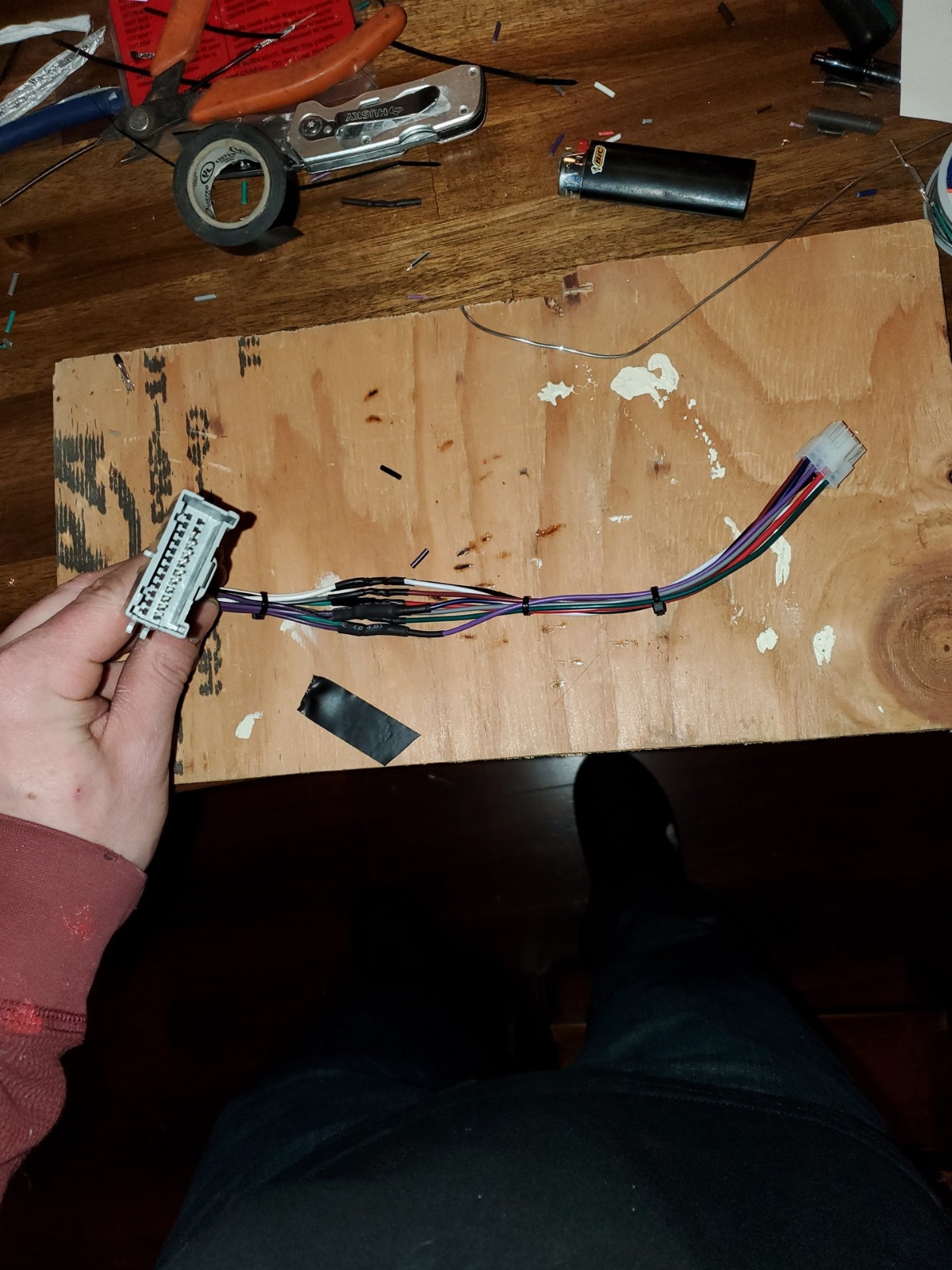

*Metra harness to amp Outputs 9 - wire to amp Inputs
Rear Amplifier:
I mounted a little sideways above the wheel well. Looks a little janky but its functional and no one will ever see it. Wiring is fairly straight forward. Power in, ground to chassis, blue signal wire in. rca cable for input, and speaker wire to front subwoofer, ohh and the subwoofer volume control remote. (I will probably route to inside console or something.

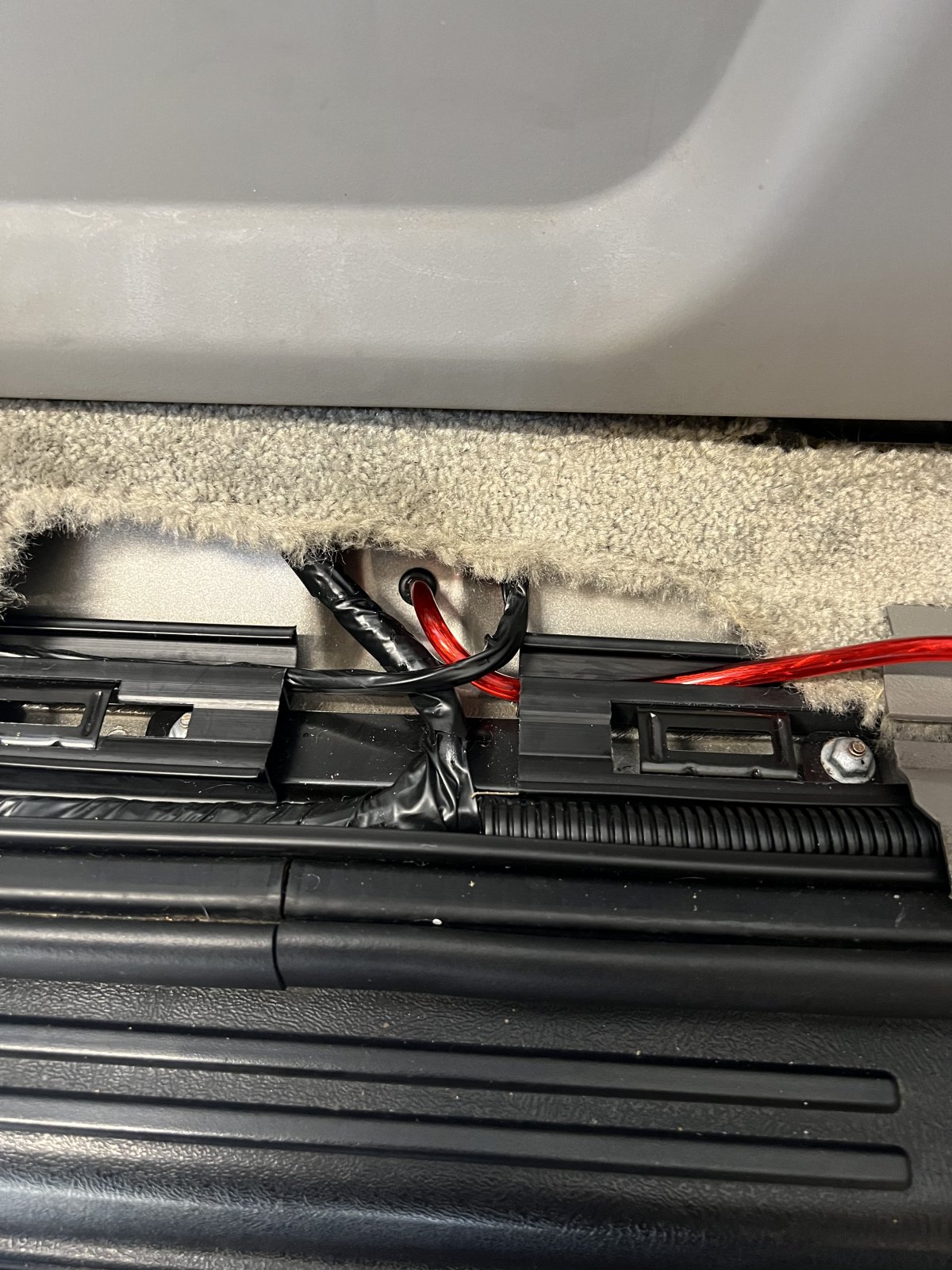

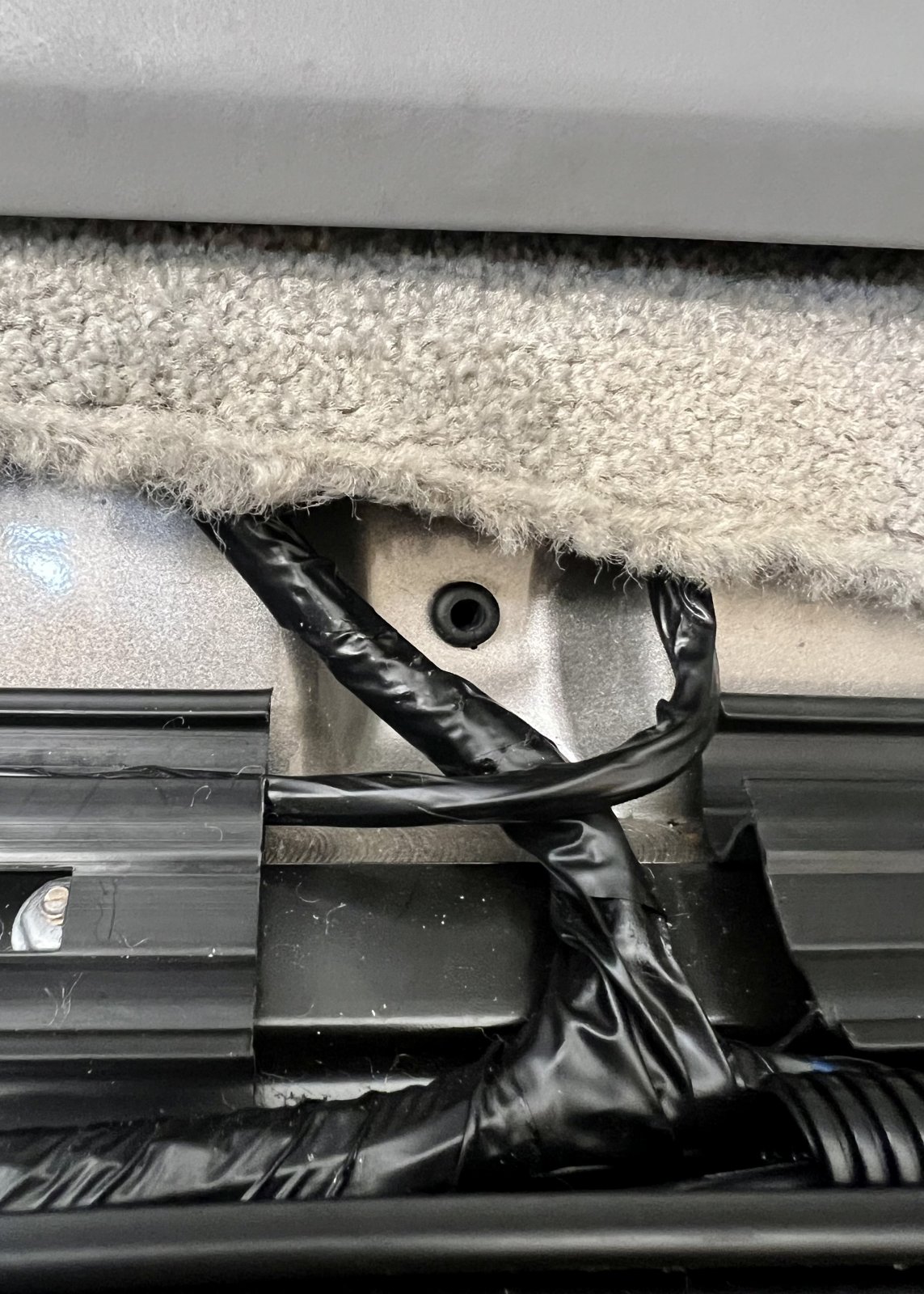

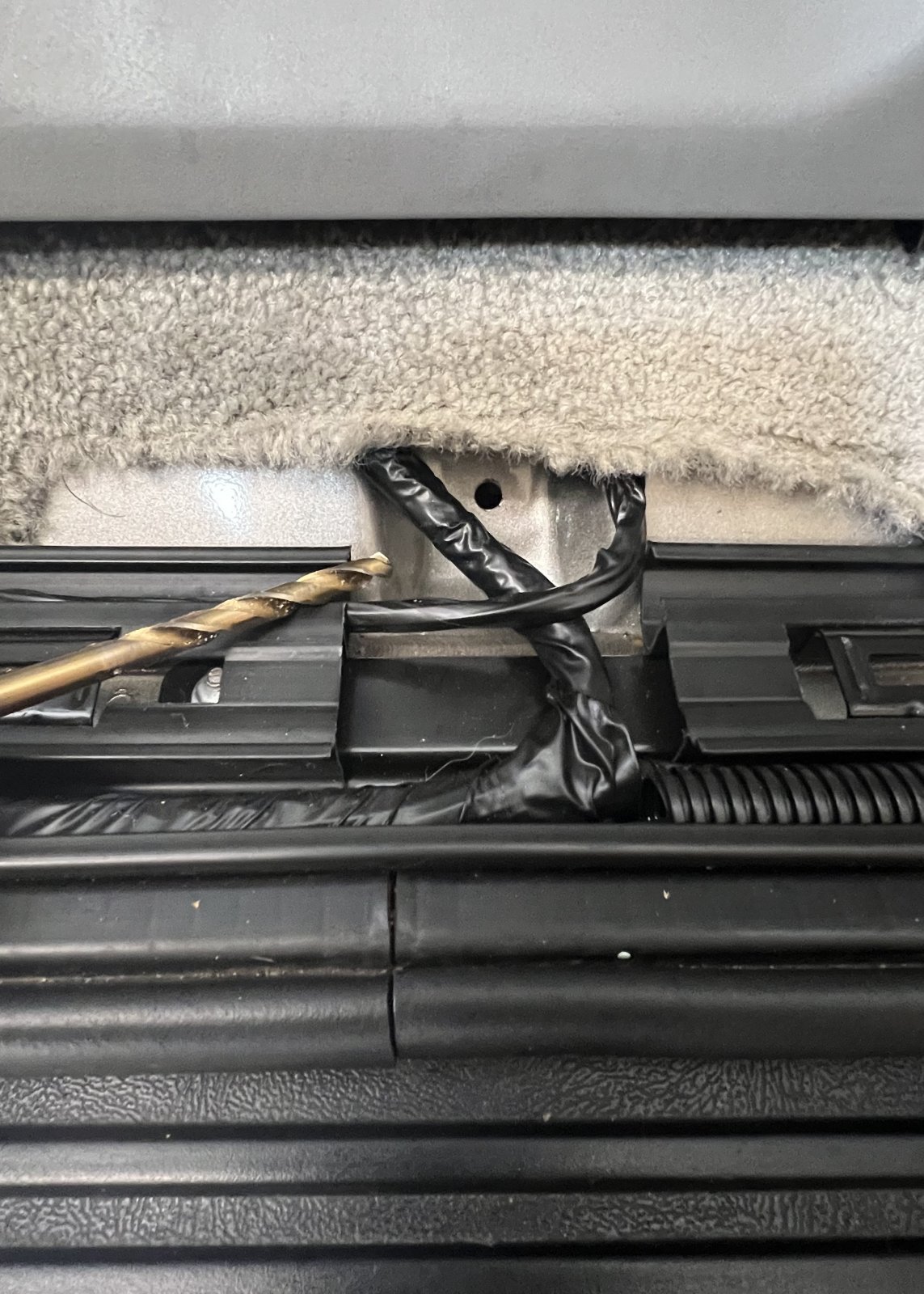

So lots of wires to the back. 4 ga. power, amp signal, RCA cables, 14 gauge wire to front, volume control to front.
Head Unit: Not going to detail much here. I used the crutchfield harness and steering wheel adapter. Again, not too happy with this setup. The little convertor box thing seems to create lots of static. The gain had to be turned up to get any real volume, but then made everythig super static. Perhaps I needed to do something with harness at the amp, but it should have worked the same.. I think the amp just does not have enough power to rock my aftermarket speakers.. Also, did not get steering wheel control to function first time around. I thought you could program at steering wheel, but further reading it looks like i need access to device (behind head unit) to program. Was lazy and never tried. Hopefully I can fix now. SO for this install, I am keeping main part of harness, just going to cut in and wire speaker outputs directly.
Wiring Notes:
Deciding how you are going to hookup subs before ordering parts is very important to have proper impedance. The Skar 1,200 monoblock is a 1 ohm stable amplifier.
Both subwoofers are dual voice coil 4ohm. I wired in Parallel down to 1 ohm to match the impedance of the amplifier. There are many schematics online how to do this.
Also, I used only Oxygen Free Copper for all wiring to ensure best quality. Be aware when buying these all-in-1 amp kits online. Most of them are CCA (copper clad aluminum) and the manufacturers are tricky about displaying this. They are not rated to same current. ie. a 4 gauge CCA is rated for less current than a pure copper 4 ga. Crutchfield is a great resource for parts. They carry quality.
I ended up building my own kit, which really is not much. 4 gauge wire, rca hookups, fuses, connectors and amp signal wire. All can easily be purchased separate. See my parts list for more info.

Sound Deadening:

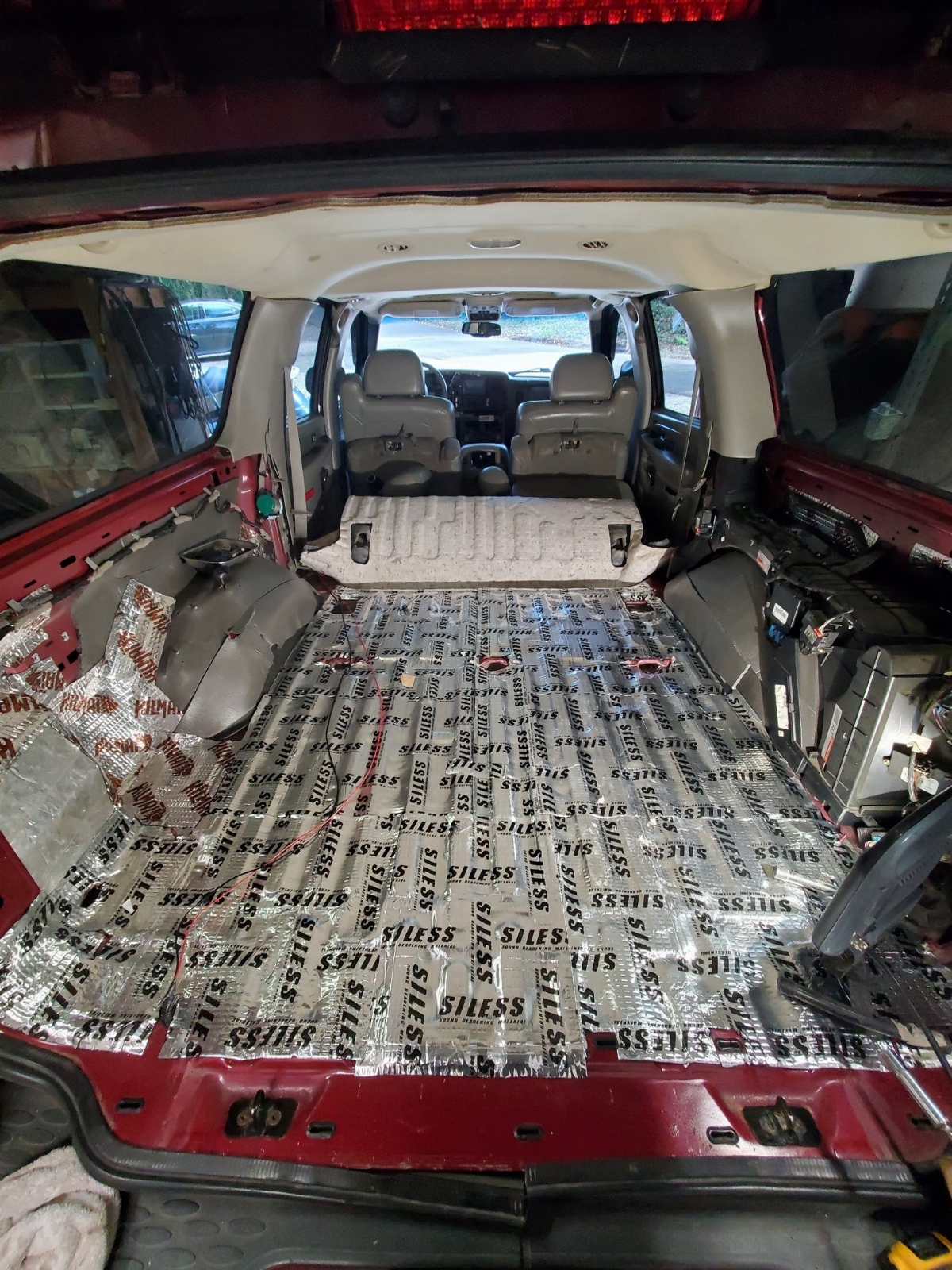

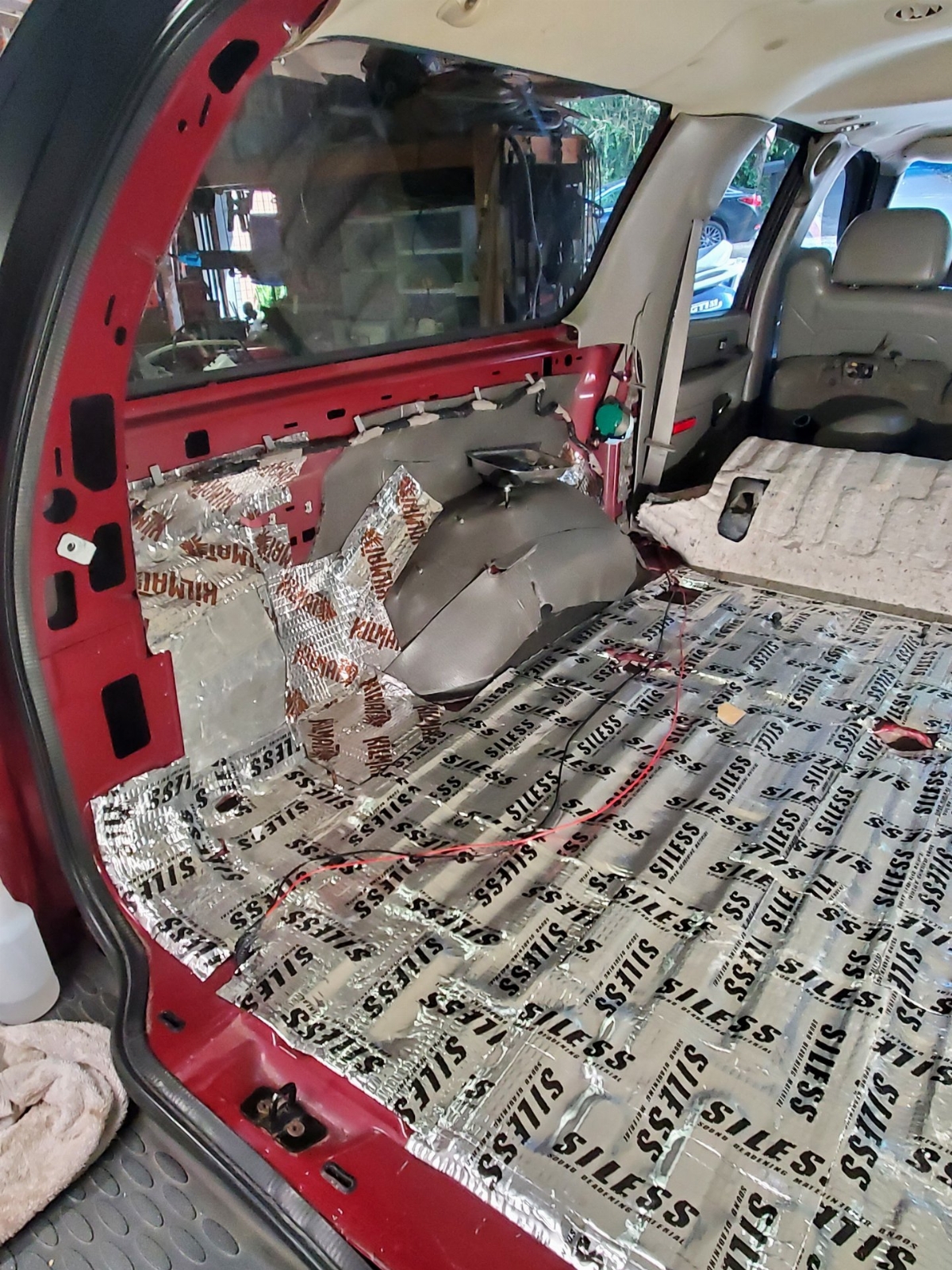

I used both 80 mil Butyl insulation and a foam 314 mil material. Installed wherever I could. Pretty much whole thing got the 80 mil Butyl, and then the foam wherever I could without creating clearance issues. ie. Wheel wells, foot padding, near firewall, rear seats area, etc.. I also took foam pipe insulation and shoved into the pillars to take up some of that void. I previously did inside the door panelsa couple years ago when I installed head unit and aftermarket speakers. If you want details let me know and I can try to look up specs. Front doors are JBL components and rear doors are Polk Audio 3 ways. Both quality speakers.

* Front area in progress.
Parts:
· “specialty” tools needed: hydraulic crimper for 4 gauge wires ($65 at horror frought) I highly recommend using this. At first I just crimped with some wire cutters, but the crimp tool is just so much superior.. Small router for trimming sub boxes, cutoff wheel. That’s about it outside of usual stuff..drills, snips, strippers. Impact gun a must for seat bolts, they are all very tight. E sockets are needed for seats. I found a nice set at Home Depot.
1. Front sub: KICKER CompRT 6.75"(165mm) Subwoofer, DVC, 4-ohm, RoHS Compliant
Rear Sub: Kicker 48CWRT84
2. Firewall Grommet: QCQIANG 63Pcs Rubber Grommet Kit, Drill Hole Firewall Hole Plugs Wire Protection, 6 Sizes 5/8" 13/16" 7/8" 1" 1-3/16" 1-1/2"(Round)
3. Power Distribution 2 Way Power Distribution Block, LAWUZA Connecting Block 0/2/4 Gauge in 4/8/10 Gauge Out Amp Gro
4. 9 Wire: Conext Link MSC918-20 20 Feet 9 Conductors Blue Speed Wire Primary Wire Speaker Cable 18 AWG Gauge GA 100% OFC Copper Stranded Trailer
5. Metra 70-2002 Radio Wiring Harness for Saturn 00-05

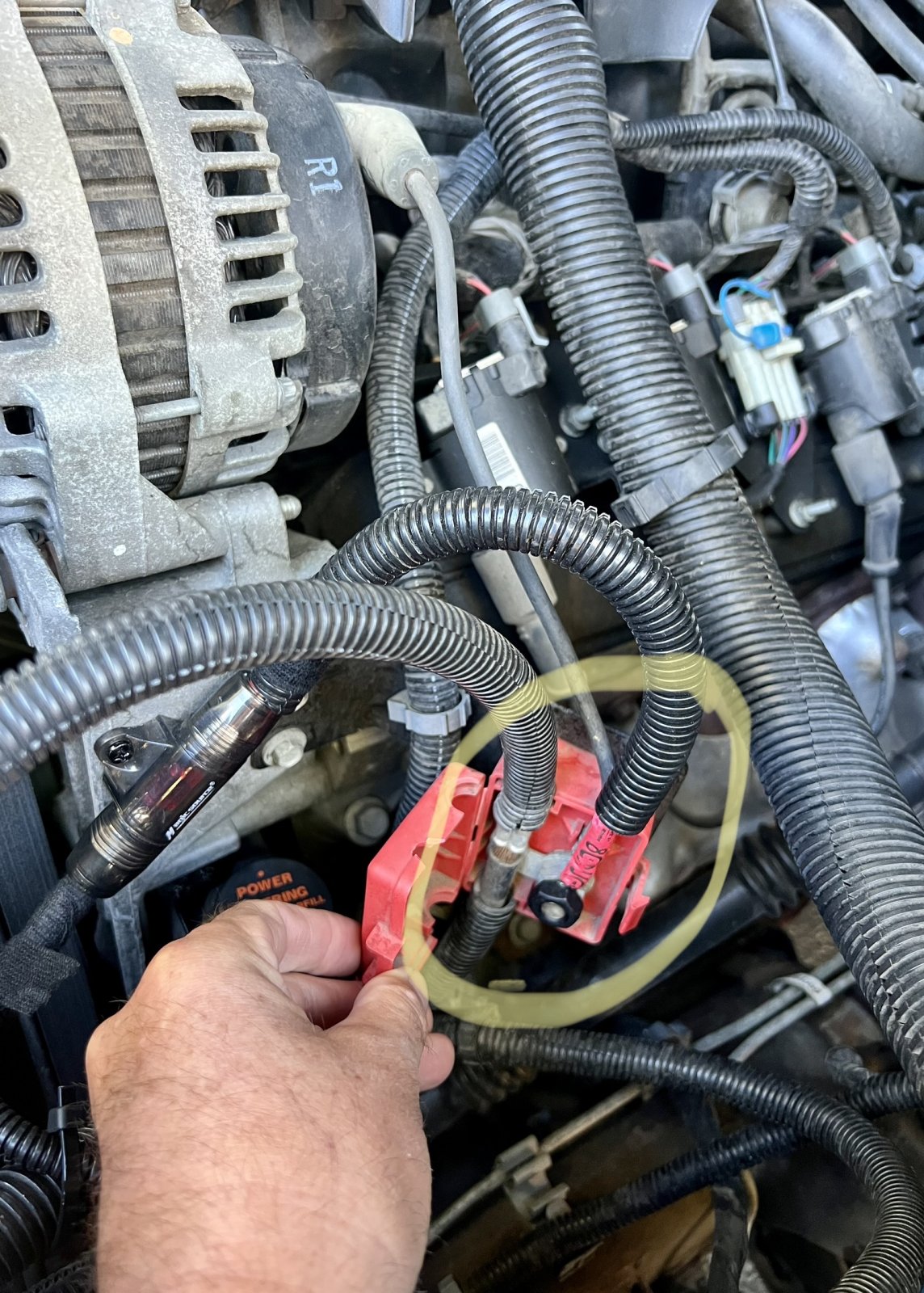

6. Power Wire: InstallGear 4 Gauge AWG OFC Pure Copper Power Ground Wire Cable (25ft Red) True Spec and Soft Touch Welding Wire, Battery Cable Wire, Automotive Wire, Car Audio Speaker Stereo, RV Trailer, Ampno Wiring
(I purchased 5-6 feet of black ground wire at local hardware store)

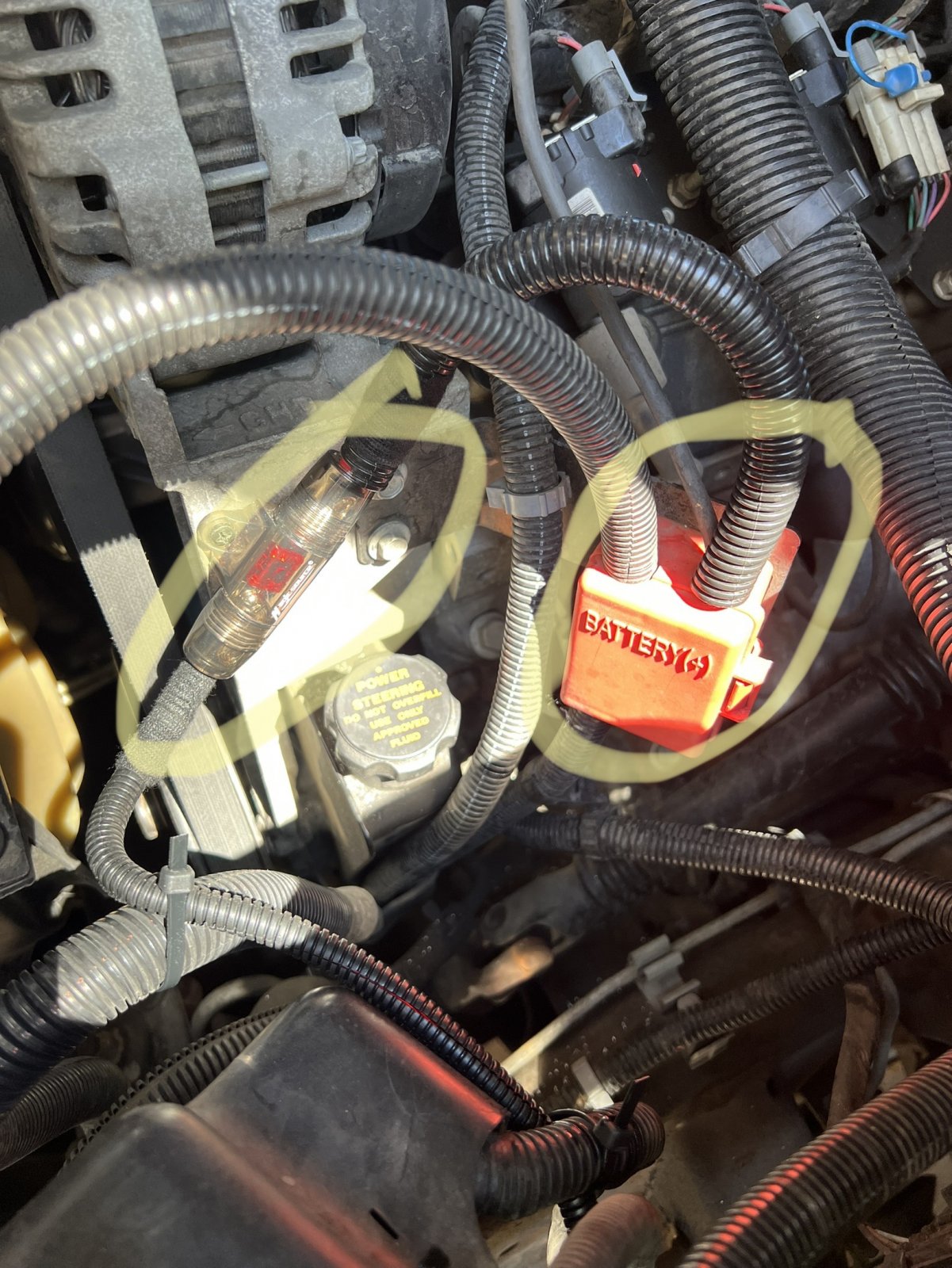

7. Other: OXYGEN FREE COPPER: 12 gauge speaker wire (for rear sub), 14 gauge speaker wire for front sub, RCA cable 20’ for rear amp input. 16 gauge blue for amp signal wire. 100 amp fuses. (I used 3 for install. One at battery, one after D block, and one near rear amp.) Also will need 4 gauge battery cable ends, and shrink tubing (color coded preferred, my cable ends included some.)


waveryd

Member
Joined
Jan 25, 2023
Posts
36
Reaction score
64
Location
IL
Excellent write up for your install. I see a couple of different types of sound deadening sheets in your build. I am trying to decide on a brand to use on my Tahoe PPV. Do you see a difference in the brands? Dynamat is the premiere standard but I am doing more of a budget build on this project. Kilmat was on my short list of considerations. Also looking at Lizard Skin spray in or something similar for doors and places where mat isn't practical.


04burbz71

TYF Newbie
Joined
Feb 27, 2023
Posts
1
Reaction score
1
do happen to know what number kicker you used or the front? i plan on doing the rear retrofit into my 04 z71 suburban along with possibly adding 2 12s


Noregurts

TYF Newbie
Joined
Aug 26, 2022
Posts
7
Reaction score
10
Run the speaker wires from the amp to the door speakers . I know , but you should do it bro . it’s gonna save you a lot of frustration later .the only hard part is the grommets going cab to door . I wouldn’t restrict any air to the 100 watt amp , putting it were the stock amp goes under the panel is gonna burn it up . the class d 1200.1 doesn’t have as much heat causing resistance going threw it . But ventilation is gonna keep it alive . The 100 watt will be hot to the touch and the 1200 cool with the same amount of play .I’d go 4 ohm wiring on the dvc’s I think that 1200 is enough power and you get clearer response, less work on the amp and a lot longer life , if it’s not enough power u can go the one ohm route . But run it 4 ohm first and see how it performs. Get the “big 3 kit “ or make your own . If you mentioned doing that I’m sorry I have add and I read and miss a lot . But it’s really important to your electrical system and alternator. You can use that 4 gauge wire but if u can get a few feet of 0 gauge that be better . Put some brass cable ends on to bolt em down ( take the brass cable end grab it with pliers and take a torch to it fill its red hot and then fill with soldier til it’s liquid and dip the cable end in it ) all your connections should be done like that ,it’s the best way to do it , crimping is ok but don’t leave room for error . If there allready crimped hit em with solder . The cables get bolted from Alternator to battery , ground to motor, and motor to frame .if the headlights still dim . You’re gonna be happy you put another battery in now instead of latter . I shoulda put the dyno mat in my Tahoe. It just rattles everywhere now . That’s gonna be really cool when your done nice job bro.


S33k3r

Full Access Member
Joined
Aug 14, 2017
Posts
2,334
Reaction score
3,130
Location
Dallas, Texas
May I ask what results you get with this upgrade? Just curious if you want it louder, clearer, or something I haven't considered. Your setup doesn't seem to be competition, but you seem to have the knowledge to build competition if you wanted to. I'm getting ready to install a new head unit, and was wondering if I should upgrade any of the other parts at the same time. Thanks!


Scott in AZ

Full Access Member
Joined
Mar 23, 2023
Posts
190
Reaction score
335
Location
Arizona

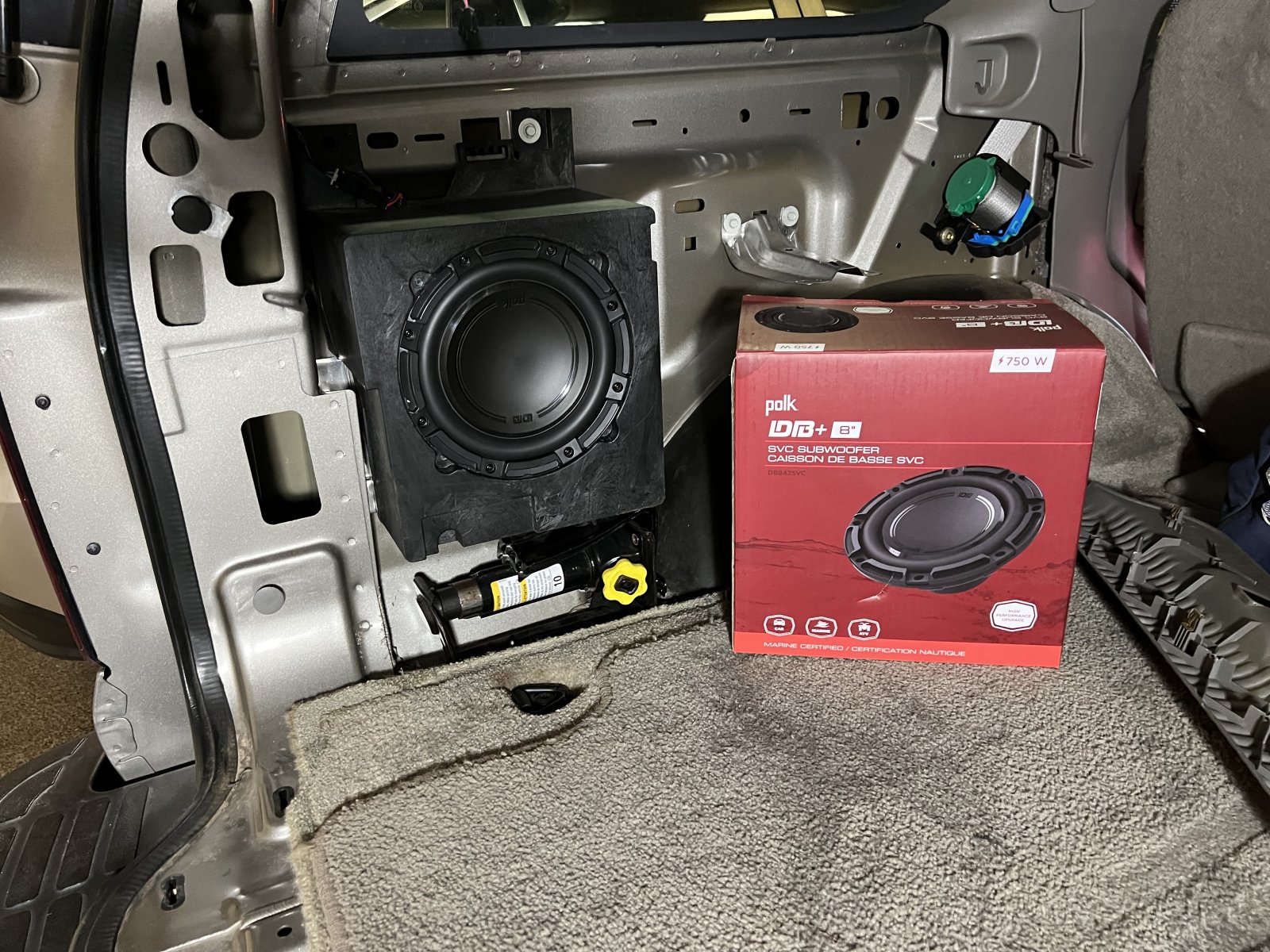

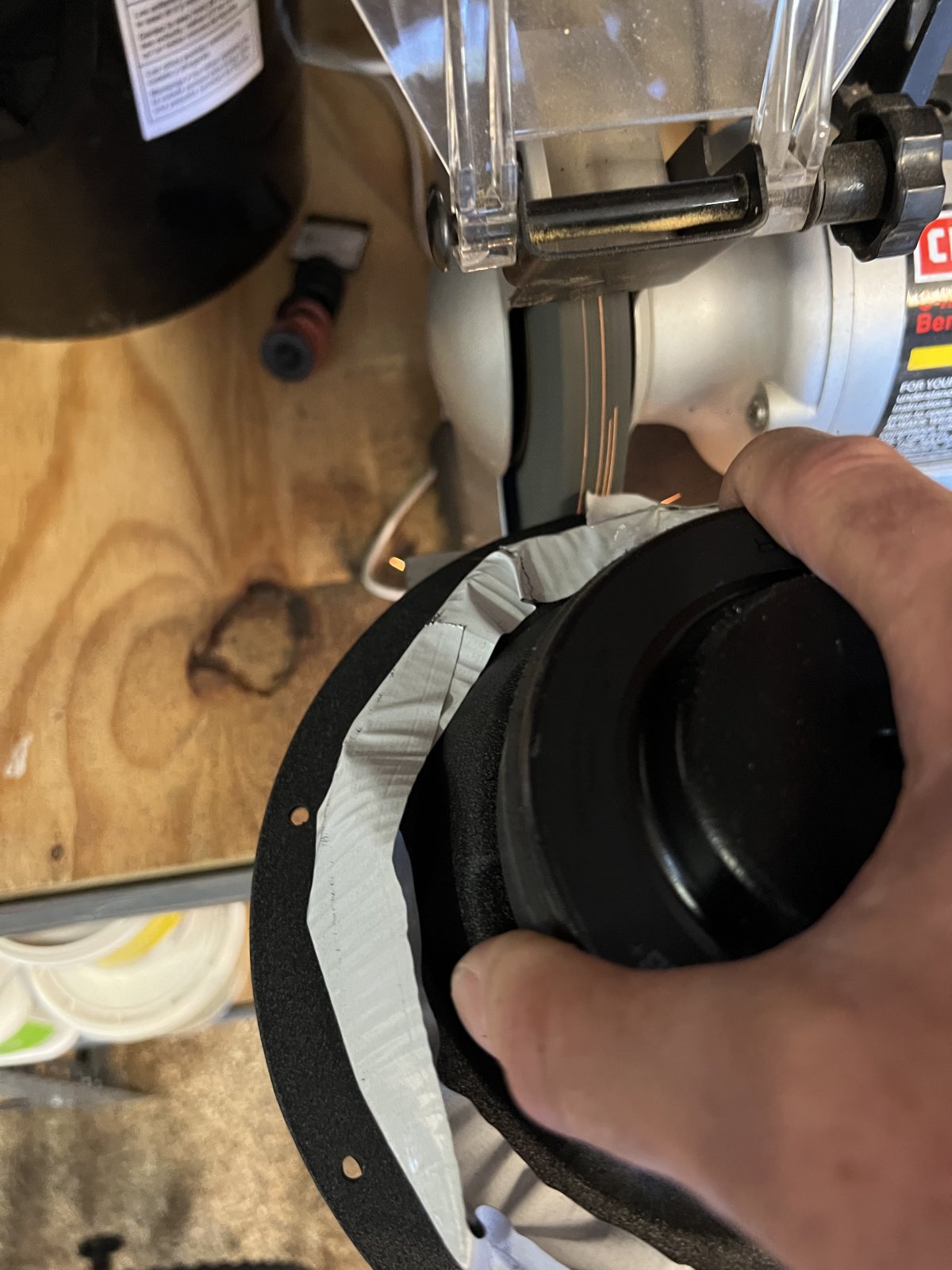

I installed a Polk 8” sub in my 2001 Tahoe this evening. I also needed just 1mm more clearance to use the very high quality resin box from the factory install. I went a different route and ground down the outer diameter of the Polk sub to make it fit. Pictures below show how bad the OEM subwoofer paper cone had degraded. The foam outer band was completely gone. My install still underway, but this should be a great upgrade. Put Polks in the rear doors as well, perfect fit, did not even need to drill. Will get a thread up when complete.


Attachments

  • 01EE39DA-53D8-4DF4-8896-7F8C87288AD5.jpeg
    604.1 KB · Views: 24
  • 26370477-F559-4D52-BFD2-88322D34DB05.jpeg
    230.5 KB · Views: 23
  • E4C80949-CCDE-467C-B637-3896CABF7772.jpeg
    336.6 KB · Views: 24
  • FBA2AFAE-E712-4139-A0FC-FB5C02FEB1DC.jpeg
    458.8 KB · Views: 23
  • 36BA6DC4-3E7A-4A47-BC4B-A6738B16A3EF.jpeg
    515.6 KB · Views: 24

Tonyrodz

Resident Resident
Joined
Feb 16, 2012
Posts
31,123
Reaction score
45,523
Location
Central Jersey
I installed a Polk 8” sub in my 2001 Tahoe this evening. I also needed just 1mm more clearance to use the very high quality resin box from the factory install. I went a different route and ground down the outer diameter of the Polk sub to make it fit. Pictures below show how bad the OEM subwoofer paper cone had degraded. The foam outer band was completely gone. My install still underway, but this should be a great upgrade. Put Polks in the rear doors as well, perfect fit, did not even need to drill. Will get a thread up when complete.
Imo Polk makes some nice speakers.


salisburyv

Full Access Member
Joined
Nov 17, 2021
Posts
143
Reaction score
165
i replaced my center console sub with a box built for a shallow mount JL audio 10". now the front soundstage sounds right, and the 12" L7 outback w/time correction disappears in the low frequencies. I have more goodies in store too. i gotta get off my ass and start a journal.


S33k3r

Full Access Member
Joined
Aug 14, 2017
Posts
2,334
Reaction score
3,130
Location
Dallas, Texas
i replaced my center console sub with a box built for a shallow mount JL audio 10". now the front soundstage sounds right, and the 12" L7 outback w/time correction disappears in the low frequencies. I have more goodies in store too. i gotta get off my ass and start a journal.
One of the things you could do is start a build thread. Then you grab the progress through some of these threads and dump/link it there. Now you have a journal (of sorts) started (and everything in one place).
