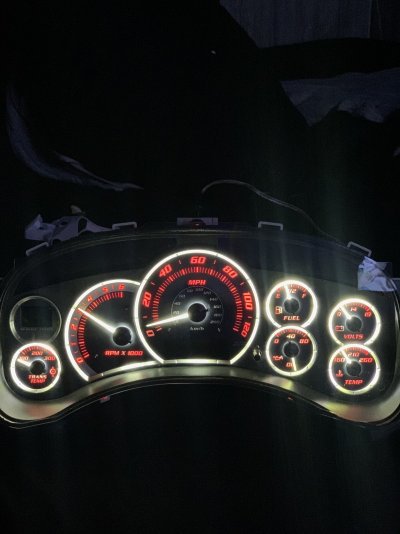

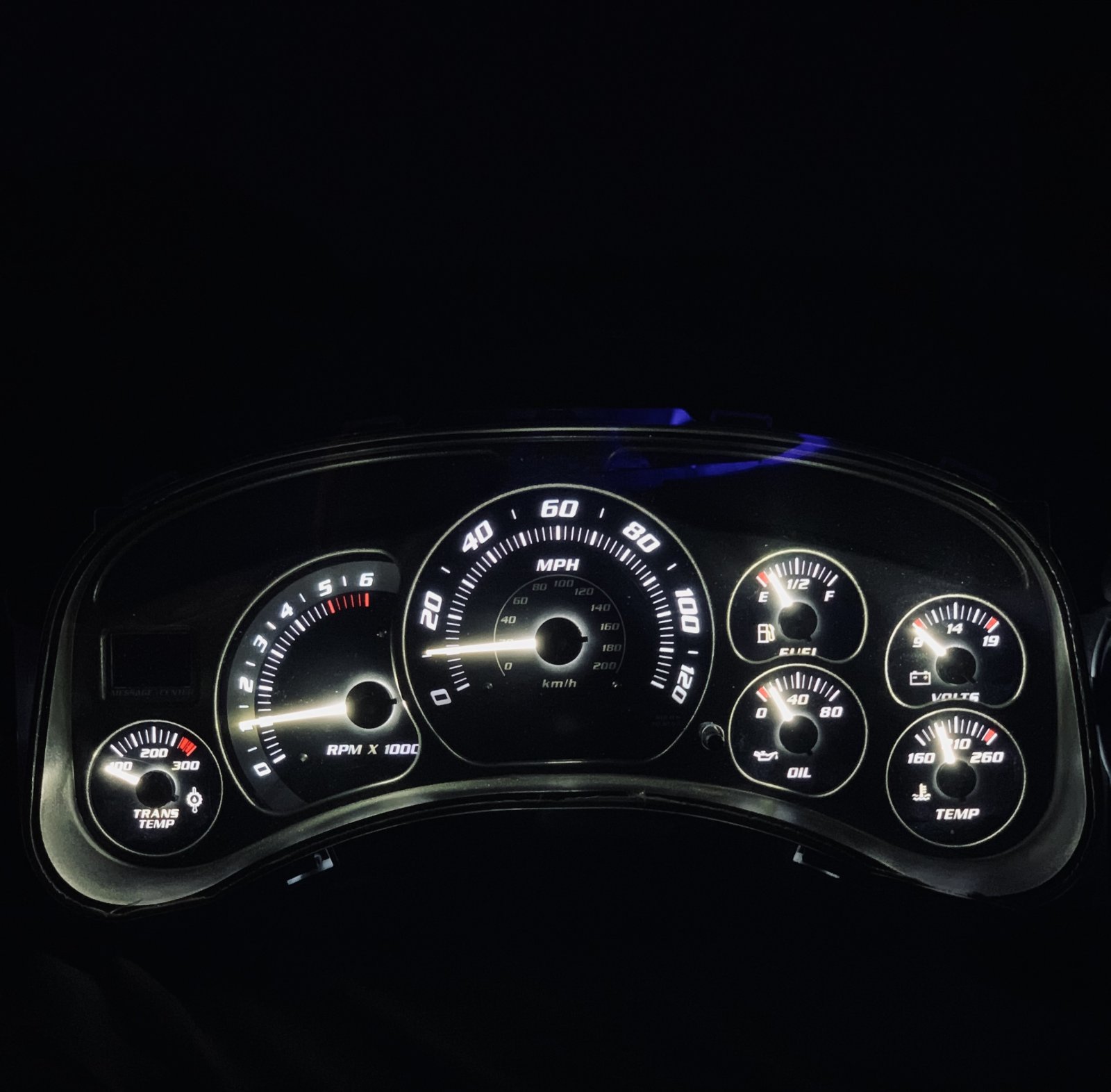

I wanted to share my latest DIY creation with everyone! I got tired of seeing the 03-06 clusters getting the special treatment in my search to mod my '02 cluster. So, I decided to figure it out and custom mod it by myself! I bought an '02 Escalade cluster to do this: I custom engineered LEDs under the needles and used RGBW strips for backlighting. I used oem overlay but removed blue paint from backside and covered the km/h speed scale. Let me know what you think!509312B6-729B-4894-8340-80765F65FC81.jpegCB9A8D6A-7F9D-408C-93B6-C08F99A435D2.jpeg74A3CFF5-B115-4986-8D94-9E028948EAF6.jpegE52ED783-6574-491B-97CD-0BA420BC96F3.jpeg


Tonyrodz

Resident Resident
Joined
Feb 16, 2012
Posts
30,897
Reaction score
44,843
Location
Central Jersey
I wanted to share my latest DIY creation with everyone! I got tired of seeing the 03-06 clusters getting the special treatment in my search to mod my '02 cluster. So, I decided to figure it out and custom mod it by myself! I bought an '02 Escalade cluster to do this: I custom engineered LEDs under the needles and used RGBW strips for backlighting. I used oem overlay but removed blue paint from backside and covered the km/h speed scale. Let me know what you think!View attachment 383176View attachment 383177View attachment 383178View attachment 383179
Looks sharp. Nice job.

OP
OP
Electrician

Electrician

Full Access Member
Joined
Apr 20, 2022
Posts
139
Reaction score
307
I've been able to get them fairly spot on or at least pretty close so far, but yes I use an OBDLink MX+ wireless adapter paired with my head unit (10.1" floating screen with Android 11 o.s) so I can have a customized digital cluster. So I match my needles to those. Most importantly the speedo, but I can check em all except the Fuel gauge. That one I just get close or if I'm not sure then I'll just wait for the Low Fuel light and set it just above E. I don't think I ever would have attempted any cluster mods if I didn't have the OBDLink


rockola1971

Full Access Member
Joined
Dec 29, 2016
Posts
2,369
Reaction score
2,962
Location
Indiana (formerly IL)
I see. So you are essentially using PCM data that ultimately comes from the input sensors themselves. IE: Speed sensor, ECT, Pickoff from alternator, OPS and tach pickoff. Pretty slick.

OP
OP
Electrician

Electrician

Full Access Member
Joined
Apr 20, 2022
Posts
139
Reaction score
307
Indeed sir. I can see all kinds of data with it and then make it into a fully custom gauge. I got another screen with all digital gauges that show all four O2 sensor voltages with the short term and long term fuel trims. Pretty cool even tho I'm still learning how to read/use those. Anyway, it was well worth the $
