Wiring harness help needed

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

AmunRoo

Member
Joined
Dec 27, 2021
Posts
52
Reaction score
56
Location
Chicago
All right, I need some help trying to pinpoint the path for a ground wire from the bank to coil harness. This is for the connector on the engine harness that feeds the oil packs for Bank 2. I don't have ground. I'm getting misfires on all four cylinders because I have no spark. I spliced in the ground direct from the battery to the ground wire connector side of the harness. I tried looking in all data but couldn't find what I was looking for. I'm trying to find the path of that ground wire to find out where it terminates so I can have ground once again. Otherwise I'm just going to splice it into another ground and call it a day LOL

As always, any and I'll help is greatly appreciated!


Doubeleive

Wes
Supporting Member
Joined
Nov 7, 2017
Posts
23,423
Reaction score
34,050
Location
Stockton, Ca.
All right, I need some help trying to pinpoint the path for a ground wire from the bank to coil harness. This is for the connector on the engine harness that feeds the oil packs for Bank 2. I don't have ground. I'm getting misfires on all four cylinders because I have no spark. I spliced in the ground direct from the battery to the ground wire connector side of the harness. I tried looking in all data but couldn't find what I was looking for. I'm trying to find the path of that ground wire to find out where it terminates so I can have ground once again. Otherwise I'm just going to splice it into another ground and call it a day LOL

As always, any and I'll help is greatly appreciated!
you could try the gm upfitter website otherwise @swathdiver may have it.
I would would probably just ground it to the block myself in the meantime.


swathdiver

Full Access Member
Joined
May 18, 2017
Posts
19,104
Reaction score
25,040
Location
Treasure Coast, Florida
All right, I need some help trying to pinpoint the path for a ground wire from the bank to coil harness. This is for the connector on the engine harness that feeds the oil packs for Bank 2. I don't have ground. I'm getting misfires on all four cylinders because I have no spark. I spliced in the ground direct from the battery to the ground wire connector side of the harness. I tried looking in all data but couldn't find what I was looking for. I'm trying to find the path of that ground wire to find out where it terminates so I can have ground once again. Otherwise I'm just going to splice it into another ground and call it a day LOL

As always, any and I'll help is greatly appreciated!

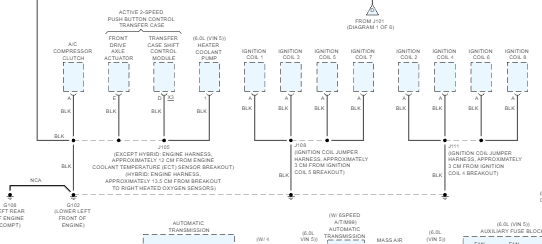

G102, lower left side of the engine.
