Audio, side view cameras, 2nd Battery, Big 3

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Chrismnj

Full Access Member
Joined
Sep 17, 2015
Posts
1,227
Reaction score
2,119
Location
NJ
Pioneer AVIC-7201 Nex
Pioneer TS-D65F all 4 Speakers
Pioneer TS-T110 all 4 Tweeters
Maestro ADS-MRR
iBeam USA TE-TSI Turn Signal Video Interface
4 cameras from Amazon

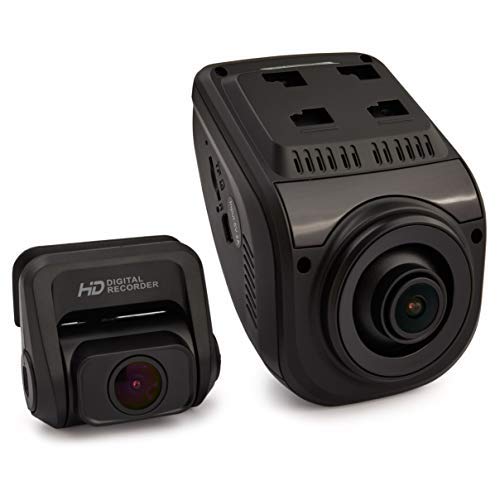

Rexing V1P 3rd Generation Dual 1080p Full HD Front and Rear 170 Degree Wide Angle Wi-Fi Car Dash Cam
ENERGIZER 2000 Watt 12V Power Inverter, Dual 110V AC Outlets
Renogy Deep Cycle Gel Battery 12 Volt 200Ah
national luna split charge kit
250A High Output Alternator power coated black

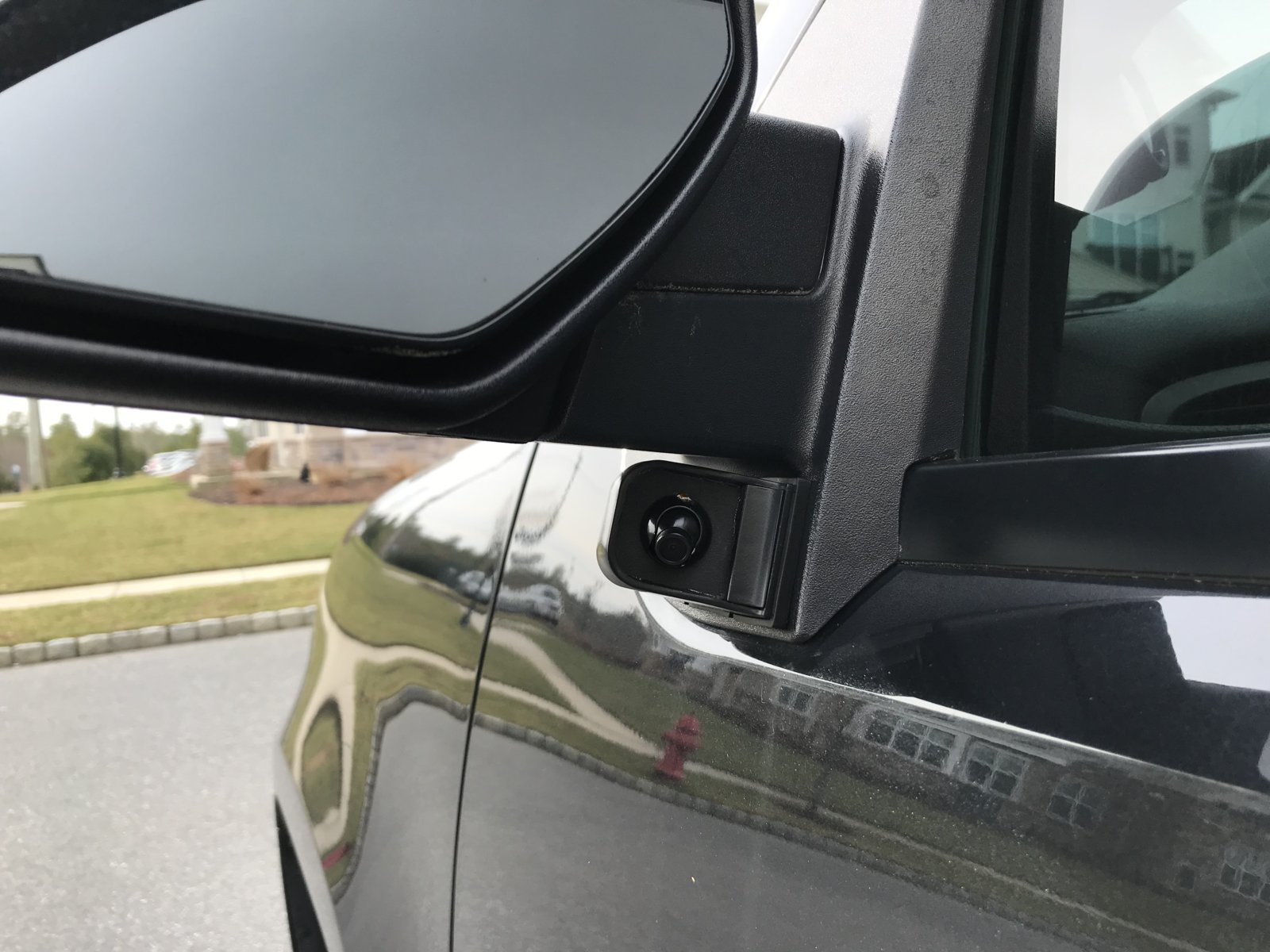

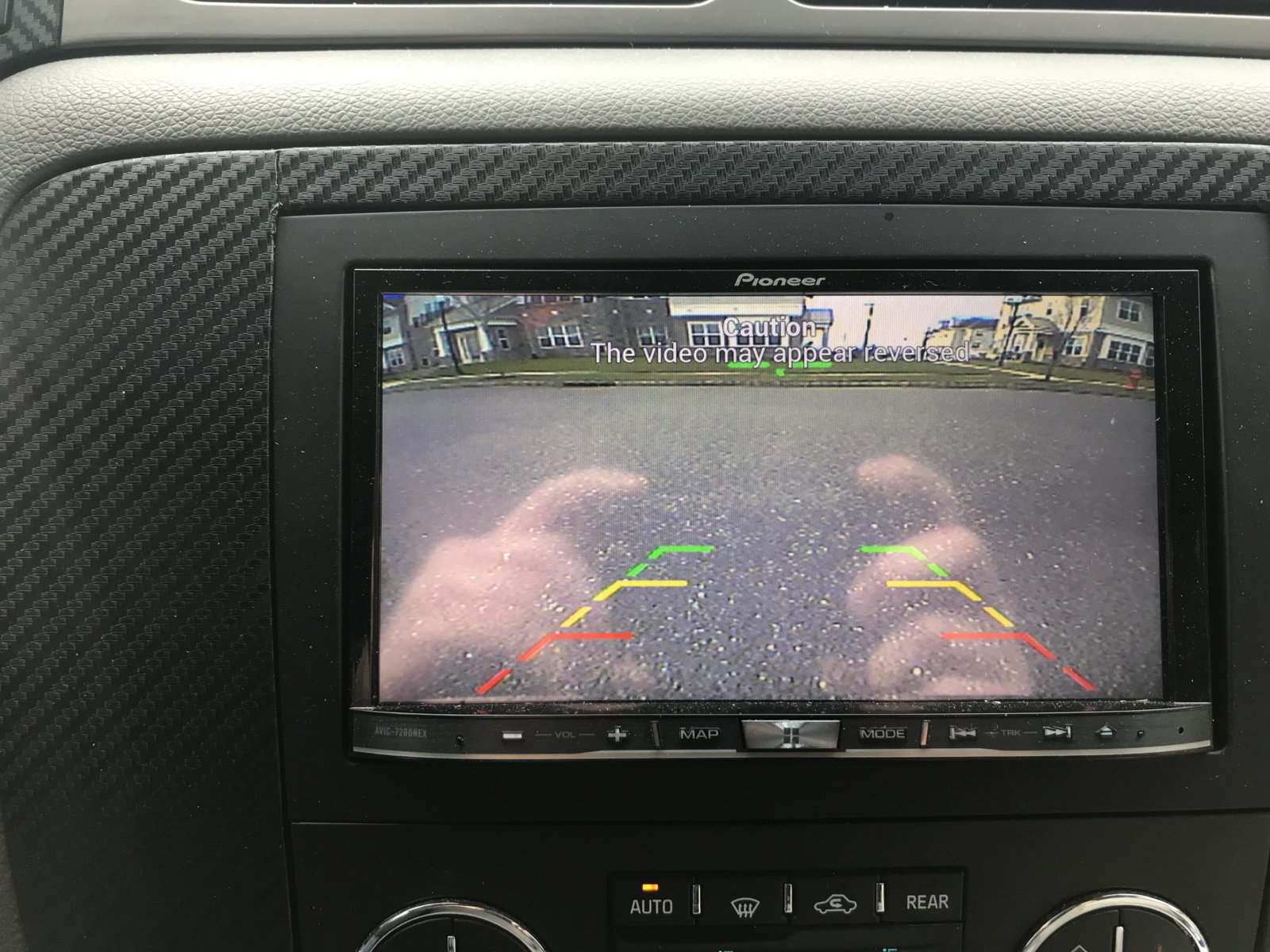

Left side View turn signal activated

https://www.amazon.com/gp/product/B00OYGPPZ6/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1

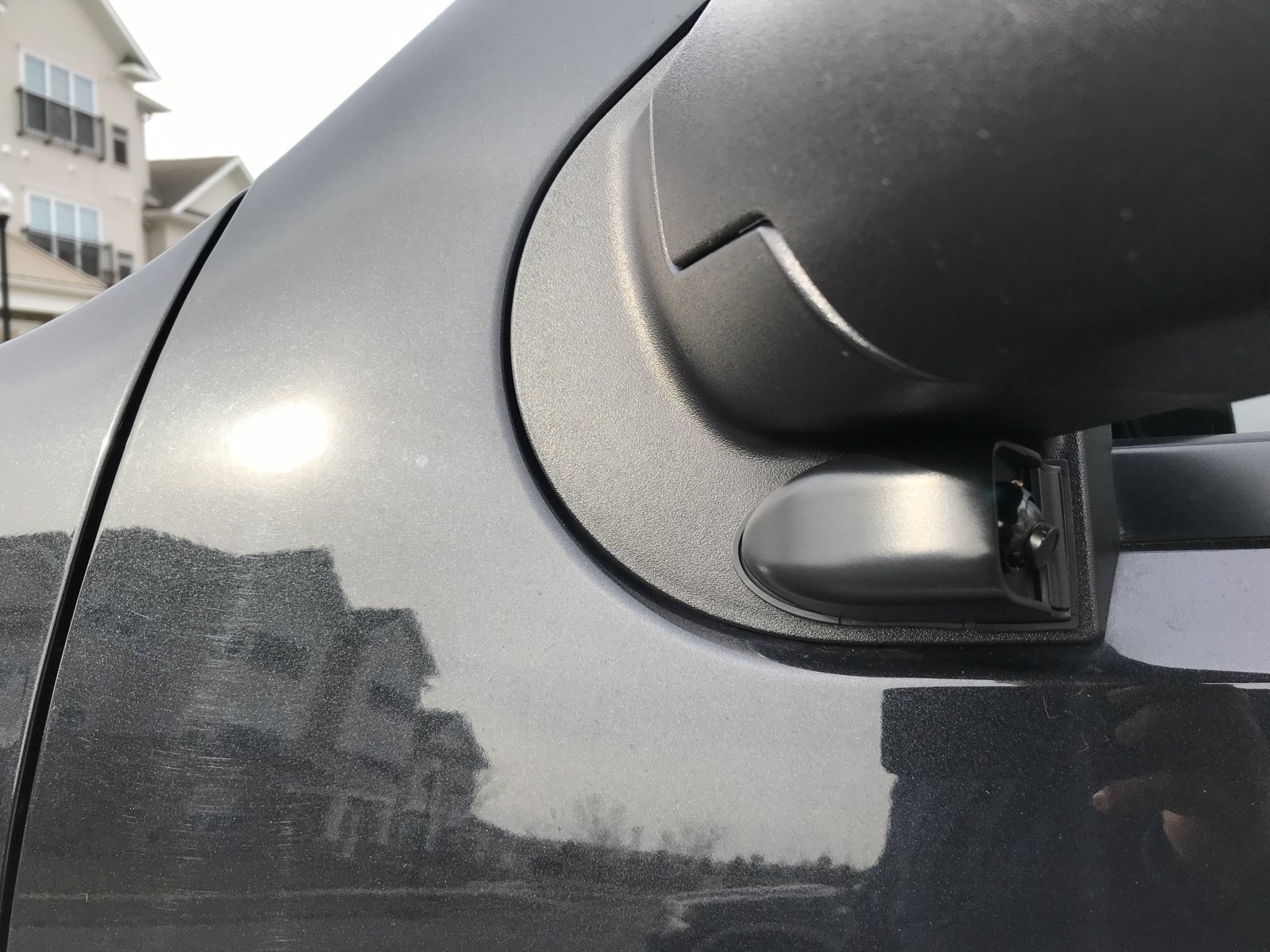

Right side view turn signal activated

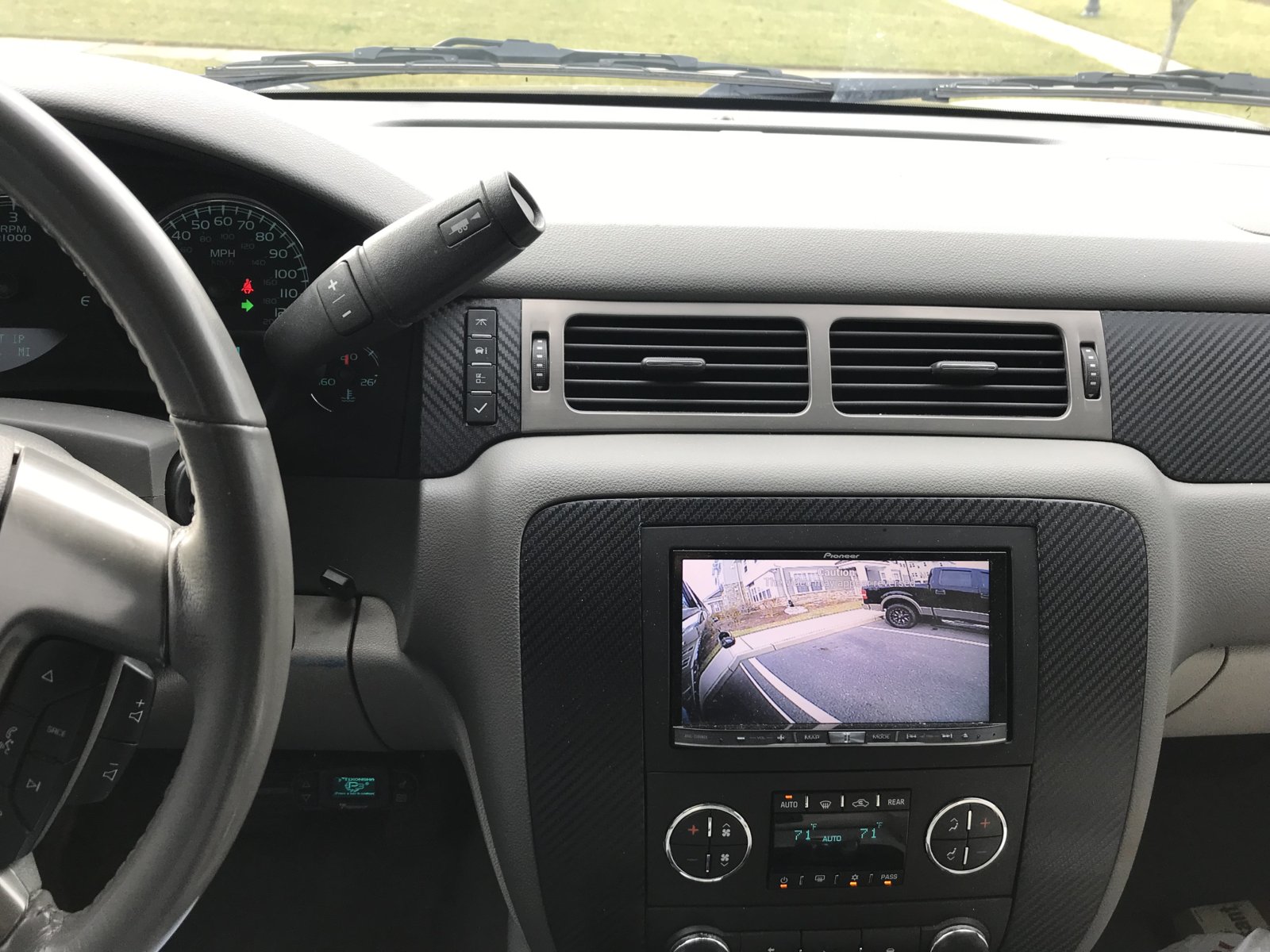

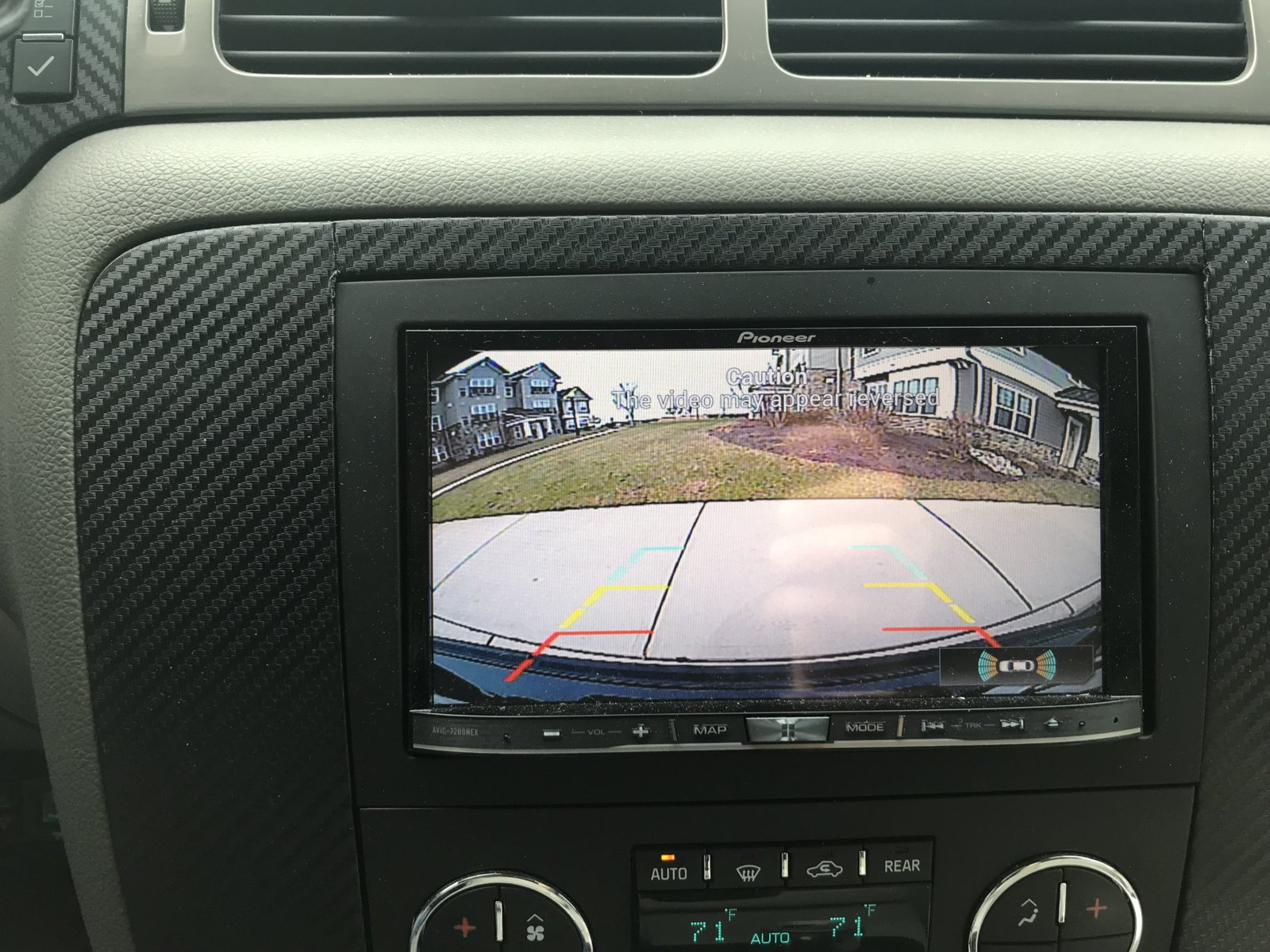

Front View Switch activated, also equipped with parking sensors

https://www.amazon.com/gp/product/B074V12JVS/ref=oh_aui_detailpage_o03_s00?ie=UTF8&psc=1

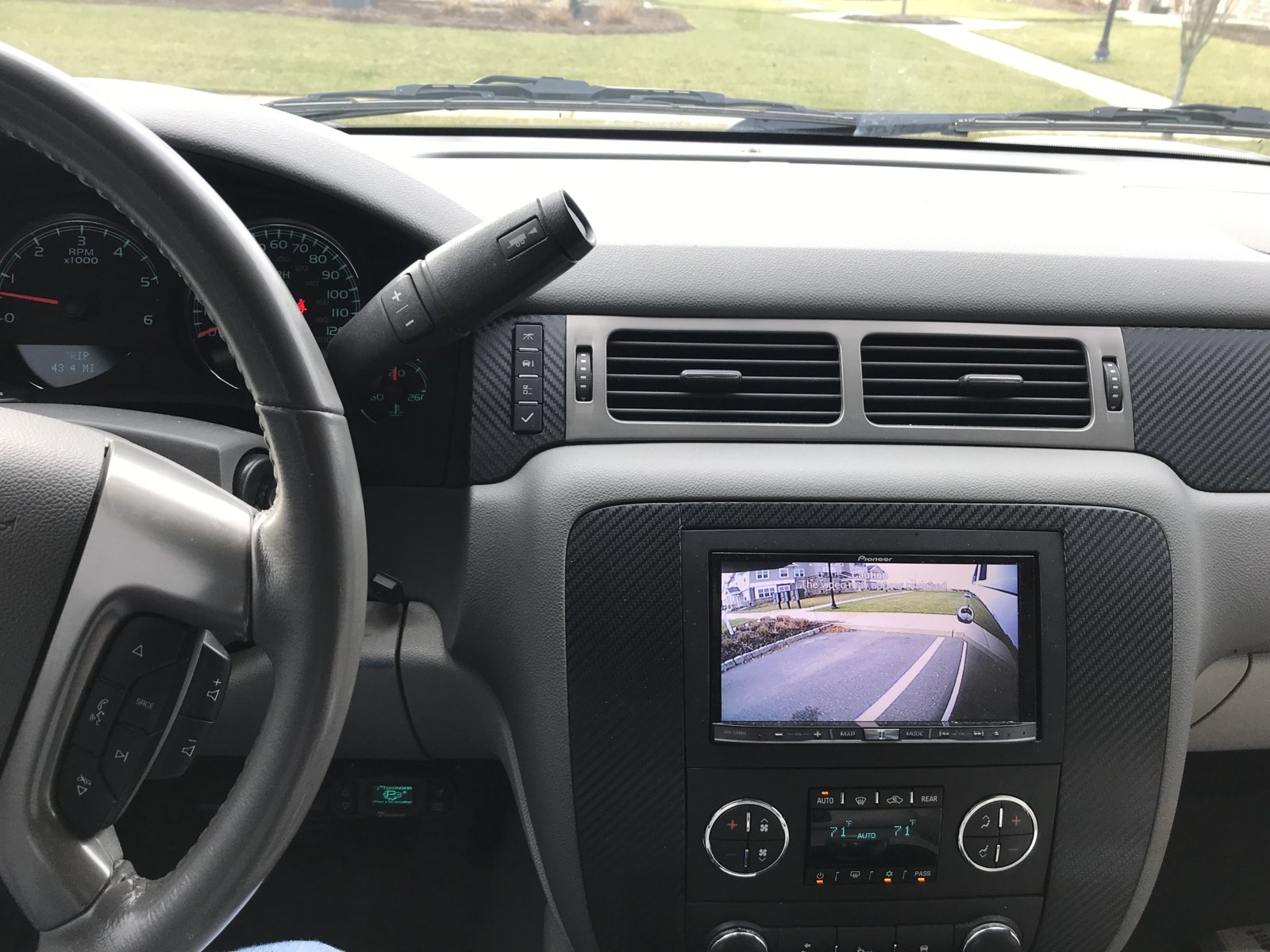

Rear view reverse light activated

https://www.amazon.com/gp/product/B07H852D49/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

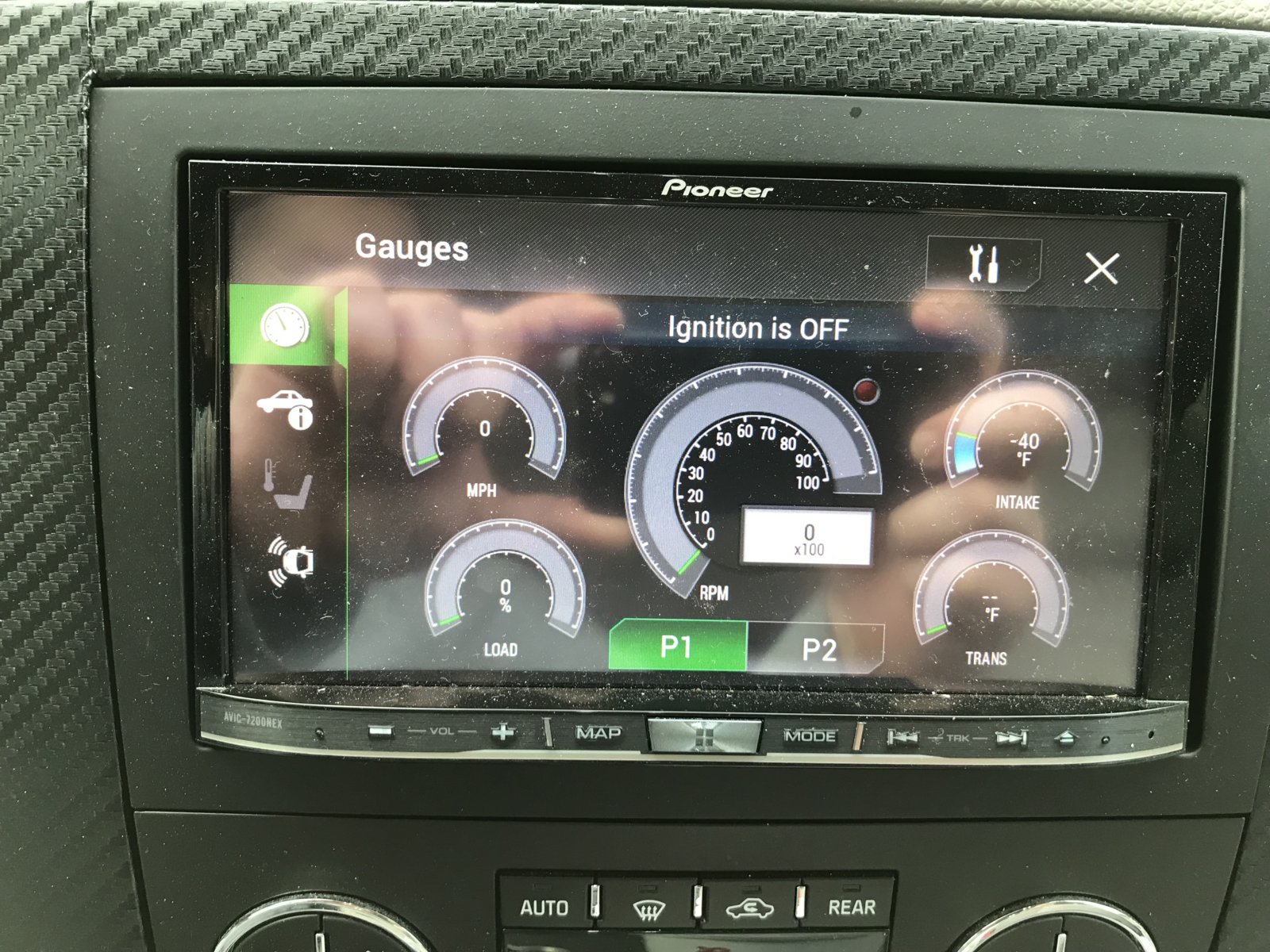

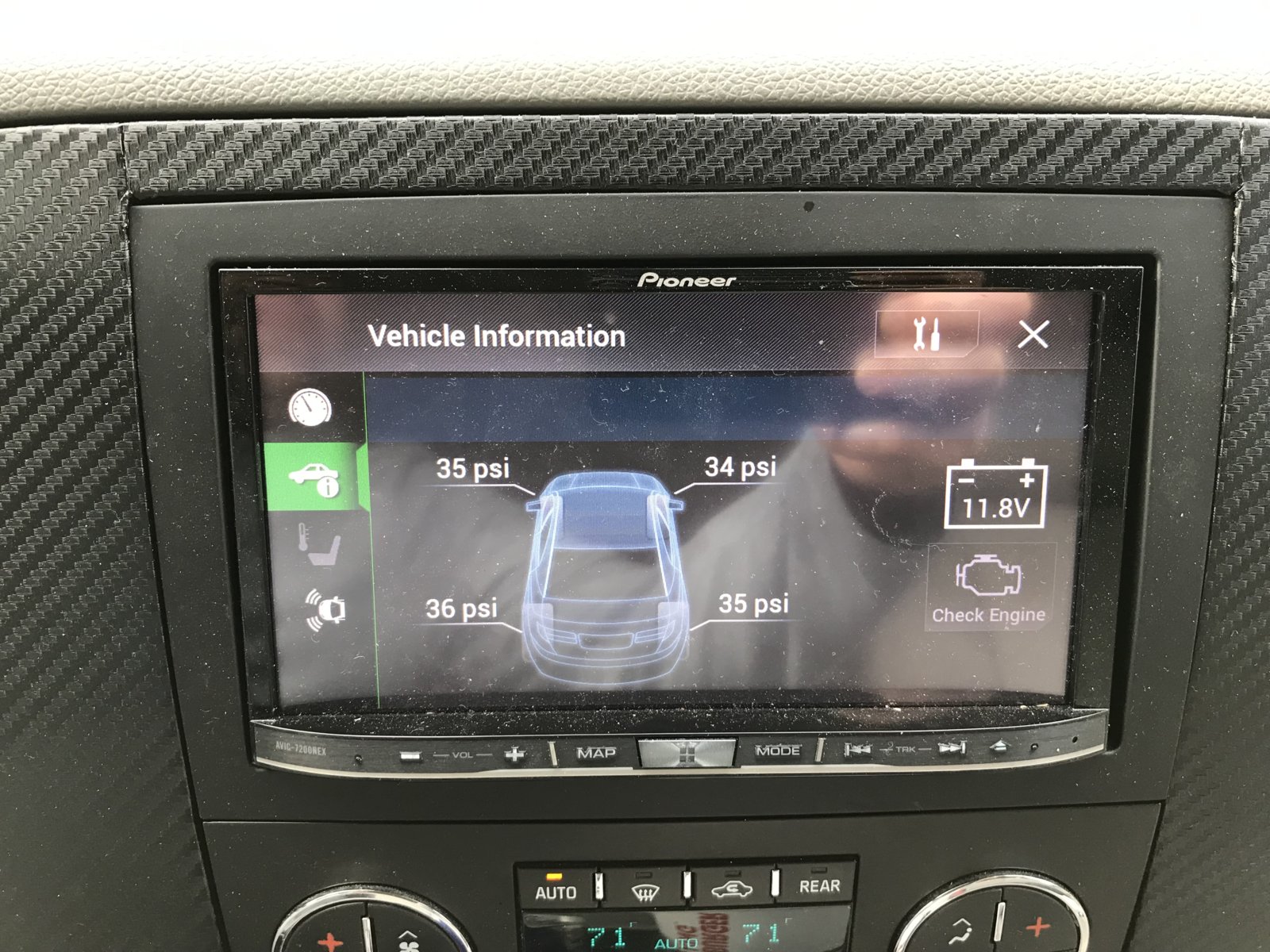

Some of the Maestro ADS-MRR featuresIMG_0534.jpegIMG_0535.jpeg

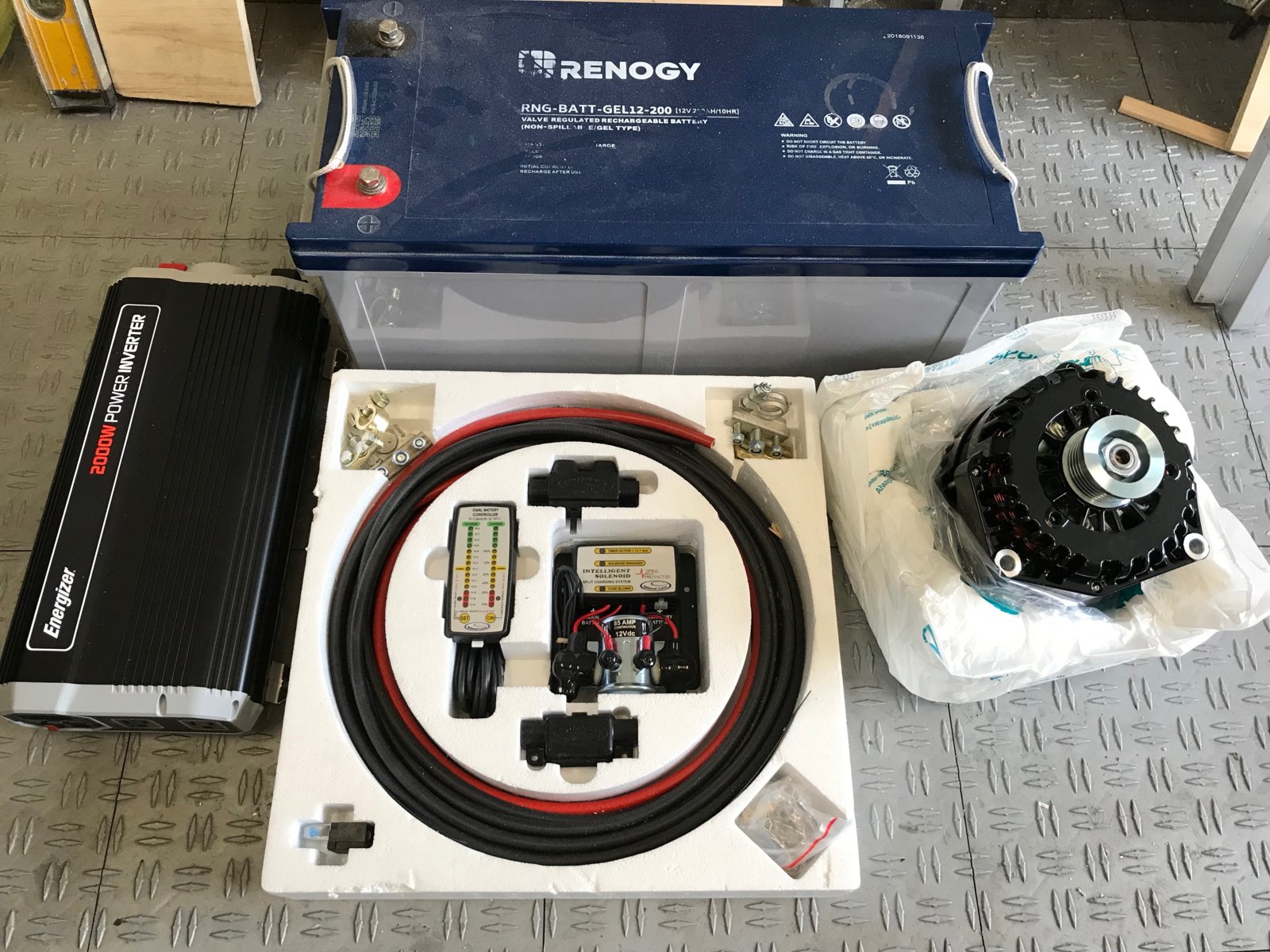

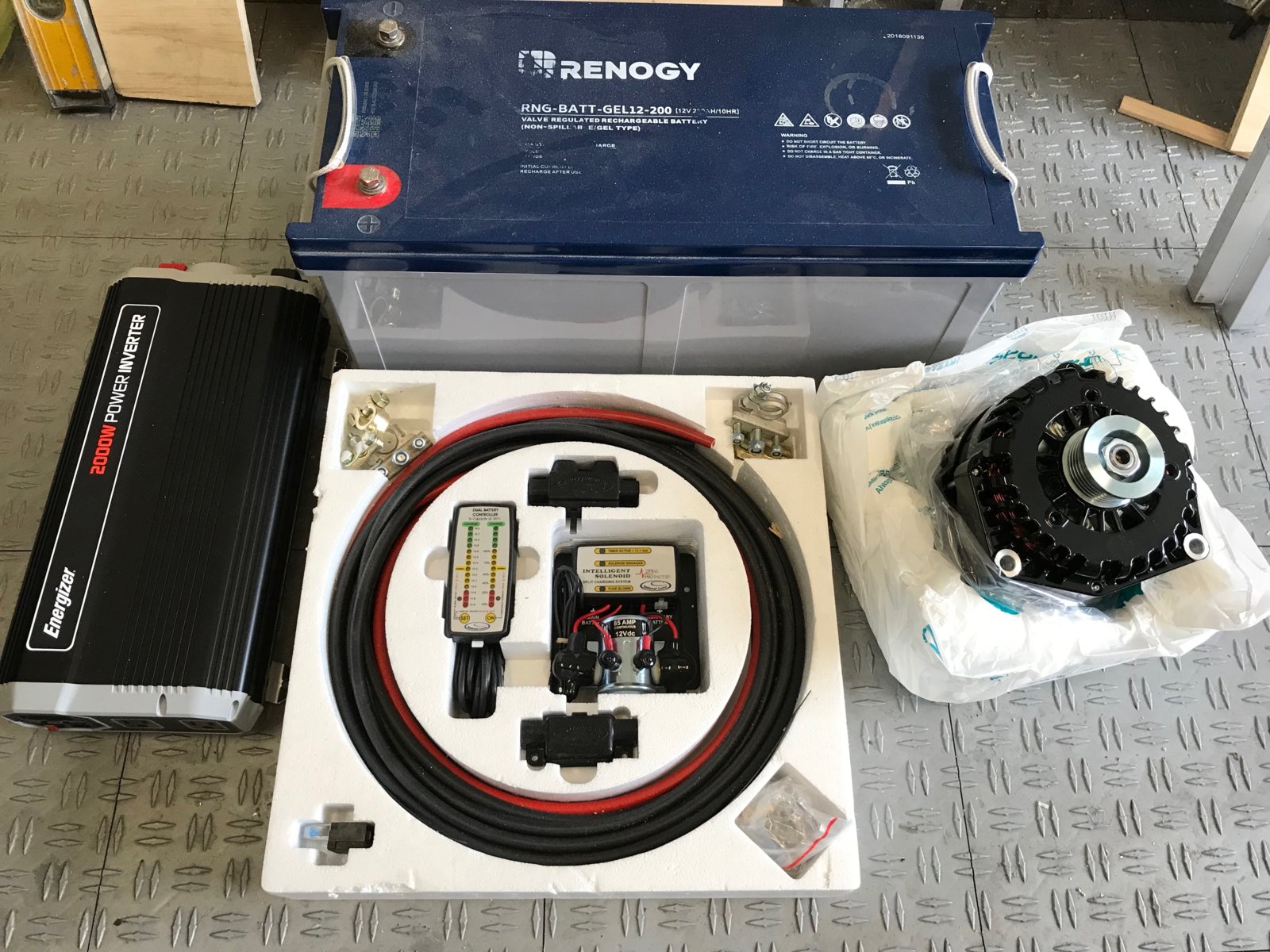

waiting for installation:

ENERGIZER 2000 Watt 12V Power Inverter, Dual 110V AC Outlets
Renogy Deep Cycle Gel Battery 12 Volt 200Ah
national luna split charge kit
250A High Output Alternator power coated black


Last edited by a moderator:

Booby1323

Member
Joined
Nov 24, 2018
Posts
32
Reaction score
37
Cool project! I also want to do the 4 camera system down the line so definitely saving this thread. I put a Pioneer 8100nex in my Yukon a couple months ago with the idatalink RR and I haven't been able to figure out how to bring up the vehicle information, gauges, etc. Did you have to do anything special for that?


Tonyrodz

Resident Resident
Joined
Feb 16, 2012
Posts
30,958
Reaction score
45,061
Location
Central Jersey
Also, how does all the cams hook into the radio? Are there that many RCA jacks behind the radio?

OP
OP
Chrismnj

Chrismnj

Full Access Member
Joined
Sep 17, 2015
Posts
1,227
Reaction score
2,119
Location
NJ
Cool project! I also want to do the 4 camera system down the line so definitely saving this thread. I put a Pioneer 8100nex in my Yukon a couple months ago with the idatalink RR and I haven't been able to figure out how to bring up the vehicle information, gauges, etc. Did you have to do anything special for that?

you need to connect I believe brown wire from maestro to your OBD

Also, how does all the cams hook into the radio? Are there that many RCA jacks behind the radio?

just need one video in, other than your back up camera, all cameras are controlled by iBeam USA TE-TSI Turn Signal Video Interface

Also, how does all the cams hook into the radio? Are there that many RCA jacks behind the radio?

http://ibeamusa.com/index.php?main_page=product_info&products_id=138

Last edited by a moderator:

RRWW

TYF Newbie
Joined
Jan 3, 2019
Posts
14
Reaction score
12
I'm getting ready to do a similar install in mine. Thanks for the pics. Have you had much experience with the dash cam yet? I can't seem to decide on one
