96 Yukon Body mount bolt size

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

biggmac4

TYF Newbie
Joined
Mar 4, 2012
Posts
13
Reaction score
0
Anyone know what factory size body mount bolts are used on a 96 Yukon ? Anyone sell a kit with all the bolts? Factory mount height.


east302

Full Access Member
Joined
Dec 21, 2016
Posts
1,575
Reaction score
1,411
Location
Mississippi

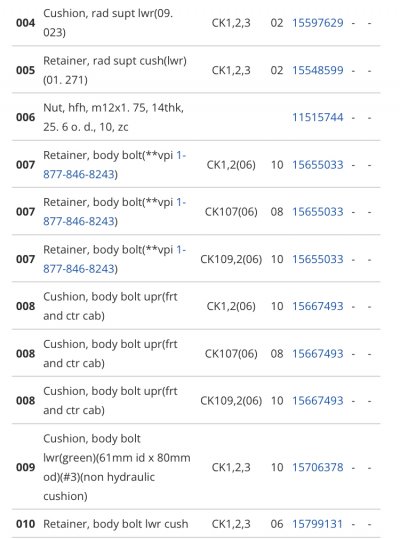

Here is the parts diagram with bolt sizes and GM part numbers if you need them. In the third column, they list the model numbers. (06) is specific to a four door with (16) denoting the two door. 107 is a short wheelbase (Yukon) and 109 is long (Suburban). So 107(16) is a two door Yukon, 107(06) a four door. If it doesn’t differentiate (CK1,2,3) then the part works for all.

M12x1.75x110 for the body, x115 for the radiator supports. It doesn’t show the grade, but mine (1998, factory) are 10.9.

The rest of the diagrams are here:



Last edited:
OP
OP
biggmac4

biggmac4

TYF Newbie
Joined
Mar 4, 2012
Posts
13
Reaction score
0
much appreciated! Yes I have the 2 door 96 Yukon GT.


Joseph Garcia

Supporting Member
Joined
Aug 2, 2018
Posts
6,642
Reaction score
8,733
Here is the parts diagram with bolt sizes and GM part numbers if you need them. In the third column, they list the model numbers. (06) is specific to a four door with (16) denoting the two door. 107 is a short wheelbase (Yukon) and 109 is long (Suburban). So 107(16) is a two door Yukon, 107(06) a two door. If it doesn’t differentiate (CK1,2,3) then the part works for all.

M12x1.75x110 for the body, x115 for the radiator supports. It doesn’t show the grade, but mine (1998, factory) are 10.9.

The rest of the diagrams are here:


View attachment 359814
View attachment 359815
View attachment 359816
View attachment 359817

A very complete answer to the OP's question. Thank you.

Another example on why this Forum ROCKS!
