Found this:
http://www.demandaam.com/product-catalog/axle/output-shafts

Kinda sunk a few of my ideas....
thinking I would be able to swap in the stub shafts from the older 9.25, new one uses 8bolt pattern and 36 splines at the hub, and are 23.xx inches long. The older cv axles had a 6bolt bolt pattern (different than 1500s I believe) and are beefier than the 1500s but they would fit in the 1500 hubs, same size/spline. Would have made for a slick install using oem parts, modified cvs.

The length of the new cv axles is what has me wondering, cause according to rockauto my cvs are only 18" or so long, older 9.25 axles even shorter ~17". Don't know if the wms is actually wider on 2500/3500s or if this axle is that much shorter in width where the cvs mount. Will hopefully get mine up in the air to measure mounting points and widths over the weekend

May do a quick and dirty adapter, similar to what's included in lift kits and machine in whatever bolt pattern I go with for the inside cv mounts

Edit- that 23.xx measurement for the 2500 axles looks like inside mount to end of spline shaft. My other measurements are Inside mount to hub. Measured end to end looks like my 1500 cvs are 22-7/8. So might be real close. So make adapters and run 1500 axles or see if I can swap the outer cup on new 2500 axles with the older style 2500 cup that has the correct spline I need. Might do both, adapters to get it rolling as it'll be cheap and really no guess work. I'd need to buy 4 axles total to make the other work and its be a gamble

Last edited:

67RS427

Full Access Member
Joined
Apr 5, 2017
Posts
594
Reaction score
1,216
I know I should be the last one to say this, but why? I love the idea and might attempt something similar in the future should I actually need it but I'm currently sitting at 850-900hp and don't see why you'd possibly need to do this swap. Don't get me wrong, it's a cool idea and we all appreciate you being the Guinea pig, but totally unnecessary... That transfer case will take a crap before your 8.25 IFS case cracks or something else breaks. With our trucks being AWD, only 40% of your power goes up front and it's through the BW4485 transfer case first. Your just cammed and stalled? Again, why the need? I get wanting a LSD/Posi up front but that's no big deal, mine puts the power down just find. Put that money into custom driveshafts and a good 6L80 build. Even at 1000whp, that front IFS only sees 400whp of that. Doesn't seem like it's worth it to me, the 8.25" should hold up fine... Time will tell for me but unless your planning a 1000+ hp build, your probably wasting your time and money except for the fact you are doing something that may not have been done too many times before.

Just my 2 cents...

OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida
that is exactly what im planning lol
all the same it probably isnt necessary, outer bearing on mine needed to be replaced, i wanted to regear...i was going to just grab another denali front diff swap gears and have it ready to throw in minimum down time, but theyre all $1100+. if it looked as involved as swapping in the earlier years i would have just did that, now it may still be a pita but initially it looks like a pretty easy swap for a much better front diff, and it was cheap.

OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida
I know I should be the last one to say this, but why? I love the idea and might attempt something similar in the future should I actually need it but I'm currently sitting at 850-900hp and don't see why you'd possibly need to do this swap. Don't get me wrong, it's a cool idea and we all appreciate you being the Guinea pig, but totally unnecessary... That transfer case will take a crap before your 8.25 IFS case cracks or something else breaks. With our trucks being AWD, only 40% of your power goes up front and it's through the BW4485 transfer case first. Your just cammed and stalled? Again, why the need? I get wanting a LSD/Posi up front but that's no big deal, mine puts the power down just find. Put that money into custom driveshafts and a good 6L80 build. Even at 1000whp, that front IFS only sees 400whp of that. Doesn't seem like it's worth it to me, the 8.25" should hold up fine... Time will tell for me but unless your planning a 1000+ hp build, your probably wasting your time and money except for the fact you are doing something that may not have been done too many times before.

Just my 2 cents...


its on the back burner, you win :cheers: .....part of the main reason i was interested in the swap dissolved after a long search-apparently there are no traction aids for 2011+ 9.25ifs axles with the exception of maybe a lunchbox style locker which i am not interested in. And I would have still had to deal with either deleting the CAD with a long passenger side single axle (found a few shops that it looked like this may be possible) or wire the actuator on all the time (not preferred).
I had measured out all the mounting points, they were only about 1/2-3/4" off on width, i think that could have been made up easily the axle mounted to some brackets that mount to the frame on rubber bushings, by just by assembling the axle on the brackets and brackets on the frame loosely i think there would be enough play everywhere as it was tightened up to fit nicely. the other brackets over each stub axle were the same measurements.
for axles see previous post, i was looking into changing out the stub shafts on the transmission to delete the CAD but also change to the older 6 bolt cv pattern. if that didnt pan out either a simple 1/2 thick adapter 8 bolt to 6 bolt should work fine to get back to 33 spline at the hubs with 1500 axles or older 2500 axles depending on length.
The last step before i started cleaning up the 9.25" was going to be a quick test fit because the only thing I could not measure accurately is from the center line up to the top of the diff and there are all kinds of weird humps and shapes to try and lay out, it looks very close to the 8.25 but without physically removing the 8.25 and fitting the 9.25 in its place i didnt want to sink abunch of money into the 9.25 first to find out it would not fit. part number for the ujoints match, centerline of axle to the ujoint looks to be very close, to shorten and balance front driveshaft would be cheap if needed. with a diff drop lift kit it should be very easy to do the swap.
the other reason this is on the back burner, need to find a new daily as my other car was totaled a few weeks back so scheduling all this around swapping the front and towing it somewhere to have the rear done or having to buy whatever tools i would need for probably one time use vs spending the money to have someone do it. havent had the greatest luck with shops lately and didnt want to have to add this to the list of mods i would end up having to redo myself because i wasnt happy with the way it was after i paid for "professionals" to work on it. found a shop that looked competent/confident, price was right, and just going to swap the 8.25 at the same time. if the 8.25 gets tore up then ill worry about the upgrade

OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida
8.25 after swapping to 4.11s something messed up, pinion is seized up. Not sure what else it could be other than not correctly installed. Also to note mis-matches gears 4.10 rear 4.11 front could be messed something up, dunno.

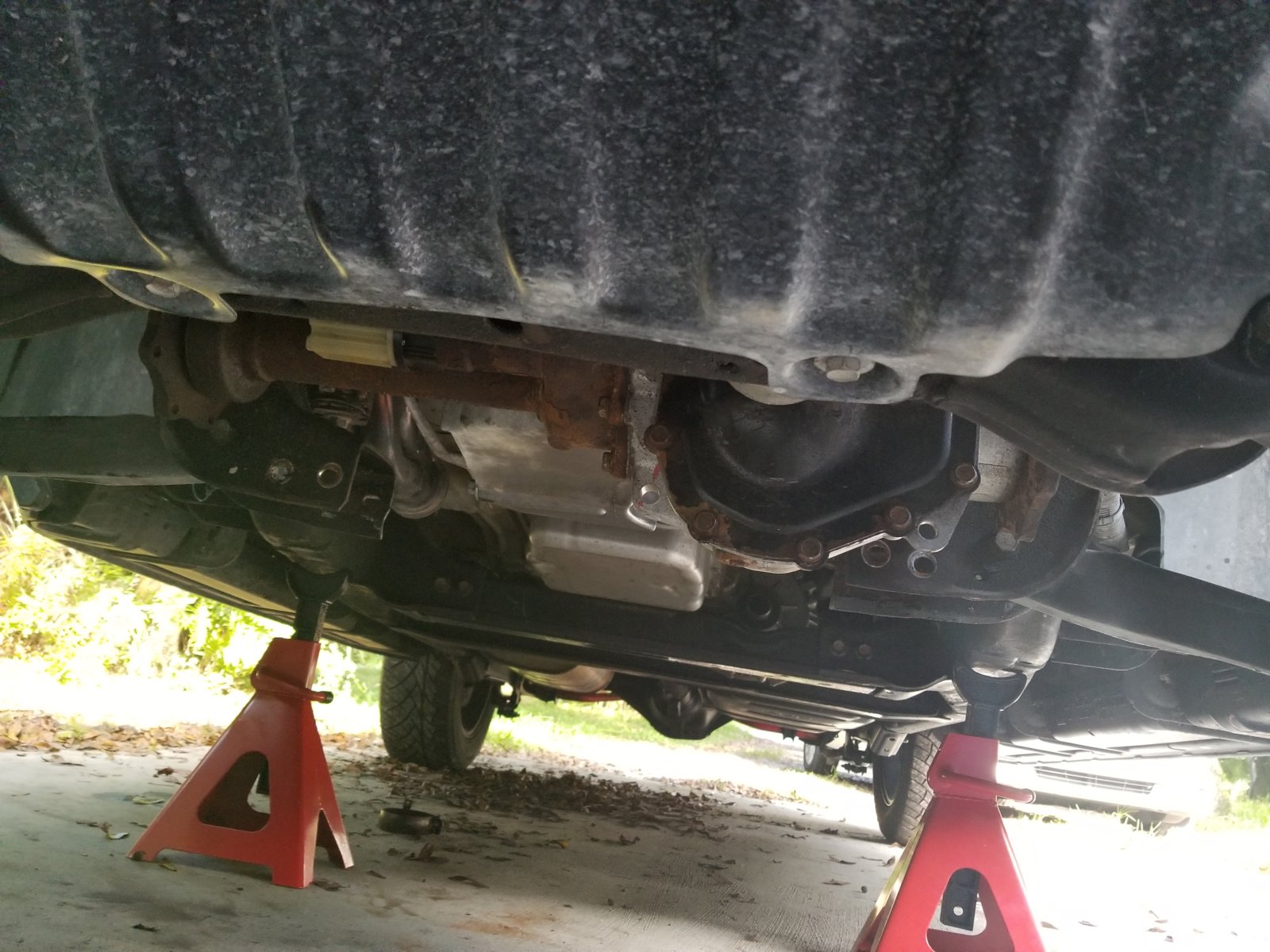

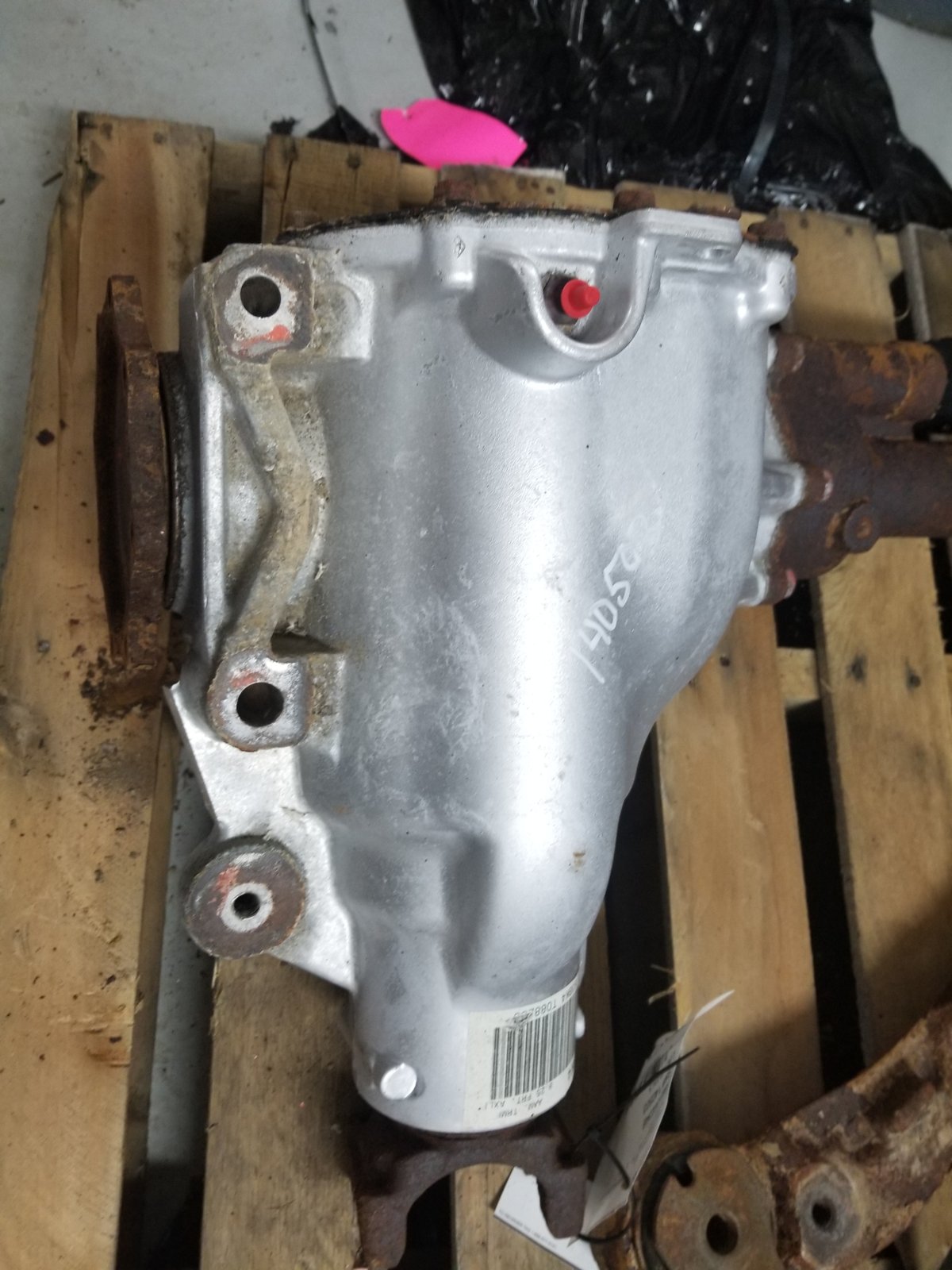

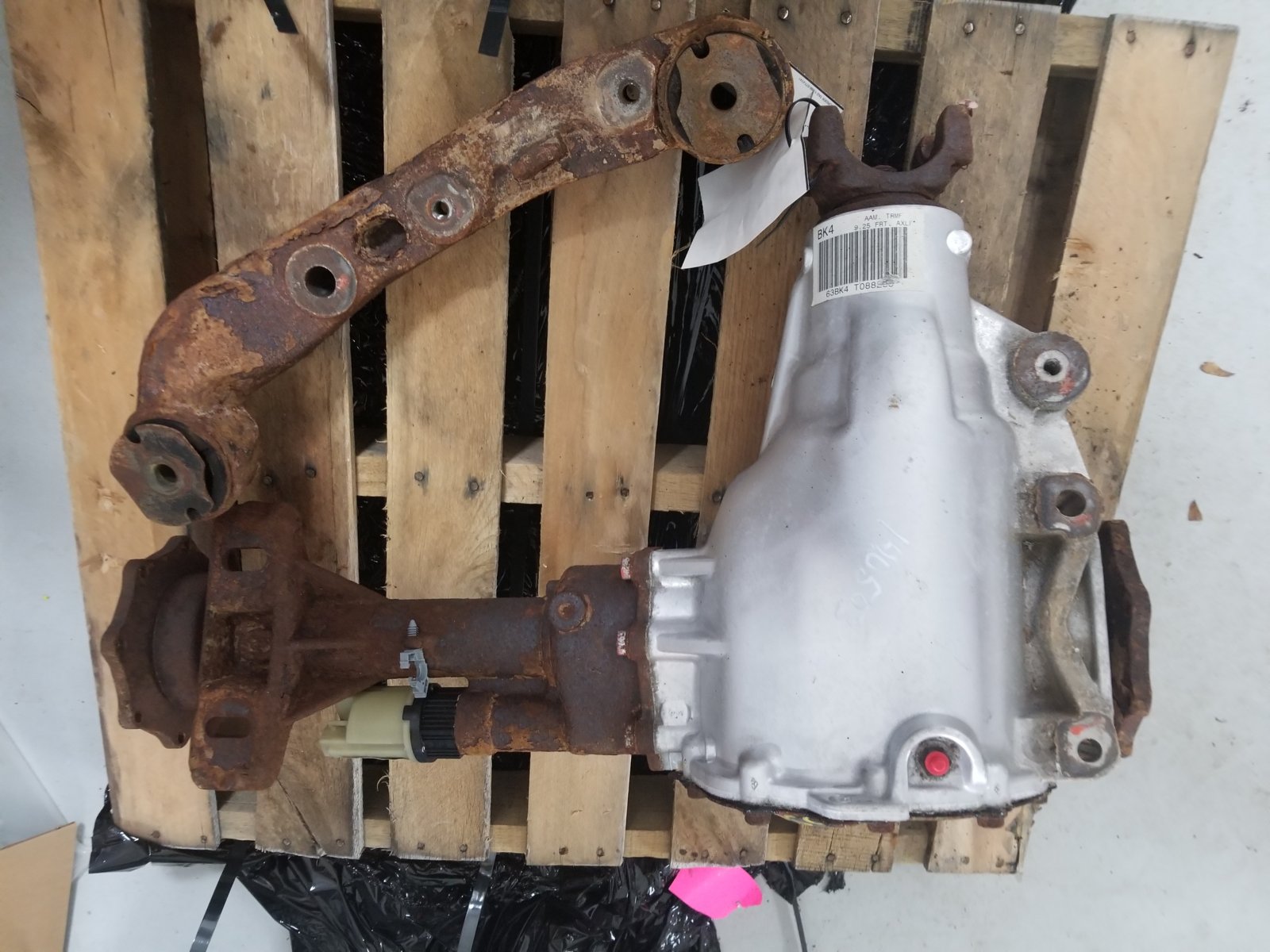

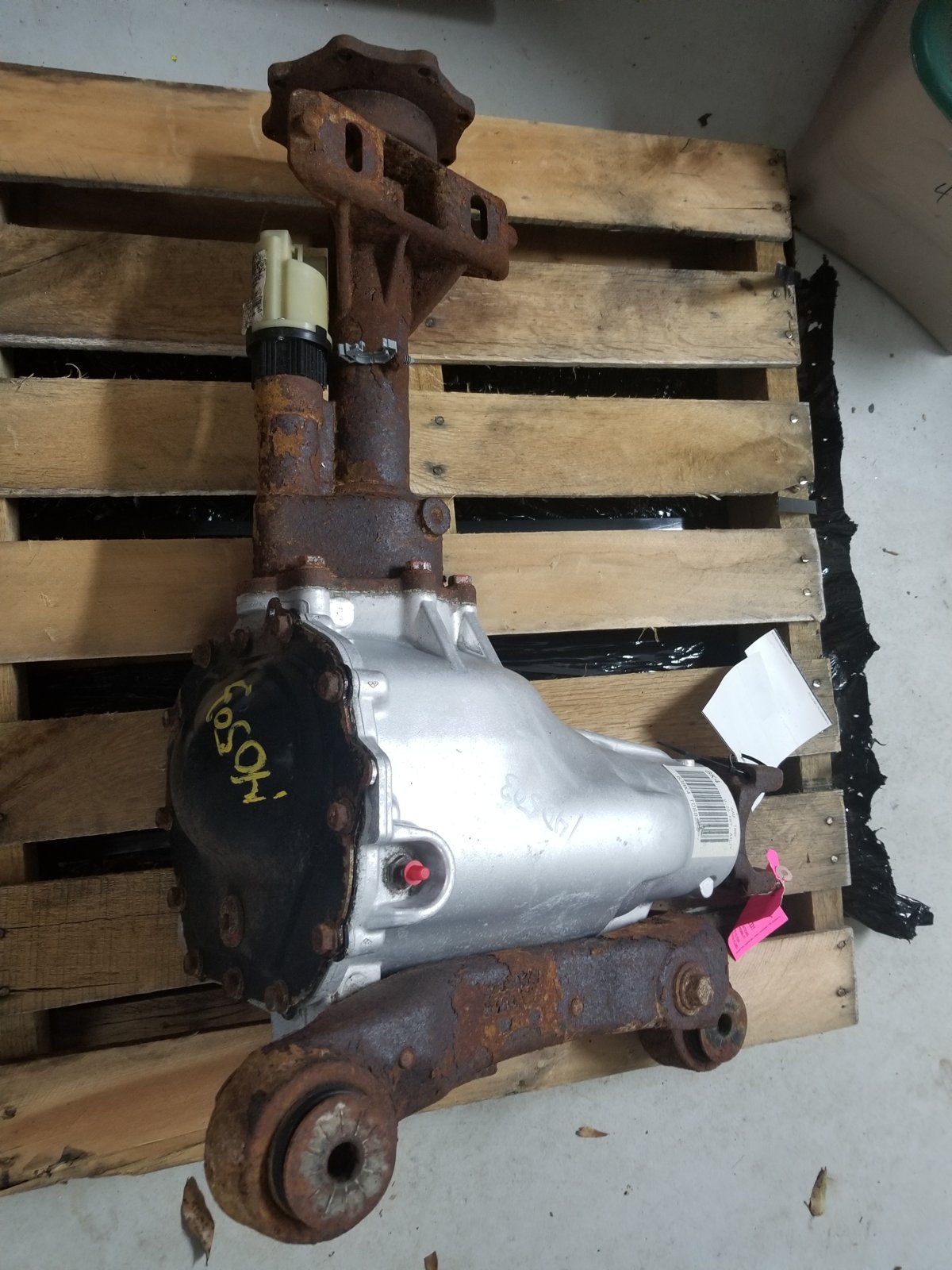

In either case...dont care. Had some free time so I pulled the front diff out. I had the 9.25 (with 4.10) sitting here, looked damn close so I threw it in. It's a heavy sob compared to the 8.25. Looks like an ear on the 9.25 will need to get cut off- mounts to the 2500/3500 bracket not used/needed on the 1500 bracket. And may have to notch the crossmember or clearance a little on the case.

Soo going to pull it back out, cut the ear off. The passenger side tube is a little rusty new ones are only 100 bux but then I may need to shim the half shaft different.

20180922_153737.jpg 20180922_164040.jpg 20180922_153750.jpg 20180922_164049.jpg 20180922_164104.jpg

Last edited:
OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida
Front ds will need to get shortened an inch or so. My ds guy local does a little bit with cv axles...I've got a few ideas but going to see if it's easy enough to whip some up before I go nuts

OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida

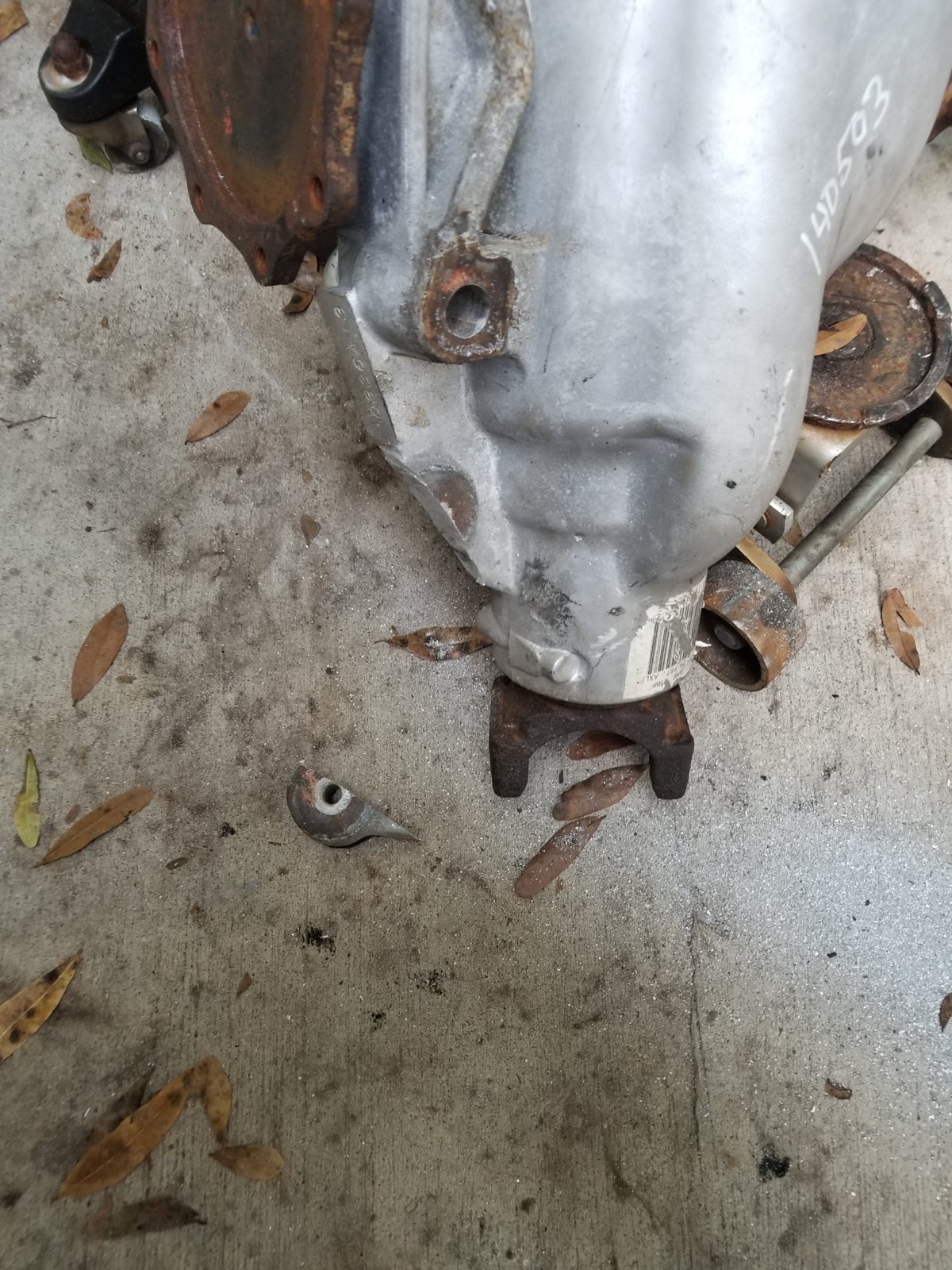

Bye bye ear, also I was messing with the CAD on the bench with 12v battery and I managed to get it to extend to engage the front axle...could figure out how to retract it so for the time being it's always engaged

20180922_174525.jpg 20180922_174516.jpg 20180922_174031.jpg

OP
OP
randeez

randeez

Full Access Member
Joined
Sep 29, 2017
Posts
6,027
Reaction score
18,434
Location
south florida
and if anyone was wondering the awd tcase does act like an open differential. I left the front diff/ds/cv axles out to see if i could atleast move it around while i wait on parts but as soon as i dropped it i was reminded of the slope in my driveway :nono: nearly rolled into my daily driver.

9.25ifs is staying out for the time being because i will be replacing the motor mounts (with atomic polys), but waiting on new tq converter to show up and install first- would usually remove the tranny crossmember and angle down but not sure the atomic mounts will allow much articulation.

Spohn adjustable rear bars and panhard bar to match showed up saturday so I have an extra spohn adjustable panhard bar if someone's looking.... preferably local. was just to whooped to try and get all of that on also.

annoyed with my welder for slacking on my exhaust and then, what looks to be rushed and tacking it together all messed up so i spent most of yesterday grinding tack welds off.

dropped the front driveshaft off to get shortened and rebuilt, dude usually take a day or two.

And I ordered two cv axles...
1) for a 2010+ 3500 truck (that the 9.25 came from- cv axles to stub shaft are 8 bolt)
2) for a pre-2010 3500 truck, they are shorter than my stock axles but has the correct 33 spline at the wheel hub.
