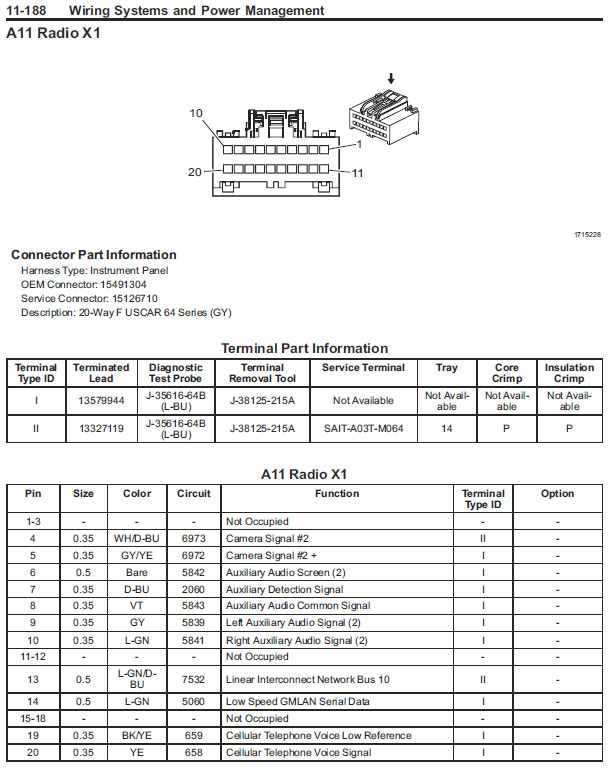

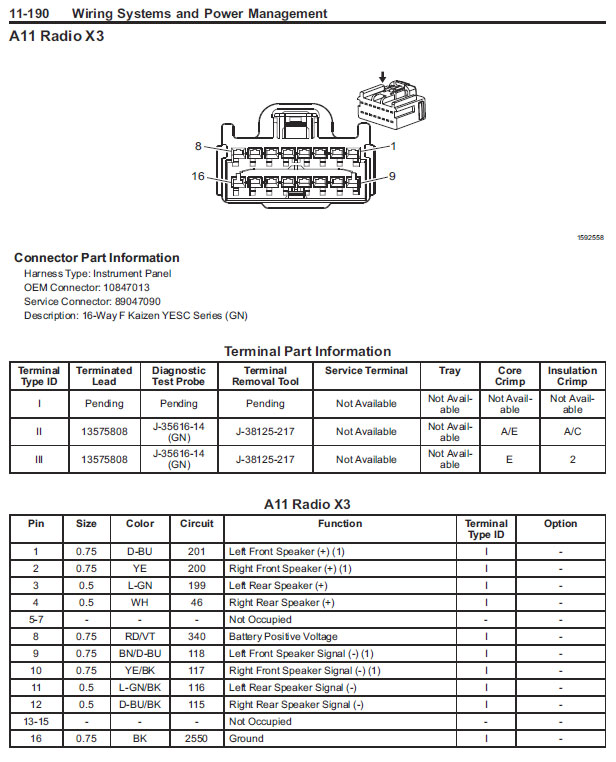

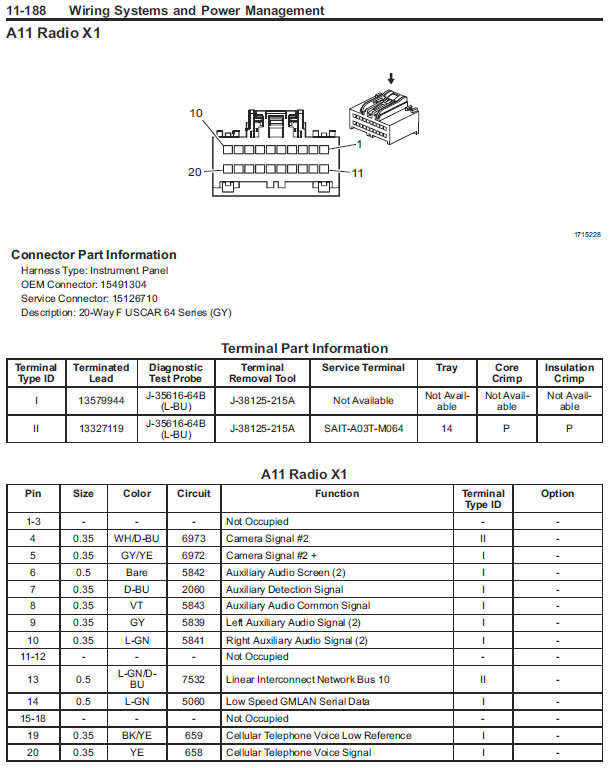

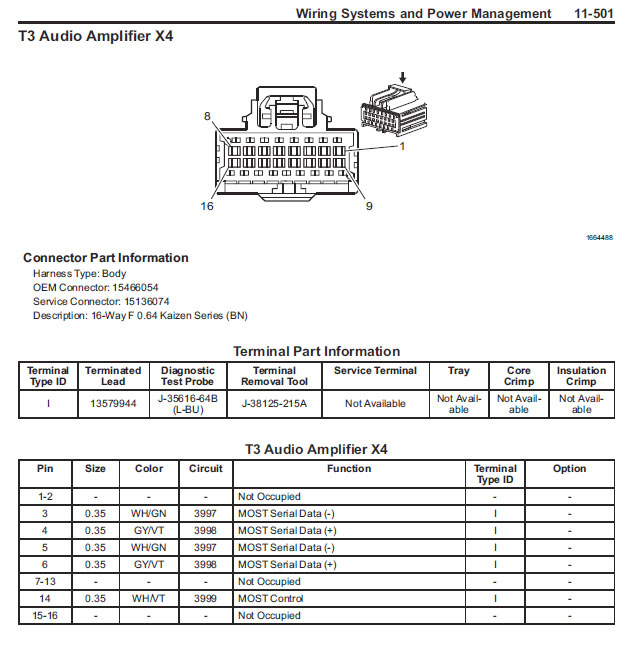

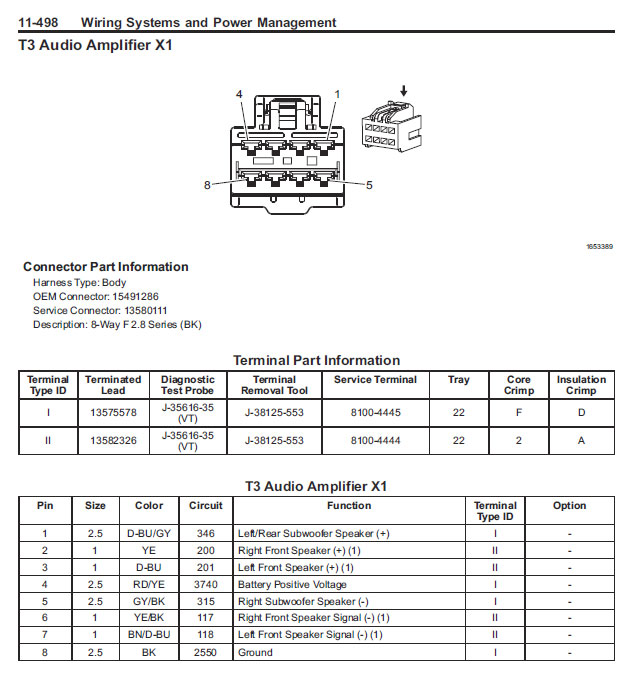

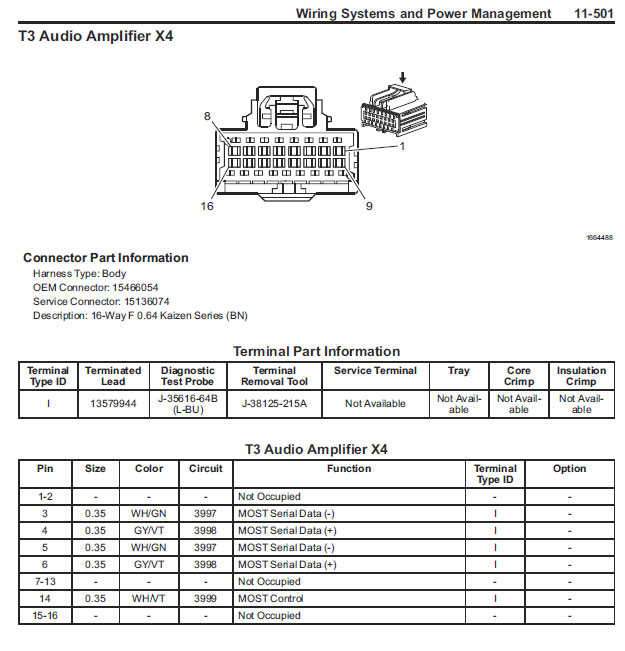

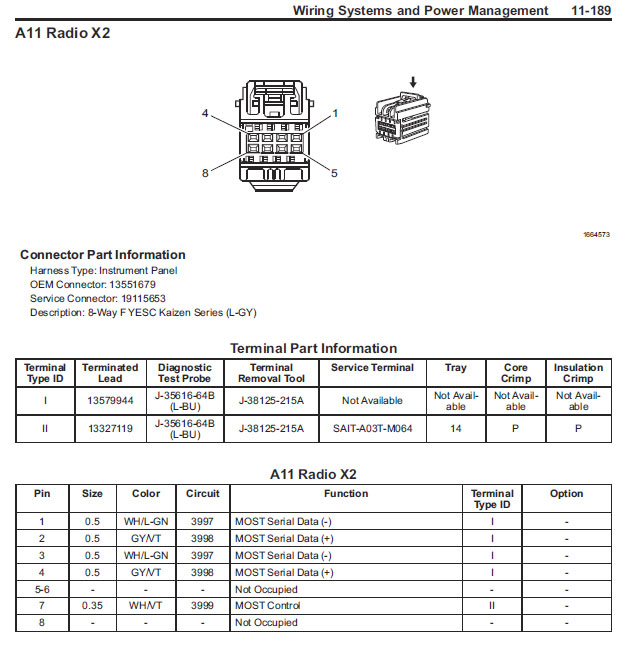

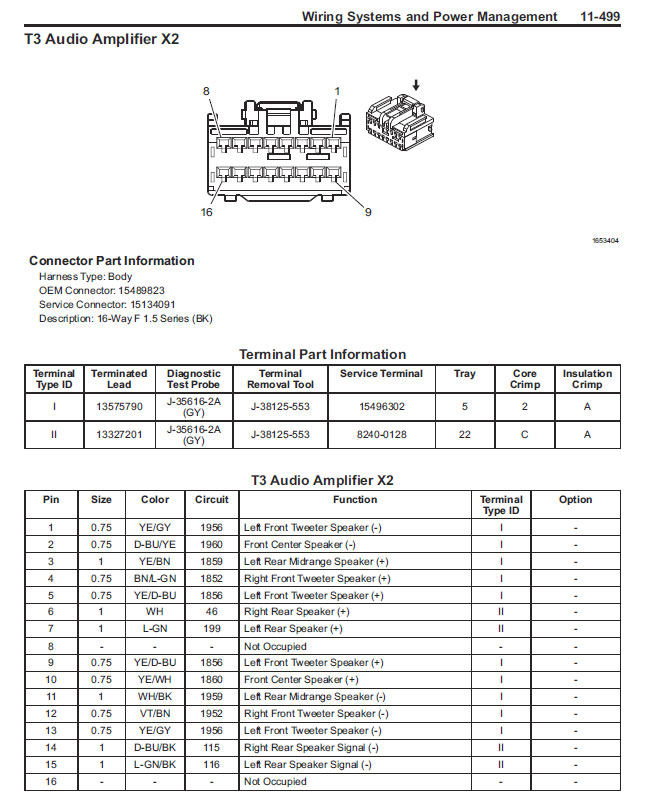

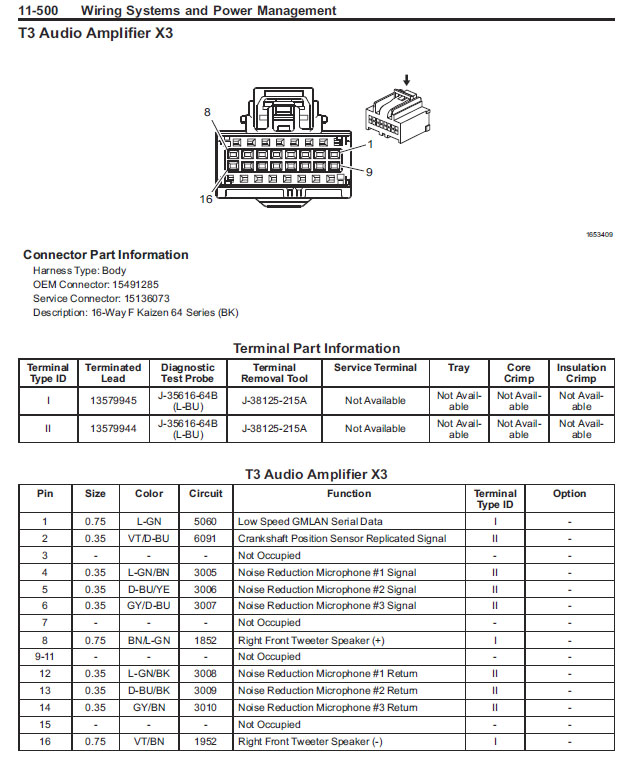

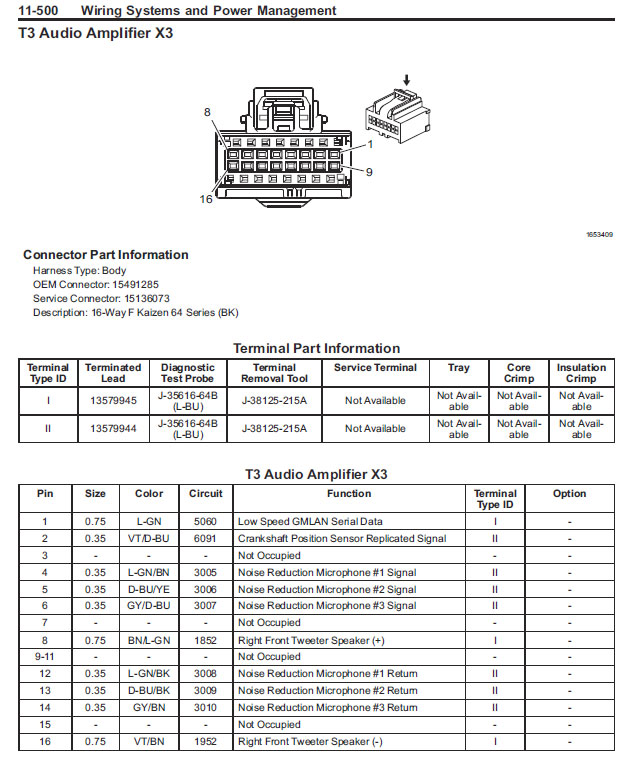

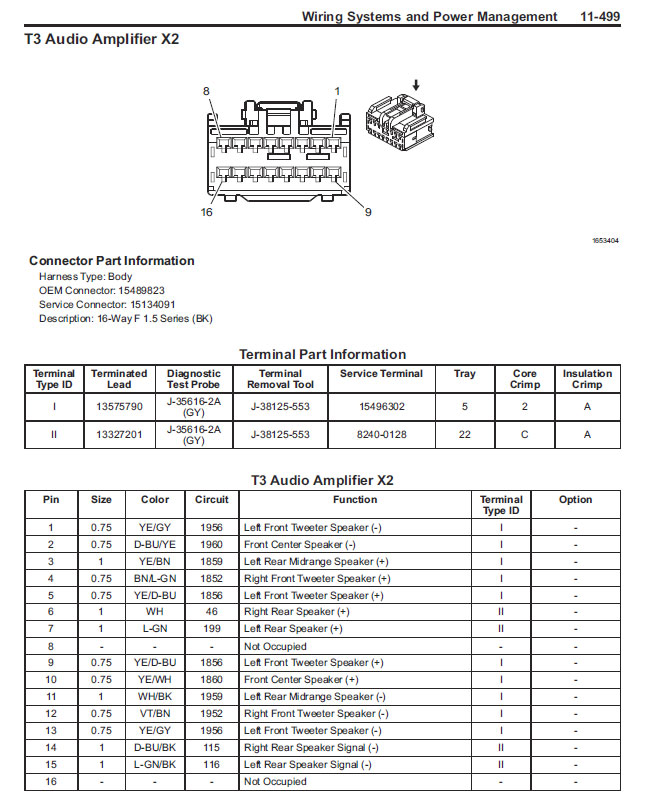

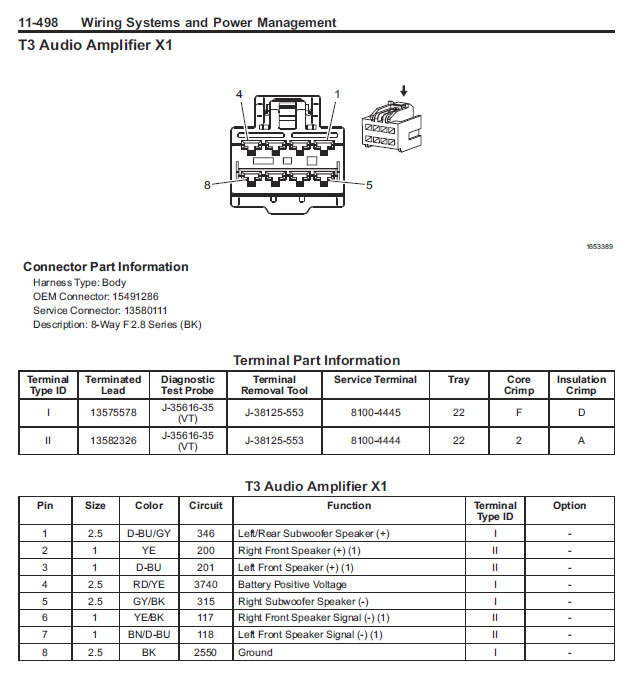

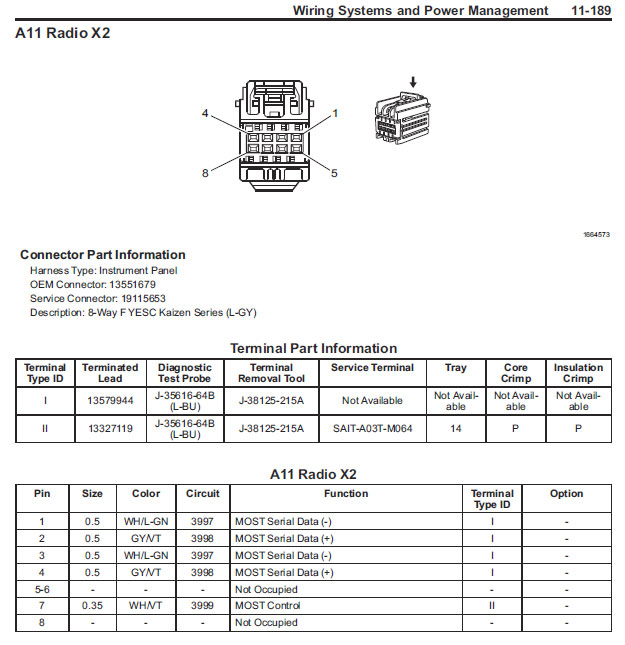

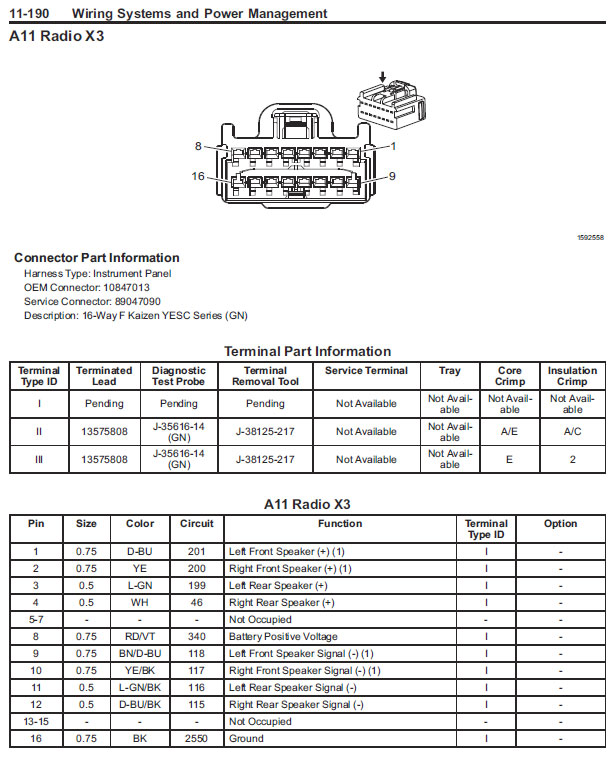

Wiring Schematics 2015+
- Thread starter Turbotoys
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
Supercrewzn
TYF Newbie
- Joined
- Jun 17, 2016
- Posts
- 3
- Reaction score
- 2
That yellow mark is where you need to slice the boot. Use a stiff wire and go through the top inside boot. You can feel when you get inside. Use wd40 to help wires slide. I do this everyday on police tahoes.
Supercrewzn
TYF Newbie
- Joined
- Jun 17, 2016
- Posts
- 3
- Reaction score
- 2
I need the wiring diagram for the door triggers on 2015 tahoe.. anyone have that? Alldata hasn't updated yet
I switched out front console to jumpseat. Do you have the diagram for the harness that goes to the console? Should be for rear hvac controls, power outlets(12 and 110v), usb ports and such. Want to transfer as much as I can to the jump seat.
I am looking to find which positive wire coming from the battery is what. (2015 Tahoe, LTZ)
Bill Francis
TYF Newbie
- Joined
- Sep 12, 2016
- Posts
- 2
- Reaction score
- 0
I see that 2 have asked, but no response.
I need to know the video source on a 2015 Yukon XL Denali. I already have the rear screens, but I want to add a screen for a rear facing car seat. I would like to know the wire or where I can tap to get video out.
I need to know the video source on a 2015 Yukon XL Denali. I already have the rear screens, but I want to add a screen for a rear facing car seat. I would like to know the wire or where I can tap to get video out.
Kpwweb
Full Access Member
- Joined
- Dec 11, 2015
- Posts
- 679
- Reaction score
- 284
Anyone have instrument cluster wiring for a Tahoe with DIC and one for a Denali?
should be the same or you should be able to put the chevy one with the screen in yours
Kpwweb
Full Access Member
- Joined
- Dec 11, 2015
- Posts
- 679
- Reaction score
- 284
I have the Chevrolet multi-colored DIC in mine. The techno-geek wants to explore swapping the big-screen Denali gauge cluster into mine. I was told it wouldn't work, but I'm from MO!
you have the 4" screen or the 8" one and either way it should work
i want to see if i can put the escalade one in my denali but that will deff need some programing all the connections are the same tho
