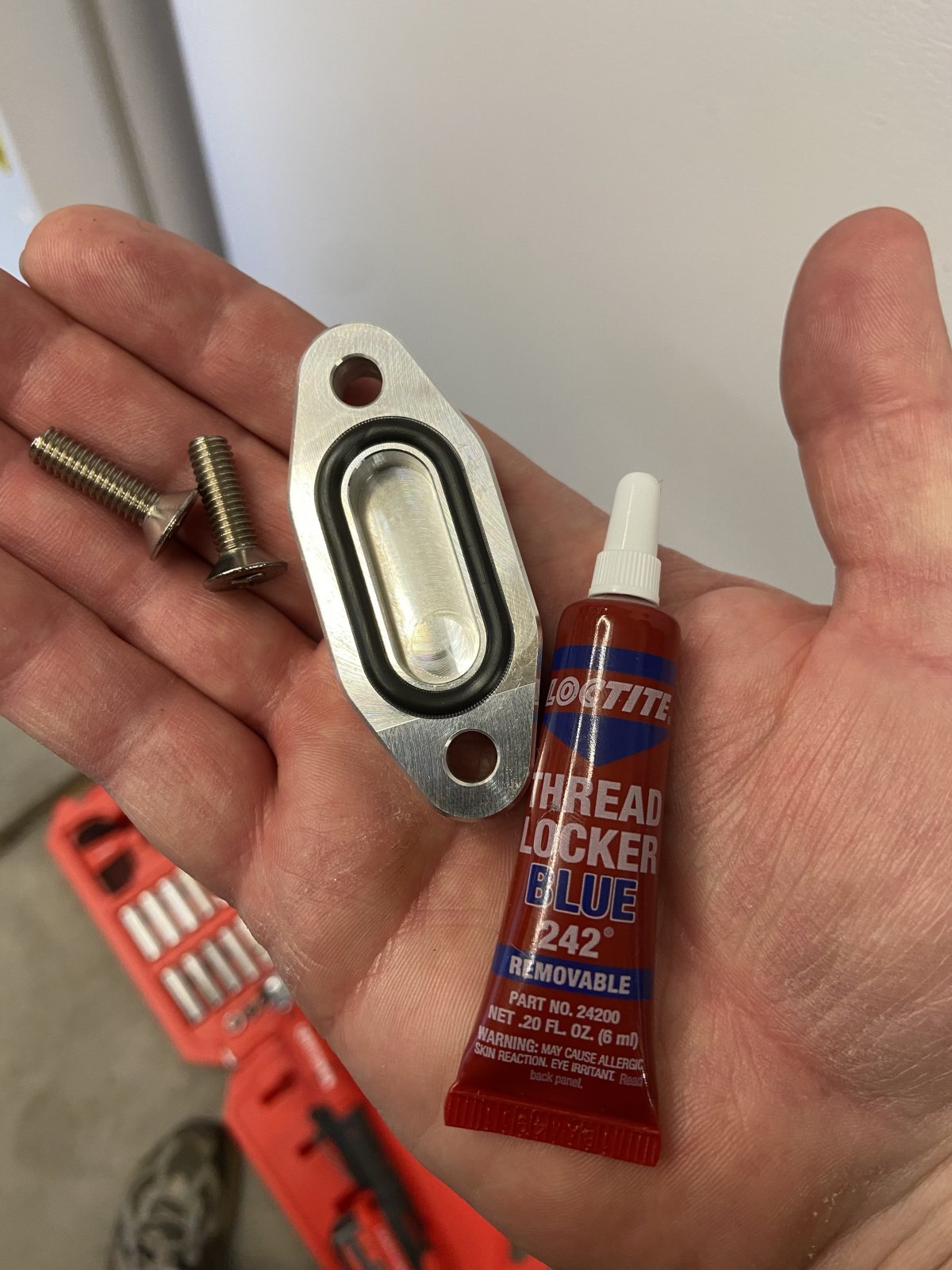

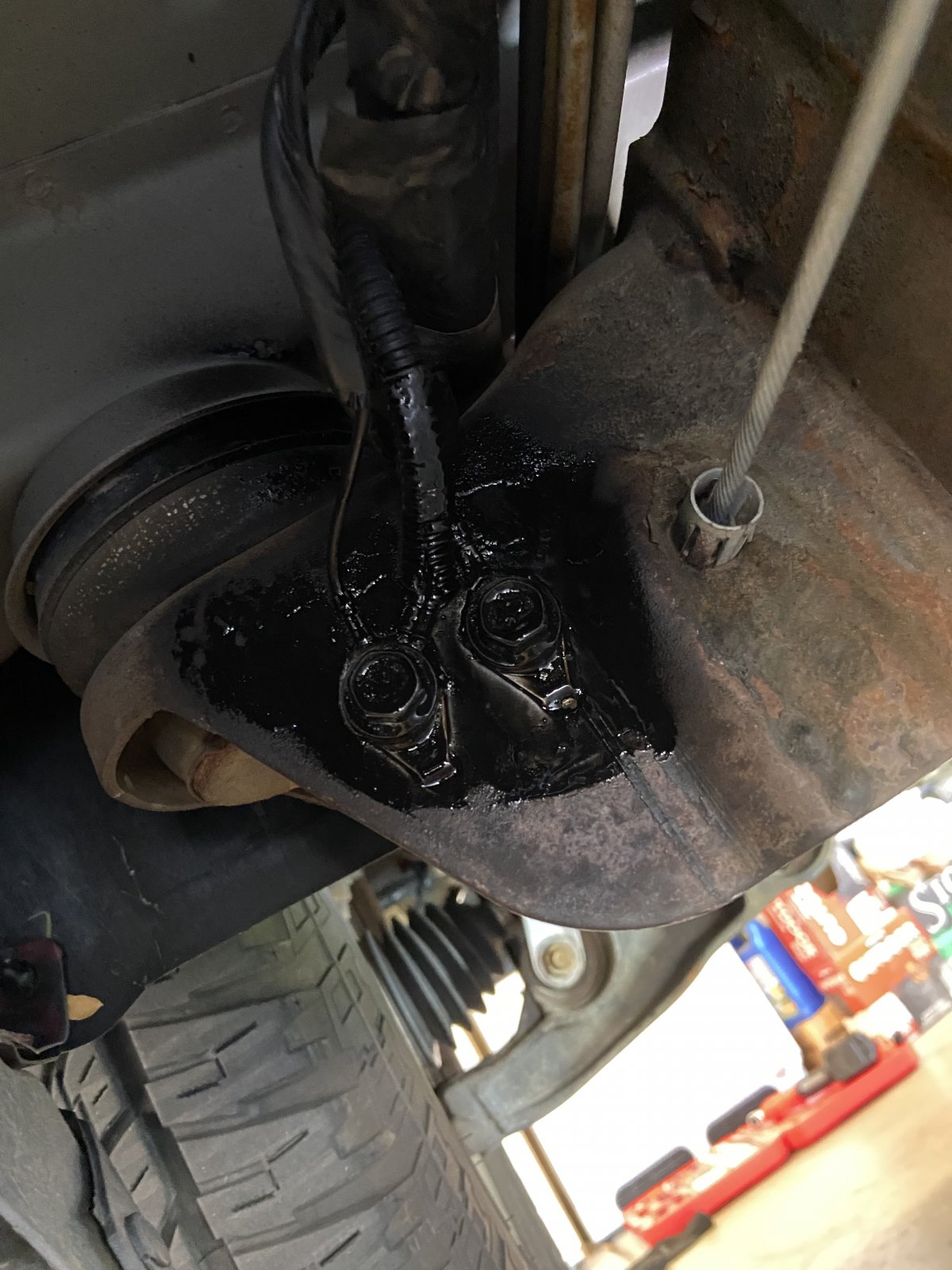

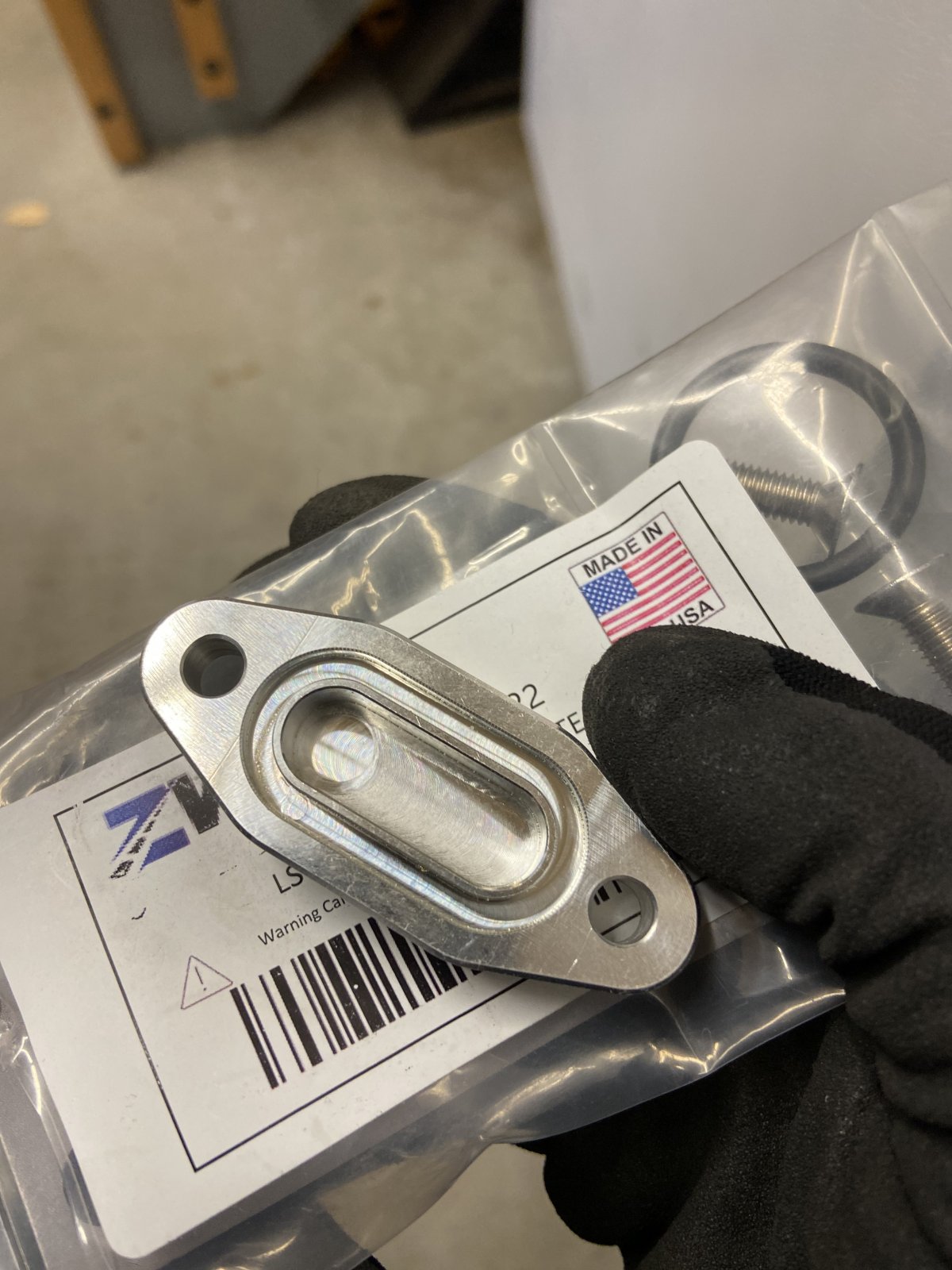

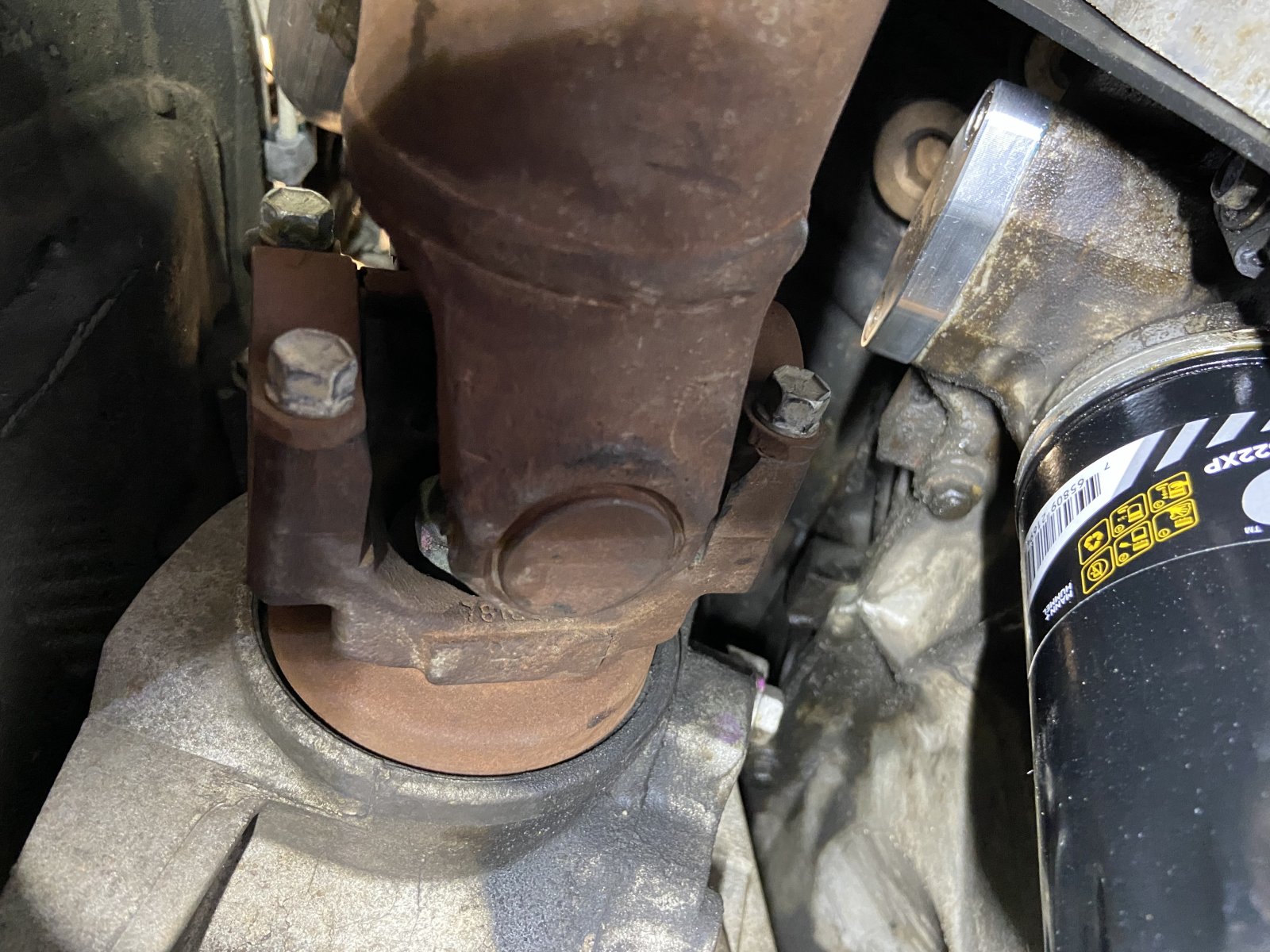

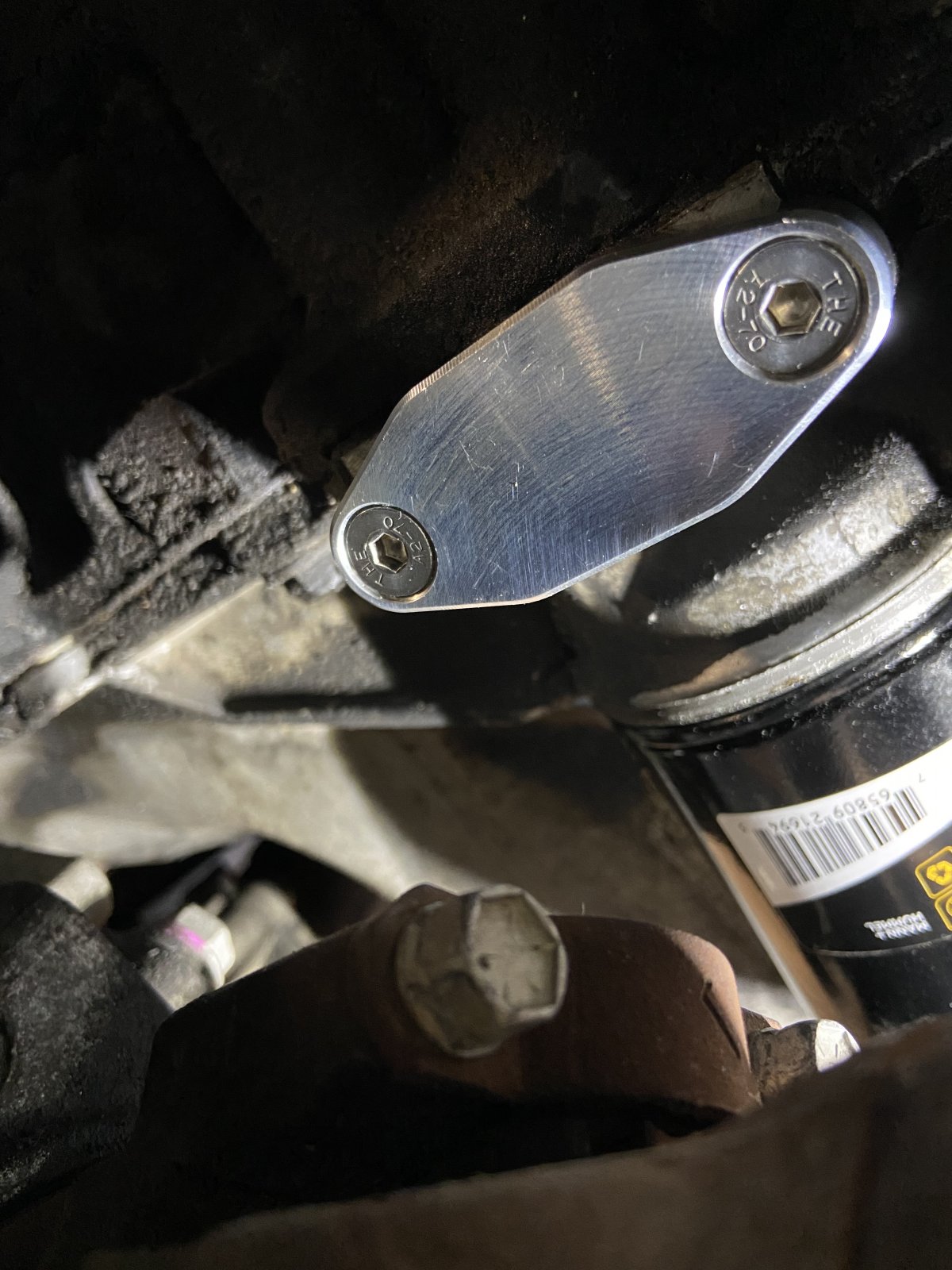

Two days ago, I replaced the oil cooler blockoff plate with this billet style, which has an o-ring, rather than the gasket.
What did you do to your NBS GMT800 Tahoe/Yukon Today?
- Thread starter vwbeaner
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

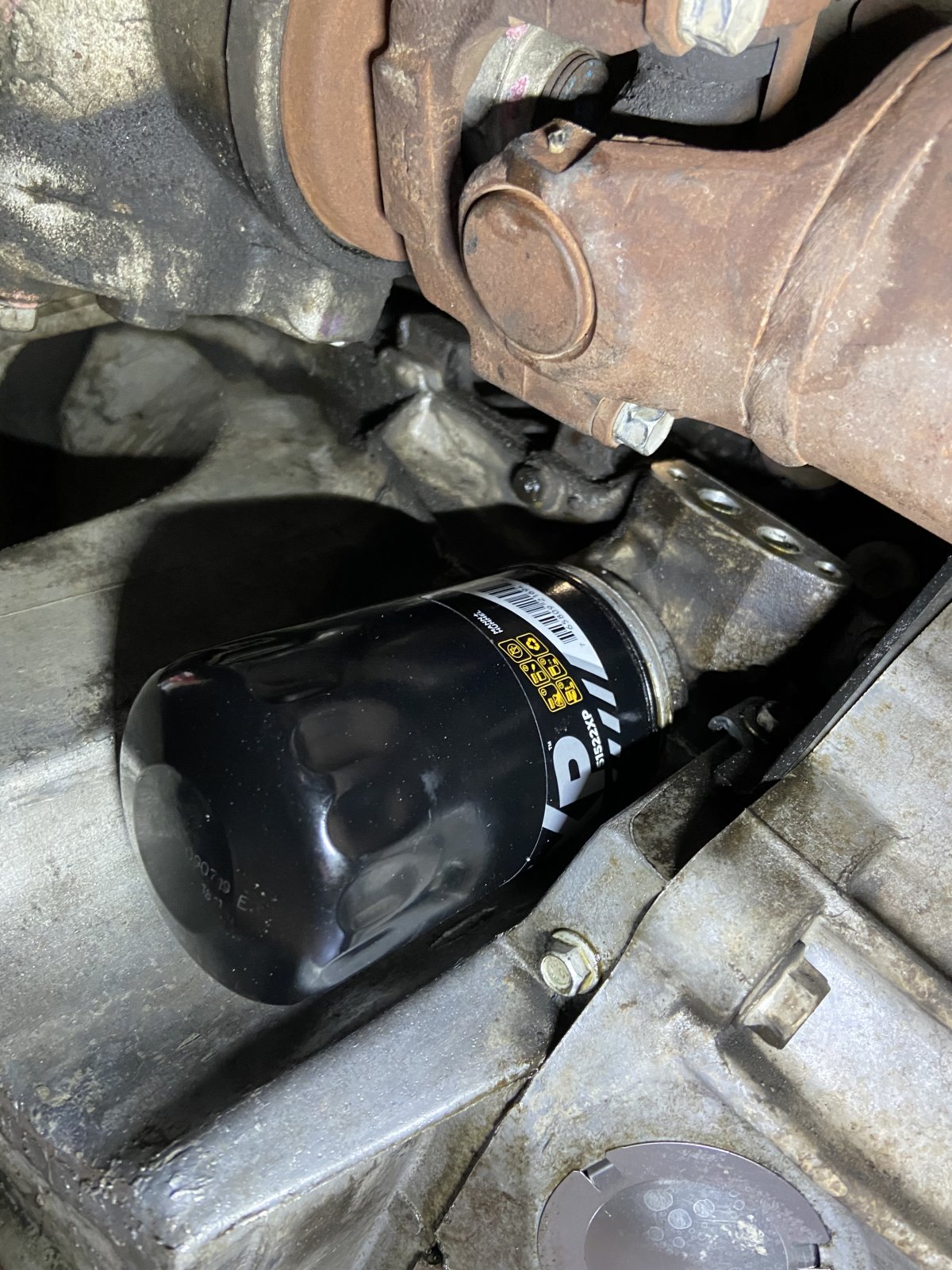

Went well, super easy job. And I believe this has addressed my small oil leak, which suddenly became a problem oil leak a few days ago. Thankfully, I had already ordered the part, and had a new Wix filter and 7 quarts of AC Delco 5W30 Full synthetic ready to go. Incidentally, these filters are getting harder to find every time.. I just ordered 6 from Oreilly auto, since they had none in stock locally. I’m just hoping they come in..

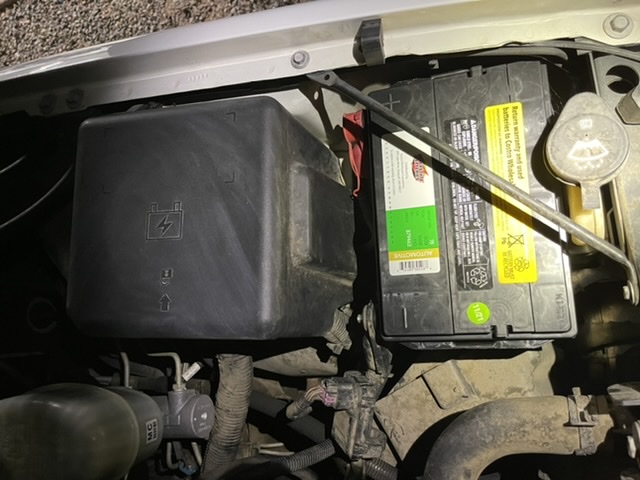

Also sprayed some Duplicolor low gloss 1634 (GM) over the grounds I had cleaned up a while back, since I got some grief for leaving unpainted and with just dielectric grease on them. Lol. No rust whatsoever.. gotta love the Colorado dry air.

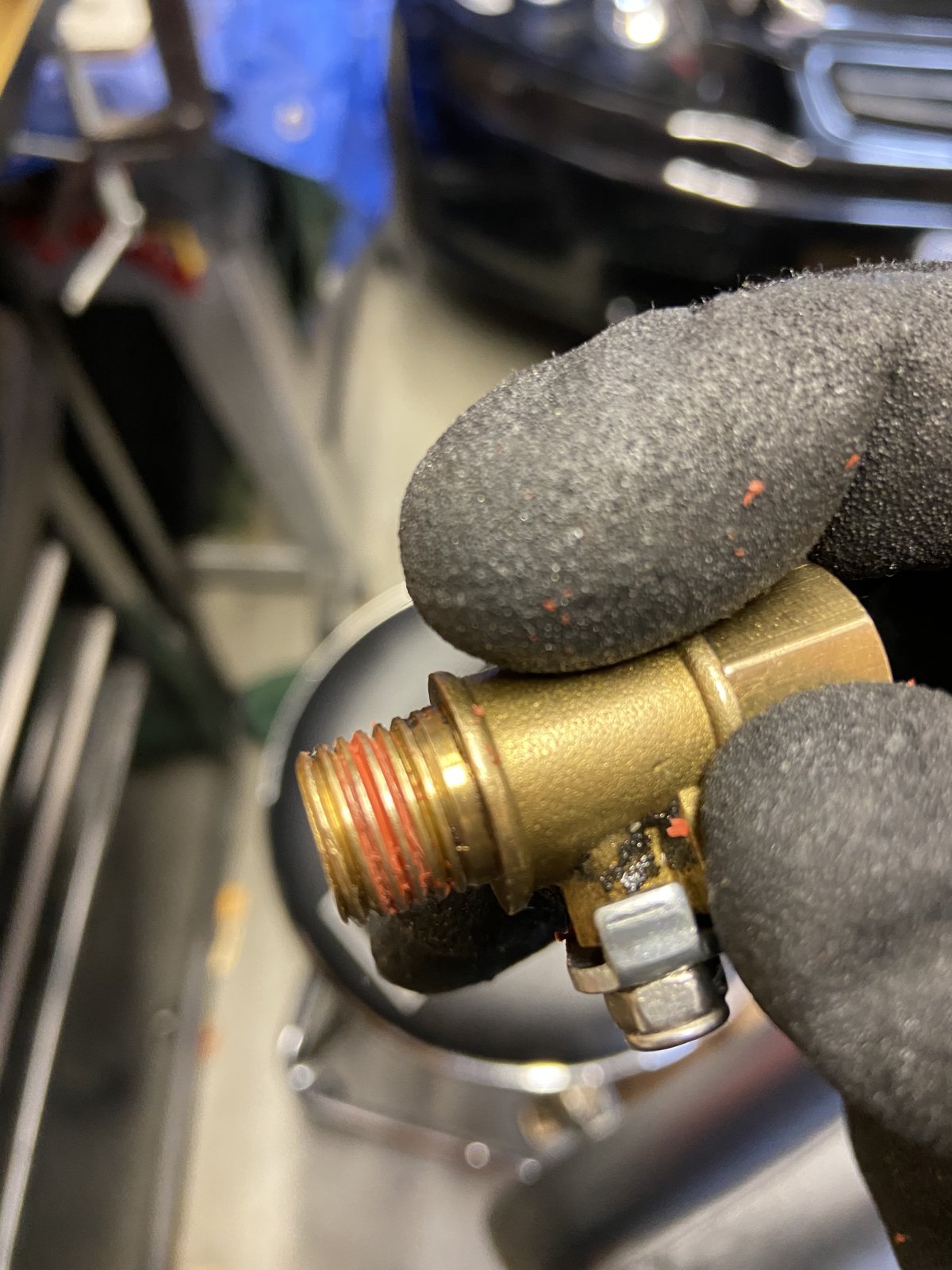

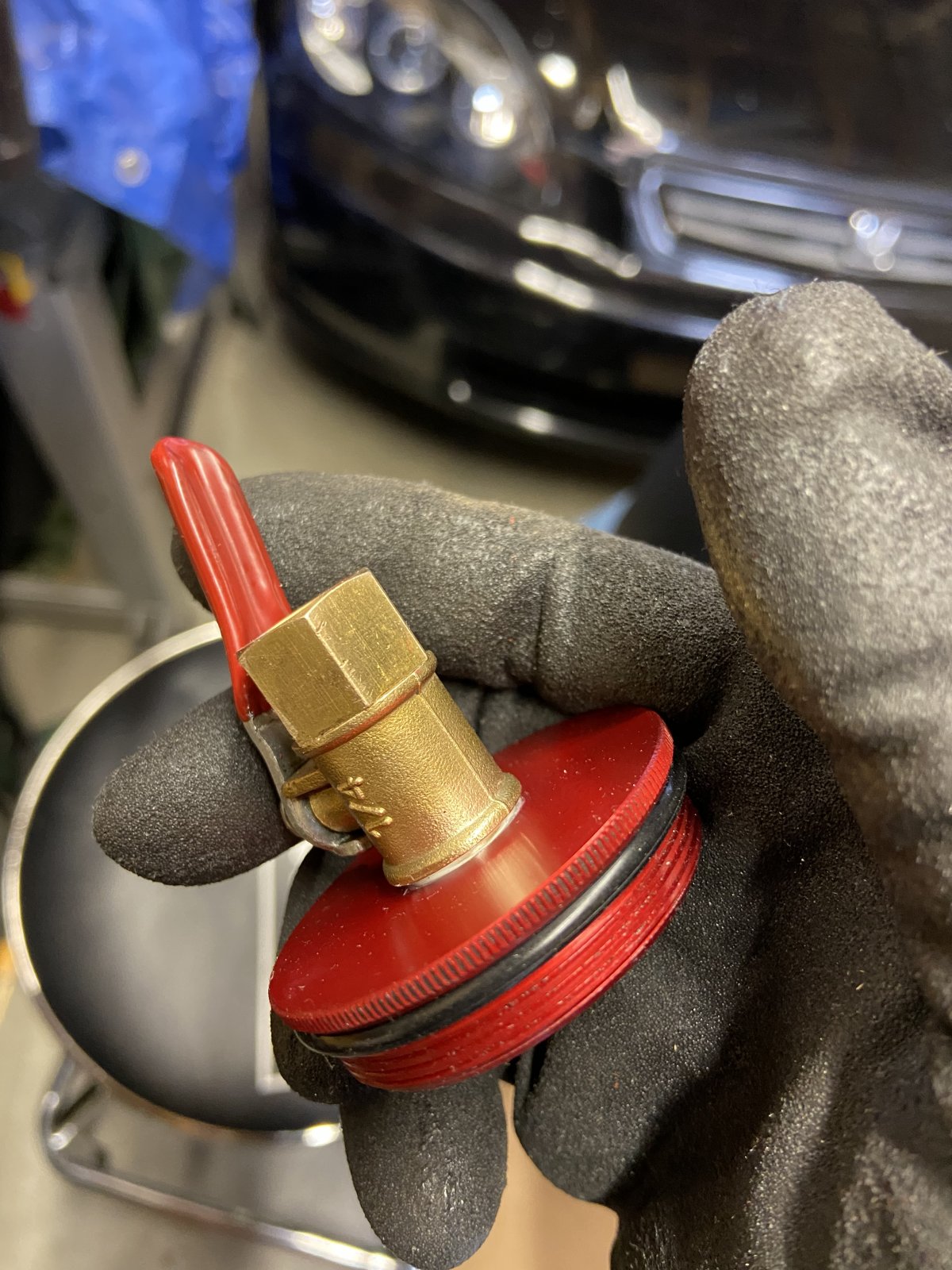

I also discovered, during my efan install, and serpentine, idlers, tensioners, alternator, etc.. replacement, that my catch can was leaking. Not pleased about that, but I think it’s actually the valve I had installed as a replacement for the petcock valve it comes with. I used the sealer that came on the valve, rather than a quality thread sealer, and it was leaking out from there. All fixed up with ARP thread sealer, and a new o-ring, so hopefully no more leaks.
Also sprayed some Duplicolor low gloss 1634 (GM) over the grounds I had cleaned up a while back, since I got some grief for leaving unpainted and with just dielectric grease on them. Lol. No rust whatsoever.. gotta love the Colorado dry air.
I also discovered, during my efan install, and serpentine, idlers, tensioners, alternator, etc.. replacement, that my catch can was leaking. Not pleased about that, but I think it’s actually the valve I had installed as a replacement for the petcock valve it comes with. I used the sealer that came on the valve, rather than a quality thread sealer, and it was leaking out from there. All fixed up with ARP thread sealer, and a new o-ring, so hopefully no more leaks.
Attachments
And then I washed and detailed her… y’all have seen those same pics so many times now, it’s redundant, so I admit, I didn’t take any pictures this time.
Nice work Sam.
iamdub
Full Access Member

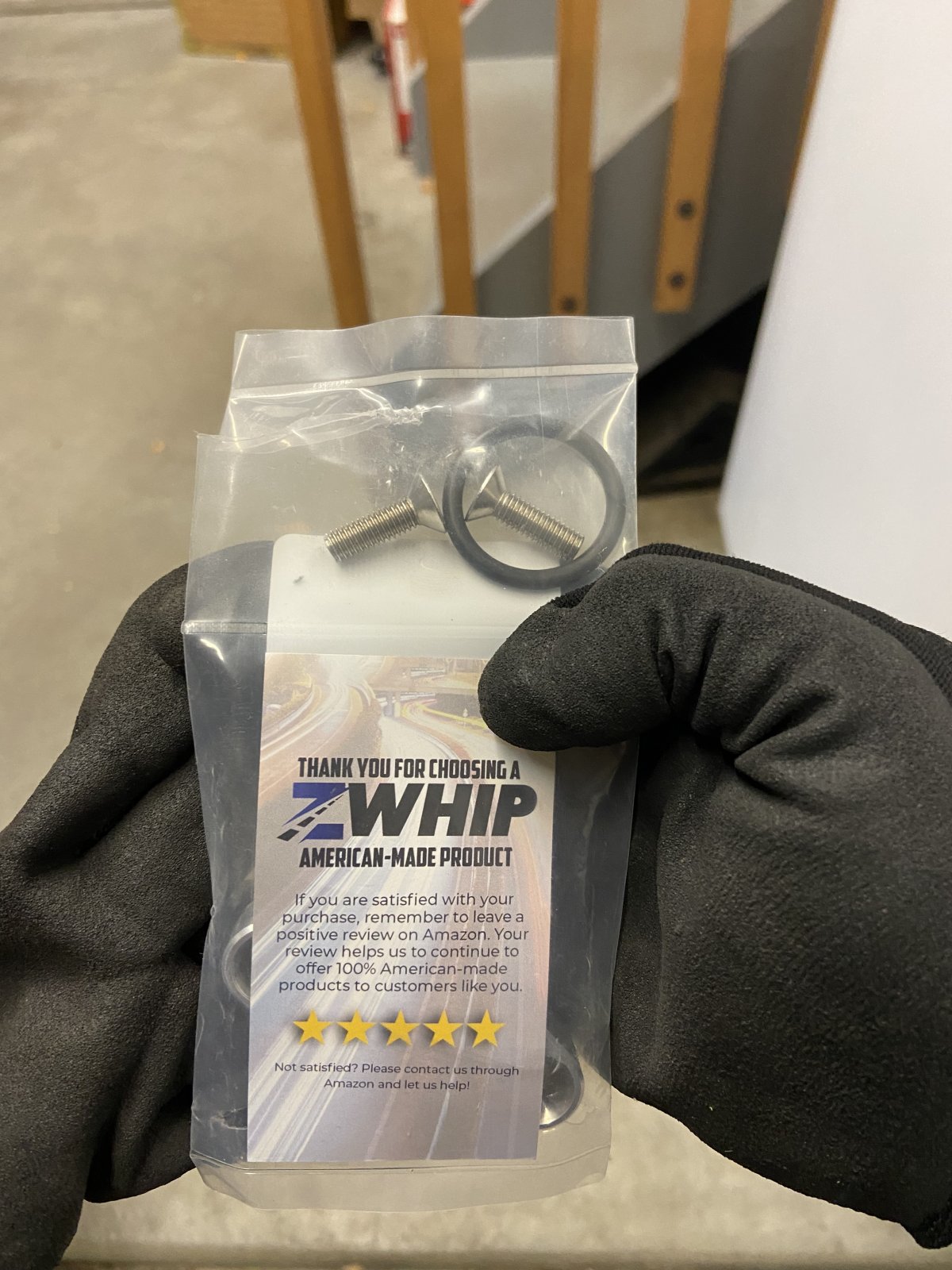

Looks identical to the ICT one I had, but without the logo. I see the ICT one is no longer available and only the ZWHIP is, and $2 cheaper. At least, compared to April 2020 prices.
Teamiez
Full Access Member
- Joined
- Oct 10, 2016
- Posts
- 306
- Reaction score
- 392
I noticed that as well with the filters, even rock auto hadn’t had them in stock in a while...I might have to hoard a few more happy I got 3 while in stock last. Wonder what’s going on there.
Teamiez
Full Access Member
- Joined
- Oct 10, 2016
- Posts
- 306
- Reaction score
- 392
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911

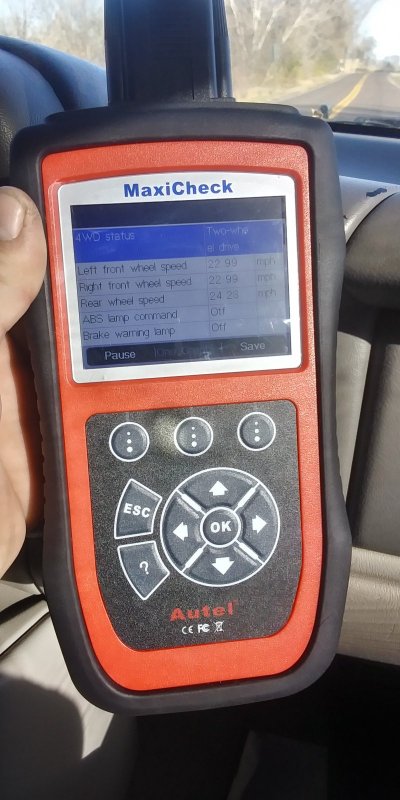

This thing is pretty slick, I'm gonna do the ABS bleed on the brakes tomorrow. It keeps throwing a code for the ECBM and I noticed the wheel speed sensors fluctuating from each other a little. The ABS engages when coming up to a stop light. So I'm hoping to get that figured out.
These things are only $259 on Amazon right now, and they seem like a good tool to have. Says that it works on up to 2015 most vehicles, 2018 GM.
These things are only $259 on Amazon right now, and they seem like a good tool to have. Says that it works on up to 2015 most vehicles, 2018 GM.

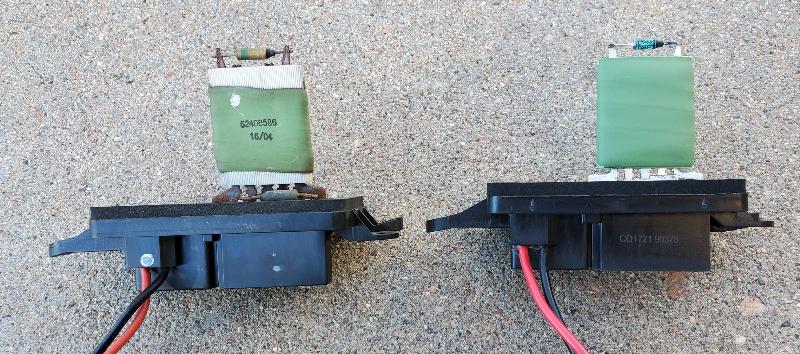

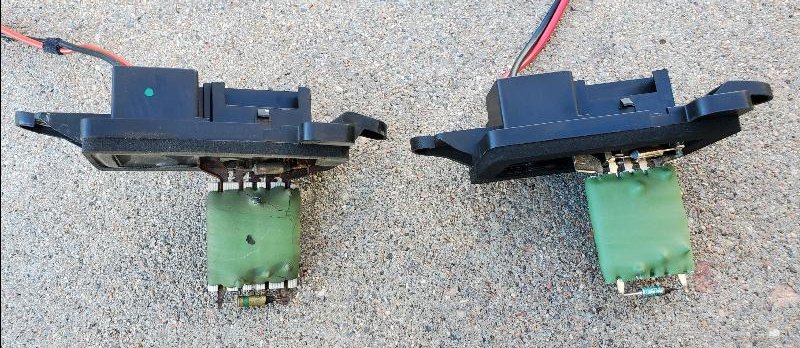

Not mine, but for the same neighbor that I fixed the cluster for a while back. Replaced the OE HVAC blower motor resistor for her manual controls. Had to replace the 9-wire pigtail, too, since a couple of the wires were burned and contacts melted. All 5 speeds work now. It was good practice for me, but I hope I never have to do it again.
Old on left, new on right. (Like you wouldn't know...
)
Old on left, new on right. (Like you wouldn't know...
)
Why buy that as opposed to a Tech2 which can be had for about the same price?
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
Does tech 2 do other manufacturers? I was under the impression that it was gm only.
Last edited:
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
Its looking like I'm gonna reflow some solder points on this EBCM today...
Nope, GM only so I guess that answers my question. I only own GM vehicles.
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
I still may get a tech 2 or an emulator. But I have a Ford 500, that I already read with this Autel. And I read a dodge for my buddy too.
I can not figure these wheel speed sensors out. I'm wondering if I shouldn't have used all four of the shims on the new one, or if I need a new one on the driver's side too.
Im trying to look up the rear sensor/sensors, but the scan tool only shows 1 value for the rear. I guess I just need to jack it up and pop the rear wheels off.
I can not figure these wheel speed sensors out. I'm wondering if I shouldn't have used all four of the shims on the new one, or if I need a new one on the driver's side too.
Im trying to look up the rear sensor/sensors, but the scan tool only shows 1 value for the rear. I guess I just need to jack it up and pop the rear wheels off.
You might only have one for the rear, I believe it’s on the transfer case. These years it depends on the options. If you only have one brake hose in the rear between the body and diff you don’t have speed sensors at each wheel. The Tech2 will read the sensors in real time (mph) so you can drive and watch if one is being erratic.
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
So it is the apeed sensor on the transfer case then. I definitely don't have any sensors near the rear wheels, but I think I might have put a stop to this rubbing noise that was bothering me. The dust shield was super rusty, I just ripped the majority of it off of there lol.
I don't know wether I should solder this EBCM or keep messing with these sensors, my tool will only graph two sensors at a time, so it's kind of hard to tell which one is messing up. I should probably just put new sensors in so I know that's not the problem. They aren't messing up enough to throw a code, unless they are making it throw the co295, but it says that is the EBCM.
One of these days I will get it fixed...
I don't know wether I should solder this EBCM or keep messing with these sensors, my tool will only graph two sensors at a time, so it's kind of hard to tell which one is messing up. I should probably just put new sensors in so I know that's not the problem. They aren't messing up enough to throw a code, unless they are making it throw the co295, but it says that is the EBCM.
One of these days I will get it fixed...
Walchit
Full Access Member
- Joined
- Aug 29, 2021
- Posts
- 447
- Reaction score
- 911
I took it for another drive and took video with my phone,so I could watch it when I got home lol.
Pretty sure it's the new one, so I will pull it out and see if maybe it's shorter than the stock one and needs less shims or something.
Pretty sure it's the new one, so I will pull it out and see if maybe it's shorter than the stock one and needs less shims or something.
DurrtyBurB
Member
After a routine transmission fluid check the other day, I decided it’s a little too brown.. it doesn’t smell burnt, so that’s good. I last drained and filled, with filter change, and vette servo install at 195k miles, and I’m currently at 217, so figure she’s about due.
Trying to locate the best filter.. AC Delco..? Wix..?
Also plan to purchase genuine AC Delco fluid. Does anyone have a good source.? I seem to be running into the same issues with finding parts and fluids with this, as with my Wix oil filters..
I don’t recall if I have the “deep pan” or standard. Would that be in my build sheet, or based on VIN?

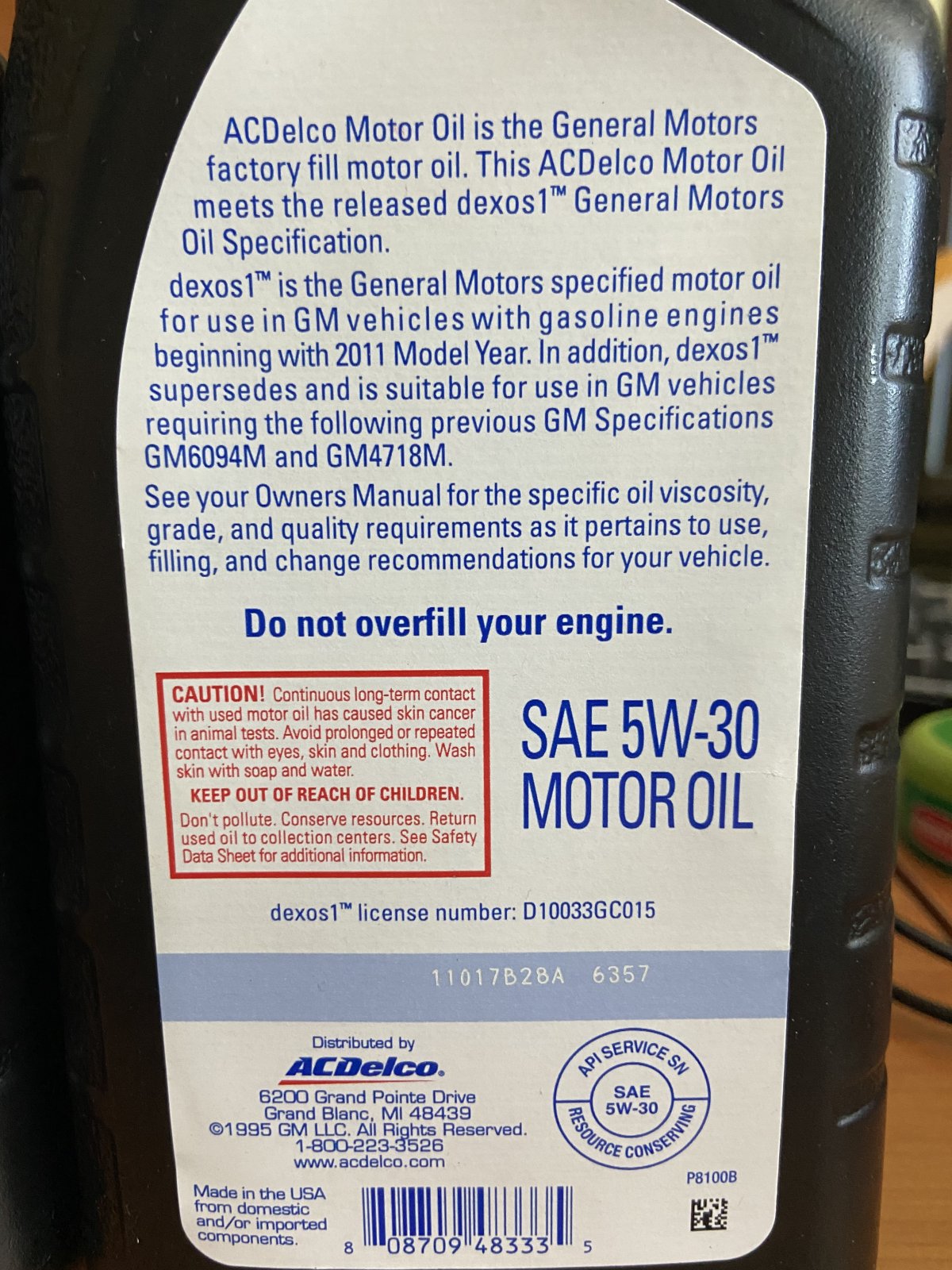

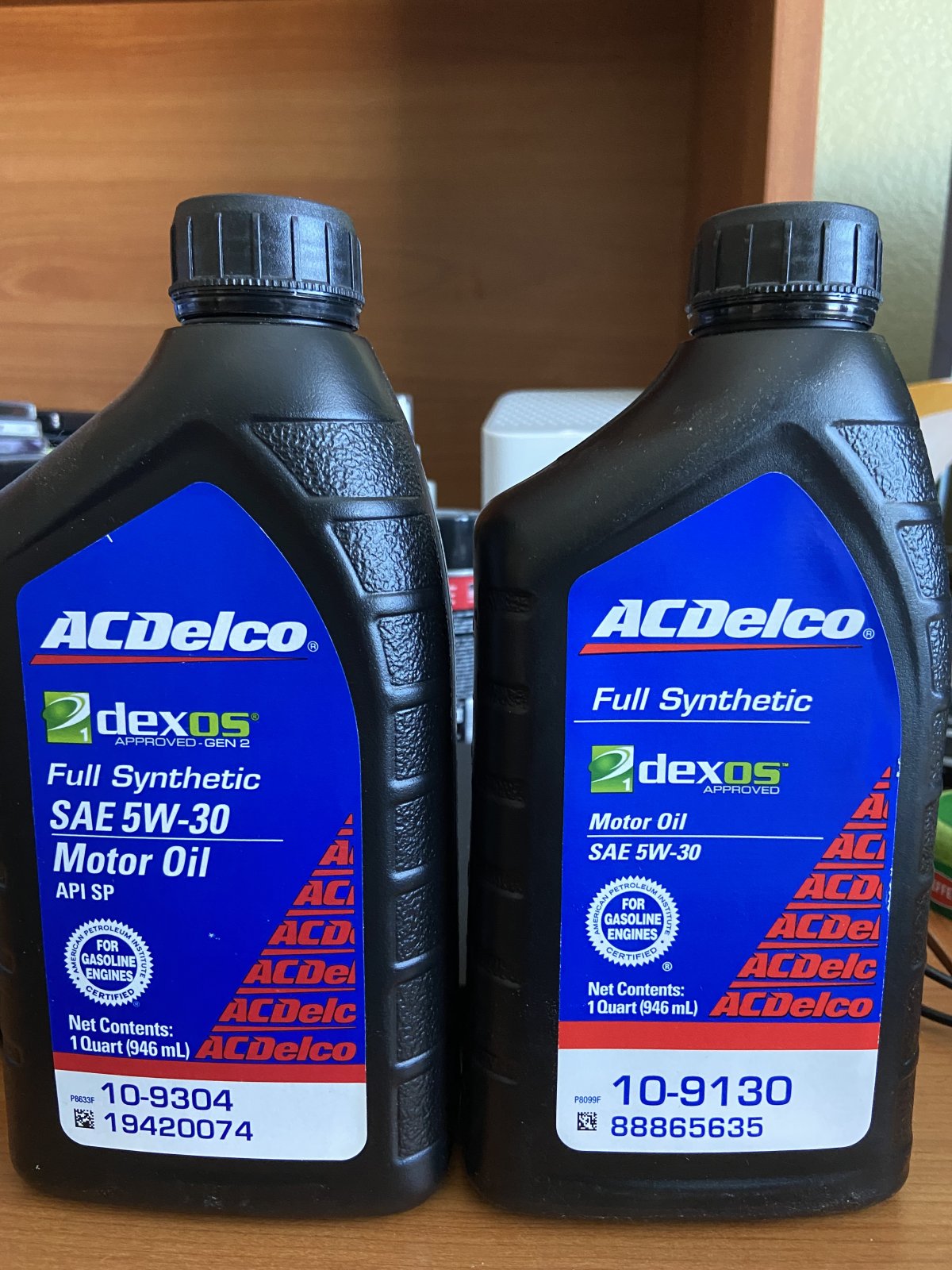

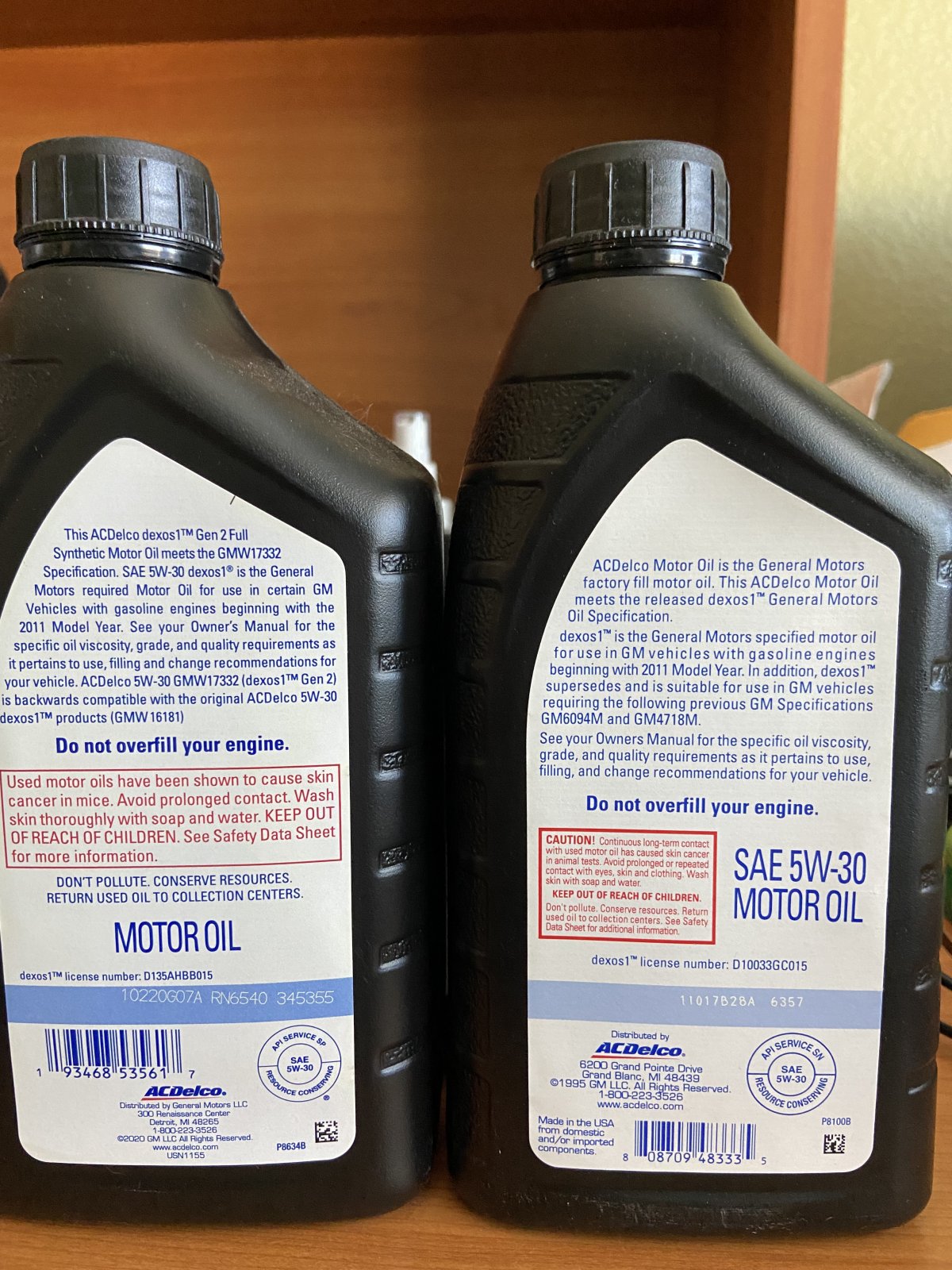

Another thing.. I have been using ACDelco oil for the last 1.5 years or so, and am quite happy with it. But can anyone tell me why there are different part numbers on some of the quarts..? I want to ensure this is genuine oil, and not some rip-off..!
Trying to locate the best filter.. AC Delco..? Wix..?
Also plan to purchase genuine AC Delco fluid. Does anyone have a good source.? I seem to be running into the same issues with finding parts and fluids with this, as with my Wix oil filters..
I don’t recall if I have the “deep pan” or standard. Would that be in my build sheet, or based on VIN?
Another thing.. I have been using ACDelco oil for the last 1.5 years or so, and am quite happy with it. But can anyone tell me why there are different part numbers on some of the quarts..? I want to ensure this is genuine oil, and not some rip-off..!
