USB cigarette lighter port

[NathanJax]

Nope



Yep

ok. gotcha. That's what I was thinking as well, if the factory piece isn't the female plug on the back. which I'm guessing won't be.



[jdpber]

i was about to paint a picture.. glad we cleared that up..



[yates ™]

Look back at the pic of the little circuit board with the USB on one end and some sort of fucketry on the other end. I think my way is better, as usual.

---------- Post added at 10:10 AM ---------- Previous post was at 10:10 AM ----------

i was about to paint a picture.. glad we cleared that up..

Please paint the picture anyways



[jdpber]

Look back at the pic of the little circuit board with the USB on one end and some sort of fucketry on the other end. I think my way is EASIER, as usual.

fixed it



[yates ™]

fixed it

Incorrectly though.



[messy]

I don't know your goal, but that USB port hooks to the radio and if you hook an iPhone to it, you can play the music on your iPhone through the radio and control the selections with the steering wheel radio controls.

For this factory configuration you will need

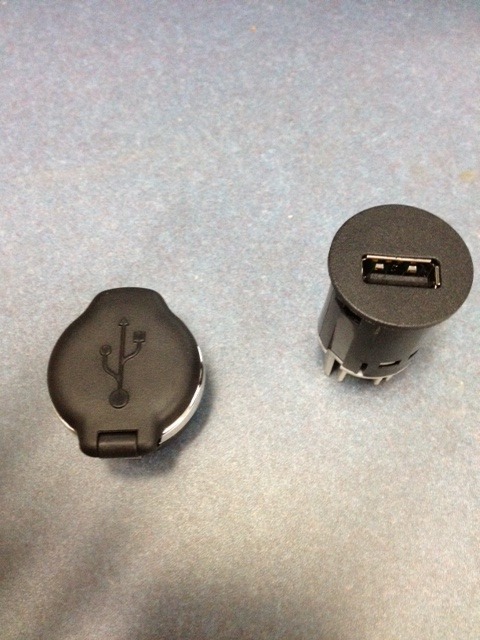

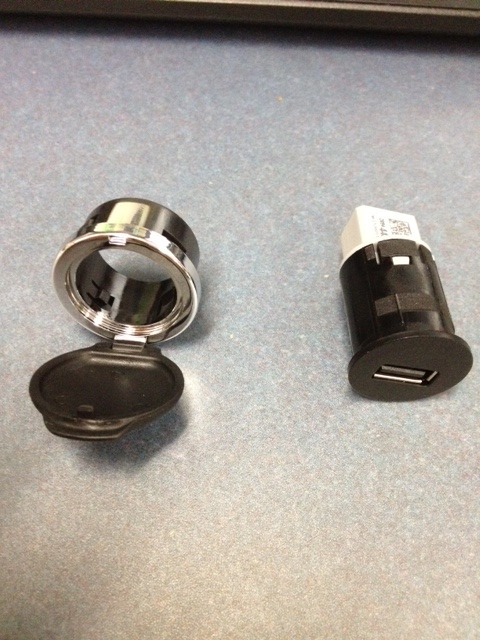

USB Port to Radio Data cable: 20953896
USB Port: 20944422
Port Cover: 20888040



[gitrduun]

I'm gonna tear apart an inverter that has a USB port on it with a120 v out as well and mount stuff behind my dash. I'll do a write up when I do



[yates ™]

I'm gonna tear apart an inverter that has a USB port on it with a120 v out as well and mount stuff behind my dash. I'll do a write up when I do

Are you just wanting to use the USB as a charger?



[messy]

So $5 for the cover and $30 for the USB port...


but like yates said, I'd like to see the back of the port and see how it hooks up. Might be stopping by the dealer tomorrow...




You would have to have some type of plastic something to hold it in place. Probably a lot cleaner to get the pieces form the dealer.

USB DATA CABLE ASSEMBLY



[REMIXER]

im gonna do this mod on my 02 tahoe using these parts or something of the sort
http://www.crutchfield.com/p_693IC35PM/Poly-Planar-IC-3-5PM.html

http://www.polyplanar.com/product/acx10-usbaux-accessory-extension-cable



[NathanJax]

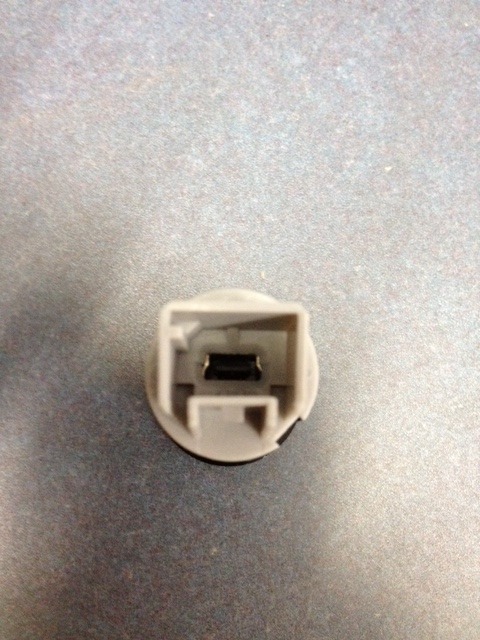

So per this pic, I can just grab the plug and then get one of these things...

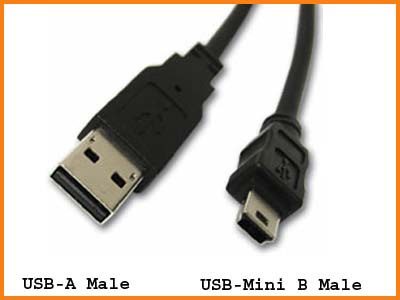

EDIT: Looks like i need the USB-A male to a USB-Mini B Female

since I have a USB plug on the back of my radio. Going to the dealer now...



[yates ™]

I believe so if it accepts a mini USB. Let me know if this works for you as I will probably do it also.



[NathanJax]

Parts will be here tomorrow!!



[NathanJax]

Picked em up today. Going out of town for a few days, but should have it done by the end of the weekend.



[iwaslowr]

NathanJax, What was the total cost of parts including the USB cable? Also, can you let us know if the console USB port is disabled in the process? Post pics of the install process if you have a chance.



[NathanJax]

NathanJax, What was the total cost of parts including the USB cable?

I actually have a USB cable. you will need a male mini USB to male USB. retail for the 2 parts I bought was $70. I can get them a lot cheaper. PM if your serious.

Also, can you let us know if the console USB port is disabled in the process?

I don't have the console USB. However, I'm almost positive you can only have 1 factory USB plug. They plug in to the factory radio wiring at the same location. I think the console plug is for SUVs and the dash plug is for Trucks.

Post pics of the install process if you have a chance.

I will start a new thread!



[RollTide2]

I will start a new thread!



[NathanJax]

probably do it this weekend and make the thread Sunday night or Monday...




I can't wait. I hope this goes as planned.



[iwaslowr]

...I can't wait. I hope this goes as planned.

Me too, and if all goes well this is one for the "unique mod" thread!!



[yates ™]

I be jelly he is doing it first...
