My Escalade ESV turbo build pics.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

SUX2BU

TYF Newbie
Joined
May 13, 2009
Posts
20
Reaction score
0

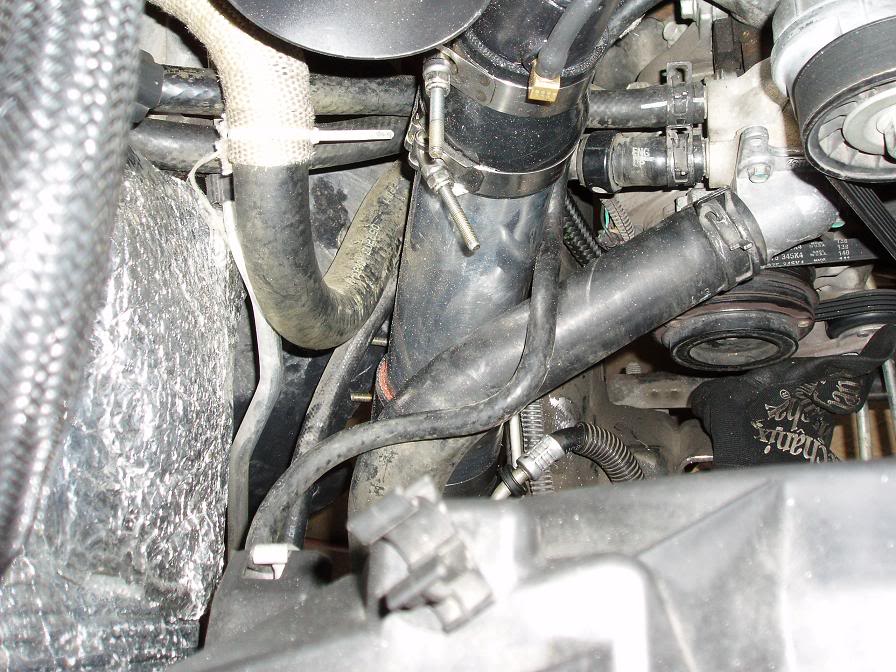

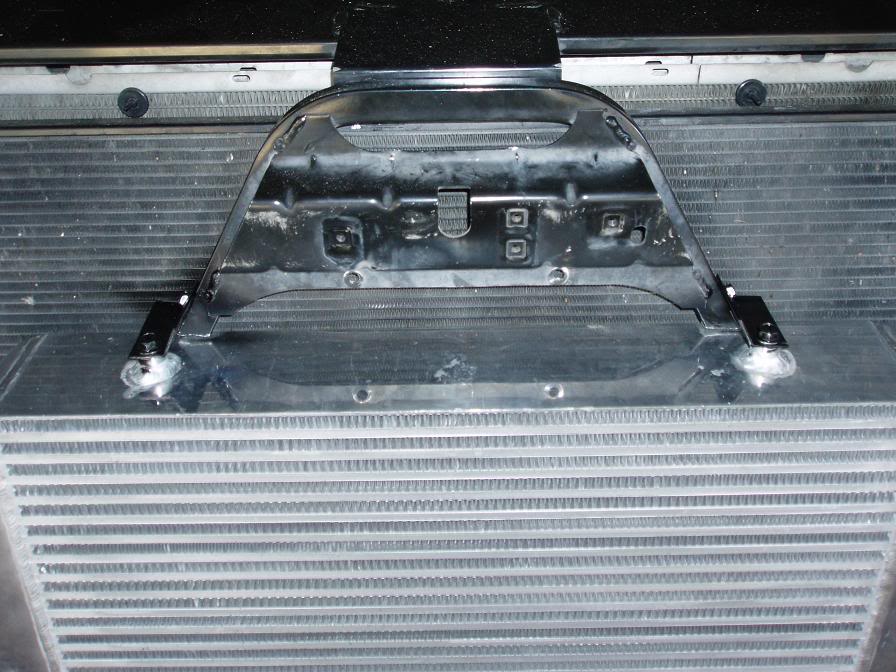

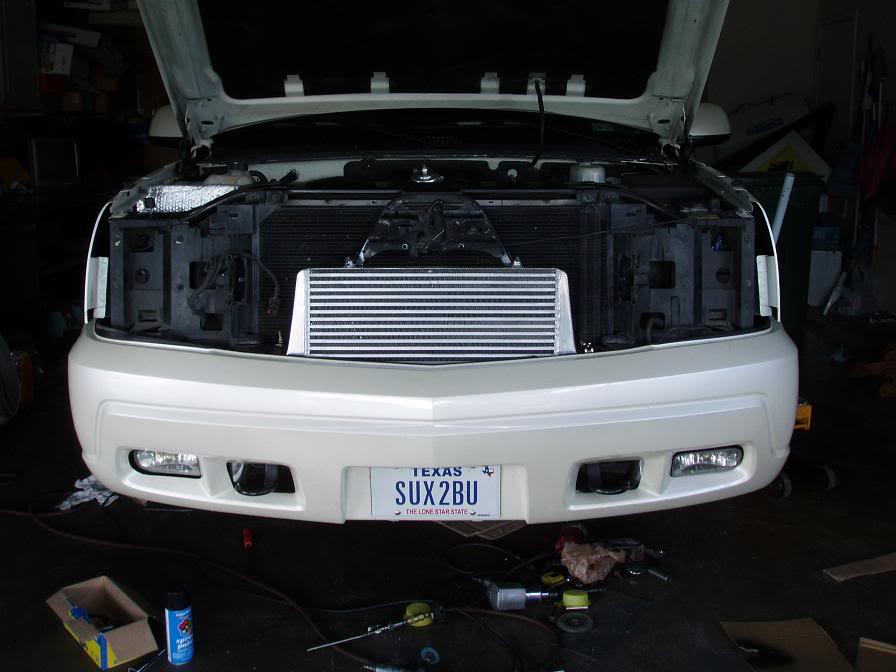

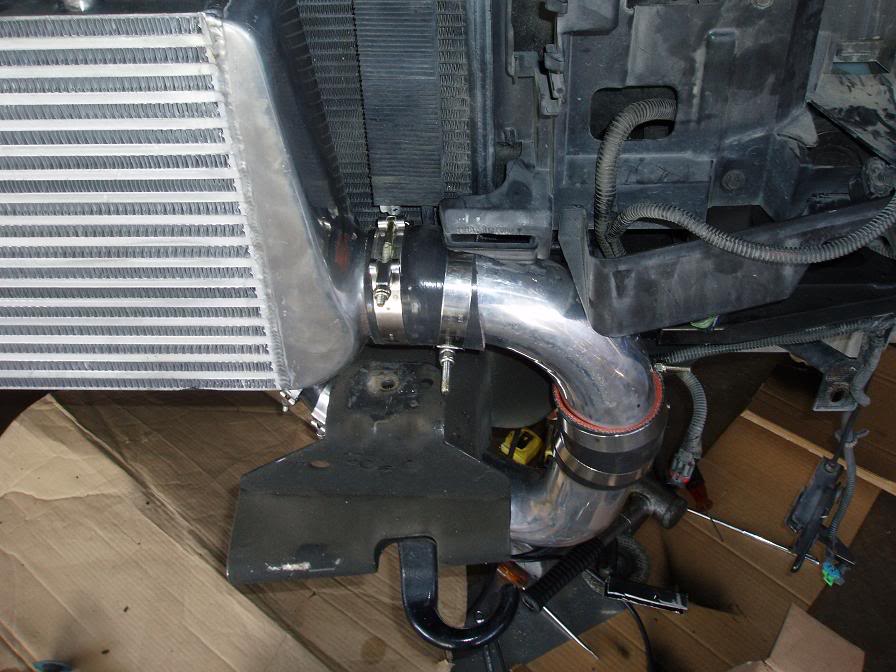

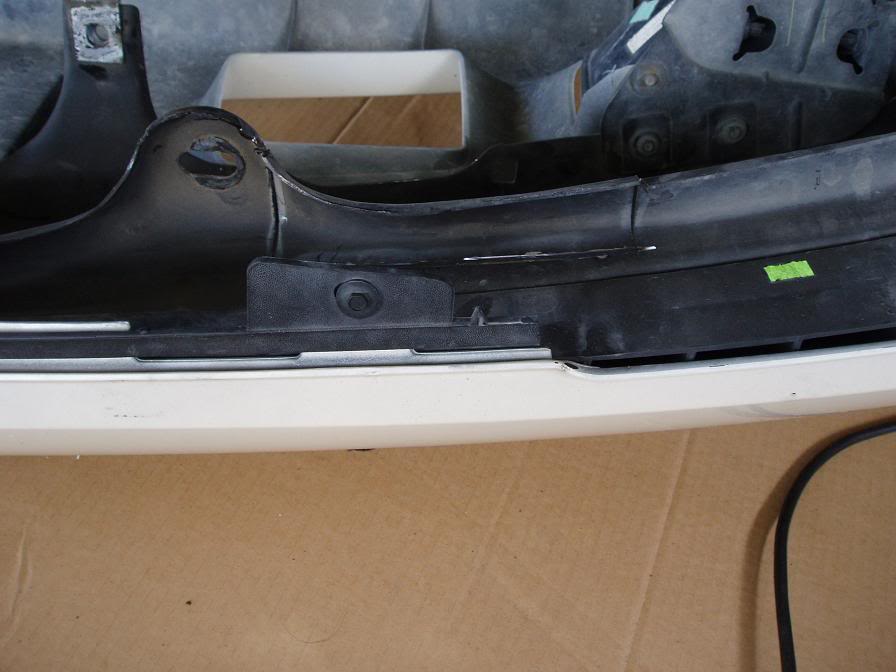

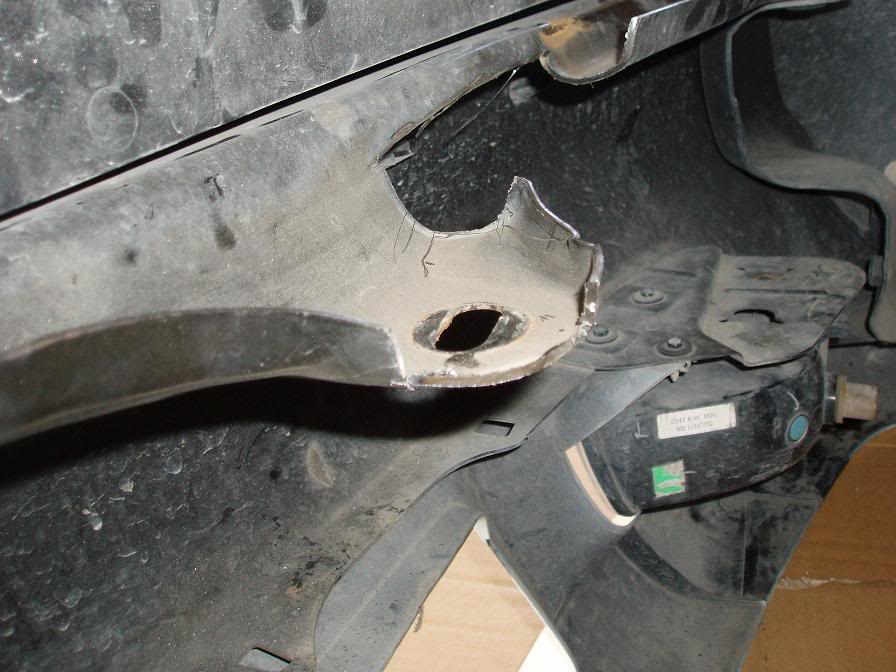

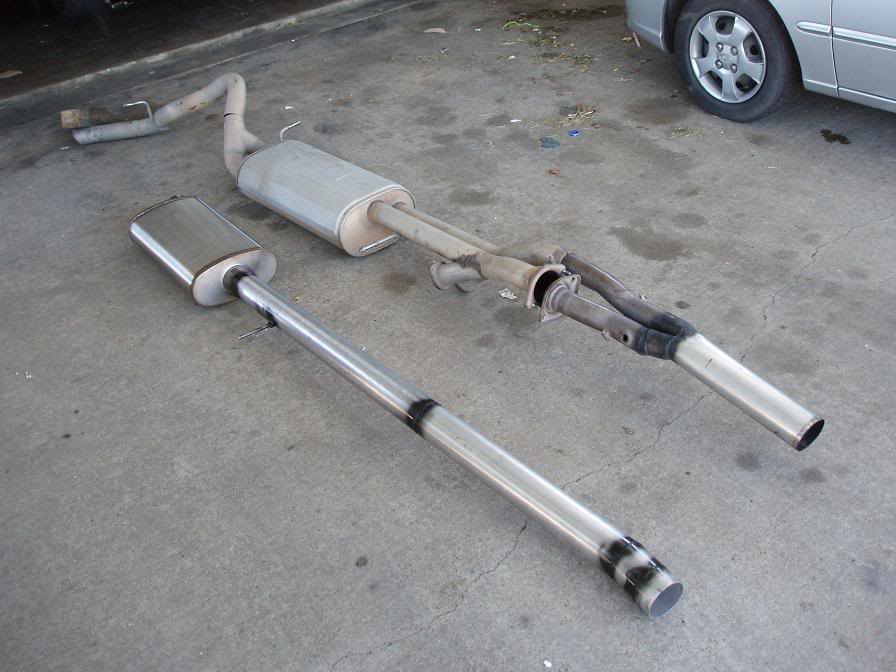

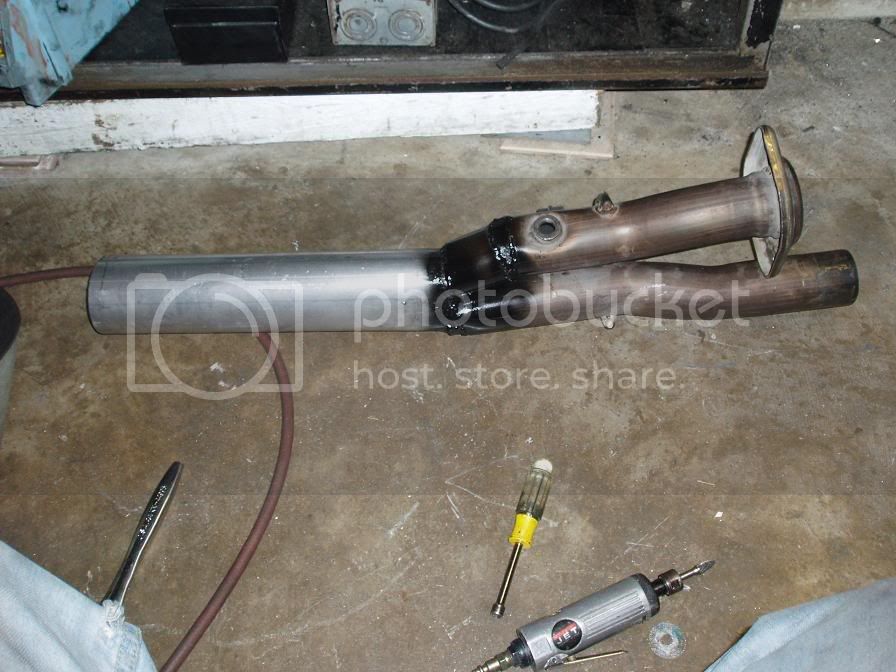

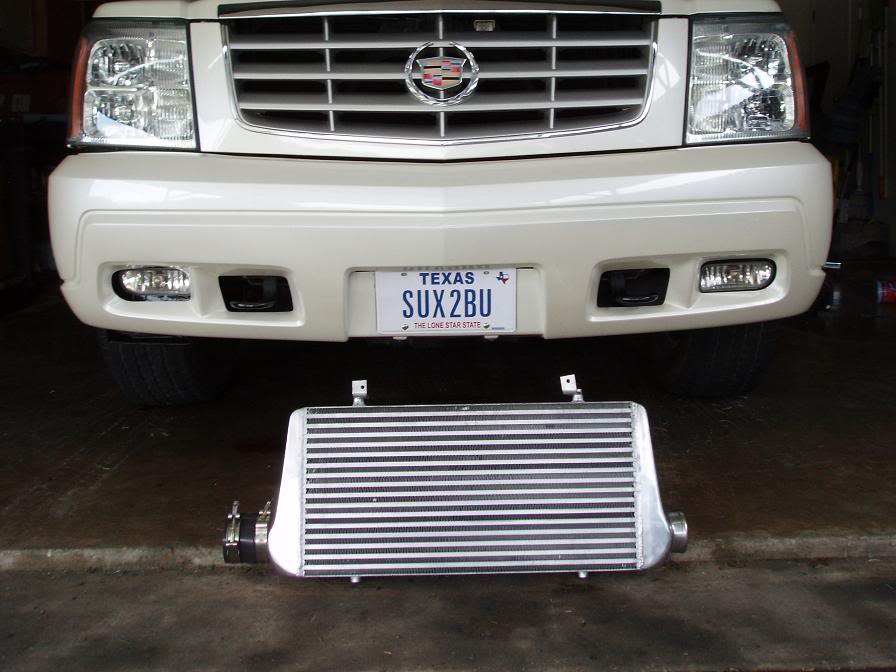

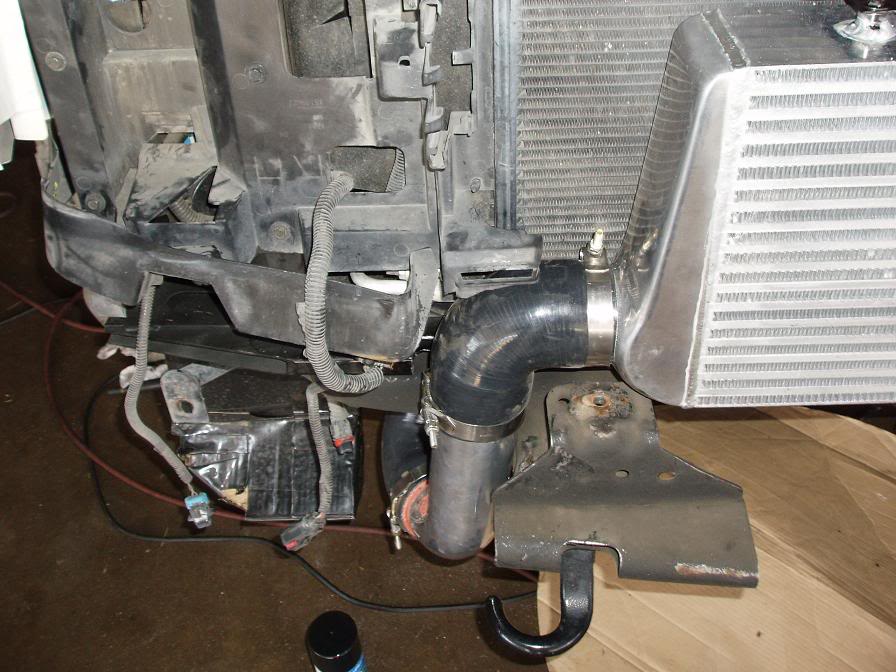

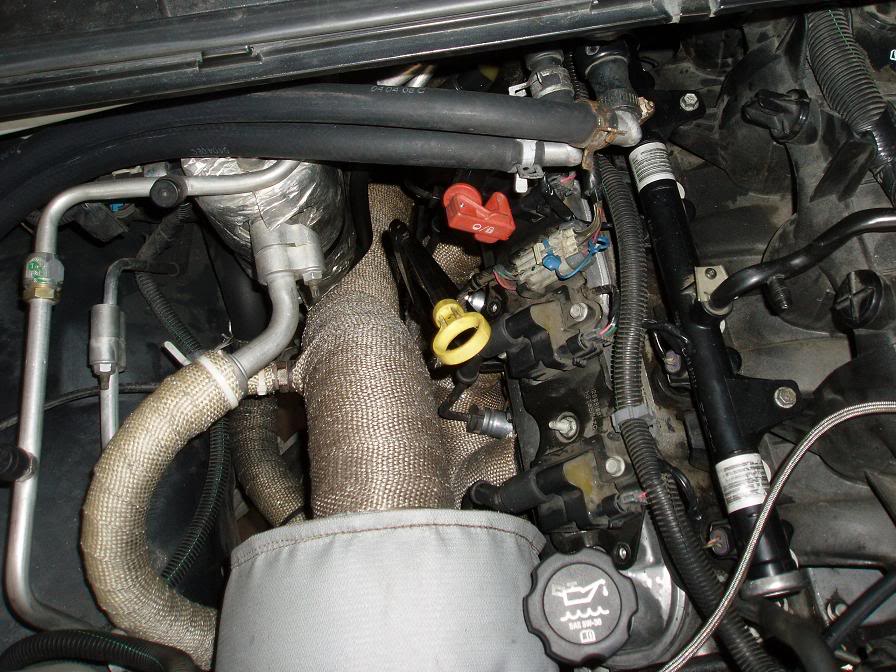

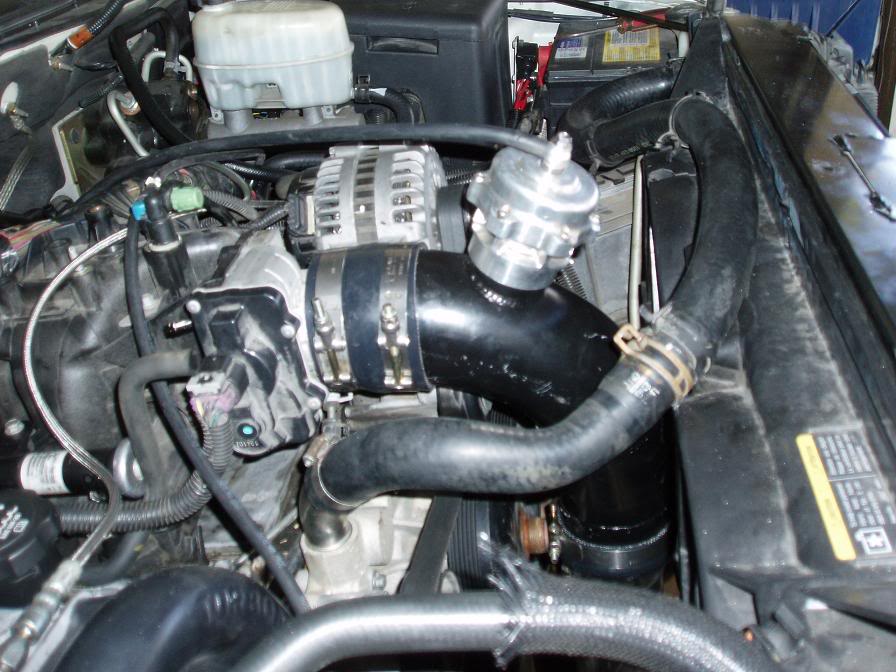

Well, i finally got my truck running so i'll post up some pics. I still have a few things left (methanol install, tuning, waste gate outlet to exhaust). But i'm actually driving it now so i'm happy. It's taken me 7 weeks to get this far, 60 hours a week, 15 hours at school and modding Wii's has only let me work on the truck about 3-4 hours a week. Some details are it's a KB racing log, stock driver side manifold, TiAL 50mm blowoff valve, TiAL F46 wastegate, T-76 ball bearing Turbonetics turbo, big ass intercooler, Eboost 2. At first i had just welded the 3.5" down pipe to the stock catback to get it running, but with cut outs closed it felt to restrictive and open it was way too loud, so i bought a Magnaflow and some pipe. came out pretty good, i think.

---------- Post added at 09:29 AM ---------- Previous post was at 09:27 AM ----------


---------- Post added at 09:31 AM ---------- Previous post was at 09:29 AM ----------


OP
OP
S

SUX2BU

TYF Newbie
Joined
May 13, 2009
Posts
20
Reaction score
0

---------- Post added at 09:37 AM ---------- Previous post was at 09:35 AM ----------


---------- Post added at 09:38 AM ---------- Previous post was at 09:37 AM ----------



Rivieraracing

Full Access Member
Joined
May 2, 2009
Posts
3,810
Reaction score
81
Location
Oregon
Yes sir, very nicely done install for sure, is this the first time you have done this type of install? Very nice if yes or no!!! Thanks for the pics!


diffrnt

Say...What!
Joined
May 5, 2009
Posts
134
Reaction score
5
Location
MS
Nice dude, looks like it going to be a monster!


Modded

That Guy
Joined
May 3, 2009
Posts
6,942
Reaction score
107
Looks sick man!!!
our undercarriage looks like it has seen better days lol.

OP
OP
S

SUX2BU

TYF Newbie
Joined
May 13, 2009
Posts
20
Reaction score
0
Yes sir, very nicely done install for sure, is this the first time you have done this type of install? Very nice if yes or no!!! Thanks for the pics!

Yes, this is my first turbo install. But not my first time turning a wrench. been working on LSx's for about 10 years.


Max

Mile High
Joined
May 3, 2009
Posts
3,570
Reaction score
32
Location
Denver
See ya over at pt, badass build that thing looks like it'll be a handful :cheers:
