Need to replace the fuel spider on my 97 Tahoe.
The AC-Delco kit 217-3029 I purchased came with most upper plenum gaskets but not the two(maybe 4) O-rings for the fuel feed/return lines.
I don't want to purchase an entire Fel-Pro upper gasket set for these O-rings( being told its a four piece O-ring set needed)
Does anyone know the correct O-rings to get to complete this project?
Thanks in advance.
Tbruz

OP
OP
T

Tbruz

Full Access Member
Joined
Feb 1, 2011
Posts
548
Reaction score
57
Location
Windham NH
I'm not sure which O-rings are required, hence the post...
I'll look into those but was hoping for a confirmation of this is what you need from someone who's been there , done that….


east302

Full Access Member
Joined
Dec 21, 2016
Posts
1,555
Reaction score
1,379
Location
Mississippi

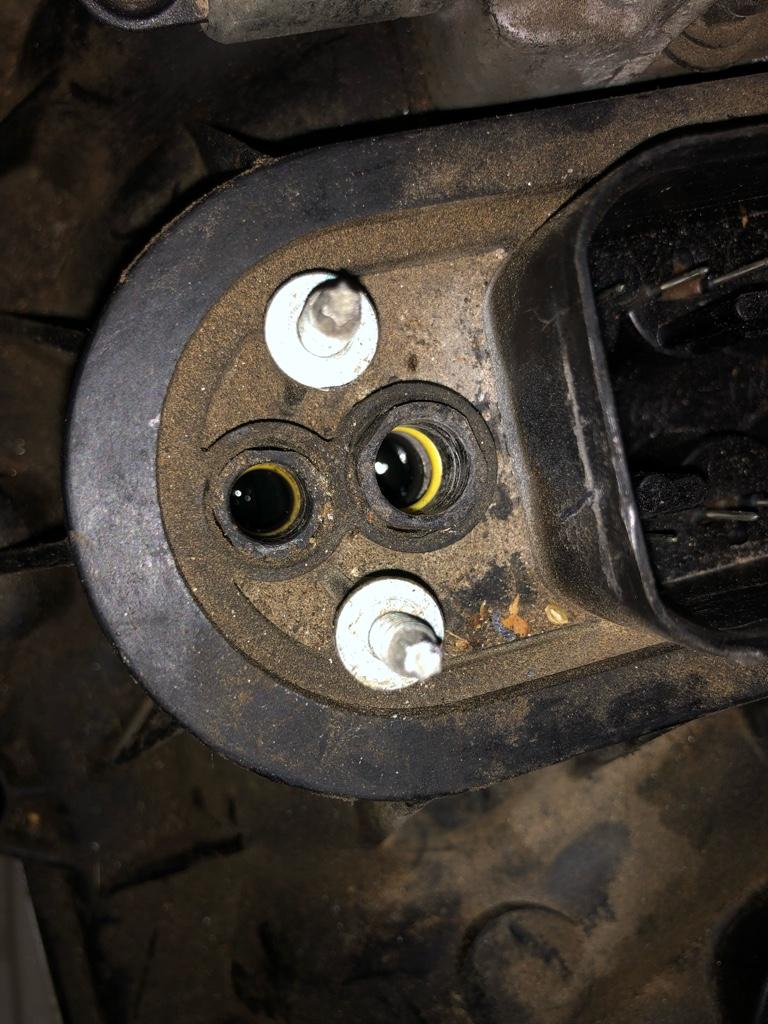

Mine included the spacer and washers for the fuel lines already installed in the injector body. I didn’t take a picture of the new one, but this was the order that the original ones were installed. The new one was the same. Black o-ring goes in first, then silver, yellow and the spacer last. Fuel lines go into the spacer with no o-ring on the fuel line.







I was doing my intake gaskets at the time, and I’m pretty sure the Felpro gasket kit had the two o-rings for the fuel lines at the firewall. I had ordered the kit below as well which I know has the firewall o-rings along with the ones in the photos above. The only reason that I even opened it was because I lost an o-ring in the Felpro set.


Last edited:
OP
OP
T

Tbruz

Full Access Member
Joined
Feb 1, 2011
Posts
548
Reaction score
57
Location
Windham NH
I will check the body of the new spider when I get home...didn't even think of looking in there.
Seems weird that the ACDelco kit would have MOST of the required gaskets but not the O-rings.
Thanks again
tbruz

EDIT: yellow O-ring is present in the new spider body- both locations
