Foglights and Mudflap Install

[Tylus]

Put some aftermarket foglights on, and OEM front/rear mudflaps. Had the mudflaps for almost 2yrs...just never got around to installing them.

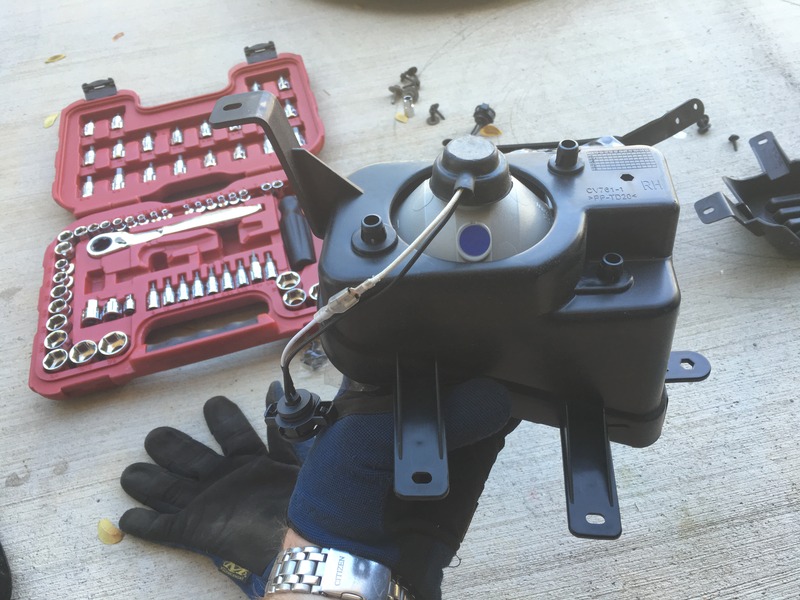

Foglights: Only need a 7mm and 10mm socket for the foglights. Super easy to install. Picked them up in November for $120 off a Vendor on eBay. They come with bulbs and a short pigtail. Nice product.

1. Remove wheel
2. Remove bolts on front half of splash liner (7mm bolts)
3.

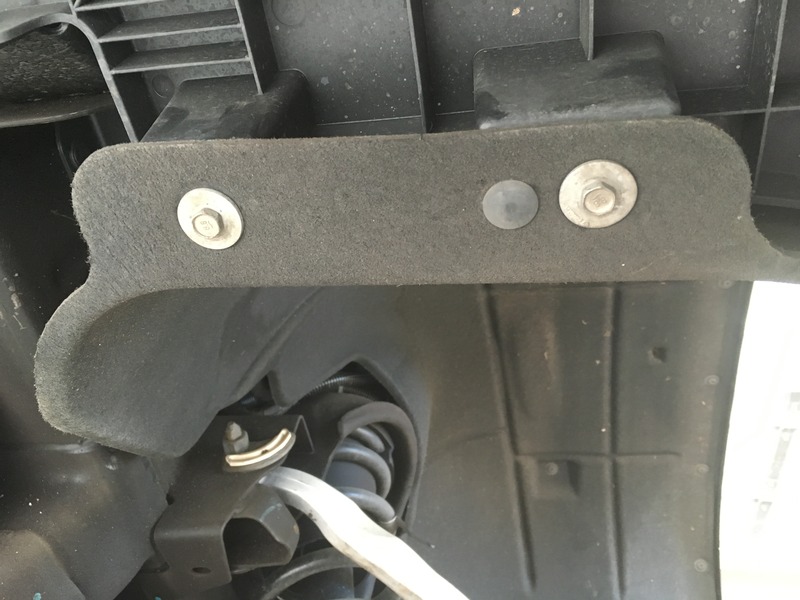

4. Remove 2 bolts (10mm) on bottom side, and pull push pin retainer out
5.

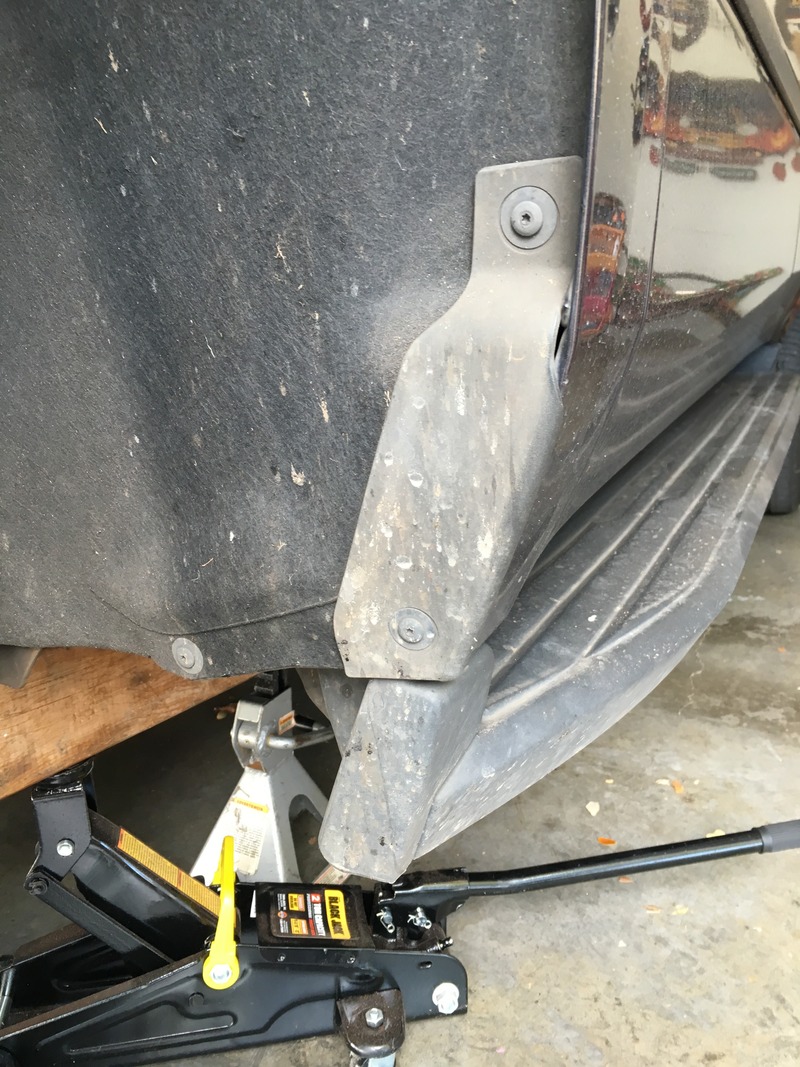

6. Tie splash liner back out of the way
7.

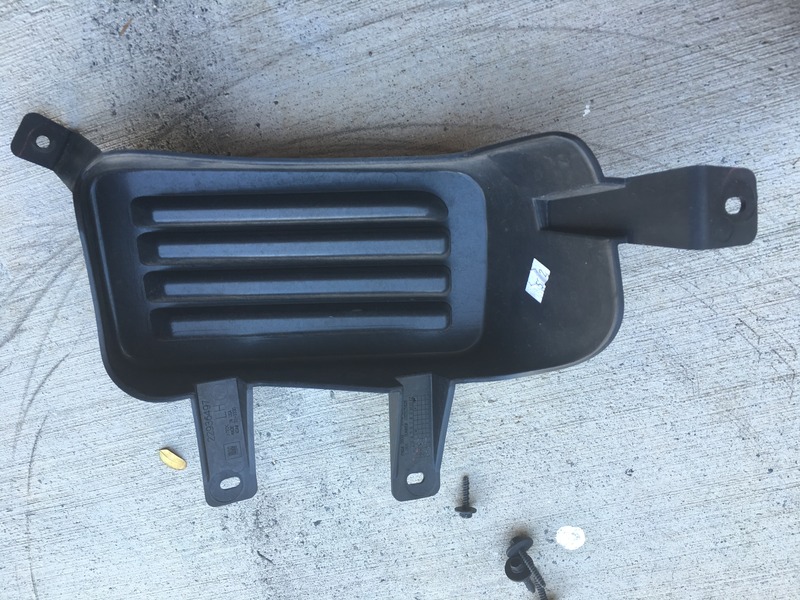

8. Remove 4 bolts (7mm), and remove the foglight blank
9.

10. 1 bolt is different of those 4. the inner most bolt is a shorter one that is used to anchor to plastic. the 3 remaining bolts are the same as those used to anchor the splash liner

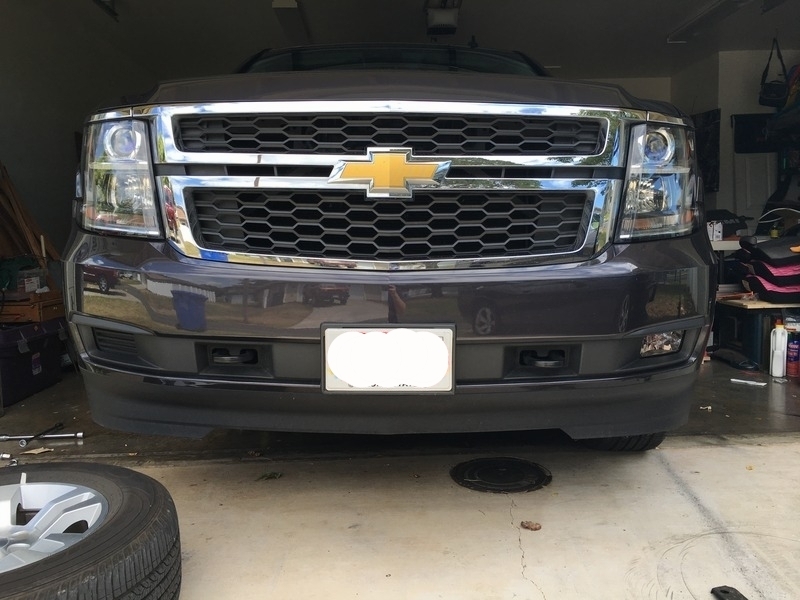

11. Here is a 1/2 way look. Reverse the process to install foglights. I will be doing the wiring later. Just wanted to get the hard part done. Took me about 1.5hrs all said

12.

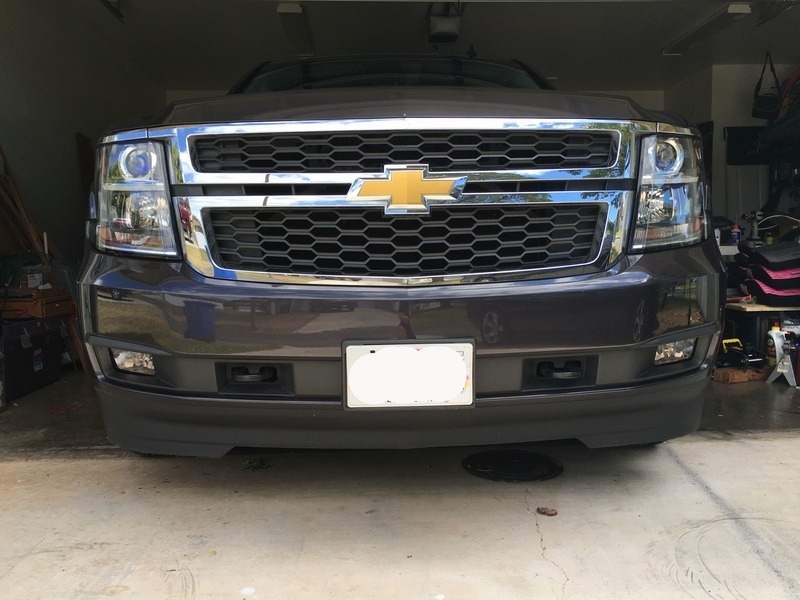

13. Finished!
14.

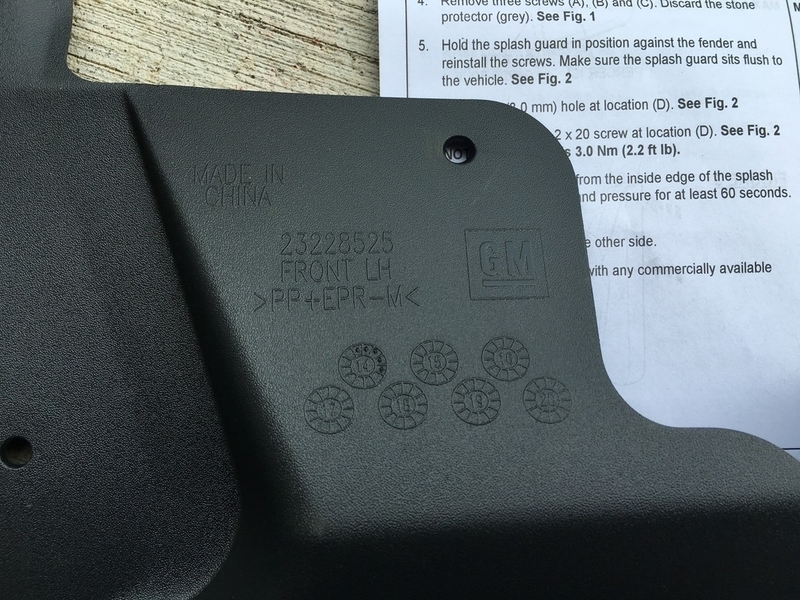

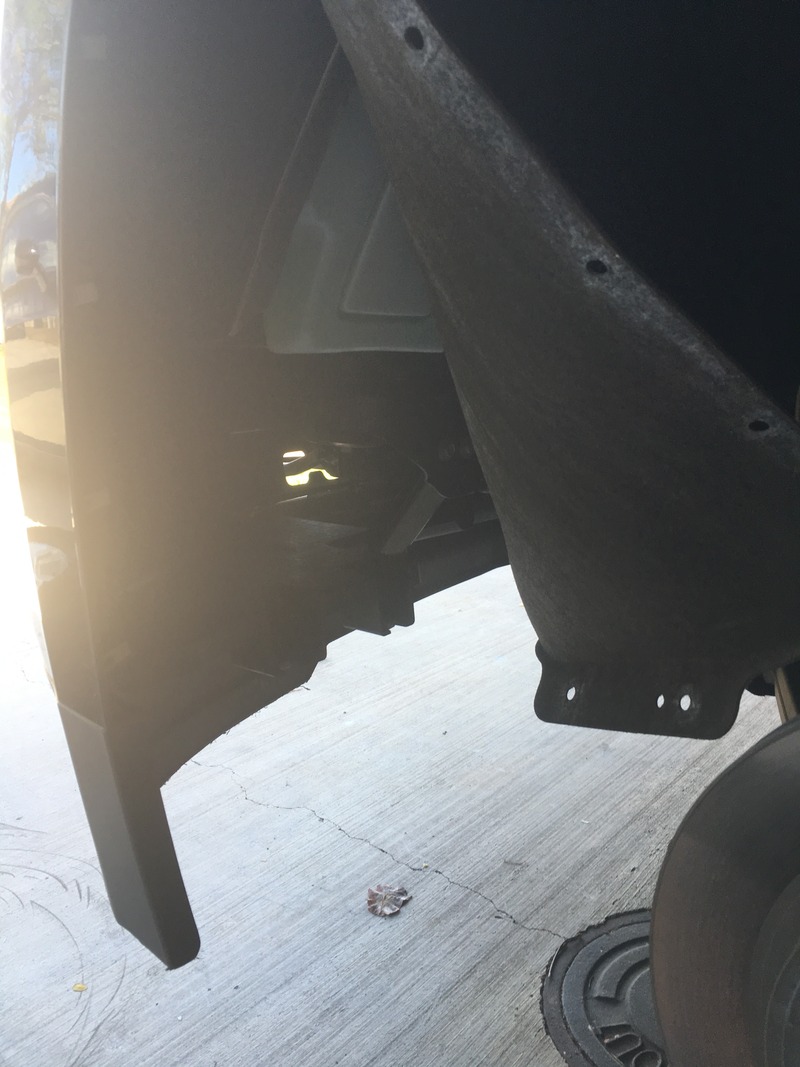

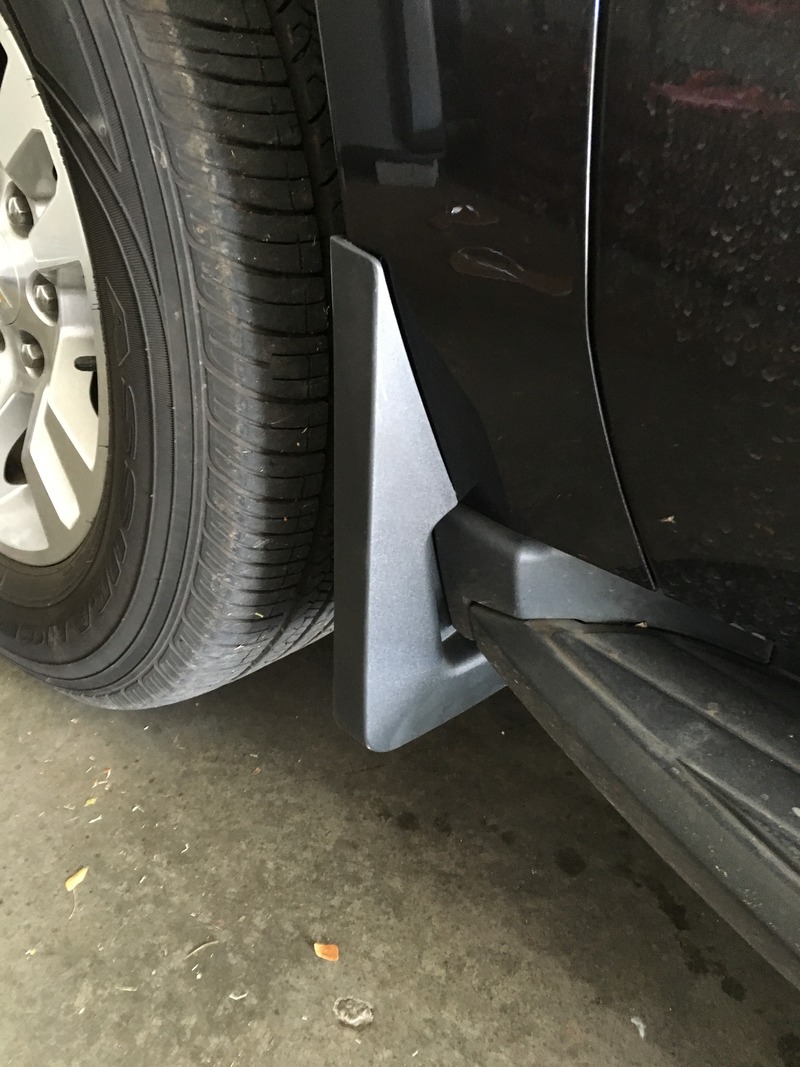

Mudflaps: Nice product. Fit the fenders nice, and extremely easy to install. Can be done with tire on, but I took advantage of the extra space.

​

1. Remove 3 screws (T15 torx bit) and remove rock guard
2.

3. Clean the area using alcohol
4. Slip mudflap into place and secure using 3 screws from original rock guard
5. Drill 1/8" hole in the 4th hole using flap as a guide
6. Install 4th screw into hole
7. Peel liner off the double sided tape
8. Done

​
