Custom buttons in empty dash spots

[Matthew Jeschke]

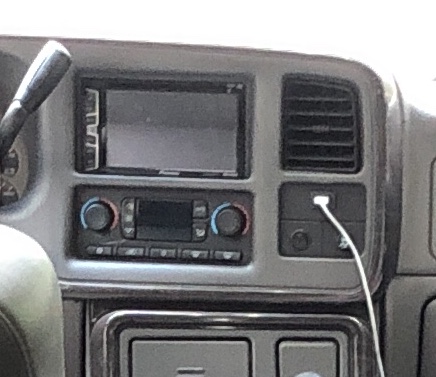

The factory seems to have provided some empty spots in the dash for buttons etc.

I was curious if any aftermarket companies came up with buttons for those spots?

I'd like to repurpose the onstar to control blutooth module...

Then a switch for lightbar,

and if possible a guage for transtemp, preferably expandable to other items. like the banks idash guages

Sent from my SM-A505U using Tapatalk



[Rocket Man]

Nothing that I’ve seen that just snaps into those locations if that’s what you mean. There are OEM blanks for them, like the onstar one. Most people just add switches or whatever into the blanks. Kind of make your own.



[Matthew Jeschke]

Yeah I had figured that might be the case. Any idea of which switches look coolest?

Hoping to find inspiration for myproject. Tahoes esp 2nd gen ones seem to be the least modified for some reason. In my opinion they are best built of all.

Sent from my SM-A505U using Tapatalk



[wjburken]

Yeah I had figured that might be the case. Any idea of which switches look coolest?

Hoping to find inspiration for myproject. Tahoes esp 2nd gen ones seem to be the least modified for some reason. In my opinion they are best built of all.

Sent from my SM-A505U using Tapatalk

What type of switch do you want?Rocker, Toggles, Push or Rotary?
There are a ton of options.
https://www.wiringdepot.com/store/c/18-Switches.aspx



[Rocket Man]

Just whatever ones suit you.



[ks03]

Stolen from
https://www.gmfullsize.com/threads/tech-every-possible-dash-switch-for-gmt800-trucks.176549/


Originally posted by
88GMCtruck
·
02GMCtruck
Joined Feb 9, 2009
·
1,268 Posts
Discussion Starter • #1 • Dec 5, 2009
Got Bored.

With the help of a friend, we researched every possible dash mounted switch GM offered in the GMT800 series trucks/suvs. Note there is a break between 99-02 and 03-07c. The 99-02 switches are grey and typically have lettering assosicated with them, while 03-07c are black and use symbols instead of lettering. I have seen most of these switches in some form, and have pictures of most if anyone is interested.

99-02 Switches

Left IP Switches

Top
- Traction Control - 15062589 - ACDelco #15062589
- Autotrac 4wd (NP8) - 15709327
- 4wd (NP1) – 19168767
- Power Fold Mirrors - 15062588
- Pocket - 15732033

Bottom
- Cargo Lamp - 15714159
- Fog Light - 15714113
- Cargo Lamp/Fog Light - 15752869 - ACDelco #D1552G
- Rear Wiper - 15714119
- Rear Wiper/Fog Light - 15735839 - ACDelco #D7062C
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15722980
- Rear Object Alarm Disable - 15062424
- Electronic Suspension - 15052073
- PTO switch - 15040484
- Rear Fog (export) - 15715117 - ACDelco #D1570F
- Fog (export) - 15729517

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15036455
- Stabilitrack/Traction Control - 15062423
- Airbag Disable - 15036140

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920
 
03-07c Switches

Left IP Switches

Top
- Traction Control - 15764411
- Autotrac 4wd (NP8) - 15136039
- 4wd (NP1) - 15136040
- Pocket - 15732033

Bottom
- Cargo Lamp - 15143155
- Fog Light - 15143157
- Cargo Lamp/Fog Light - 15076588 - ACDelco #15076588
- Rear Wiper - 15143159 - ACDelco #D6316E
- Rear Wiper/Fog Light - 15143158 - ACDelco #D6378D
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433
- “SS” plaque - 15178169
- “Intimidator SS” Plaque - 15783816
- “Hybrid” plaque - 15803575

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15061687
- Rear Object Alarm Disable - 15763185
- Electronic Suspension - 10363575
- Accessory Power Receptacle On Off (Hybrid) - 15776718
- PTO switch - 12497678
- Rear Fog (export) - 15061688 - ACDelco #D1582G
- Fog (export) - 15061686 - ACDelco #D7095C

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15763184
- Stabilitrack/Traction Control - 15061684
- Airbag Disable - 15270598
-

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920



[Matthew Jeschke]

Stolen from
https://www.gmfullsize.com/threads/tech-every-possible-dash-switch-for-gmt800-trucks.176549/


Originally posted by
88GMCtruck
·
02GMCtruck
Joined Feb 9, 2009
·
1,268 Posts
Discussion Starter • #1 • Dec 5, 2009
Got Bored.

With the help of a friend, we researched every possible dash mounted switch GM offered in the GMT800 series trucks/suvs. Note there is a break between 99-02 and 03-07c. The 99-02 switches are grey and typically have lettering assosicated with them, while 03-07c are black and use symbols instead of lettering. I have seen most of these switches in some form, and have pictures of most if anyone is interested.

99-02 Switches

Left IP Switches

Top
- Traction Control - 15062589 - ACDelco #15062589
- Autotrac 4wd (NP8) - 15709327
- 4wd (NP1) – 19168767
- Power Fold Mirrors - 15062588
- Pocket - 15732033

Bottom
- Cargo Lamp - 15714159
- Fog Light - 15714113
- Cargo Lamp/Fog Light - 15752869 - ACDelco #D1552G
- Rear Wiper - 15714119
- Rear Wiper/Fog Light - 15735839 - ACDelco #D7062C
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15722980
- Rear Object Alarm Disable - 15062424
- Electronic Suspension - 15052073
- PTO switch - 15040484
- Rear Fog (export) - 15715117 - ACDelco #D1570F
- Fog (export) - 15729517

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15036455
- Stabilitrack/Traction Control - 15062423
- Airbag Disable - 15036140

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920
 
03-07c Switches

Left IP Switches

Top
- Traction Control - 15764411
- Autotrac 4wd (NP8) - 15136039
- 4wd (NP1) - 15136040
- Pocket - 15732033

Bottom
- Cargo Lamp - 15143155
- Fog Light - 15143157
- Cargo Lamp/Fog Light - 15076588 - ACDelco #15076588
- Rear Wiper - 15143159 - ACDelco #D6316E
- Rear Wiper/Fog Light - 15143158 - ACDelco #D6378D
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433
- “SS” plaque - 15178169
- “Intimidator SS” Plaque - 15783816
- “Hybrid” plaque - 15803575

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15061687
- Rear Object Alarm Disable - 15763185
- Electronic Suspension - 10363575
- Accessory Power Receptacle On Off (Hybrid) - 15776718
- PTO switch - 12497678
- Rear Fog (export) - 15061688 - ACDelco #D1582G
- Fog (export) - 15061686 - ACDelco #D7095C

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15763184
- Stabilitrack/Traction Control - 15061684
- Airbag Disable - 15270598
-

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920

dude super cool. very helpful

Sent from my SM-A505U using Tapatalk



[Mr. 960]

It was from this post on GMFS that I found my fog light button with no wiper and no cargo light for my 06 Yukon after deleting my rear wiper.

Stolen from
https://www.gmfullsize.com/threads/tech-every-possible-dash-switch-for-gmt800-trucks.176549/


Originally posted by
88GMCtruck
·
02GMCtruck
Joined Feb 9, 2009
·
1,268 Posts
Discussion Starter • #1 • Dec 5, 2009
Got Bored.

With the help of a friend, we researched every possible dash mounted switch GM offered in the GMT800 series trucks/suvs. Note there is a break between 99-02 and 03-07c. The 99-02 switches are grey and typically have lettering assosicated with them, while 03-07c are black and use symbols instead of lettering. I have seen most of these switches in some form, and have pictures of most if anyone is interested.

99-02 Switches

Left IP Switches

Top
- Traction Control - 15062589 - ACDelco #15062589
- Autotrac 4wd (NP8) - 15709327
- 4wd (NP1) – 19168767
- Power Fold Mirrors - 15062588
- Pocket - 15732033

Bottom
- Cargo Lamp - 15714159
- Fog Light - 15714113
- Cargo Lamp/Fog Light - 15752869 - ACDelco #D1552G
- Rear Wiper - 15714119
- Rear Wiper/Fog Light - 15735839 - ACDelco #D7062C
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15722980
- Rear Object Alarm Disable - 15062424
- Electronic Suspension - 15052073
- PTO switch - 15040484
- Rear Fog (export) - 15715117 - ACDelco #D1570F
- Fog (export) - 15729517

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15036455
- Stabilitrack/Traction Control - 15062423
- Airbag Disable - 15036140

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920
 
03-07c Switches

Left IP Switches

Top
- Traction Control - 15764411
- Autotrac 4wd (NP8) - 15136039
- 4wd (NP1) - 15136040
- Pocket - 15732033

Bottom
- Cargo Lamp - 15143155
- Fog Light - 15143157
- Cargo Lamp/Fog Light - 15076588 - ACDelco #15076588
- Rear Wiper - 15143159 - ACDelco #D6316E
- Rear Wiper/Fog Light - 15143158 - ACDelco #D6378D
- Blank - 15735838

Right IP switches

Top* (housing is integrated with switch or plaque)
- Onstar - 12450568
- Rear Wheel Steering (quadrasteer) - 15177433
- “SS” plaque - 15178169
- “Intimidator SS” Plaque - 15783816
- “Hybrid” plaque - 15803575

Bottom* (housing is integrated with switch)
- Onstar - 12450789

Left
- Aux Lamp / Emergency Vehicle Roof Lamp - 15061687
- Rear Object Alarm Disable - 15763185
- Electronic Suspension - 10363575
- Accessory Power Receptacle On Off (Hybrid) - 15776718
- PTO switch - 12497678
- Rear Fog (export) - 15061688 - ACDelco #D1582G
- Fog (export) - 15061686 - ACDelco #D7095C

Right
- Power Sliding Rear Window - 12463419
- Headlamp Leveling Activator (export) - 15763184
- Stabilitrack/Traction Control - 15061684
- Airbag Disable - 15270598
-

Other
- Blank Cover Single (pack of 5) – 15734687
- Blank Cover Double (covers both bottom openings) – 15075115
- 2 pod housing (blank top) – 15040483
- 3 pod housing (wide top pod) - 15074689
- 4 pod housing – 15207878
- Storage Compartment - 15756680
- Mat for Storage Compartment – 15024920



[gooffeyguy]

How bout a passenger ejection seat switch? lol



[Matthew Jeschke]

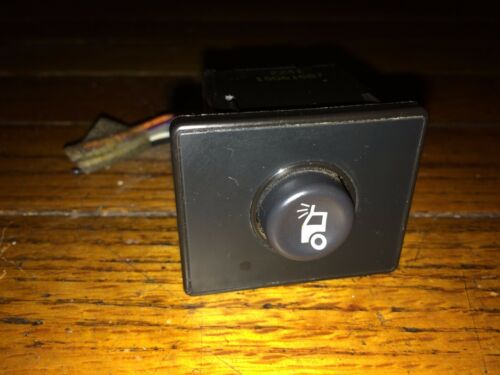

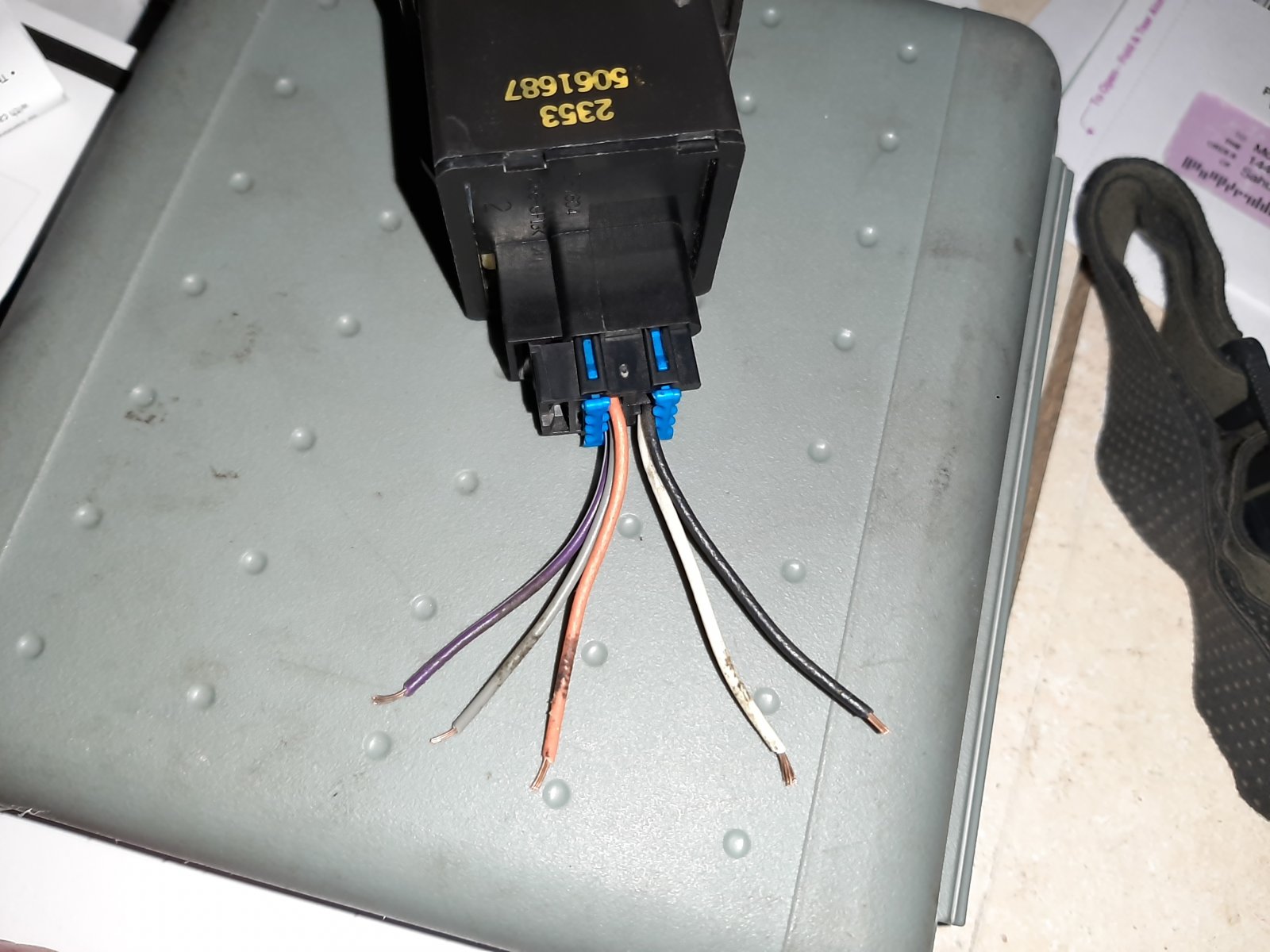

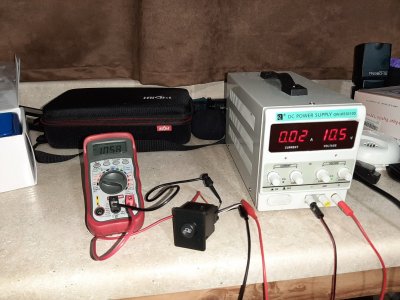

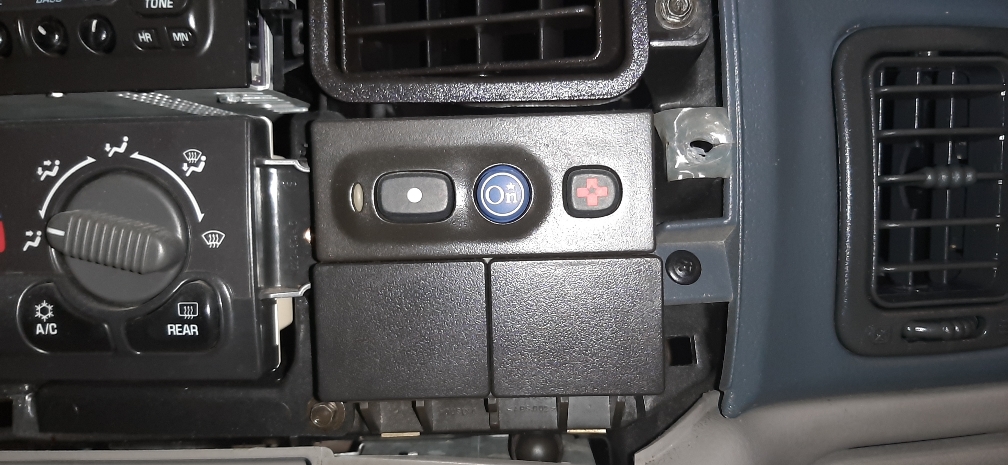

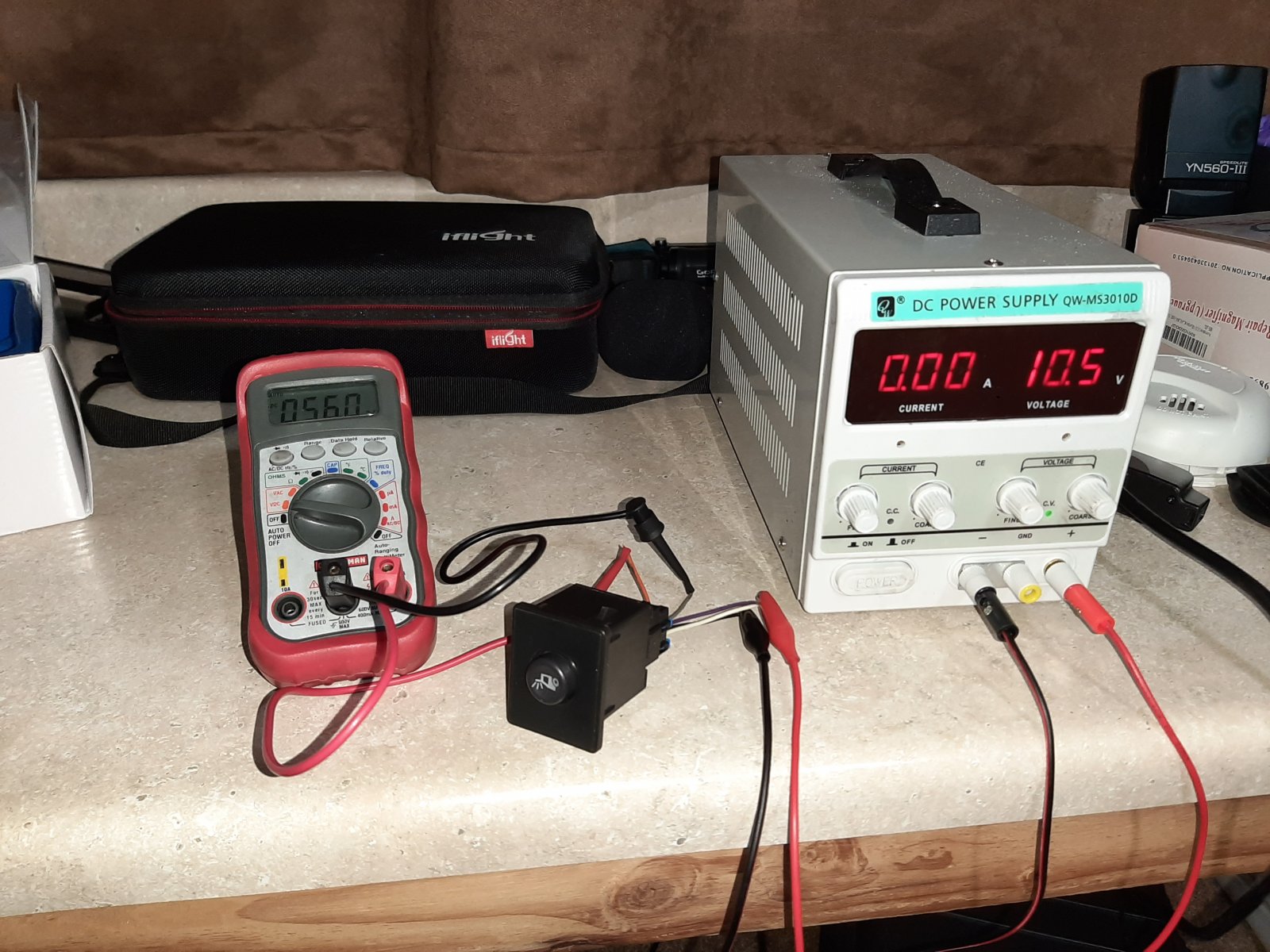

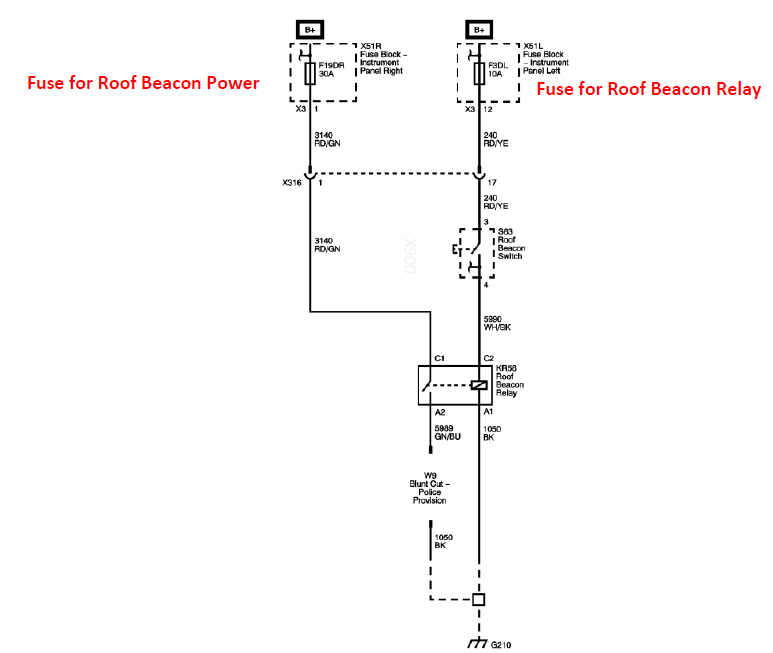

It's like a match made in heaven lol The cab over light switch is perfect! I just ordered one I think there's a back light on it. I'll have to figure out how to wire that into the dash illumination wires.

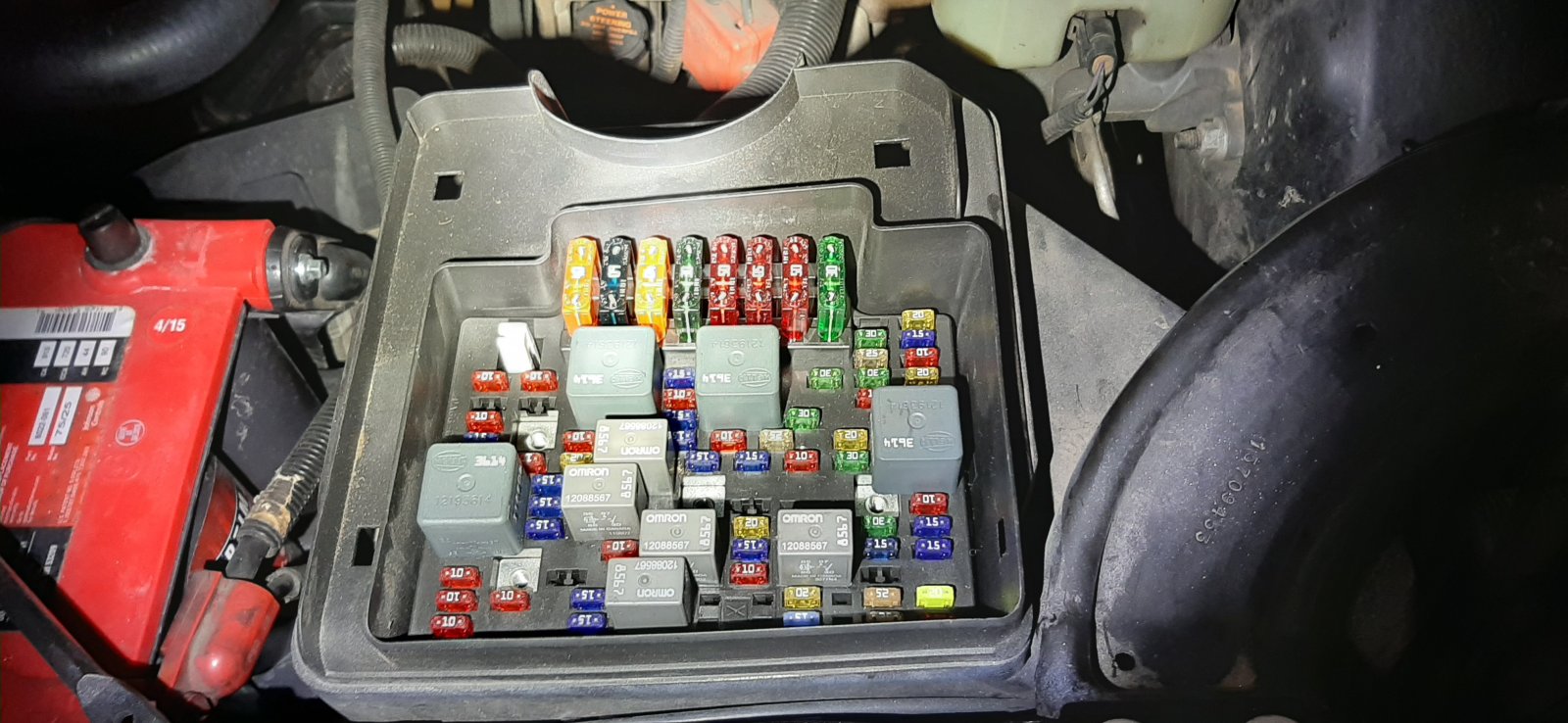

Then I'm curious, is there an aftermarket relay / fuse box? Something to add some expansion to the electrical system under the hood. I have plans to do overhead light bar, build in air compressor, and inverter.
