Transmission Cooler Line Leaking With Possible Fix

Discussion in 'Engine & Drivetrain' started by Jason in DLH, Oct 11, 2020.

  1. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    I s’pose nobody could tell me which trans cooling line is the supply and which one is the return at the radiator, could they?



  2. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    Ugh...dismiss the 2nd picture as I meant to delete it.

    Just Fishing likes this.
  3. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    I’ve got it all jacked up and I don’t want to put it in gear and rev the engine to test. :badidea:

  4. Just Fishing

    Just Fishing Full Access Member

    Posts:
    148
    Likes Received:
    204
    Joined:
    Aug 30, 2020
    Location:
    Utah
    Name:
    Chris
    I have no idea, but someone should know.

  5. gooffeyguy

    gooffeyguy Full Access Member

    Posts:
    2,192
    Likes Received:
    2,814
    Joined:
    Apr 11, 2018
    Location:
    St. Louis
    Name:
    Tom

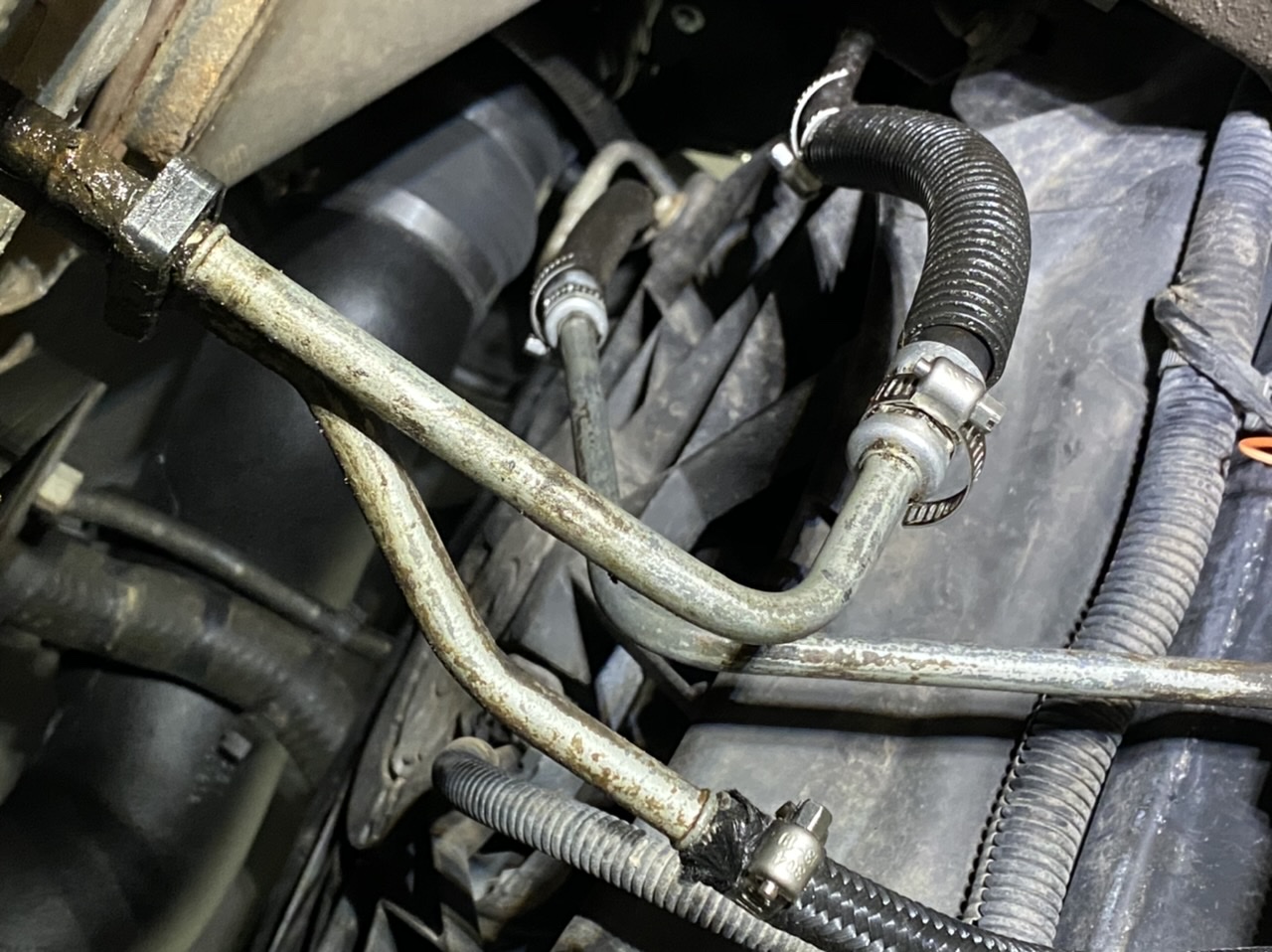

    The lower line going into passenger side of radiator is coming from the transmission.

    Top line goes out to auxiliary trans cooler, then the other line coming from auxiliary trans cooler runs back to transmission

    Sent from my SM-G930V using Tapatalk

    ivin74, Just Fishing and swathdiver like this.
  6. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    Great, thanks! Just saved me 40 minutes of my time!

  7. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    Okie dokie...I used a tin snips to cut the old transmission cooling line and put it into this bendable drain towards my catch bucket and started the truck (I’m doing a trans fluid change as well). Only took a few seconds to extract the fluid by starting the truck (I may have run the pump dry but oh well. :cool:

    I then disconnected the line from the radiator and wiggled it out so that I could cut the aluminum end off.

    Here’s the part that I cut off...


    Used a small flat head to pry it open:

    B480C69E-3FD5-4C24-89DB-B6A96EFA5870.jpeg 6160044C-4EAD-44DF-9E2B-4FFF5FDDBC00.jpeg 00C29290-165B-4BA3-8908-19FDDDE58E9B.jpeg

  8. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    I used a small Black and Decker Rotary tool with a small cutoff wheel being careful not to cut into the aluminum pipe...


    I was then able to pull it apart:


    Cleaned the end up nicely and slid the new 3/8 hose on up to the ridge (I couldn’t get it over the ridge like in the video, but I don’t believe it will leak):


    I will clamp it together tightly and it should be good to go.


    ivin74 likes this.
  9. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason

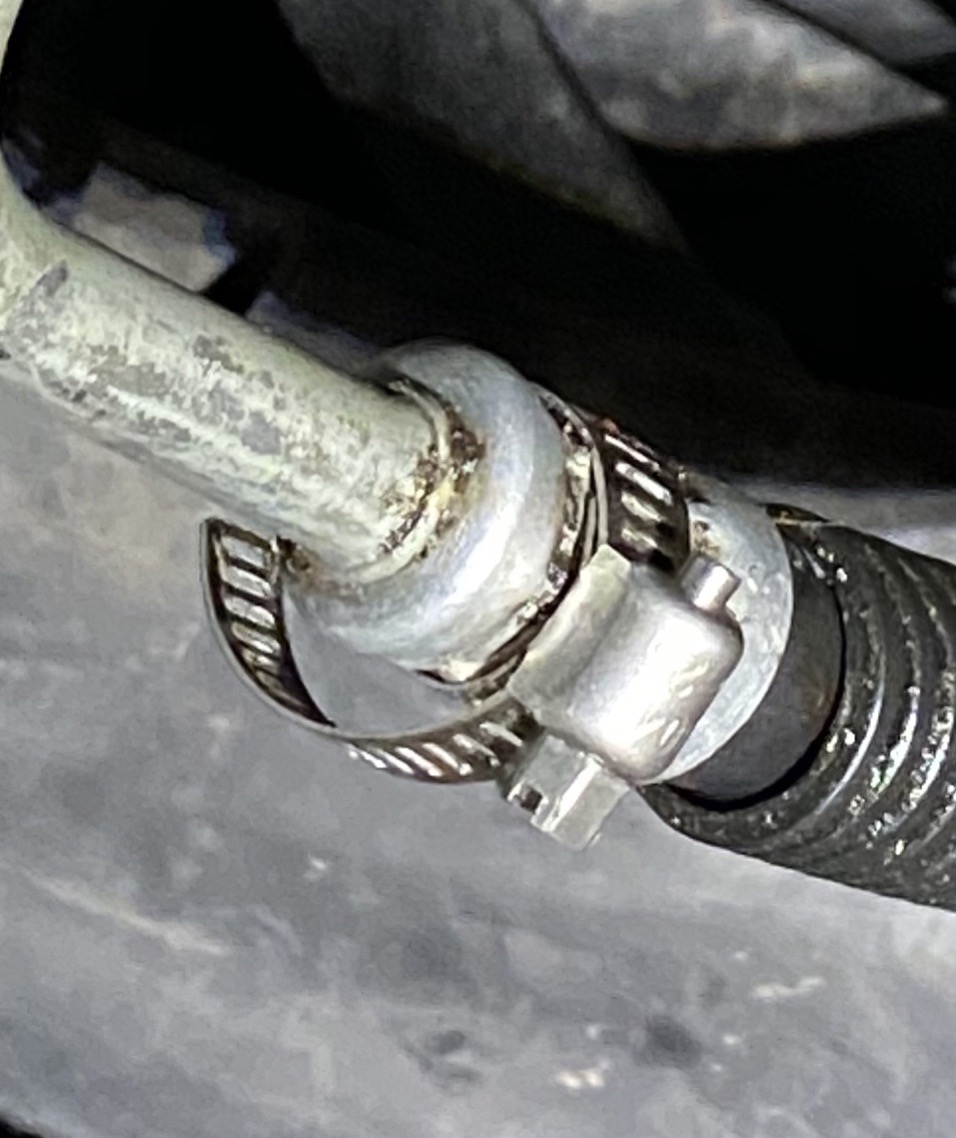

    Upon closer examination of the old pipe I noticed that it didn’t seem to be damaged at all and in good shape which makes me wonder if the outer aluminum clasp simply loosened over the years. I have lots more of these type fittings that all seem to be leaking so for now I’m simply going to clamp the aluminum down better to see if that solves the problem instead of going through all this hassle. Will post results when I receive my small clamps...


    swathdiver and ivin74 like this.
  10. Jason in DLH

    Jason in DLH Cheese Burger and Fries

    Posts:
    379
    Likes Received:
    333
    Joined:
    Sep 4, 2020
    Location:
    MN
    Name:
    Jason
    My hose clamps have not arrived yet, so that’s why you don’t see any yet.

    ivin74 likes this.
