Question on DRL module and foglights

[wtbtahoe]

I know this is an old post, but I thought I would resurrect anyway since it has all of the part information. I have been unable to source the 1 hole bezel and the interior wiring harness. 1 hole Bezel is 15696260 and the interior harness 15743770. Does anybody have any other leads where I can find them? Thanks.



[SunlitComet]

wintageparts.com



[Tbruz]

Vintage parts .com



[wtbtahoe]

I checked with them a few times over the last six months and they haven't had any of these parts. Any other ideas?



[Tbruz]

Vparts now only has the under hood harness available.

Were you planning on horizontal or vertical for the switch?


try eBay item number:160494127299 aftermarket harness
I have no first hand experience with this harness or vendor but if nothing else is available.................You can do this with a generic switch, no mounting plate required

Tbruz



[wtbtahoe]

Hi Tbruz

I bought a horizontal switch from Ebay, and the underhood harness from a Chevy dealer, so all I need is the bezel and under dash harness. Thanks for the help.



[Tbruz]

The vertical bezels are rare but occasionaly they do pop up; I have never seen a horizontal bezel in my boneyard travels up here in the Northeast.
Maybe the horizontal ones are more prevelant in warmer areas(no 4wd)??
Good luck in your search.
Tbruz



[Monstar_est87]

U lookin 4 the switch plate in the 4x4 spot or the fog/rear hatch/ rear wiper area..? I have had a ton in different combos... But I'm currently out of the parts game... I'm trying 2 get back on it but I have no spare time nowa days...



[wtbtahoe]

I am looking for the horizontal 4x4 bezel. I am also looking for the wiring diagram that shows the plug locations for the harnesses, and the wire color codes. Anybody have that available?



[Tbruz]

I have the fog light wiring diagrams but can't seem to be able to take a screen capture in order to post them.
PM me your email and I can send them to you that way, maybe you can post them up to benefit others.
Tbruz



[wtbtahoe]

Tbruz

PM has been sent. I will try and post them; would make a good sticky, don't you think?



[wtbtahoe]

Tbruz

Were you able to solve the power issue to the switch that you had posted a while back? And do you have any pictures of the harnesses where they plug in? And lastly, where did you go through the firewall? Thanks in advance for all of the assistance.



[Tbruz]

Re-read post 5 for description of where the underdash harness plugs into fusebox in two places; I will send you an email photo as well for you to post up. Refer to the fog wiring diagram I sent you to see how these two harnesses work and where/how they plug in to headlight and ground.
You'll need to drill a hole in firewall to get the under hood harness and the underdash harness to plug into each other. The underdash harness has a rubber grommet built into it for this purpose.
The single position plug with the grey lead that was giving me trouble is the illumination lead for the switch. My 1997 did not have a pin in the fuse box for this one lead. I spliced into another grey illumination wire coming off the ac control, works pefect.
Tbruz



[Arcane]

Tbruz please check you inbox.

I have everything accept those brackets. Btw fog switch and bezel with 3 switch holes wasn't that big problem. I seached though ebay for escalade dash bezels and made some offers. Usually it doesn't have a value for a seller.



[Tbruz]

Arcane
Vendor is sae-auto on Ebay.
Pns were 15045495 and 15045494
Description was Factory OEM Fog Lamp Housing(left or right)
Tbruz



[Arcane]

K, thanx a lot man!

---------- Post added at 08:57 AM ---------- Previous post was at 08:54 AM ----------

Can anyone show how those brackets looks like in real life?



[wtbtahoe]

Tbruz:

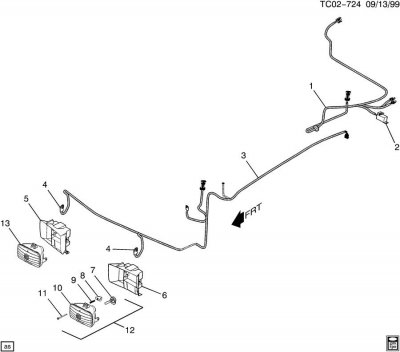

I finally remembered to post these wiring diagrams; sorry about the brain f....!

As to the other parts I was looking for, I stumbled upon an Ebay seller who had the vertical fog light switch and plate, and he was also able to supply the complete harness setup. So needless to say, at this point, I have an extra underhood harness that I bought brand new and the horizontal fog light switch if anybody needs it.

You might want to contact the Ebay seller and see if he can get the brackets for you if you still need them. His seller name is jcar 3948 and his phone number 801 787 6222. Good luck.

Hopefully now I can get my lights to work. Thanks for all of the help.



[Arcane]

Thanx a lot man, i will contact that seller. I'm sill in search of the brackets.



[Tbruz]

wtbtahoe,
Interstested in the underhood harness you no longer need.
How much you looking for?
Thanks
Tbruz



[Johnathon]

i just found this post and Im trying to put LED fog lights on my Z71 truck. I have the OEM Tahoe fog light switch just don't know which pin does what on the switch. I tried to look at the schematic and it does not load clearly. I need to know which pin is for ILL., Ground, Power such as that. Can someone help? All info welcome. Thanks
