Need help wiring escalade Bvlgari clock.

[denalianyone]

I just received my escalade bvlgari clock and connector. The connector has three wires and did not come with any instructions. I cant find any tutorials online to installing this. Did anyone do this mod b4? Any help will be greatly appreciated.



[Grebbler]

I have never seen the clock. If it's just a normal clock I would assume the leads are Ground, B+ for clock and the last lead for the light to tie into the dash dimmer circuit.



[denalianyone]

The clock is standard in the 02-06 escalade models, incorporated into the power/storage section of the center console. Thanks for your quick advice.



[ndavis0001]

what color are the wires? power, ground, dimmer...



[denalianyone]

the wires are all white, which make it more difficult to figure out.



[ndavis0001]

well you could do a soft test... run your 3 wire leads and test this to that and this to that until you pinpoint which are which...

in the meantime ill try to find you a diagram... im bored



[Anthony]

*Any updates to this?*

I just got an Escalade console (Clock area+ Cup holders +Clock) off eBay and looking to have the correct wiring to make ti work in my 2004 tahoe. Any input please?



[denalianyone]

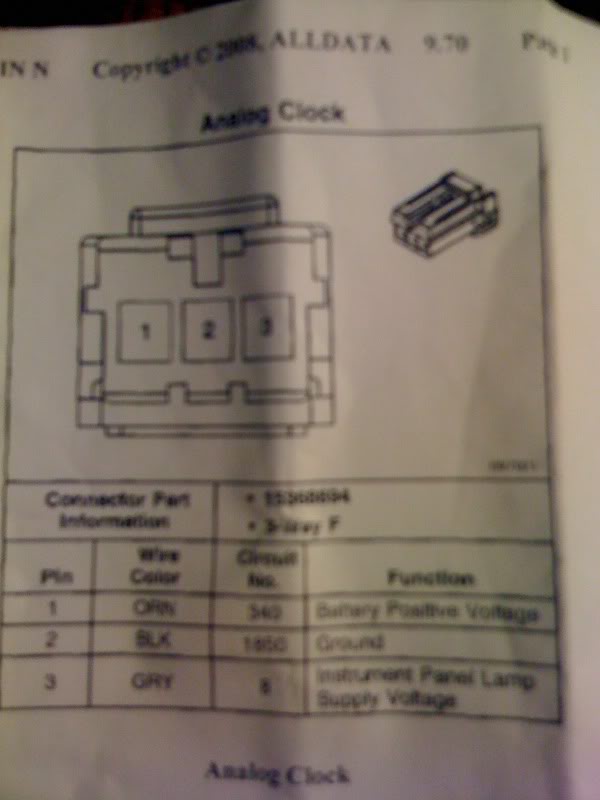

I used the wiring diagram from alldata. Ill try and post the pic later tonight.



[Anthony]

I used the wiring diagram from alldata. Ill try and post the pic later tonight.

That would be PERFECT! Thanks!



[Anthony]

I used the wiring diagram from alldata. Ill try and post the pic later tonight.

Can you post it please
