Broken fuel injector lock clip

[Burban22]

Unfortunately broke 3 of the 8 fuel injector clips. 5 released without issues. The other 3 broke when I was releasing the injector plug. They still plug into the injector but they can now be pulled off by just tugging on the wire.

Is this a big deal? Do I need to replace the entire injector plug?

I’d rather not have to cut wires and splice a new connector but if these can easily unplug under normal driving then I’d rather be on the safe side.

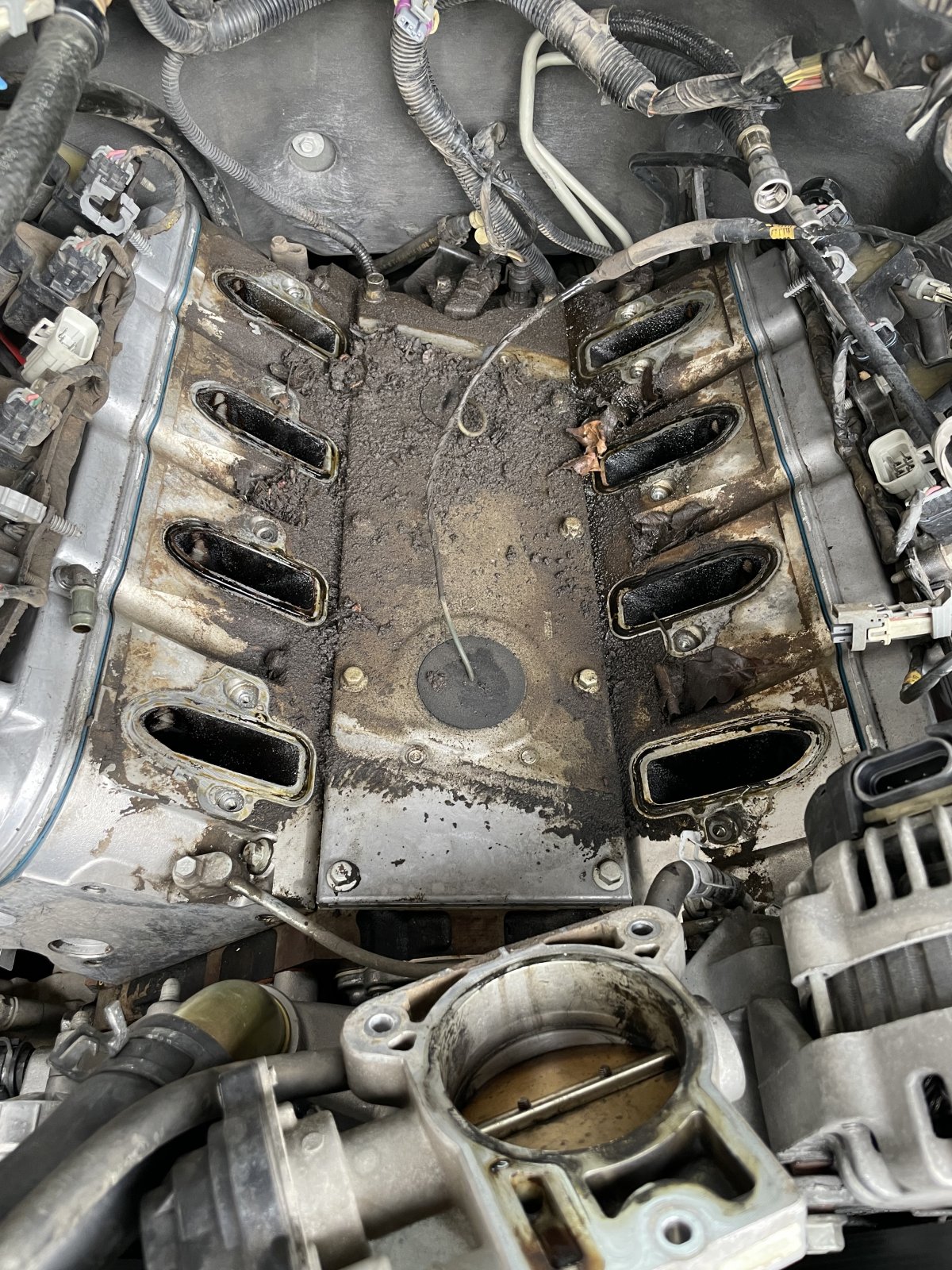

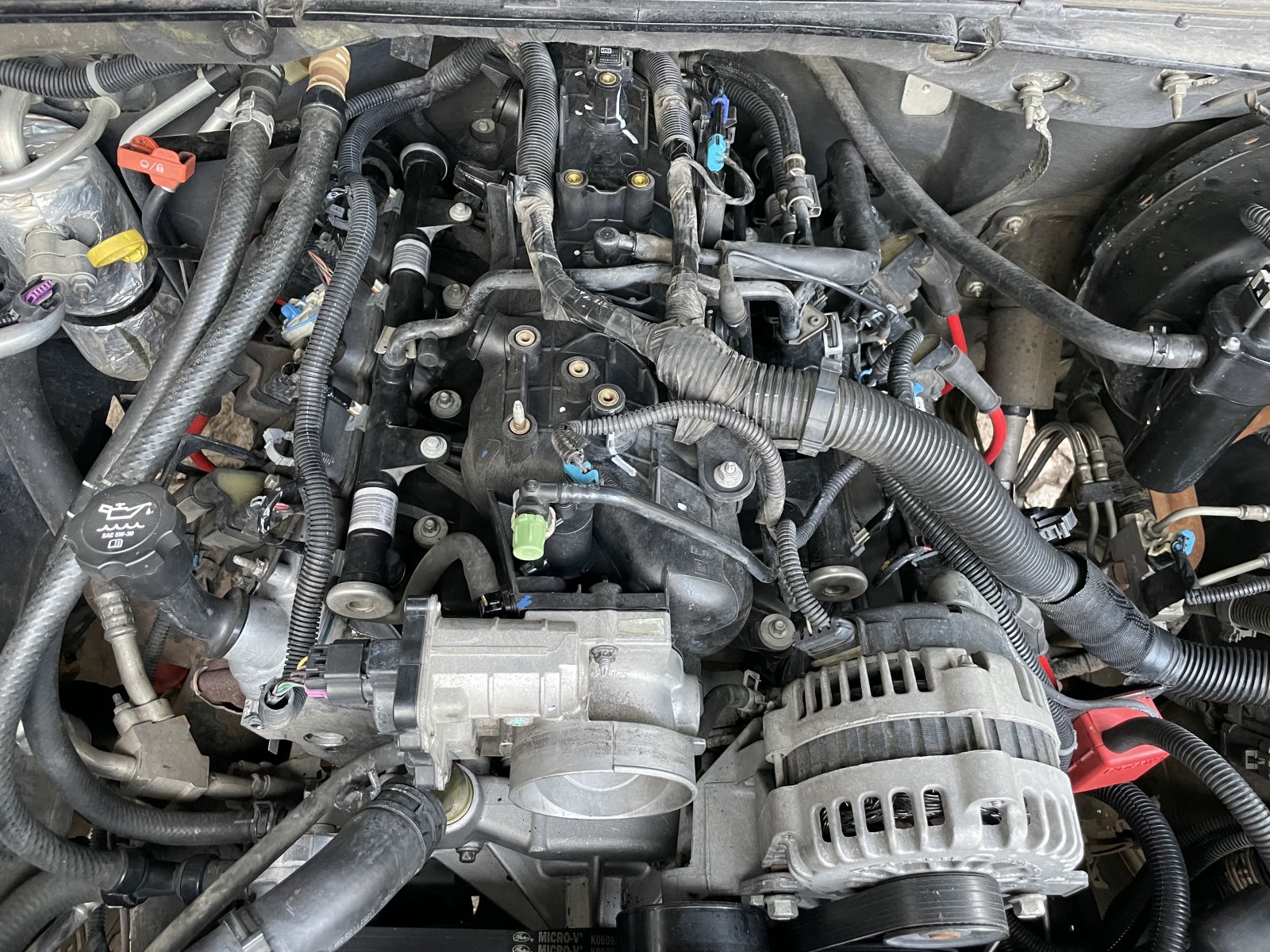

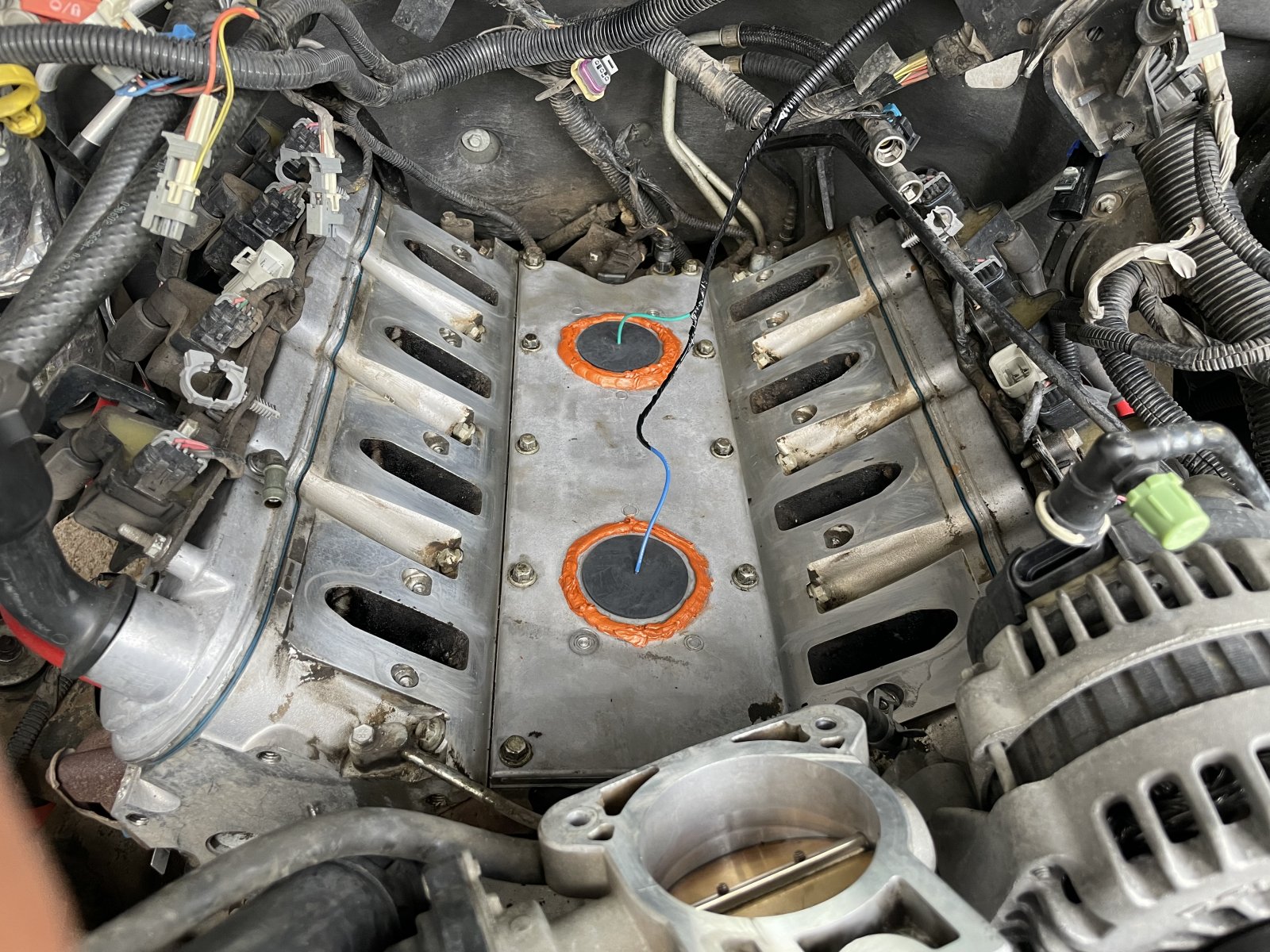

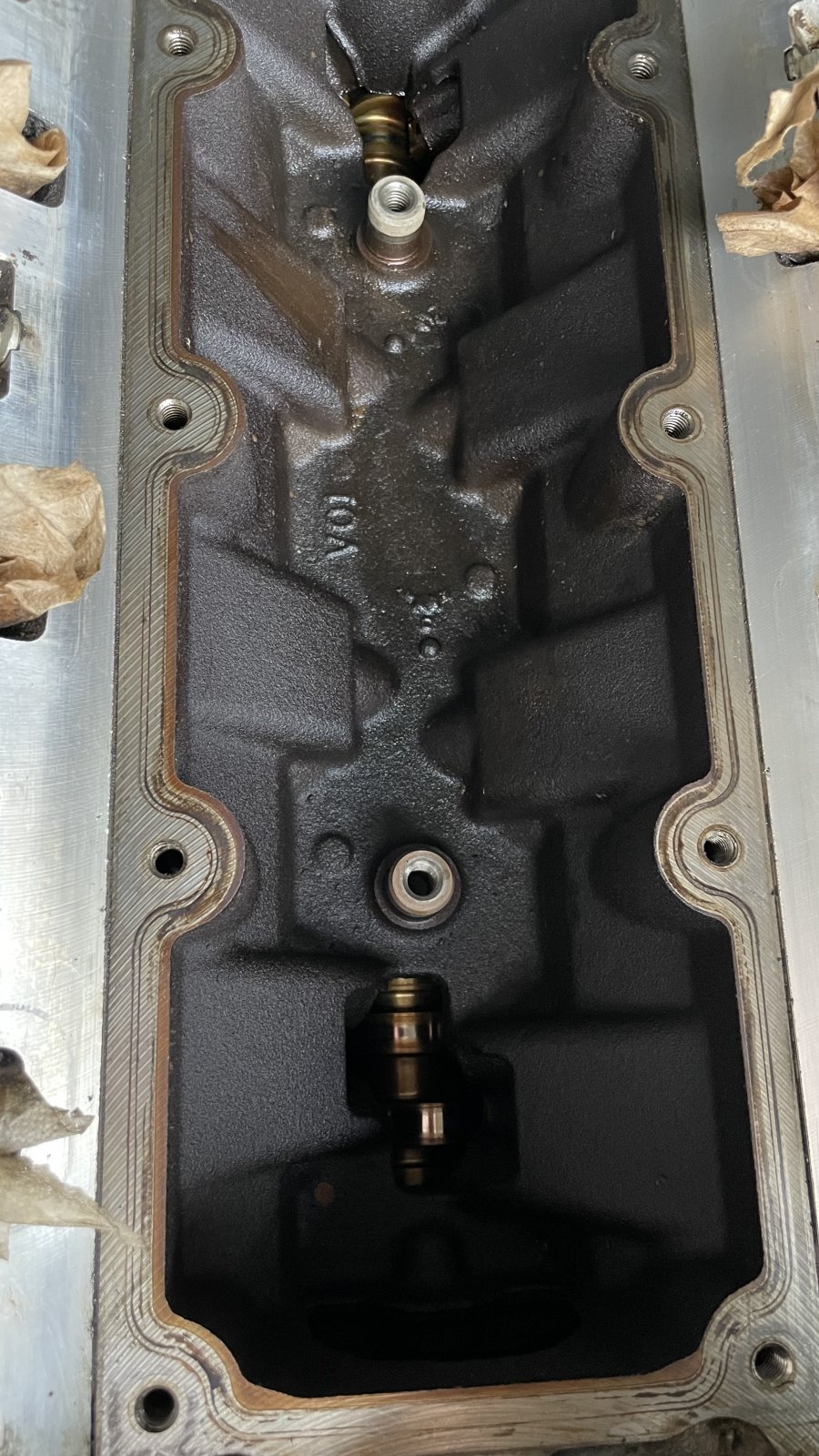

This came about because I have a CEL for bank 2 knock sensor and I am replacing both sensors, knock sensor harness and Intake gasket.

2003 suburban 5.3 LM7



[Burban22]

Good

Broken



[Burban22]

I did this same job on the family’s 04 yukon and didn’t break a single clip but the plastic on my 03 burb seemed very brittle



[OR VietVet]

Use a tiny zip tie or two to hold together, till you get the energy to splice in some new connectors/ends.

More Information for GM GENUINE PT2135



[Doubeleive]

Unfortunately broke 3 of the 8 fuel injector clips. 5 released without issues. The other 3 broke when I was releasing the injector plug. They still plug into the injector but they can now be pulled off by just tugging on the wire.

Is this a big deal? Do I need to replace the entire injector plug?

I’d rather not have to cut wires and splice a new connector but if these can easily unplug under normal driving then I’d rather be on the safe side.

This came about because I have a CEL for bank 2 knock sensor and I am replacing both sensors, knock sensor harness and Intake gasket.

2003 suburban 5.3 LM7

if you can locate the connectors they can be just be re-pinned, the pins will release and pull out then you just push them in the new connectors.
no need to cut any wires.



[iamdub]

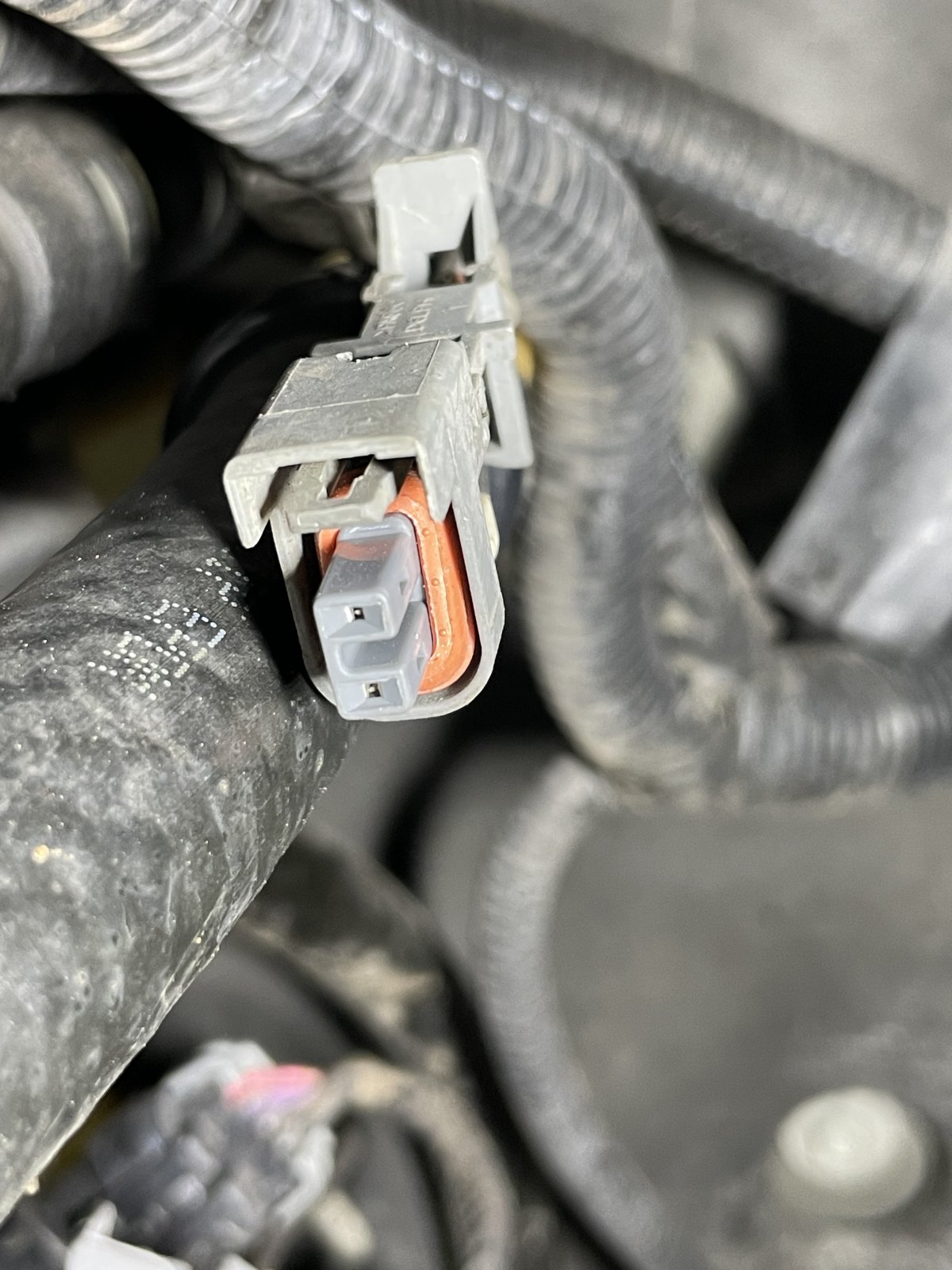

Good

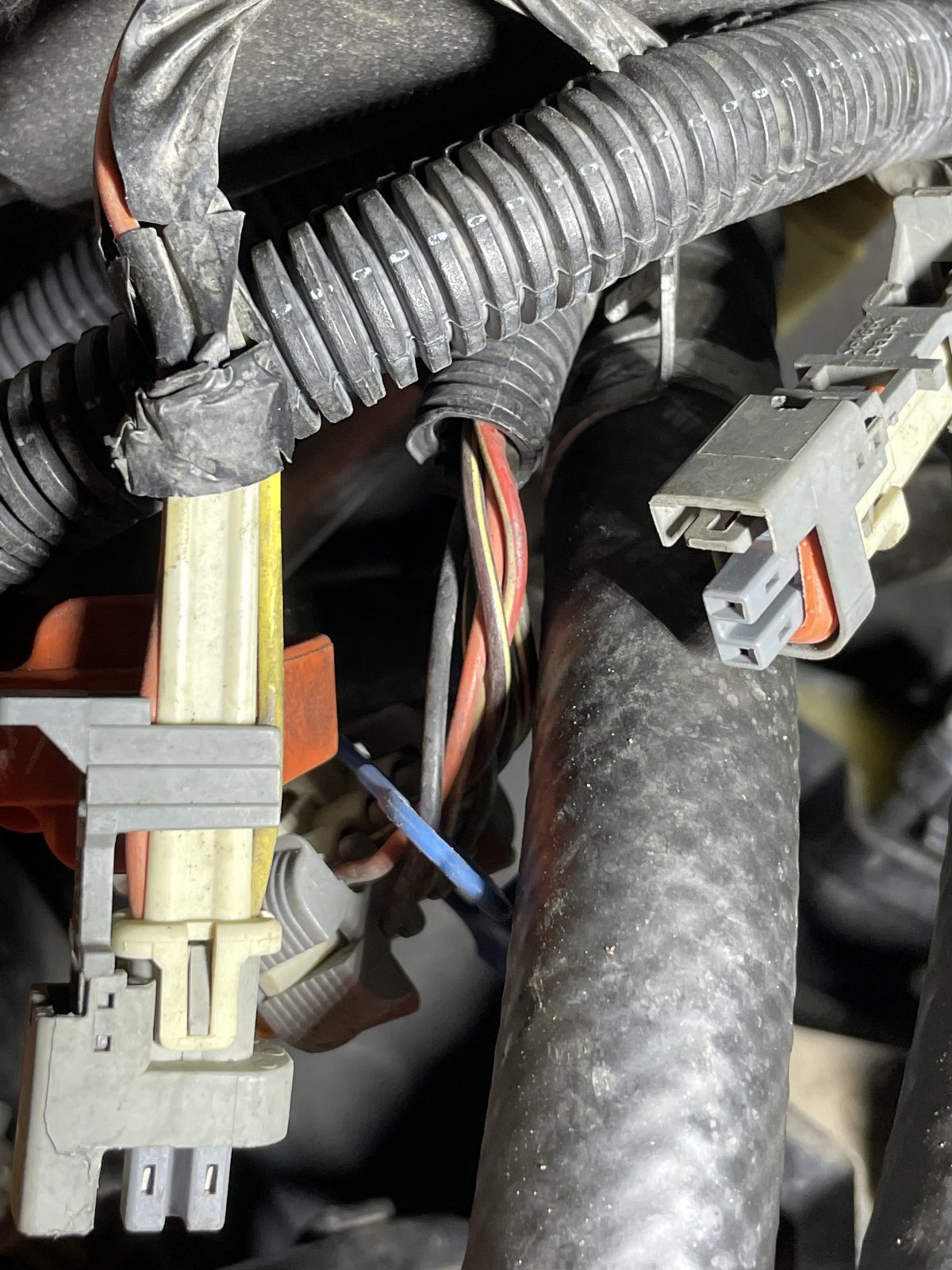

View attachment 416251

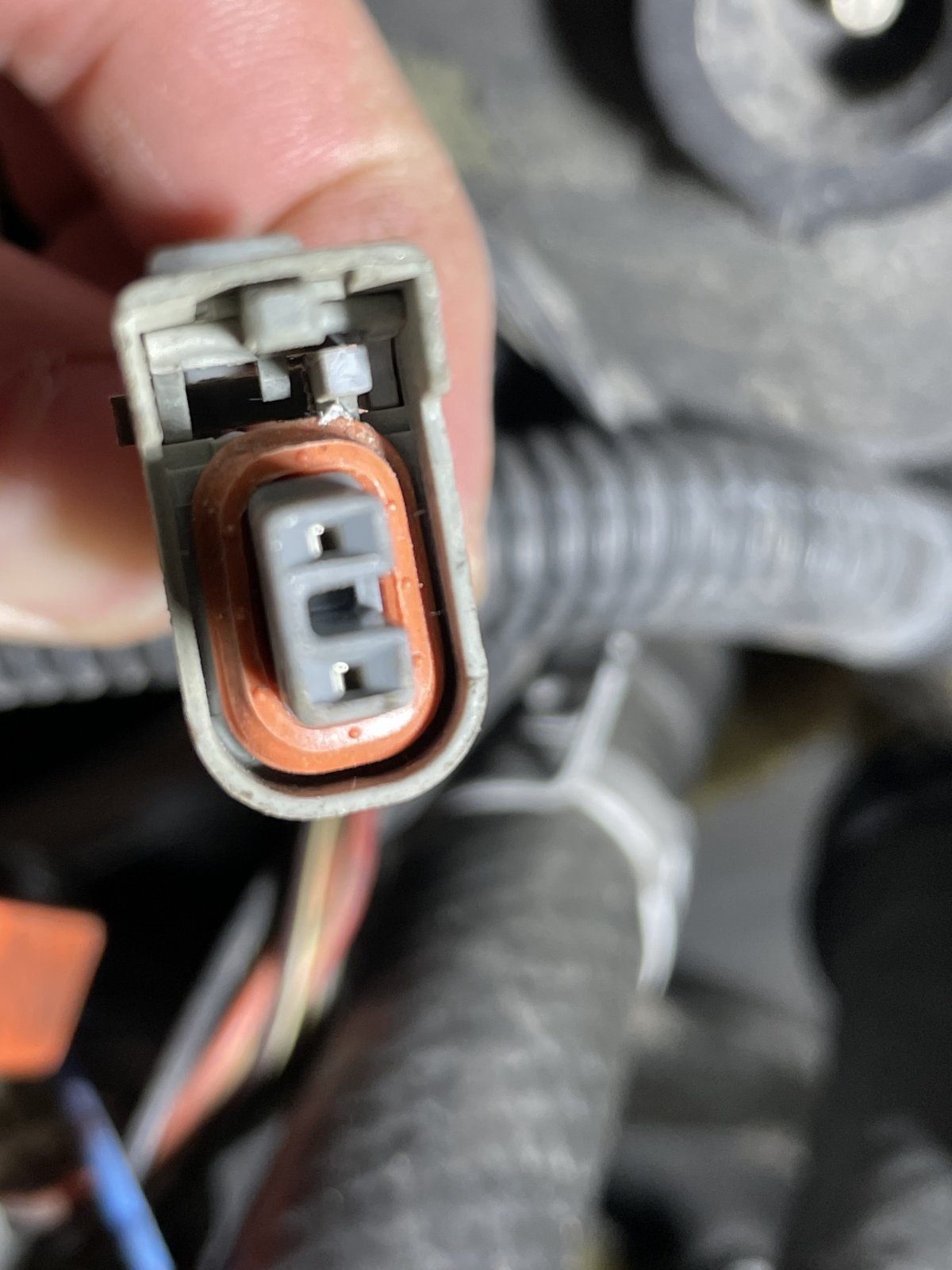

Broken

View attachment 416252View attachment 416253

A few broke on my brother's '05. I secured them with zip-ties. No problems for almost 5 years and 40,000+ miles and counting.



[Burban22]

Thanks for the responses and suggestions!

I may run out to the nearby junkyard and see If there are some good connectors left on any GMT 800s out there and attempt to take the connectors apart. If all else fails, I’ll zip tie it until I can properly fix it. Or then forget about it. lol



[Doubeleive]

Thanks for the responses and suggestions!

I may run out to the nearby junkyard and see If there are some good connectors left on any GMT 800s out there and attempt to take the connectors apart. If all else fails, I’ll zip tie it until I can properly fix it. Or then forget about it. lol

they come apart you just need a long sharp tip poker or flat poker to get the pins out
you can buy a 120pc pin kit for $20 and take just about any connector apart without ruining it

120pcs Car Terminal Removal Tool Kit Wire Connector Extractor Puller Release Pin | eBay

Material: The Pin extractor tool made of premium steel spring plate + plastic. It is flexible and durable. Our tool provides extra leverage so you can easily remove the wire. Product Specification.

www.ebay.com



[Doubeleive]

you take that yellow clip off then inside will be some rubber seals, those pull up, then the little lock clips are on the side in your photo those push in and then the pin can be pulled out, take a photo of the wires before you start taking any of it apart so you get it back together with the wires in the right spot.
and junkyard is a good source for some, should be the same connector on almost any gm vehicle of the same era



[Fless]

The Flex Fuel injector connectors are different from the gas injector connectors, so be careful when choosing.
