4 Piston Big Brake Upgrade from 2019-20

Discussion in 'Engine & Drivetrain' started by fasteddy, Mar 29, 2021.

  1. fasteddy

    fasteddy Full Access Member

    Posts:
    259
    Likes Received:
    288
    Joined:
    Dec 19, 2015
    Name:
    greg

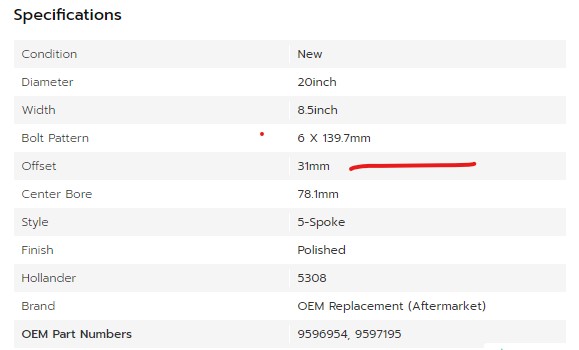

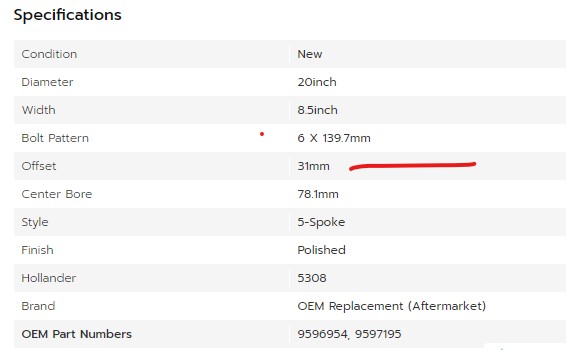

    I'm was interested in this wheel....rhino Primm.
    But now I know....I'll order it for a 2020 Silverado not for a 2003 Tahoe....the offsets are different.

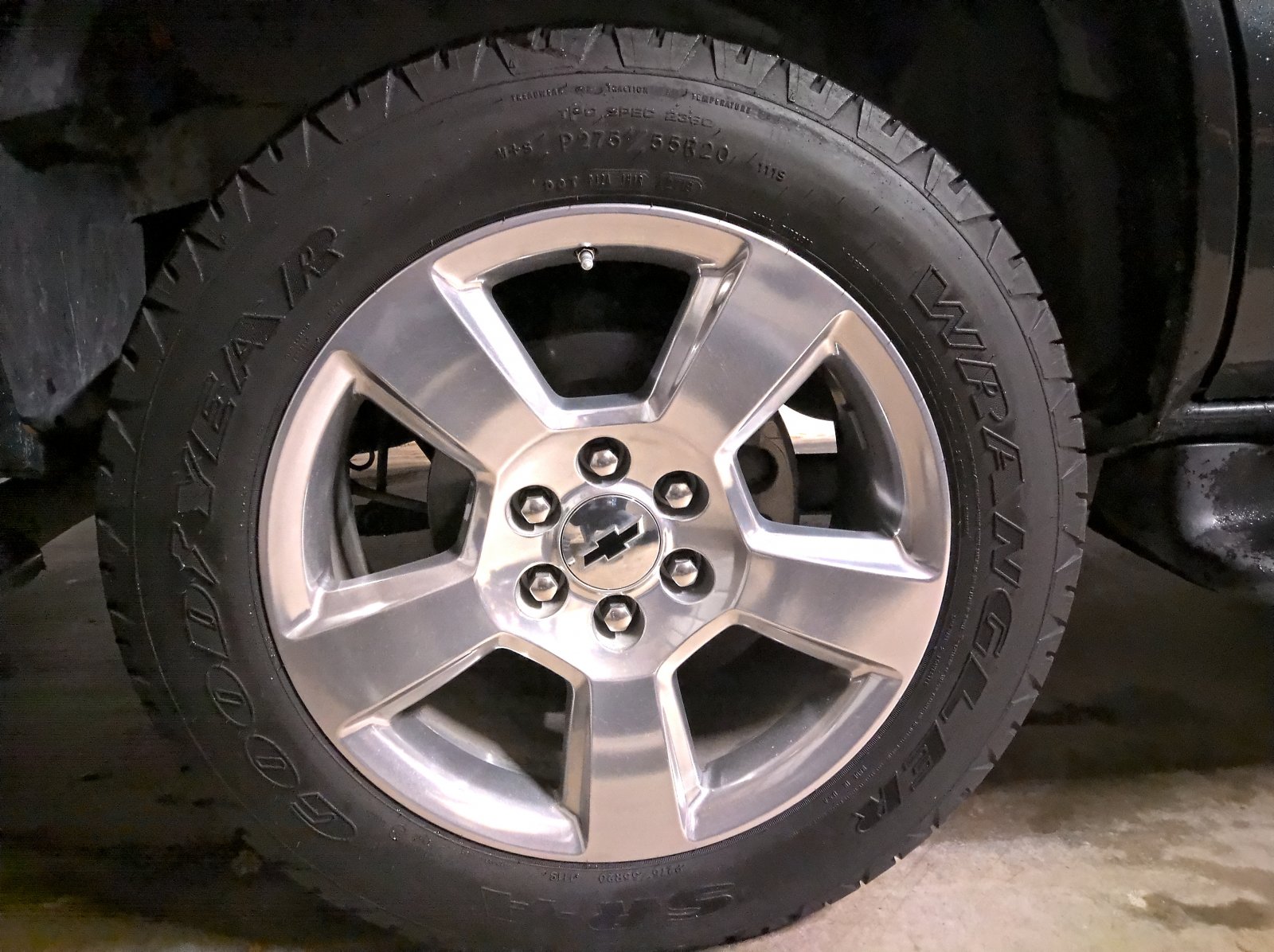

    But now I might go with more of a spoke based wheels now to show-off the caliper. Like the Silverado wheel but some tougher.

  2. the_tool_man

    the_tool_man Full Access Member

    Posts:
    529
    Likes Received:
    1,107
    Joined:
    Oct 15, 2018
    Location:
    Upstate South Carolina
    Name:
    John
    DO NOT LIKE.

    Oh well, I'll have to save up for Wilwoods or Brembos I guess.

  3. 91RS

    91RS Full Access Member

    Posts:
    1,477
    Likes Received:
    786
    Joined:
    Nov 15, 2009
    Location:
    GA
    Name:
    D
    The Brembo calipers aren’t as wide (they’re also lighter) but also since the rotor is so much larger the caliper is further away from the hub which helps with clearance. The Brembos fit with all three of the 22” wheels I have. Honestly, the Brembo kit is well worth the money. They just fall on like they were the stock stuff. I kinda want to buy another kit for my Yukon but I really need to resist since my wife doesn’t need it....

    The Wilwood kit is cheaper to purchase but there’s a good bit of assembly needed, I’ve heard of some people needing to grind stuff for fitment (not witnessed for myself though), and the price of replacement rotors and pads is quite steep.

  4. the_tool_man

    the_tool_man Full Access Member

    Posts:
    529
    Likes Received:
    1,107
    Joined:
    Oct 15, 2018
    Location:
    Upstate South Carolina
    Name:
    John
    I'm leaning toward the Brembo kit as it's standard equipment on the '21+ PPVs and SSVs, and a GM option for civilians. Parts cost should be significantly better in the long run.

  5. 1BADI5

    1BADI5 Supporting Member

    Posts:
    1,666
    Likes Received:
    2,589
    Joined:
    Feb 2, 2014
    Location:
    DMV
    Name:
    Jeremy
    Well did some more looking into the difference from the silverado '19+ caliper to the '21+ Tahoe caliper. There are some differences. Not sure if GM revised them for the big Booty Judy SUVs or if there is separate part numbers to re explore.

    See the pictures below. Other then the forward facing part of the caliper, everything else measures out the same. Possibly a difference based on the wheels that are specific to the SUVs.

    PXL_20210412_214348588.jpg PXL_20210412_214421028.jpg PXL_20210412_214450323.jpg PXL_20210412_214504064.jpg PXL_20210412_214641308.jpg

    ivin74 and Dantheman1540 like this.
  6. 1BADI5

    1BADI5 Supporting Member

    Posts:
    1,666
    Likes Received:
    2,589
    Joined:
    Feb 2, 2014
    Location:
    DMV
    Name:
    Jeremy
    Now I broke out the scale.

    The '19 Silverado I have removed the seals and have ground a fair amount of material off.

    The '21 Tahoe caliper, bone stock and complete.

    There appears to be an extra pound of material on the Silverado caliper. Interesting findings none the less.

    Both share the same piston size 1 7/8 on all 4 pistons, that's fuckin tits. Very much so a monster upgrade over both the GMT800 and 900 platforms.

    PXL_20210412_215658774.jpg PXL_20210412_220305157.jpg

  7. fasteddy

    fasteddy Full Access Member

    Posts:
    259
    Likes Received:
    288
    Joined:
    Dec 19, 2015
    Name:
    greg
    On the Silverado calipers vs. the 21 Tahoe calipers.
    They are the same exact part number.....driver side is ....79 and pass side is ......80
    The differences and i can see those, could be design evolution over time and/or casting differences from different plants or sources.

    BTW there Dr. Gandolf, on your scales one caliper has bolts and one does not
    And the weight difference is ? Looked closer 3.2 ounces?
    15lbs? What a fatboy! Very HD.



    I'm very excited to install mine now that I test fitted em. I don't have wheels that fit but soon.

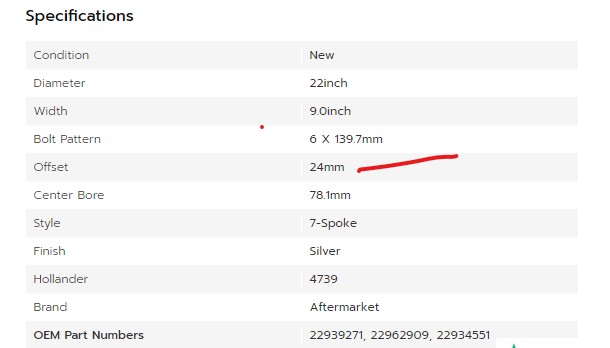

    Which is another issue. If you order aftermarket wheels and spec for 2020 silverado make sure to call and verify they will clear the caliper.
    I spoke with CARID today, they are aware of the caliper and they called for me, as they've had many issues with "guaranteed fitment" from their website on wheels
    that should fit but don't. He said Wheel mfgs are still catching up.

    Last edited: Apr 13, 2021
  8. fasteddy

    fasteddy Full Access Member

    Posts:
    259
    Likes Received:
    288
    Joined:
    Dec 19, 2015
    Name:
    greg
    And BTW, nice diamond plate on the work bench. Thats a good idea.

  9. Rocket Man

    Rocket Man Build It Better Supporting Member

    Posts:
    19,454
    Likes Received:
    33,980
    Joined:
    Dec 25, 2014
    Location:
    Oregon
    Name:
    Mark
  10. 91RS

    91RS Full Access Member

    Posts:
    1,477
    Likes Received:
    786
    Joined:
    Nov 15, 2009
    Location:
    GA
    Name:
    D

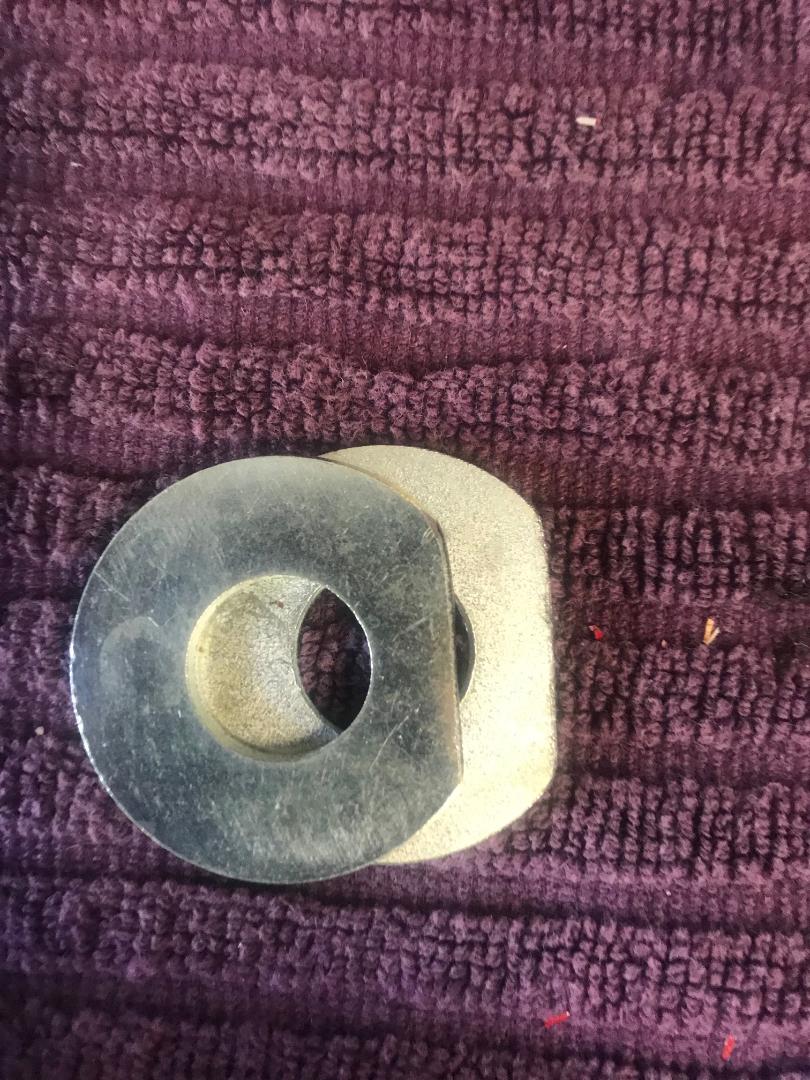

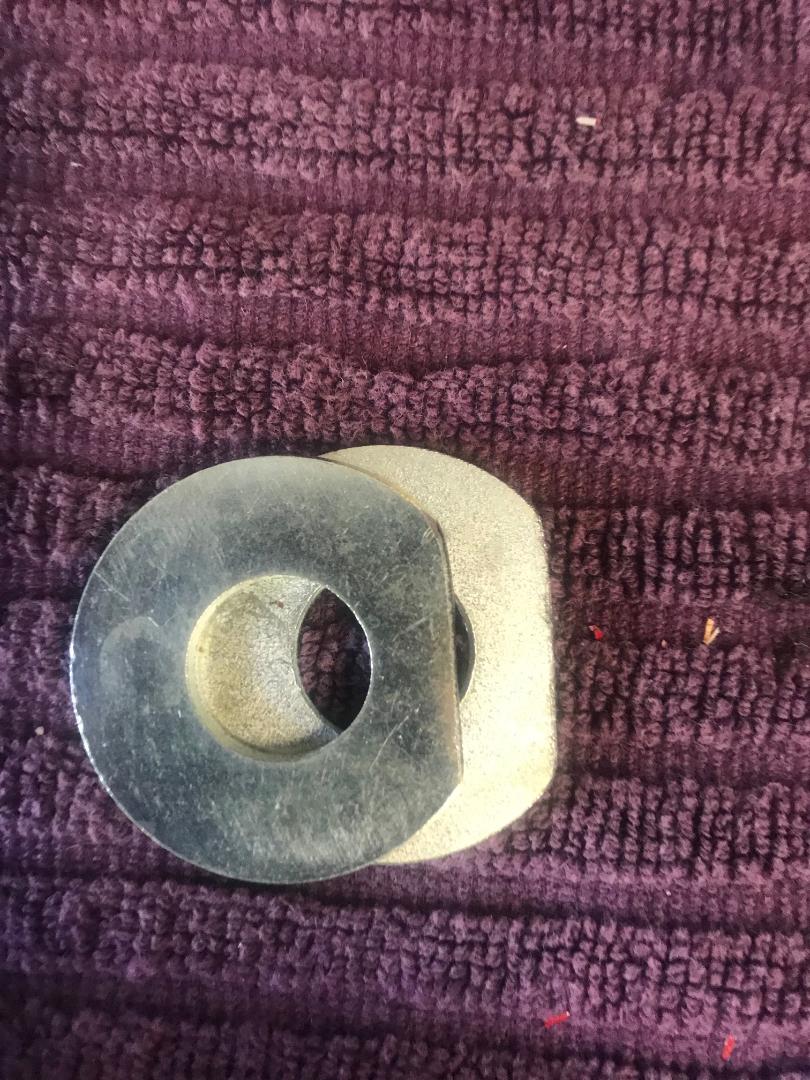

    You have to put some washers between the caliper and knuckle to center it on the rotor.

    Rocket Man, FrankU and 1BADI5 like this.
