33" tires?

Discussion in 'Lifted Supension - Z71 & 4x4' started by youngt_savage, Nov 27, 2017.

  1. youngt_savage

    youngt_savage TYF Newbie

    Posts:
    4
    Likes Received:
    1
    Joined:
    Nov 27, 2017
    Name:
    Ty

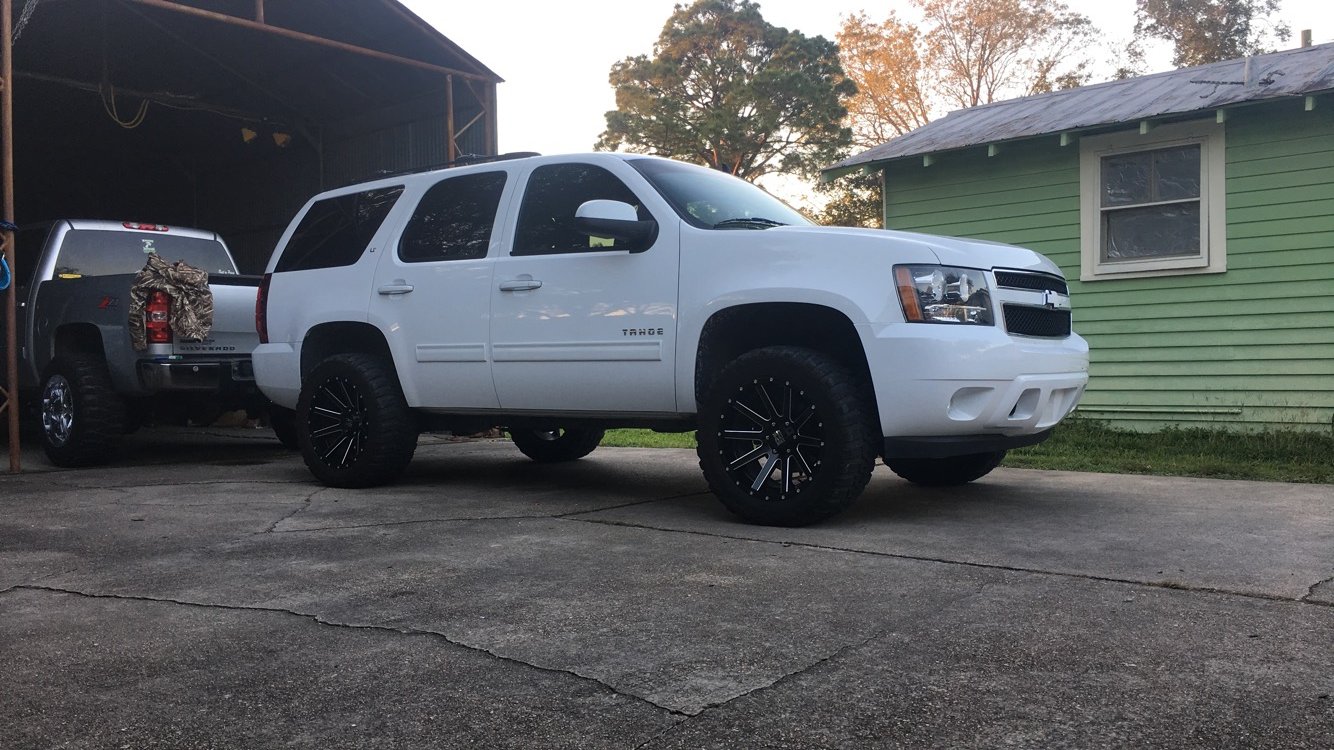

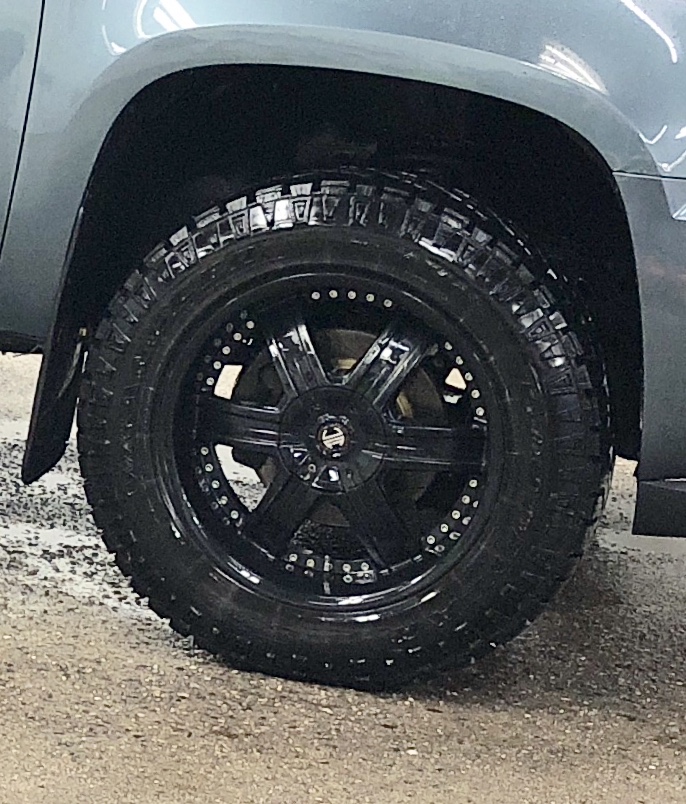

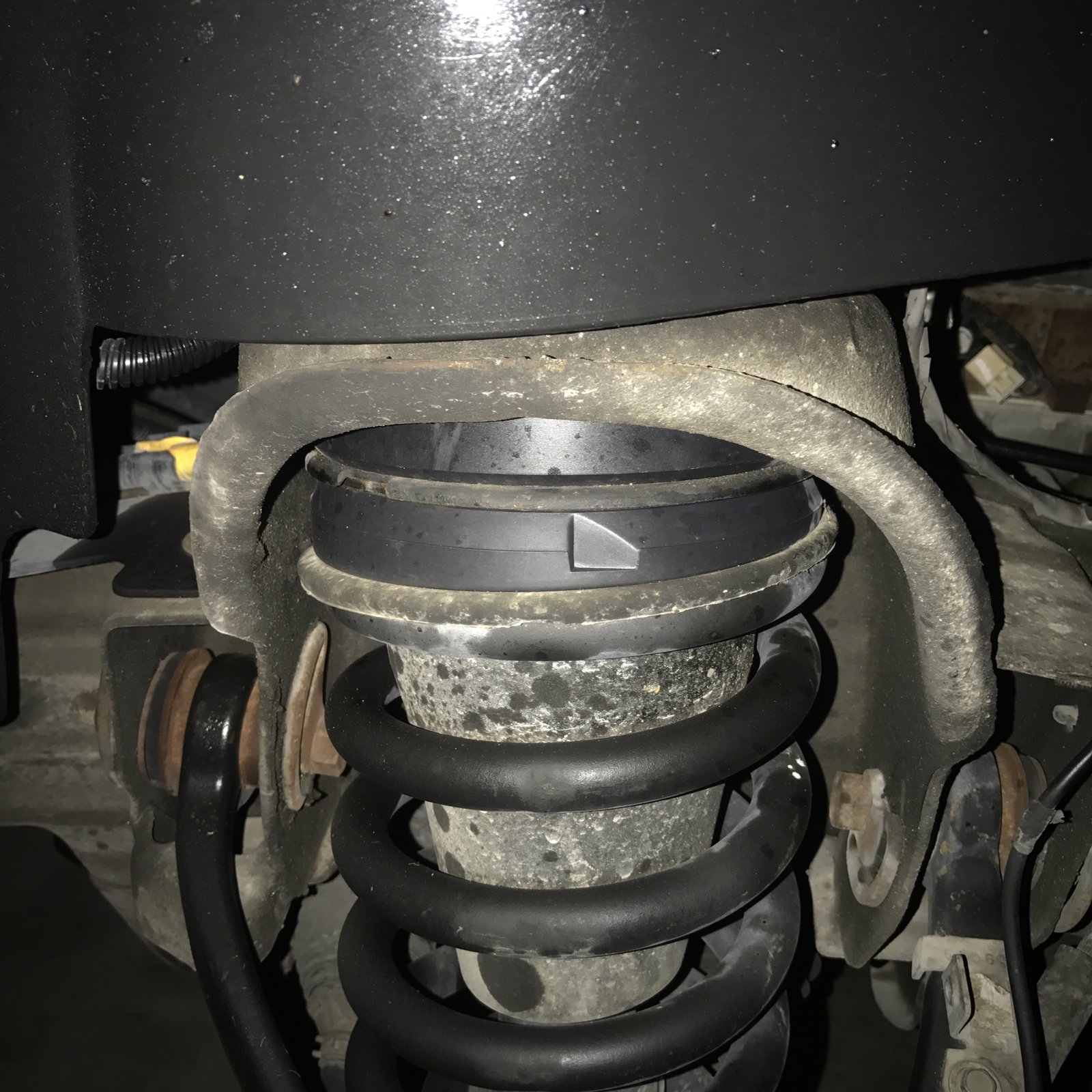

    Hey guys, I'm new to the forums and new to owning a Tahoe. I just purchased a 2013 lt 4x4 Tahoe with 20x10 xd rims and 33x12.5 inch federal m/ts and I'm wondering if a 3.5 inch strut spacer will eliminate the rubbing issue I have. It seems I already have strut spacers on the truck but I'm not sure what size they are and I'm still rubbing on the rear side at full lock. I'll upload a picture for reference. Any help would be greatly appreciated

    IMG_2239.JPG IMG_2254.JPG

    Drok likes this.
  2. Drok

    Drok Senior Member Supporting Member

    Posts:
    885
    Likes Received:
    574
    Joined:
    Jul 16, 2012
    Location:
    Cold place in the north
    Name:
    Derek
    My 33s rubbed also until i got under the truck and ziptied the fender liner back.

    The rear of the liner was easy since theres not much in the way of holding it back.

    The front has a plastic bracket that needs to be trimmed then the ziptie will pull the fender away from the tire

    I dont rub anywhere but one spot which im trying to find lol. I think its my mud guard sticking out a bit. If it is its another easy fix.

    I can get a couple pics if needed. Plus theres a write up here somewhere.

    If you add a 3.5 spacer youll want/need to do some more front end work i cant remember what exactly

    yesac likes this.
  3. youngt_savage

    youngt_savage TYF Newbie

    Posts:
    4
    Likes Received:
    1
    Joined:
    Nov 27, 2017
    Name:
    Ty
    Yeah I've read a couple other articles talking about needing more front end parts but no ones said exactly what so I'm kinda at a standstill with that lol. So until I figure out what other parts I'll need I'm gonna have to pray my front end doesn't explode considering I already ordered the 3.5 spacer

  4. Drok

    Drok Senior Member Supporting Member

    Posts:
    885
    Likes Received:
    574
    Joined:
    Jul 16, 2012
    Location:
    Cold place in the north
    Name:
    Derek
    http://www.roughcountry.com/gm-suspension-lift-kit-219c.html

    Heres the rc 3.5 kit(now that i had some time to look), id guess youd need those front end parts since its in their kit.

    If its just rubbing on the plastic and not the control arm youd be better off doing the frnder well mod. But its really up to you im just suggesting the easy and cheaper way lol

  5. 01Konvict

    01Konvict Boats n Hoes

    Posts:
    2,636
    Likes Received:
    577
    Joined:
    Jan 16, 2011
    Location:
    Raleigh/SML
    Name:
    Wade
    I wouldn't run a 3.5 level without a diff drop. It's already at bad angles with 2.5 and no lift UCAs. You need to do a small norcal mod and trim the bumper brace bracket behind the front side of liner. Cut the corner and use a L bracket on the brace to pull the liner forward. Refer to pro comp instructions on bracket and google small or large norcal mod. Also trim front valance to point where it hides the bumper tabs.
    Look at page 18
    https://www.procompusa.com/aux_incl/pdf.ashx?pdf=51947B_K1141B_INST.pdf&line=EXP

    Drok likes this.
  6. youngt_savage

    youngt_savage TYF Newbie

    Posts:
    4
    Likes Received:
    1
    Joined:
    Nov 27, 2017
    Name:
    Ty
    Appreciate all the information, do you know of a company that sells just the drop bracket? I can't seem to find one online, I found a fabtech one that comes up in the google search but it doesn't say it's for a Tahoe on the actual site. I'll put a link for reference and if y'all could tell me a brand that makes one or if this is the right fabtech one it'd be greatly appreciated

    https://autoplicity.com/2026032-fab...MIlZDi27Lf1wIVUbbACh1oTgdXEAQYBSABEgJ6vvD_BwE

  7. 01Konvict

    01Konvict Boats n Hoes

    Posts:
    2,636
    Likes Received:
    577
    Joined:
    Jan 16, 2011
    Location:
    Raleigh/SML
    Name:
    Wade
    Only ones I know of are rough country and can be ordered directly from them. Otherwise it’s some generic eBay brand. I would highly recommend getting the rough country 3.5” kit for $500. It will really help everything you’ve got. Those fabtech ones are made for a 6” kit so they won’t help you very much. Fabtech does make a 4” kit but for the money I would go rough country.

  8. youngt_savage

    youngt_savage TYF Newbie

    Posts:
    4
    Likes Received:
    1
    Joined:
    Nov 27, 2017
    Name:
    Ty
    I went ahead and got a generic one for now just to get rid of the rubbing issue and not completely fuck my front end and I'm onna buy a either a 4 inch bds lift or a 6.5" superlift for tax returns im thinking the eBay will last till then. I should still have to do the NorCal mod right?

  9. 01Konvict

    01Konvict Boats n Hoes

    Posts:
    2,636
    Likes Received:
    577
    Joined:
    Jan 16, 2011
    Location:
    Raleigh/SML
    Name:
    Wade
    You might be ok on back side. Problem is 2.5” puts upper arms almost on droop. 3.5” definitely does without lift uppers. I would look into the 6-8” bulletproof. Doesn’t increase track width and really good parts.

    youngt_savage likes this.
  10. 09 L9H

    09 L9H TYF Newbie

    Posts:
    24
    Likes Received:
    13
    Joined:
    Jun 11, 2018
    Location:
    Upstate SC
    Name:
    Uhhhhhhhhh
    Just bought an 09 LTZ 4WD and am looking to get 275/60R20 KO2s in a few months. Keeping the stock 5-spoke rims. Will I need to lift the truck at all so it doesn't rub?

    Drok likes this.
