Trying to find info re the 2 interior round swivel map lights with push button switch. One is removed by pushing up and rotating and the entire lens, reflector, and bulb drops out in one assembly. With the other type the lens is prised off with a small screwdriver, then the reflector is removed, and then the bulb is pulled out.

Is anyone else aware of this? I'm looking for replacement parts for the second type and cant find anyone who knows what I am talking about.

Thanks


OR VietVet

Multnomah Falls
Supporting Member
Military
Joined
Oct 8, 2014
Posts
19,067
Reaction score
31,164
Location
Willamette Valley
Welcome to the forum from Oregon.

Where do you see and get this two type design info? Sounds like the first design is easy to do, have you tried it at all to see if that is the design you have?

Type in the last 8 digits of your VIN number and hopefully @915_Tahoe can help.

OP
OP
1

1995 2-door

TYF Newbie
Joined
Jan 1, 2020
Posts
4
Reaction score
2
Welcome to the forum from Oregon.

Where do you see and get this two type design info? Sounds like the first design is easy to do, have you tried it at all to see if that is the design you have?

Type in the last 8 digits of your VIN number and hopefully @915_Tahoe can help.

I ordered from ebay and got the wrong type. look on YouTube and you will see 2 types. I need the type where the lens, reflector and bulb are separate. #SG118775


OR VietVet

Multnomah Falls
Supporting Member
Military
Joined
Oct 8, 2014
Posts
19,067
Reaction score
31,164
Location
Willamette Valley
What part you looking for

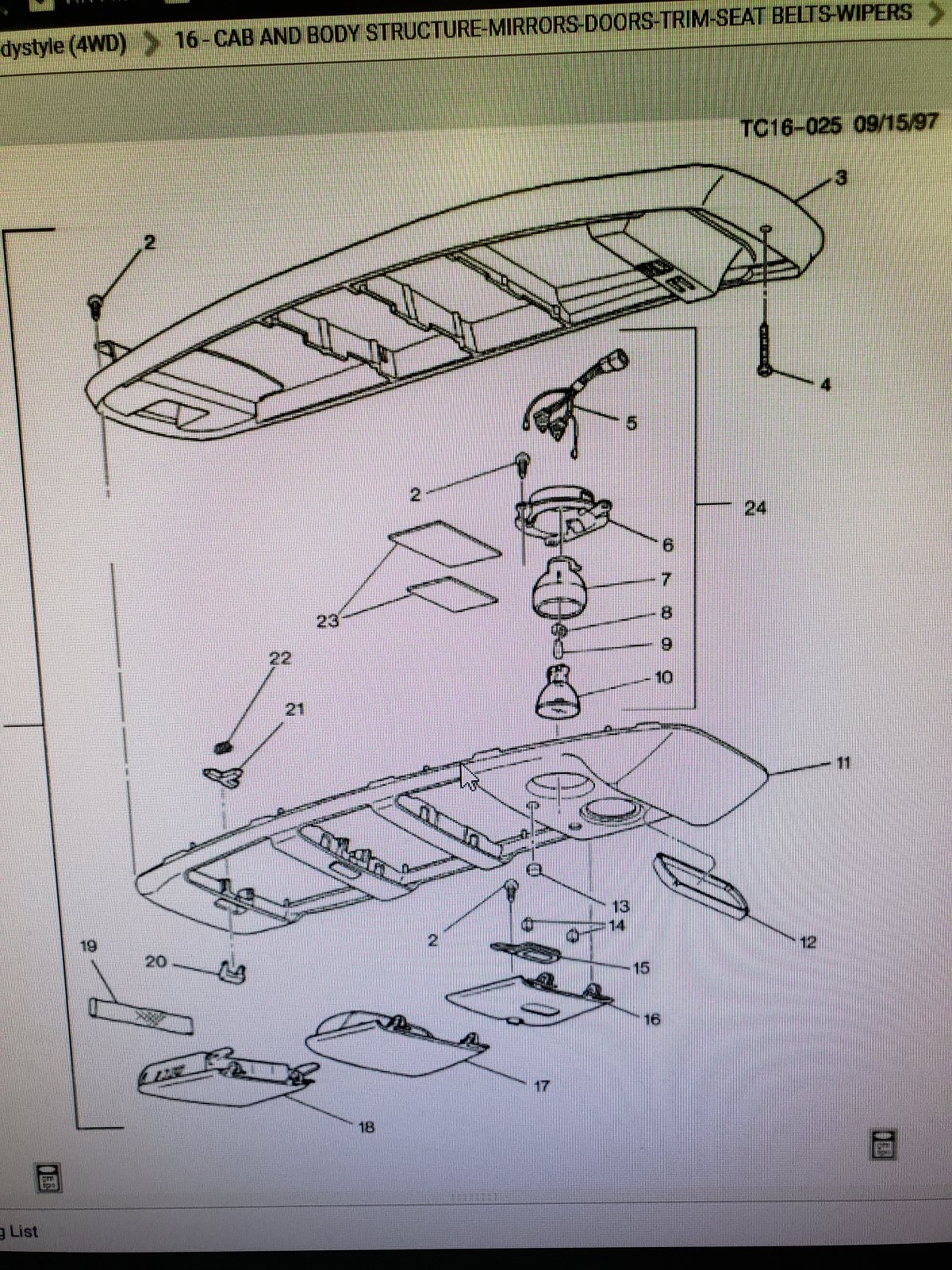

View attachment 272626

In case he does not get back to you soon, I believe he was asking about the numbers 7-8-9-10 in the first pic. He may need #5 too if has to take completely apart.

It sounded like he was talking about the round lights that come on that you can push and tilt in a few directions.

OP
OP
1

1995 2-door

TYF Newbie
Joined
Jan 1, 2020
Posts
4
Reaction score
2
What part you looking for

View attachment 272626
Your #10 is the entire 1 piece style; it is the lens and the reflector and it is removed by pushing in or up on the lens and rotating it and the entire assembly will drop out. different from what I need. I need the type where you prize off the lens only and after that, remove the reflector, and after that pull out the actual bulb itself. 3 steps to remove 3 separate pieces. look at the attached YouTube link and they show exactly what I am trying to describe. Tahoe LED conversion - YouTube


915_Tahoe

Your GM Parts Specialist
Joined
Jul 1, 2018
Posts
1,333
Reaction score
1,851
Location
HELL PASO, TX
Your #10 is the entire 1 piece style; it is the lens and the reflector and it is removed by pushing in or up on the lens and rotating it and the entire assembly will drop out. different from what I need. I need the type where you prize off the lens only and after that, remove the reflector, and after that pull out the actual bulb itself. 3 steps to remove 3 separate pieces. look at the attached YouTube link and they show exactly what I am trying to describe. Tahoe LED conversion - YouTube
This is with your vin#, if your trying to remove the bulb you may have to drop the whole overhead and get it from the inside.
