What are these - underside of engine (5.3L)?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

2006Tahoe2WD

Full Access Member
Joined
May 24, 2015
Posts
545
Reaction score
366
Location
Silicon Valley

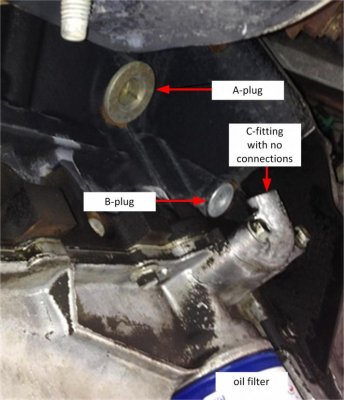

On the drivers side, back, lower part of the engine there are these items I'm not sure of:

A - some sort of plug (water jacket drain or ? oil galley drain)
B - same question as A

C - small manifold/fitting that has nothing connected to it. If I feel on top there is a hole - can't tell if it is threaded or not. From the location I would guess it is associated with the oil system. Maybe a point to hook in an oil cooler but that option was not attached or someone removed it.

Thanks in advance for your expert knowledge. Vehicle = 2006 Tahoe, 5.3L, 2WD


Attachments

  • ItemsUnderEngine.jpg
    82.3 KB · Views: 78
OP
OP
2

2006Tahoe2WD

Full Access Member
Joined
May 24, 2015
Posts
545
Reaction score
366
Location
Silicon Valley
OK, OK - you are going to make me look it up. :emotions133:

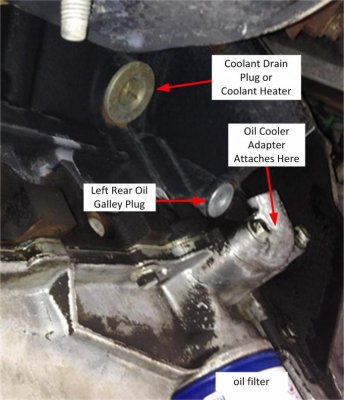

After pouring over the service manual I finally tracked down the figures showing these items. Still I need to confirm other coolant drain plugs on the block. I think there is another one on the left and at least one on the right side of the engine. Apparently I don't have the factory oil cooler option - the "C" item is a block off. Attached is an updated picture. What is the size of the Allan tool needed to take out the coolant plug? I think I saw it is 17mm. That's a nice handy size. :wtf:


Attachments

  • PictureofEngine-3.jpg
    83.5 KB · Views: 44
