Underhood Light

Discussion in 'Audio & Electronics' started by Shadowz Edge, Jul 26, 2018.

  1. Shadowz Edge

    Shadowz Edge Member Supporting Member

    Posts:
    38
    Likes Received:
    16
    Joined:
    Jul 19, 2018
    Name:
    Daniel
    Hey folks.

    Just back back from the salvage yard picking up parts for my 99 OBS 4dr Tahoe.

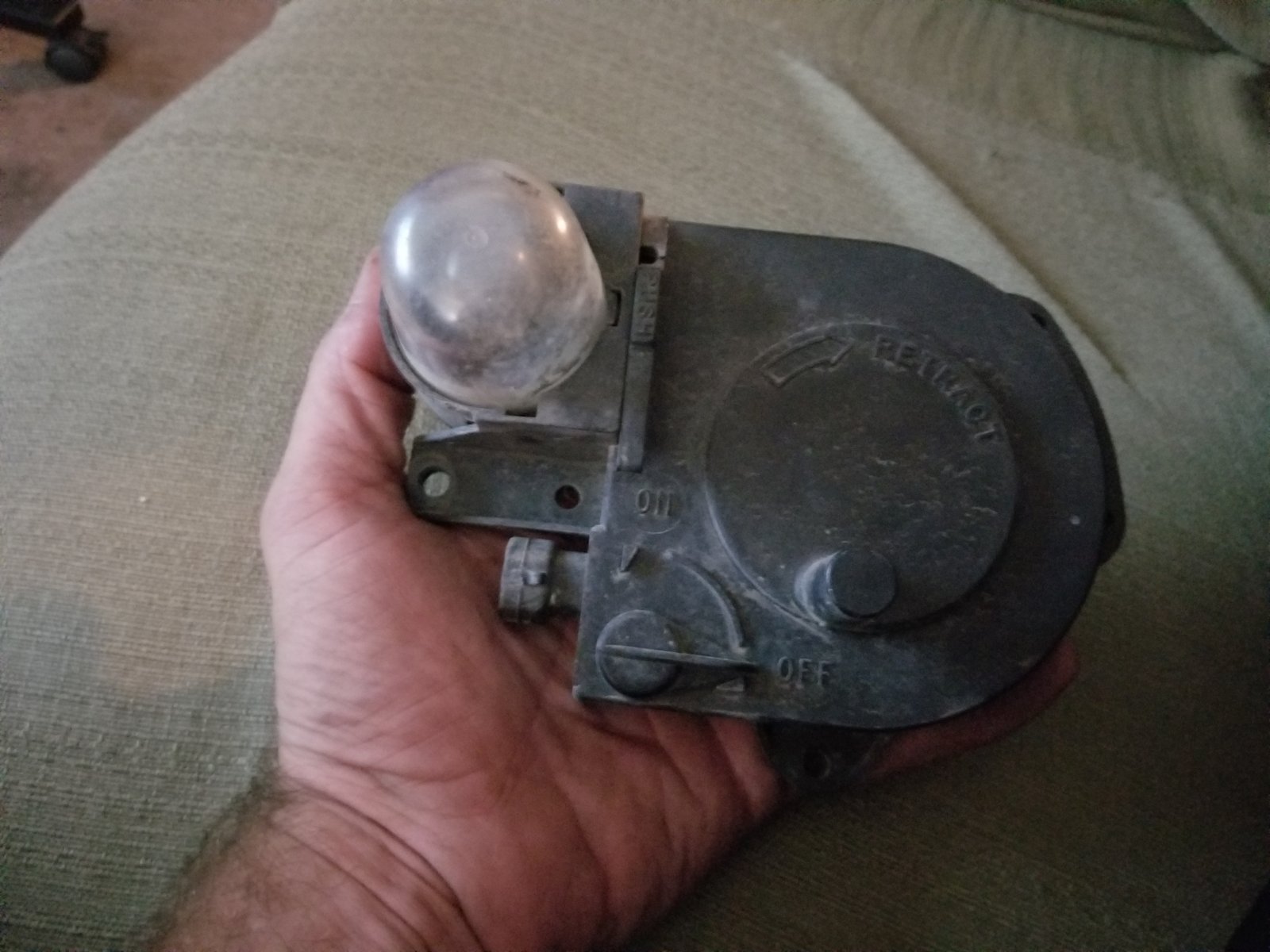

    I pulled a retractable light from a Burb that had it mounted on the firewall but totally spaced to see how it was wired electrically.

    Can sometim with an OBS Burb that has the firewalk mounted retable light please tell me if the wiring harness that feeds it is either integrated into the main wiring or if it has a pigtail that I can just go back and pick up.


    fastpat likes this.
  2. fastpat

    fastpat Senior Member Supporting Member

    Posts:
    123
    Likes Received:
    55
    Joined:
    Jun 2, 2018
    Location:
    Upcountry South Carolina
    Name:
    Pat
    My '95 has one of those underhood extension lights. It's not mounted on the firewall, though. I'll post a photo of it, it does work and I will be converting it to LED.

    Last edited: Aug 5, 2018
    Shadowz Edge likes this.
  3. Doubeleive

    Doubeleive Elite Member Supporting Member

    Posts:
    2,719
    Likes Received:
    1,599
    Joined:
    Nov 7, 2017
    Location:
    Stockton, Ca.
    Name:
    Wes

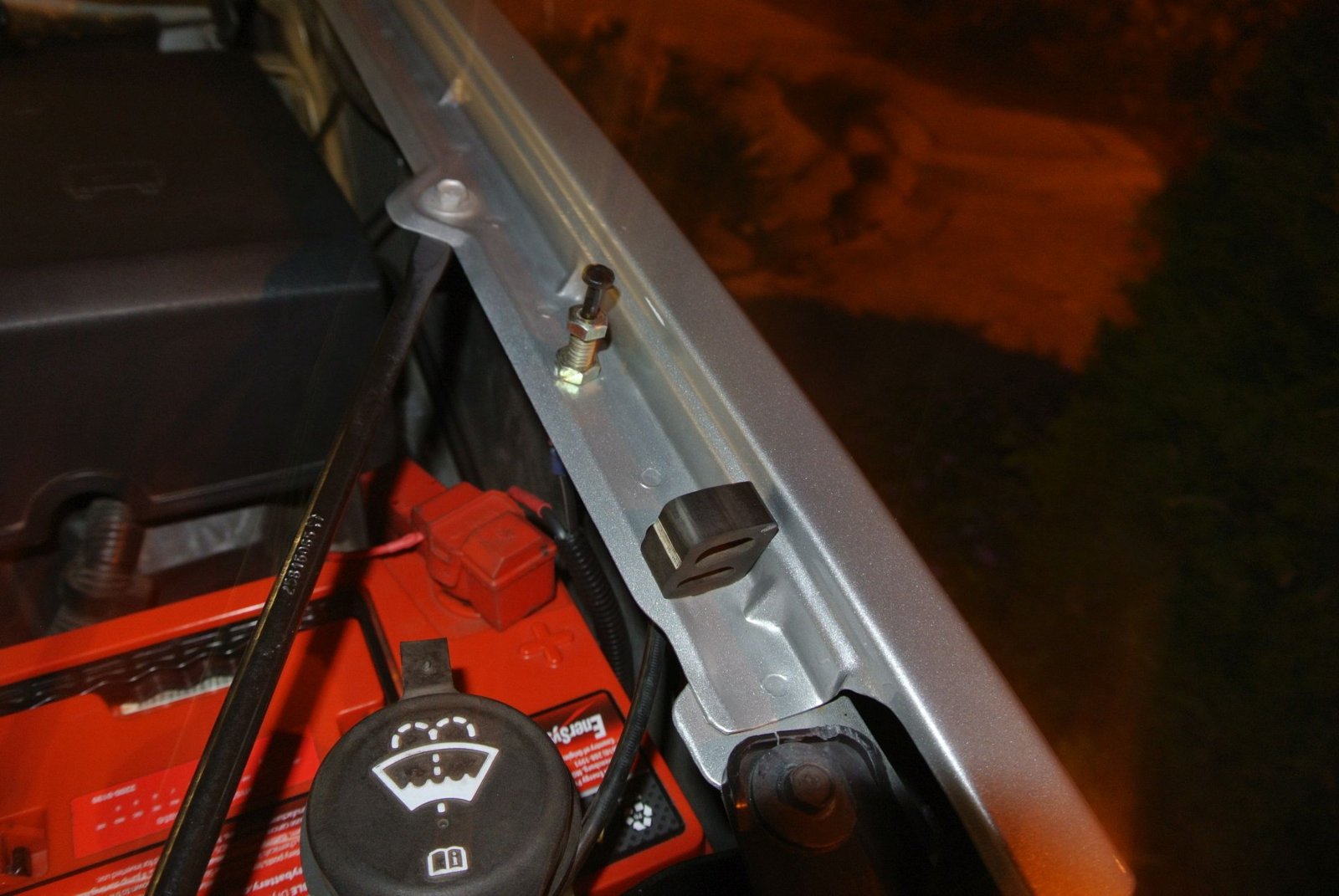

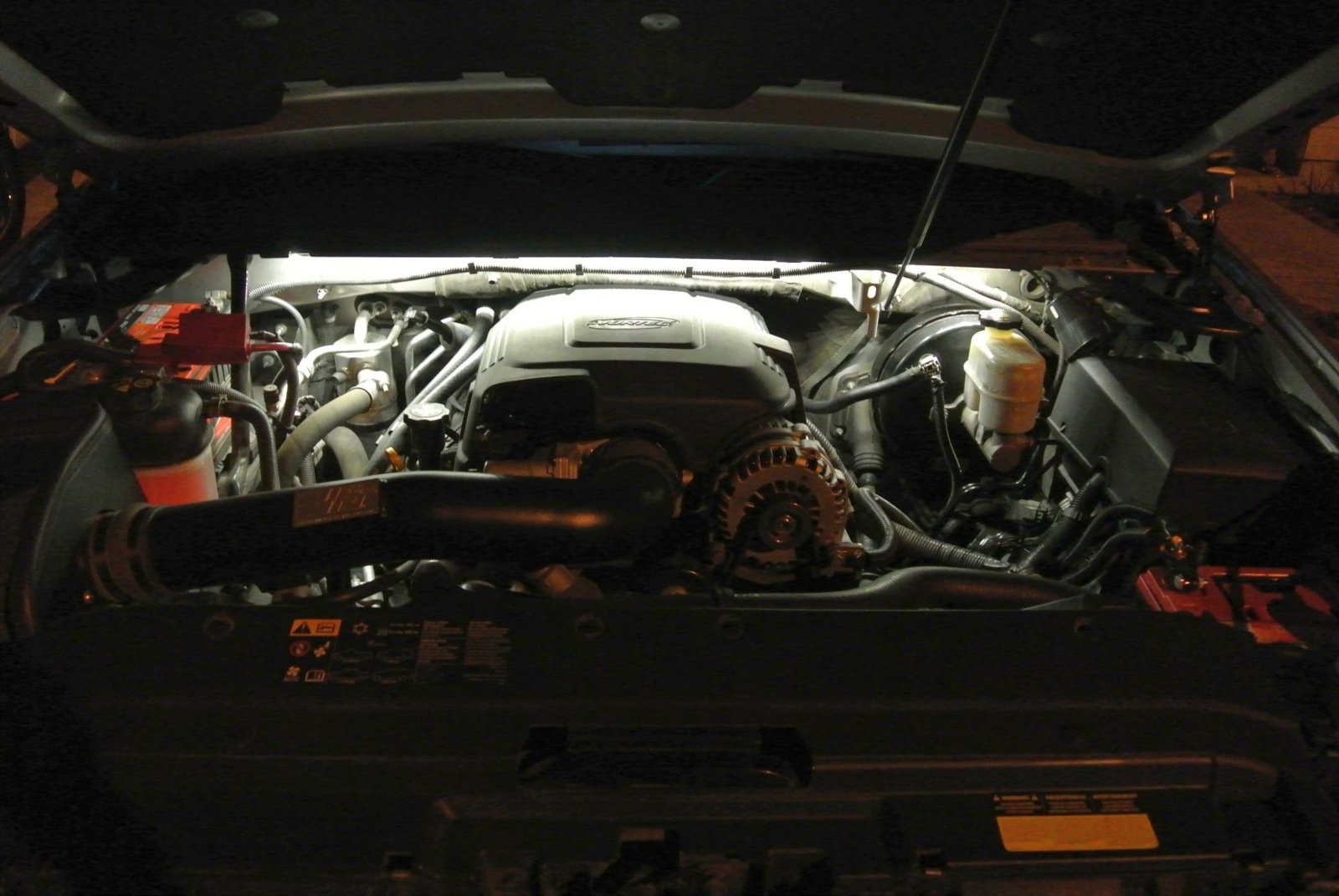

    there should be 2 pins on the connector, one is a positive and one is a negative, it's pretty easy to do something like this too, just used a hood pin as the ground and positive wire with a fuse to battery

    LIGHT.jpg LIGHT1.jpg

    Shadowz Edge likes this.
