Tonyrodz's Tahoe Build Thread

[OR VietVet]

Yes, I think it could depending on how intermittent the problem can be. Try holding the pedal down just about half of a normal pedal push for normal brake action. If the vacuum leak is happening at that time, make sure the engine is running, you may hear a steady constant vacuum air noise while your foot is holding that pedal down about half pressure.

If you hear that, I guarantee you, that booster is bad/failing. If is bad/failing, get it replaced asap. As I have said many times on this forum, brakes are the single most important system on that rig, any rig. You can go fast and handle like a dream but HAVE to stop when you NEED to stop. PERIOD!

Whenever somebody "builds a better mousetrap'" for brakes, I will buy it and install it. Best brakes ever is a must in my opinion.

Besides, I want to see you one of these days in Warrensburg, Mo. and eat all the BBQ you can hold. Sample pic from another thread but I can do this and then some!


Later, going to my American Legion post to help fix one of our lawn tractors. A mechanic's work is never done it seems!



[Tonyrodz]

Yes, I think it could depending on how intermittent the problem can be. Try holding the pedal down just about half of a normal pedal push for normal brake action. If the vacuum leak is happening at that time, make sure the engine is running, you may hear a steady constant vacuum air noise while your foot is holding that pedal down about half pressure.

If you hear that, I guarantee you, that booster is bad/failing. If is bad/failing, get it replaced asap. As I have said many times on this forum, brakes are the single most important system on that rig, any rig. You can go fast and handle like a dream but HAVE to stop when you NEED to stop. PERIOD!

Whenever somebody "builds a better mousetrap'" for brakes, I will buy it and install it. Best brakes ever is a must in my opinion.

Besides, I want to see you one of these days in Warrensburg, Mo. and eat all the BBQ you can hold. Sample pic from another thread but I can do this and then some!


Later, going to my American Legion post to help fix one of our lawn tractors. A mechanic's work is never done it seems!

View attachment 351956

I just tried it in park while running. I pushed the pedal 1/2 way, then 3/4's, I don't hear anything. No hissing at all.



[97YukonNZ]

My brakes were doing the same when I bought the Yukon.Making that release of air noise n travelling down halfway. So much so that Tom failed it on a warrant of fitness claiming it was a failing brake master. So I got a new 1 from Rock,bled it up and is the same. Pulls up good when the discs have warmed up. Might bleed again soon to see if any difference.



[Tonyrodz]

Took the truck for a drive today and I heard a very low grinding noise. I thought it was the ds cv axle finally giving up the ghost. The boot has been torn for a few years. Got out and looked underneath, nothing jumped out at me, so I said F it. Drove it about 40 miles round trip. Seemed to be getting louder as I was getting closer to home. Got out and looked at the wheel and noticed the outer edge of the rotor was getting a little scored, so I thought maybe something with the brakes on that side. Get home and take everything apart.

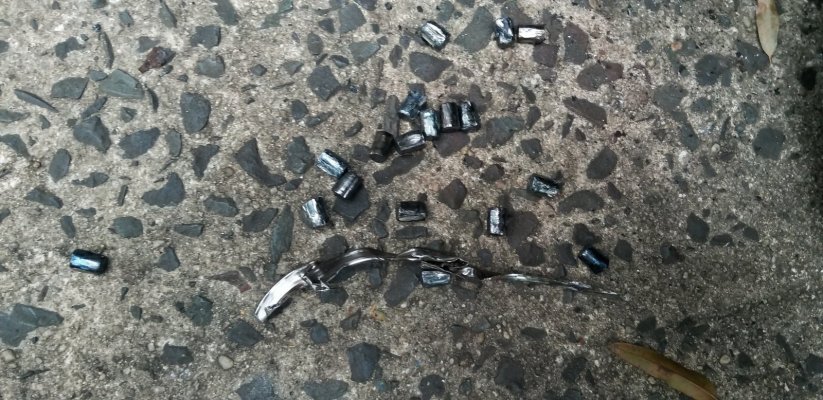

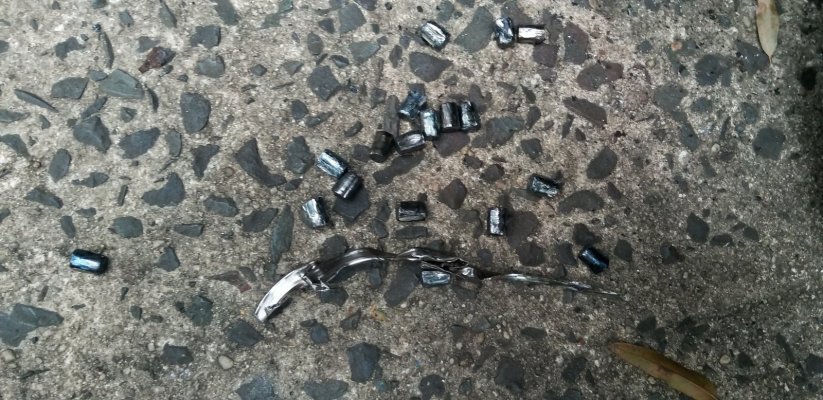

I started moving the axle around and it started raining these bearings.

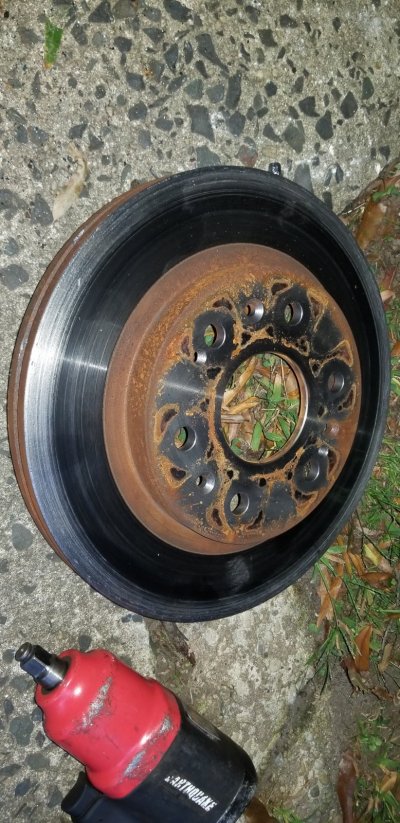

The rotor doesn't look too bad. I'm thinking I might be able to slap the brakes back together without having to clean up the rotor. Suggestions on that?
There's just a little bit of play.

This is when I put the wheel back on. Think there's 3 lugs holding it with them tight.



[OR VietVet]

Little bit of JB Weld and will be good as new.

Man, that is some loose s-H*I-t right there! Lucky it did not come flying off on ya! The only thing holding it was the brake pads and caliper.

Really is as bad as I have EVER SEEN!



[Tonyrodz]

Little bit of JB Weld and will be good as new.

Man, that is some loose s-H*I-t right there! Lucky it did not come flying off on ya! The only thing holding it was the brake pads and caliper.

Really is as bad as I have EVER SEEN!

It wasn't that loose when I jacked it up to take the wheel off. That happened once the wheel was off and I started to turn the hub, that's when all the bearings started to fall out. Went to the parts store and bought a new cv axle--hoping it was only that, but in the back of my mind I thought that would've been way too easy--YUP--Came home and ordered a Timkin hub from Amazon. Coming Thursday, so the h-o-e will be down til next Saturday.



[Imlow78]

Yes, I think it could depending on how intermittent the problem can be. Try holding the pedal down just about half of a normal pedal push for normal brake action. If the vacuum leak is happening at that time, make sure the engine is running, you may hear a steady constant vacuum air noise while your foot is holding that pedal down about half pressure.

If you hear that, I guarantee you, that booster is bad/failing. If is bad/failing, get it replaced asap. As I have said many times on this forum, brakes are the single most important system on that rig, any rig. You can go fast and handle like a dream but HAVE to stop when you NEED to stop. PERIOD!

Whenever somebody "builds a better mousetrap'" for brakes, I will buy it and install it. Best brakes ever is a must in my opinion.

Besides, I want to see you one of these days in Warrensburg, Mo. and eat all the BBQ you can hold. Sample pic from another thread but I can do this and then some!


Later, going to my American Legion post to help fix one of our lawn tractors. A mechanic's work is never done it seems!

View attachment 351956

I don’t know who cooked that garbage but it don’t look fit to eat.

LoL

Also if you need a hub I got one that’s still good from my front end rebuild.

Shannon



[Rocket Man]

It wasn't that loose when I jacked it up to take the wheel off. That happened once the wheel was off and I started to turn the hub, that's when all the bearings started to fall out. Went to the parts store and bought a new cv axle--hoping it was only that, but in the back of my mind I thought that would've been way too easy--YUP--Came home and ordered a Timkin hub from Amazon. Coming Thursday, so the **€ will be down til next Saturday. View attachment 352352

Good thing for that big ass axle nut holding the thing together. No your brake pads and caliper weren’t the only thing holding your wheel on….



[97YukonNZ]

I wonder if that had anything to do with your abs issue?
Glad you werent macking it down the freeway at 80!



[Scottydoggs]

damn. never seen one that bad.



[Tonyrodz]

I don’t know who cooked that garbage but it don’t look fit to eat.

LoL

Also if you need a hub I got one that’s still good from my front end rebuild.

Shannon

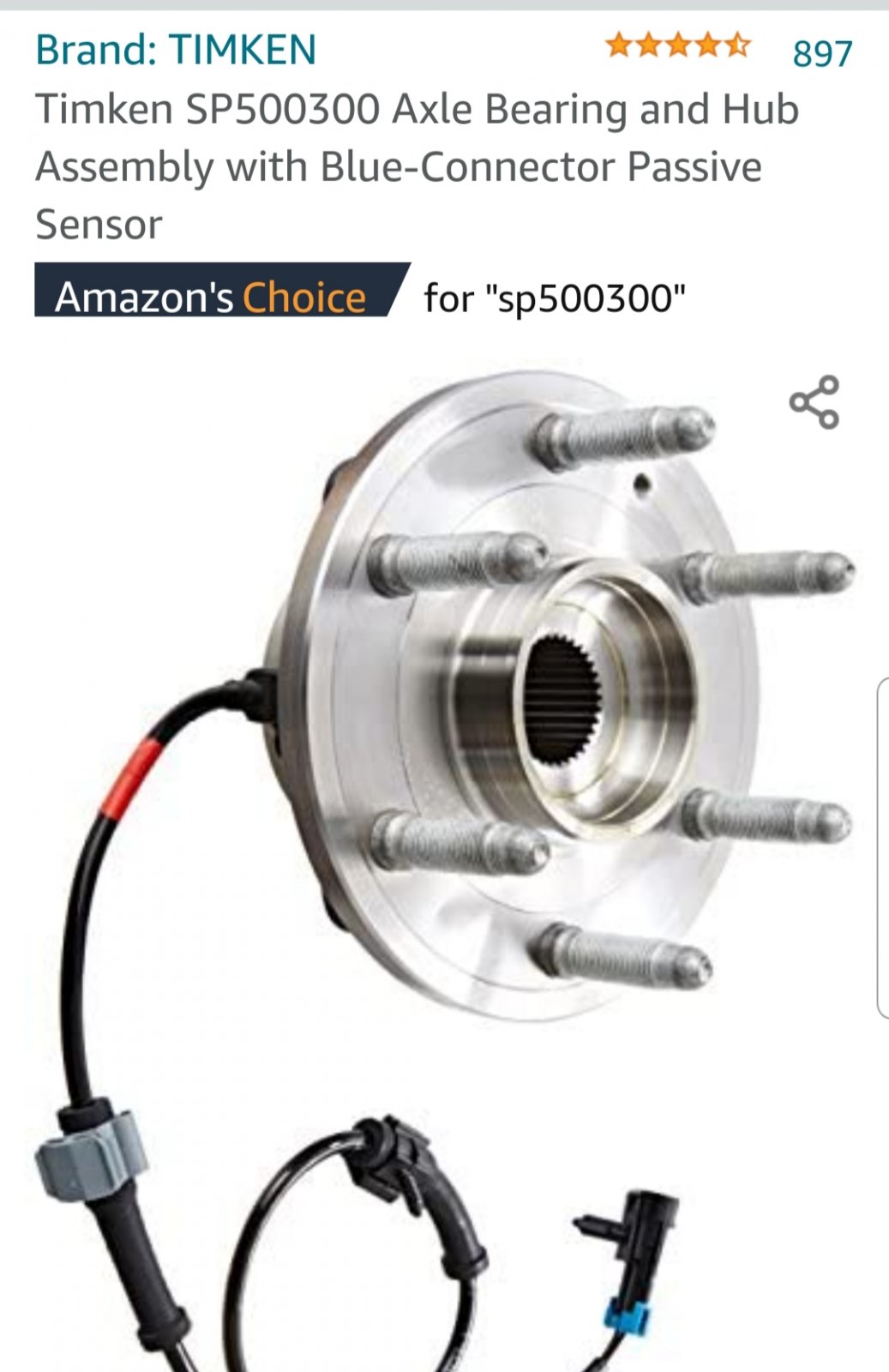

Much appreciated on your kind offer Shannon! I already ordered a Timken from Amazon at a pretty decent price. Thx again--that's what TYF is all about!

Good thing for that big ass axle nut holding the thing together. No your brake pads and caliper weren’t the only thing holding your wheel on….

No kidding! I guess God was my co-pilot today! The whole time I was thinking that wheel was gonna go flying off. It was super loud metal on metal noise going around curves.

I wonder if that had anything to do with your abs issue?
Glad you werent macking it down the freeway at 80!

I was thinking the same exact thing Tony! Great Tonys' (minds) think alike lol. Now hopefully once everything is back together that abs light will go away. I did get it up to about 60 mph too.

damn. never seen one that bad.

I can't tell you how many times in my life I've heard--"I've never heard/seen anything like that before in my life"! I must be special lol. Soooooo happy that wheel didn't go flying off.



[Imlow78]

Much appreciated on your kind offer Shannon! I already ordered a Timken from Amazon at a pretty decent price. Thx again--that's what TYF is all about!

No kidding! I guess God was my co-pilot today! The whole time I was thinking that wheel was gonna go flying off. It was super loud metal on metal noise going around curves.

I was thinking the same exact thing Tony! Great Tonys' (minds) think alike lol. Now hopefully once everything is back together that abs light will go away. I did get it up to about 60 mph too.

I can't tell you how many times in my life I've heard--"I've never heard/seen anything like that before in my life"! I must be special lol. Soooooo happy that wheel didn't go flying off.

Tony,

Not a problem. I’m think about listing all
My z71 suspension take off stuff when I lowered mine. But I have cv’s and all kind of stuff. Only reason I did what I did was I also had a hub going out. I thought it was in the driver side but it was on the passenger. LoL

It’s amazing how harmonics will play tricks like that.

Good luck on the repairs my friend!

Shannon



[Sparksalot]

Took the truck for a drive today and I heard a very low grinding noise. I thought it was the ds cv axle finally giving up the ghost. The boot has been torn for a few years. Got out and looked underneath, nothing jumped out at me, so I said F it. Drove it about 40 miles round trip. Seemed to be getting louder as I was getting closer to home. Got out and looked at the wheel and noticed the outer edge of the rotor was getting a little scored, so I thought maybe something with the brakes on that side. Get home and take everything apart. View attachment 352350
I started moving the axle around and it started raining these bearings.View attachment 352351
The rotor doesn't look too bad. I'm thinking I might be able to slap the brakes back together without having to clean up the rotor. Suggestions on that?
There's just a little bit of play.

This is when I put the wheel back on. Think there's 3 lugs holding it with them tight.

Hory Sheet!



[Tonyrodz]

Tony,

Not a problem. I’m think about listing all
My z71 suspension take off stuff when I lowered mine. But I have cv’s and all kind of stuff. Only reason I did what I did was I also had a hub going out. I thought it was in the driver side but it was on the passenger. LoL

It’s amazing how harmonics will play tricks like that.

Good luck on the repairs my friend!

Shannon

Thx buddy. Hub doesn't get here til Thursday, so she's laid up til then.



[OR VietVet]

Tony,

Not a problem. I’m think about listing all
My z71 suspension take off stuff when I lowered mine. But I have cv’s and all kind of stuff. Only reason I did what I did was I also had a hub going out. I thought it was in the driver side but it was on the passenger. LoL

It’s amazing how harmonics will play tricks like that.

Good luck on the repairs my friend!

Shannon

Turns out that a member at the American Legion I go to has a wife with a 2005 LS Tahoe that bought 95% of all the still good parts on my rig that I swapped out when I did my rebuild that is in the Build Thread here. I was very surprised that she had a hydroboost instead of a vacuum boost on her LS model.



[pwtr02ss]

Wow Tony, you're lucky it made it home!

I bet this fixes your ABS issue. Check the other side if you haven't replaced it recently. They tend to lay down around the same time



[Tonyrodz]

Wow Tony, you're lucky it made it home!

I bet this fixes your ABS issue. Check the other side if you haven't replaced it recently. They tend to lay down around the same time

I'd like to, but now is not a good time($$). I replaced one maybe 6-7 years ago. Not alot of mileage since then. Wish I could remember which side I did.



[Tonyrodz]

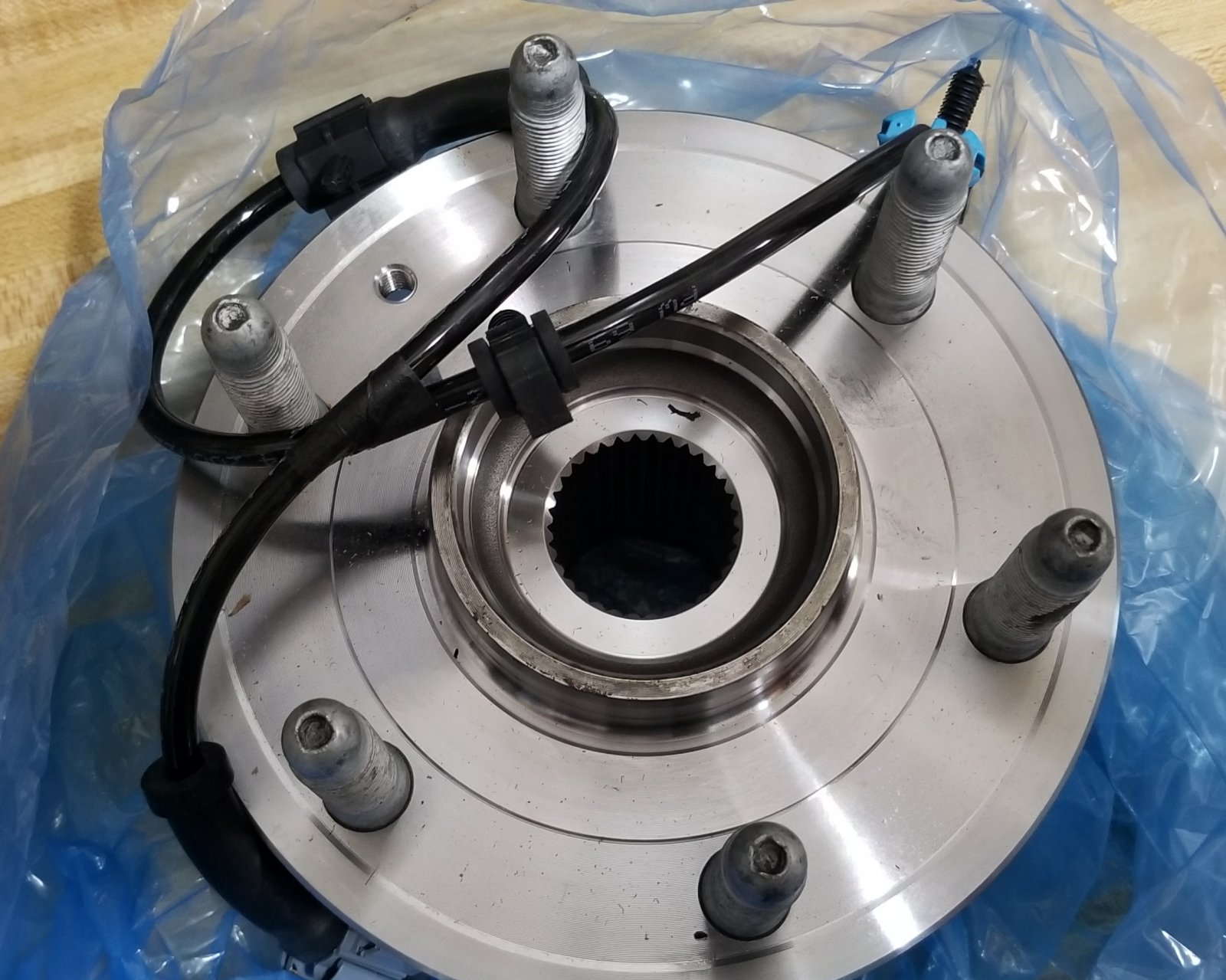

Got the hub a day early.

Hopefully the weather will hold on Saturday--of course it's supposed to rain Saturday AND Sunday.
Gonna try this--



[OR VietVet]

I have never seen that way of doing it but makes sense for sure. A must to know in the rust belt. Good luck @Tonyrodz. Do some pics along the way or even a video.



[Sparksalot]

Got the hub a day early.View attachment 352670 Hopefully the weather will hold on Saturday--of course it's supposed to rain Saturday AND Sunday.
Gonna try this--

Ugh rust. I’ve done 4 now. They all fell out after the three bolts were removed.
