TailLight Problem :(

[SmileB44Death]

Here's the thing my break lights work my turn signals work but my running tailights don't work and the right license plates light doesn't work but the left one does. Does anyone know what's going on? And does anyone have the electrical diagram for the rear end?



[05Single]

What steps have you taken to trouble shoot it ?
Check fuse? Replace bulbs? Traced wires?
If one plate bulb works the other should. So at least that one is either a bad bulb or cut wire.



[M1Gunner]

Well here’s the thing. The stop tail and license plate lamps all share a common ground, therefor you can go ahead and cross the ground off bc it’s good. The right plate lamp and running light run on the same power supply BUT the left running lamp is on a seperate circuit.

Have you checked/replaced the bulbs? It wouldn’t be unusual for the running lamp side of those dual filament bulbs to give up the ghost but the brake lamps still work and the license plate bulb may just been out and you didn’t realize that until the rest?

Is your 3rd brake light still operational?

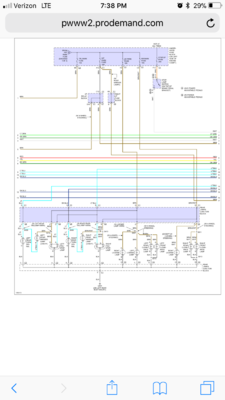

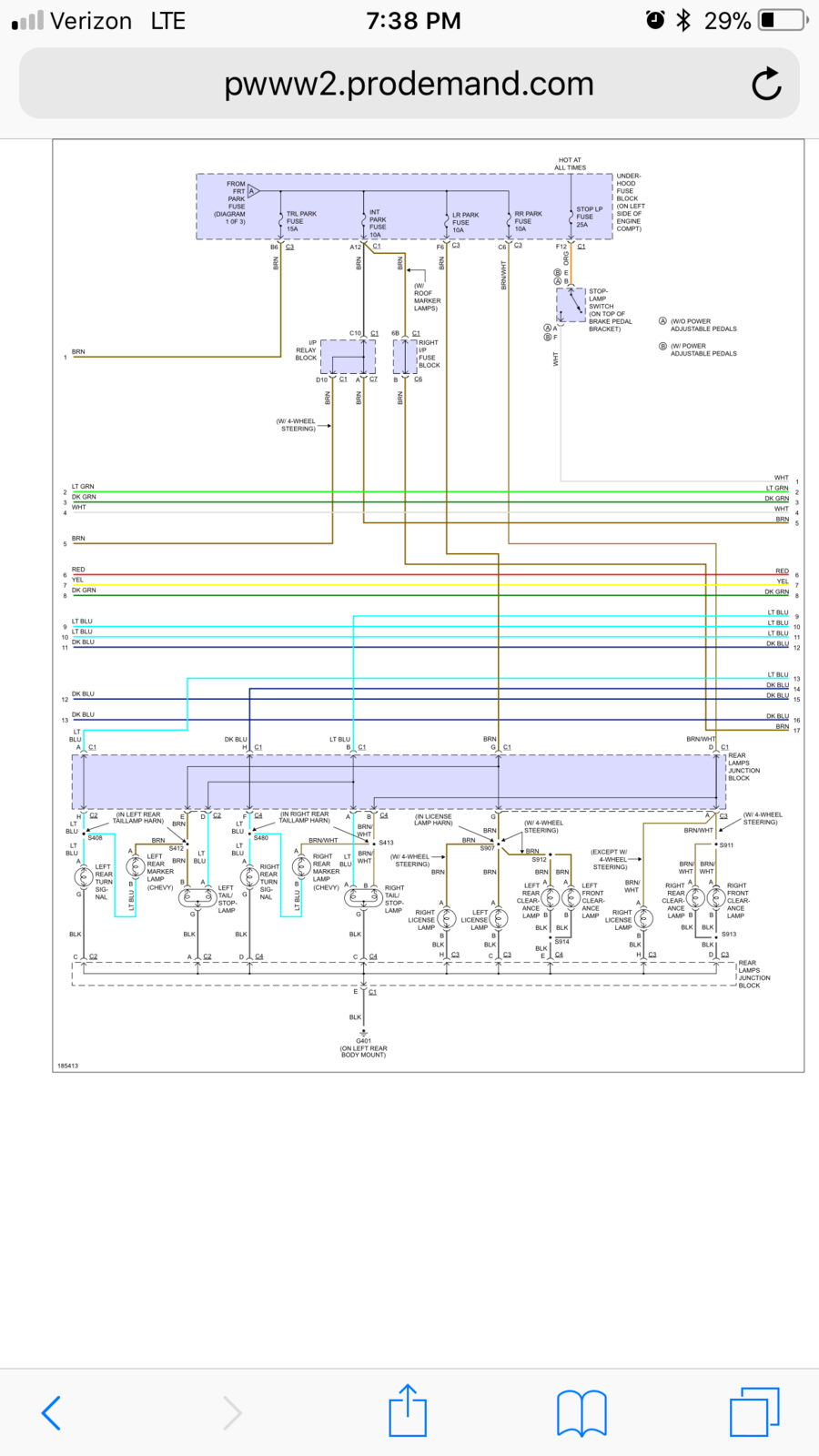

Here’s part of the schematics to show you they’re not on the same circuit.



[M1Gunner]

What steps have you taken to trouble shoot it ?
Check fuse? Replace bulbs? Traced wires?
If one plate bulb works the other should. So at least that one is either a bad bulb or cut wire.

Left and Right license plate lamps are on seperate circuits



[05Single]

Left and Right license plate lamps are on seperate circuits

Wtf really ? Leave it to gm to make things difficult.



[M1Gunner]

Hey just be thankful they aren’t Chrysler... lol



[05Single]

Hey just be thankful they aren’t Chrysler... lol

I have chrysler....well fiat technically



[M1Gunner]

HA, Well this just got awkward...



[HiHoeSilver]

Just to add to the confusion, most GM assembly line robots are made by Fiat.
