Need help with 95 ignition wiring.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Alphamodsquad

TYF Newbie
Joined
Dec 16, 2021
Posts
14
Reaction score
1

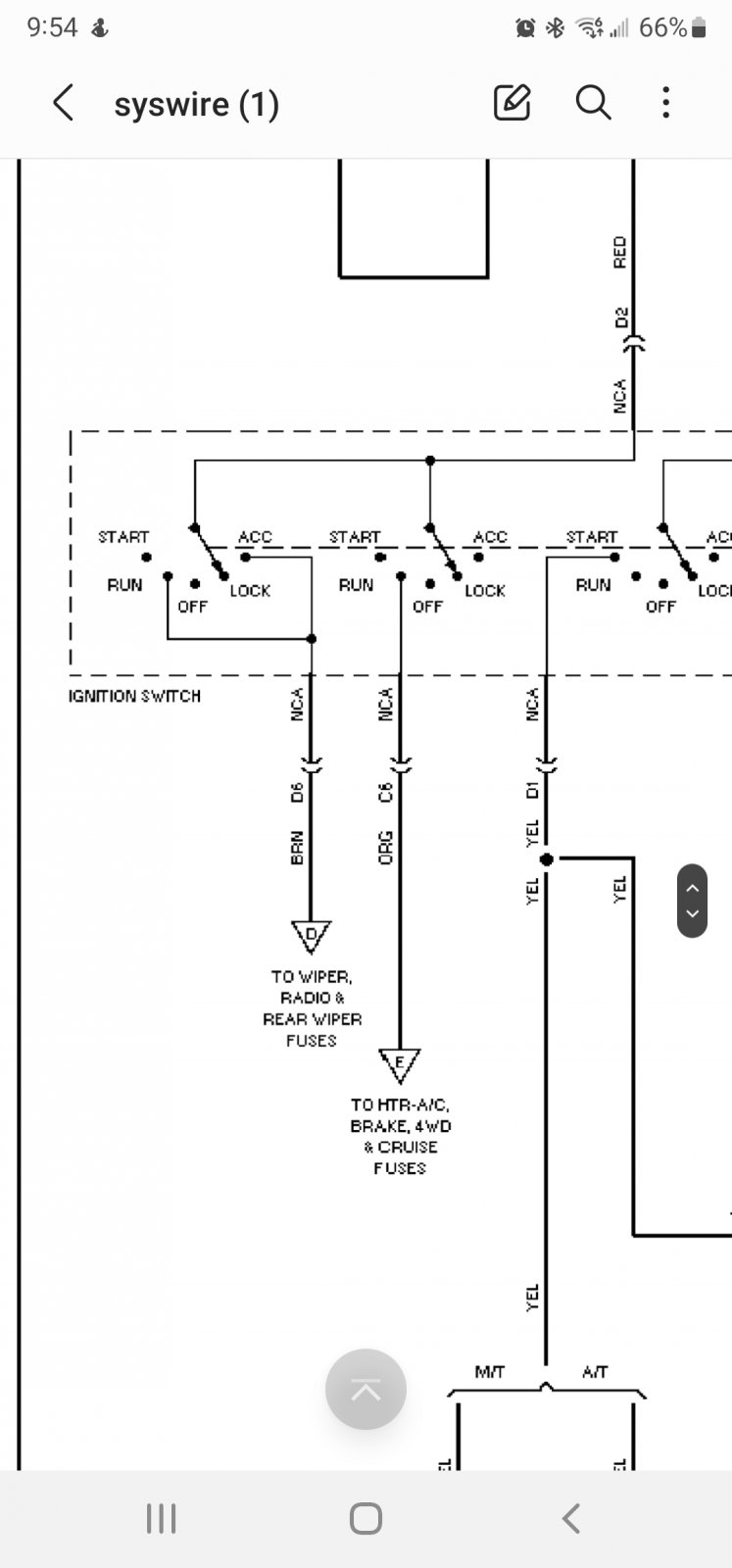

Hi everyone im doing something crazy with my 95 since the body rotted to shreds ( lots of salt water boat ramp days) im installing everything into a 66 chevy, im looking to reuse the 66 ignition and would like to wire the newer harness into it. There are couple wires i havnt identified yet and dont see any references i know there is a 2nd batt and ign which i will run a relay off ign 1 to connect them when necessary. I have a small gauge brown/white stripe i haven't identified. I think the brown and the orange are both acc and assume the two small black wires are ground


Attachments

  • 20211216_125805.jpg
    467.8 KB · Views: 7
  • Screenshot_20211122-125212_Samsung Internet.jpg
    Screenshot_20211122-125212_Samsung Internet.jpg
    368.7 KB · Views: 7

exp500

Full Access Member
Joined
May 14, 2017
Posts
1,820
Reaction score
1,657
You really need to look at the 95 wiring diagram. You should also consider quite a few relays to lessen the load on ignition switch.
Post up W/D pics here if you need help.

OP
OP
A

Alphamodsquad

TYF Newbie
Joined
Dec 16, 2021
Posts
14
Reaction score
1
You really need to look at the 95 wiring diagram. You should also consider quite a few relays to lessen the load on ignition switch.
Post up W/D pics here if you need help.
I downloaded a wiring diagram for the truck but it seems to missing some details, for example there is a tiny push button that is attached to the ignition switch that looks like the key presses it when inserted i assume that is for the buzzer when the door opens, i do plan on running relays and have the ignition activate them. I transferred the entire harness into the 66 so if i can get it to work together I'll be set.

OP
OP
A

Alphamodsquad

TYF Newbie
Joined
Dec 16, 2021
Posts
14
Reaction score
1

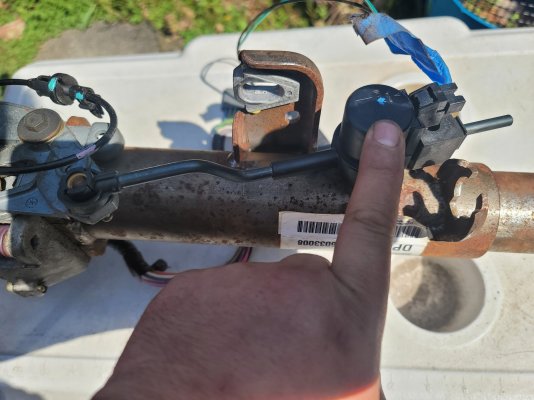

Ok i need help identifying certain parts on this column to determine if i need to transfer them to the 66. Can anyone identify these components so i can look them up by name to find out what they do. Is this shift indicator?
On the ignition switch was this little button, is this for key in ignition buzzer?


Attachments

  • 16508122611986484763510893119930.jpg
    186.2 KB · Views: 3

exp500

Full Access Member
Joined
May 14, 2017
Posts
1,820
Reaction score
1,657
Brake Pedal interlock. Just remove the rod. Buzzer under dash.
Full manual here-https://www.tahoeyukonforum.com/threads/helpful-links.131971/#post-1665051

OP
OP
A

Alphamodsquad

TYF Newbie
Joined
Dec 16, 2021
Posts
14
Reaction score
1
Thank you i just found the one and only diagram that describes it. Also that little button is key in ignition i just powered it up and pressed it. Im getting closer to the finish line thank you.

OP
OP
A

Alphamodsquad

TYF Newbie
Joined
Dec 16, 2021
Posts
14
Reaction score
1

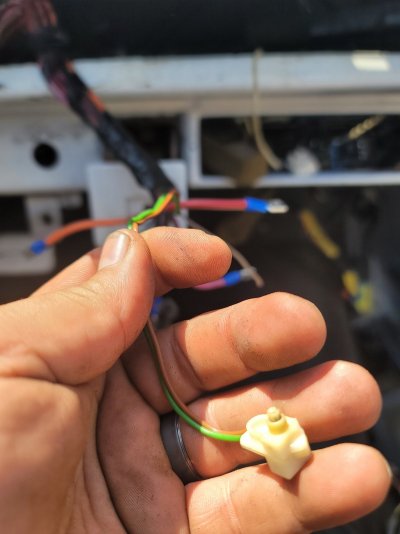

I know im a pain in the butt vut i ha e yet to identify these two wires somehow the little brown with white stripe came off something. And the large brown is from ignition but doesn't show power or ground when tested.


Attachments

  • 16508261880825050347046491425945.jpg
    273.8 KB · Views: 3

exp500

Full Access Member
Joined
May 14, 2017
Posts
1,820
Reaction score
1,657
Pull all 3 1995 manuals from the link above. Diagrams in there. The Truck Man is the one you want and the other 2 are differences from truck.
Usually DK Brn are lights/windows. Can't see what harness you are in.
