My grill is loose...how do I tighten it??

[DenaliAK]

My grill is rattling around and quite loose and I have no clue how to tighten it back up. How the heck do you get at the attachment points??



[05Yukon23]

If I'm not mistaken, the part of the grille that goes around the lights has a clip in either side that snaps into the side. Also there are a few bolts on top at the front when you pop the hood.

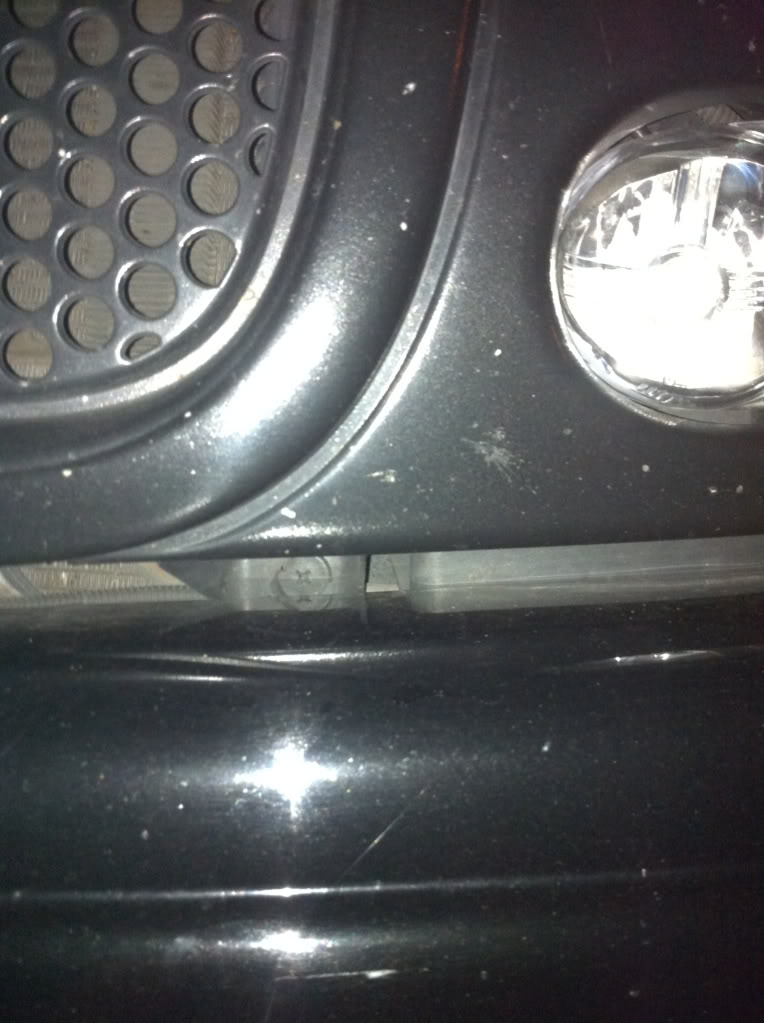

Location of clips:

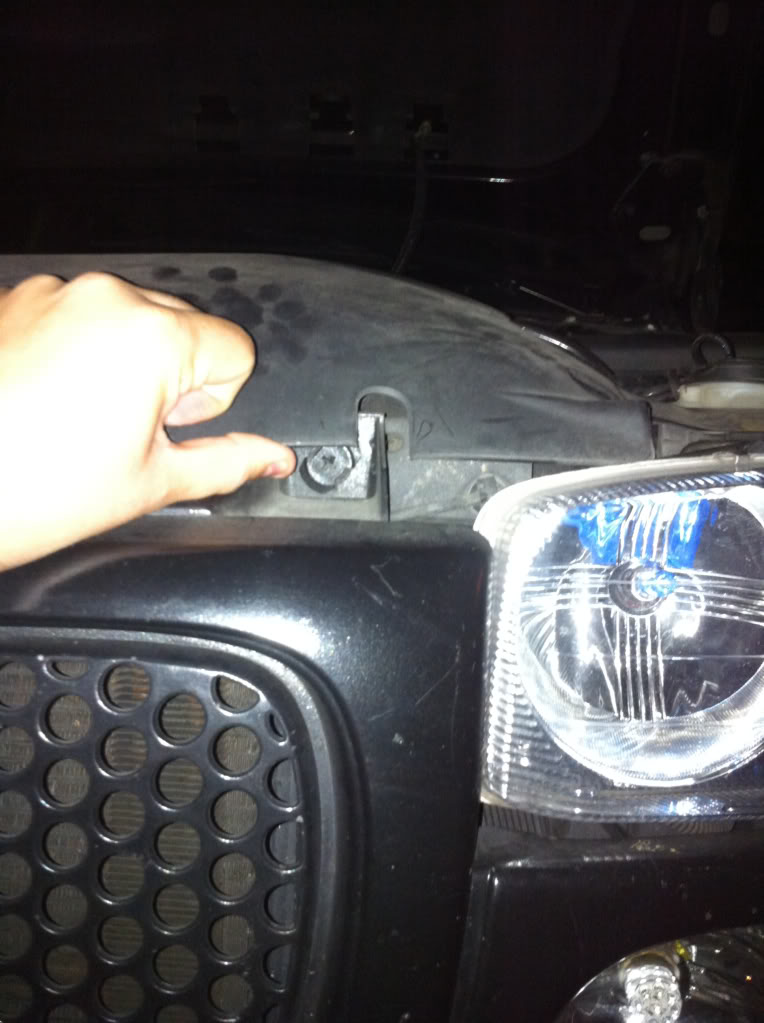

Bolts are under this cover:



[05Yukon23]

I am not sure of your year... This would be for 00-06... Don't know if Denali would be different.



[Gzes]

try youtube buddy its ur freind. Just look up how to remove the grille and just tighteb it up from there



[OHSIXX]

There is a clip on each side of the grille assembly by the headlight as shown in the pictures. There are also 2 screws on the bottom of the grille-one on each side--push your bumper cover down just a tad and you can see them or use a flashlight. There are also upper mounting points as well underneath that radiator cover. If your insert itself is loose....don't know what to tell ya as I believe it is held in with multiple tabs around the grille shell...

-J



[05Yukon23]

Forgot about the lower screws. But yeah it's secured pretty well.



[mharders]

It's held in by six mounting points as Jason said. 4 screw type tabs around the "center" grille and two on the far end by the turns/DRLs that clip into the frame. All you need is a Phillips screwdriver



[OHSIXX]

Nice shots Manny Good lookin' out..........



[mharders]



[DenaliAK]

Yeah, thanks....those pics tell the story. I'll check it out more tomorrow. Sounds more like it's rattling near the bottom than the top.

As for Youtube: I'm an old fart and don't even think of looking on there for anything useful. I blame my 18-year old and his freakin' obsession with watching youtube videos of other people playing video games....(rolling eyes)
