KC Hilites at Got Exhaust

Discussion in 'GotExhaust.com' started by GotExhaust.com, Feb 15, 2018.

  1. GotExhaust.com

    GotExhaust.com Supporting Vendor

    Posts:
    222
    Likes Received:
    36
    Joined:
    Oct 25, 2013
    Name:
    Chris
    Got Exhaust carries KC Hilites! We offer their full line of LED light bars, cubes, specific vehicle mounts, pods, rock lights, rear facing chase LED, etc...

    Light bars are always the most popular for AUX lighting and KC's "C" series lightbars are a great performing option at a mid range price point. Plus they come with a 23 year warranty

    [​IMG]

    [​IMG]



    Overview
    KC HiLiTES C-Series LED Light Bars feature bright and efficient CREE LEDs with combo 8° Spot and 90° Spread reflectors. Available in 6"-50" widths, perfect for hoods, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.


    Details

    FEATURES
    -6"to 50" C-SERIES LED Dual Row Light Bar
    -Precision reflectors with forward facing LEDs
    -Combo Beam Pattern: 8° Spot & 90° Spread
    -Extruded Aluminum Housings
    -GORE® Membrane Barrier

    LIGHT PERFORMANCE
    -RAW Lumens: 6"= 3,240 lm, 10"= 5,400 lm, 20"= 10,800 lm, 30"= 16,200 lm, 40"= 21,600 lm, 50"= 27,000 lm
    -LUX @ 10 meters: 6"= 230 lx, 10"= 680 lx, 20"= 1,750 lx, 30"= 2,050 lx, 40"= 2,800 lx, 50"= 3,200 lx
    -Candela: 6"= 23,000 cd, 10"= 68,000 cd, 20"= 175,000 cd, 30"= 205,000 cd, 40"= 280,000 cd, 50"= 320,000 cd
    -Beam Distance (Meters): 6" = 303m, 10"= 522m, 20"= 837m, 30"= 906m, 40"= 1,058m, 50"= 1,131m

    SPECIFICATIONS
    -Wattage: 36W-300W
    -LED Source: CREE LED
    -Color: 6000K
    -Amp Draw: 3.0A-25.0A
    -Voltage: 9V-32V
    -IP Rating: IP67

    Parts Included with C-SERIES Light Bars
    -Deluxe Wiring Harness w/ 2-Pin weather proof connectors
    -Die-Cast Mounting Brackets with hardware

    PERFORMANCE OUTPUT AND CLARITY
    The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.

    HIGH PERFORMANCE MEETS AFFORDABILITY
    C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.

    COMBO BEAM PATTERN AND ADVANTAGES
    When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.

    DESIGNED FOR DURABILITY
    Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.

    Message me with what your looking for and I can provide you a quote with your forum discount!

    [​IMG]

    [​IMG]

    [​IMG]

  2. Ryan Buck

    Ryan Buck Full Access Member

    Posts:
    284
    Likes Received:
    157
    Joined:
    Mar 2, 2018
    Location:
    Mesa Arizona
    Name:
    Hoeon35s

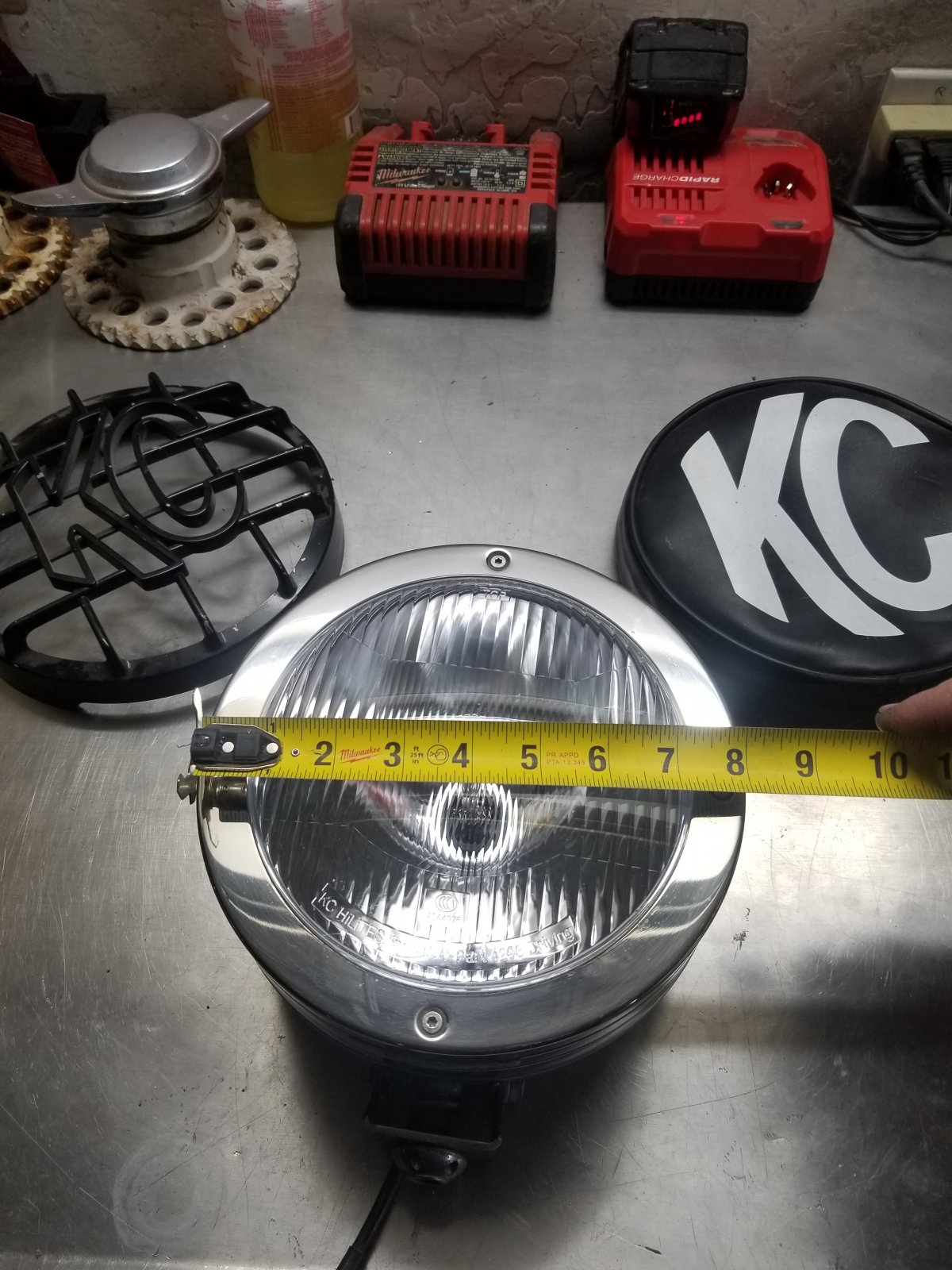

    What do you have for a Bumper Mounts that will fit the 2000-2006 Tahoe? I have 3- 8" KC H.I.D. lights that I need to put on my truck so I can see half mile down the road lol
