Home built 4L60E beast

[Matthew Jeschke]

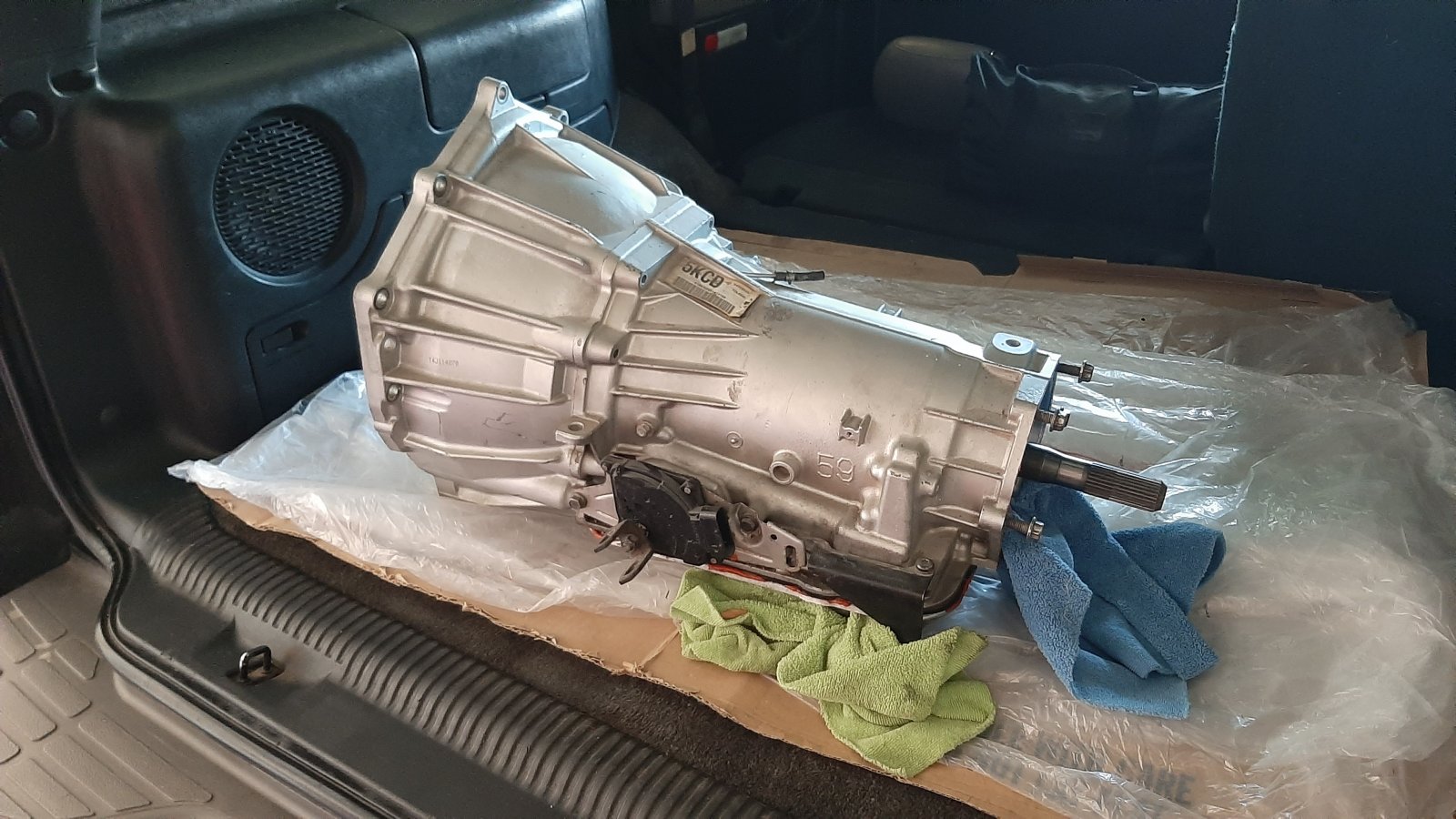

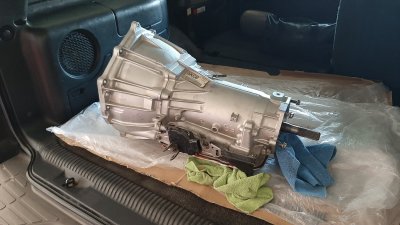

I found 4L60E that needs rebuilt. Snagged it for $200. Guy was putting it in a show truck and burned 3/4 gave out. My plan is to build a indestructible 4L60E to swap out with a 6.0L or 6.2L in front of it. I'm watching as much Youtube as possible to try and get a parts list.

I'd love to hear from anybody who has done this, what parts they used, tools, books, etc. I'm going to link a parts list below. I'll update it as I refine the parts for my build. I'm still researching what I need to ordre. I think would be pretty straight forward if I wasn't upgrading. Basically just watching people rebuilt 4L60E transmissions to put in racecars on youtube.

https://docs.google.com/spreadsheets/d/1SUGFvxRPz-Dfoh6pwUMjj4KXdFu6whmNzj342g7-pf4/edit?usp=sharing



[ivin74]

I have a spare 4L65E that I wanna do the same, keep us posted on the parts list. Thx



[mikeyss]

Don't forget to get the 5 pinion front and rear planetary gear set.



[Mechanic421]

I highly recommend going to sonnax transmission web site. They have a great product and knowledge base on the 4l60e. I built the towing stage and love it. I have a 06 4l65e with a circle d 2209-2400 stall. I drag at the track sometimes not a lot. But I pull 12,000 lbs all day. Have about 30,000 trouble free miles.



[Mechanic421]

4l70e second gear servo and a wide band with a new drum for the band is the only thing I would change.



[Mechanic421]

This and a wide band with a new drum for the band is the only thing I would change.

https://www.sonnax.com/gm_4l60e



[Matthew Jeschke]

Thanks everybody for the help! I'm going to open a second document. I'll link it from my original post. It will contain bild tips / tricks as I collect them from various sources. Right now I'm attending Youtube University here, lots of a great 4L60E teardowns.

BUILD NOTES / TIPS FROM VIDEOS IN DOCUMENT BELOW:

https://docs.google.com/document/d/1fqR1LLFauyE2K_P4e1m-XgBddagiFPtgfuo-U9FWdkc/edit?usp=sharing



[HiHoeSilver]

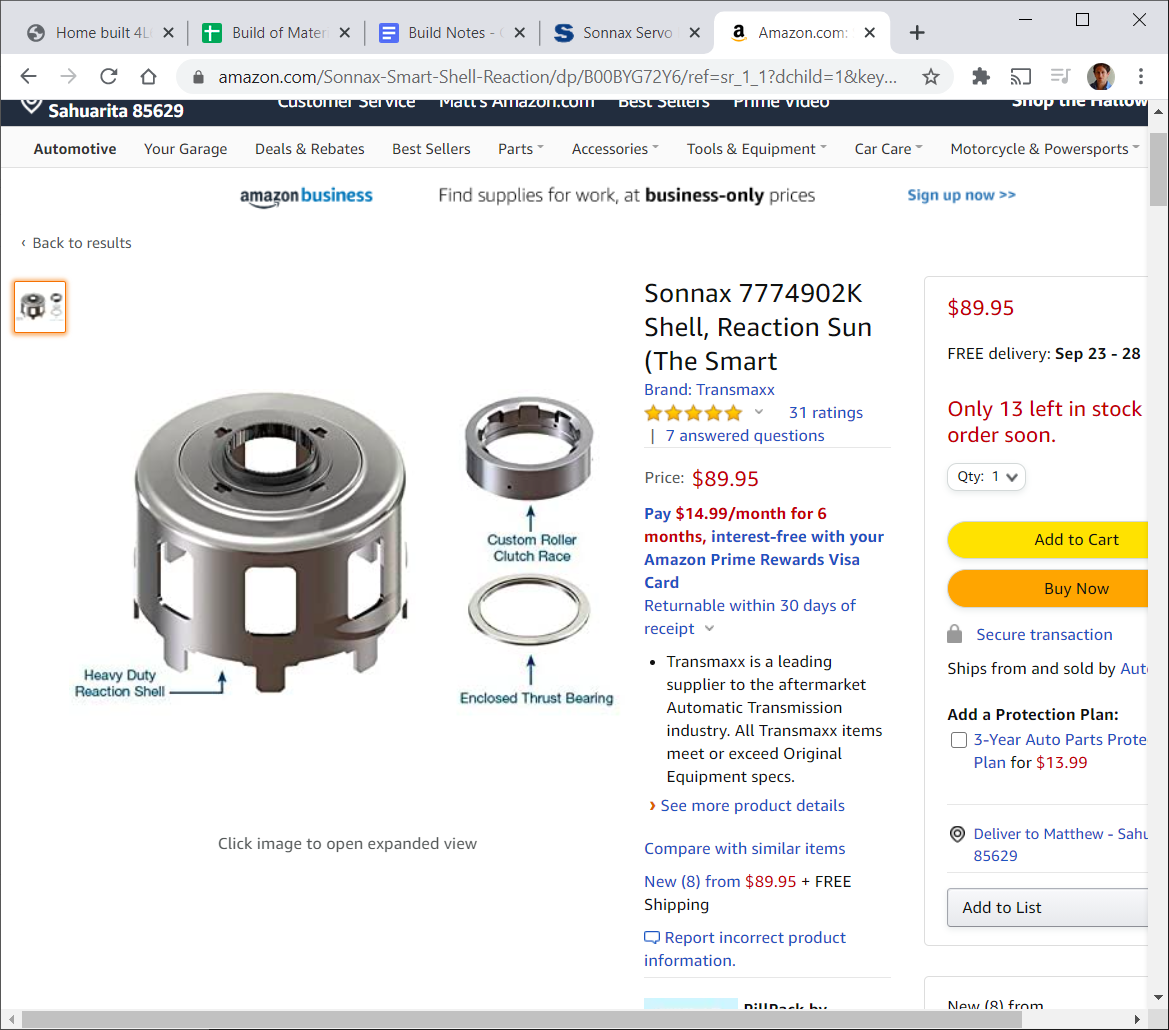

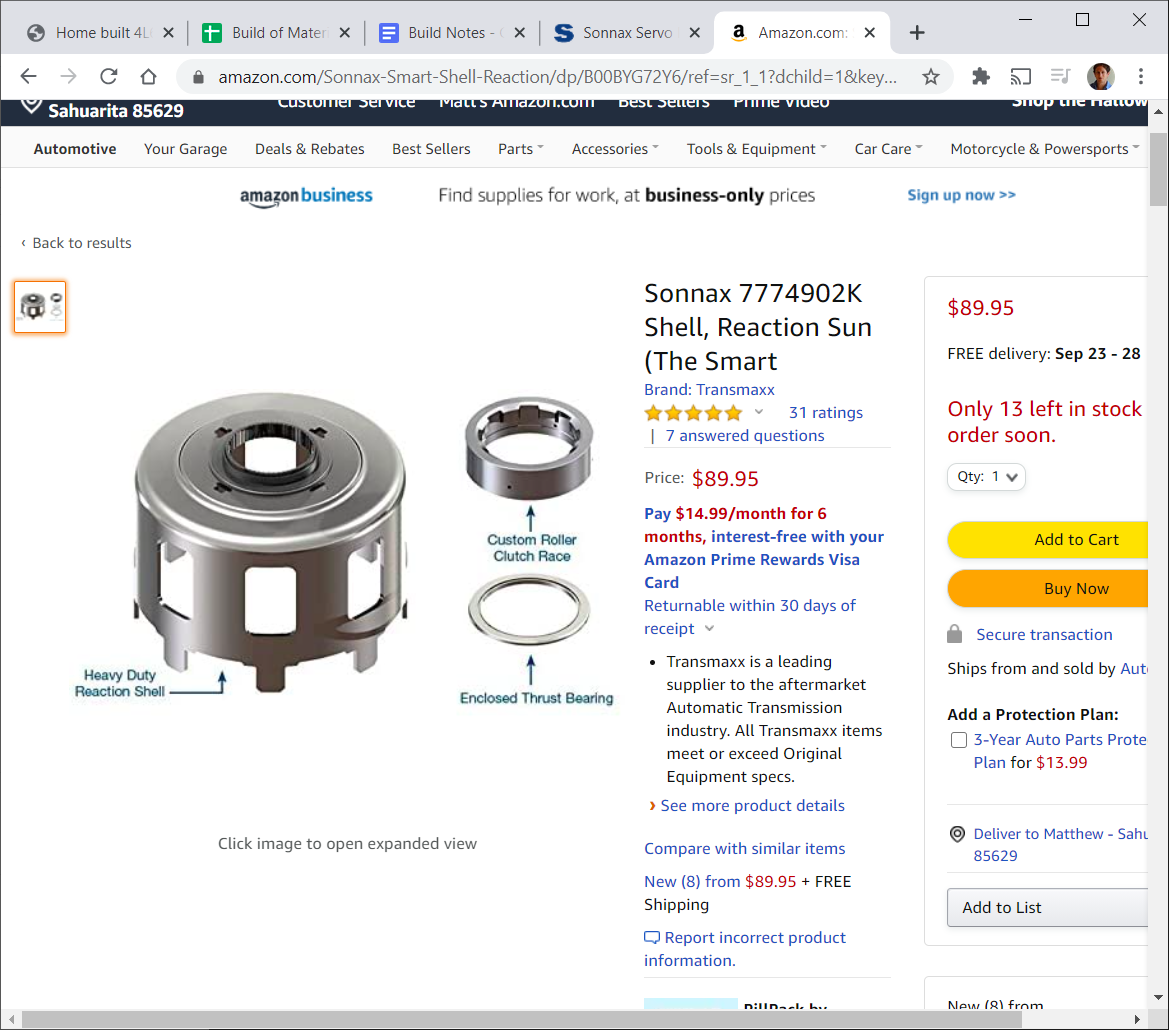

Beast sunshell?



[Matthew Jeschke]

I'm also curious if there's any good books out there. Anybody got any of the 4L60E books?



[BentleyArnage]

Don't forget to get the 5 pinion front and rear planetary gear set.

Good start
