Headlights. No high beams

[Sofi09]

Ok so my high beams stop working. I checked and replaced both high beams but still nothing The high beam indicator comes on when it’s supposed too. I have head that the wig wag module could have gone bad even though it’s not operational. Where is the wig wag module how do I replace it or by pass it?


Sent from my iPhone using Tapatalk



[Doubeleive]

did you check the fuses? there is also a relay, both are in the fuse box under the hood



[2011SSVHOE]

did you check the fuses? there is also a relay, both are in the fuse box under the hood

No, the wig wag module is between the rt front fender, ( liner, turtle, apron) and the front bumper. you can see it barely if you stick your head in the right place.



[Sofi09]

No, the wig wag module is between the rt front fender, ( liner, turtle, apron) and the front bumper. you can see it barely if you stick your head in the right place.

Stick my head where? [emoji23]
Does anyone know what it looks like ?


Sent from my iPhone using Tapatalk



[Doubeleive]

Stick my head where? [emoji23]
Does anyone know what it looks like ?


Sent from my iPhone using Tapatalk

take a couple screws out of the passenger side front splash guard between the front wheel and the back of the bumper they should be 7 or 8 mm when you have a couple out you can pull it back and look inside with a flashlight. basically behind the front right headlight.

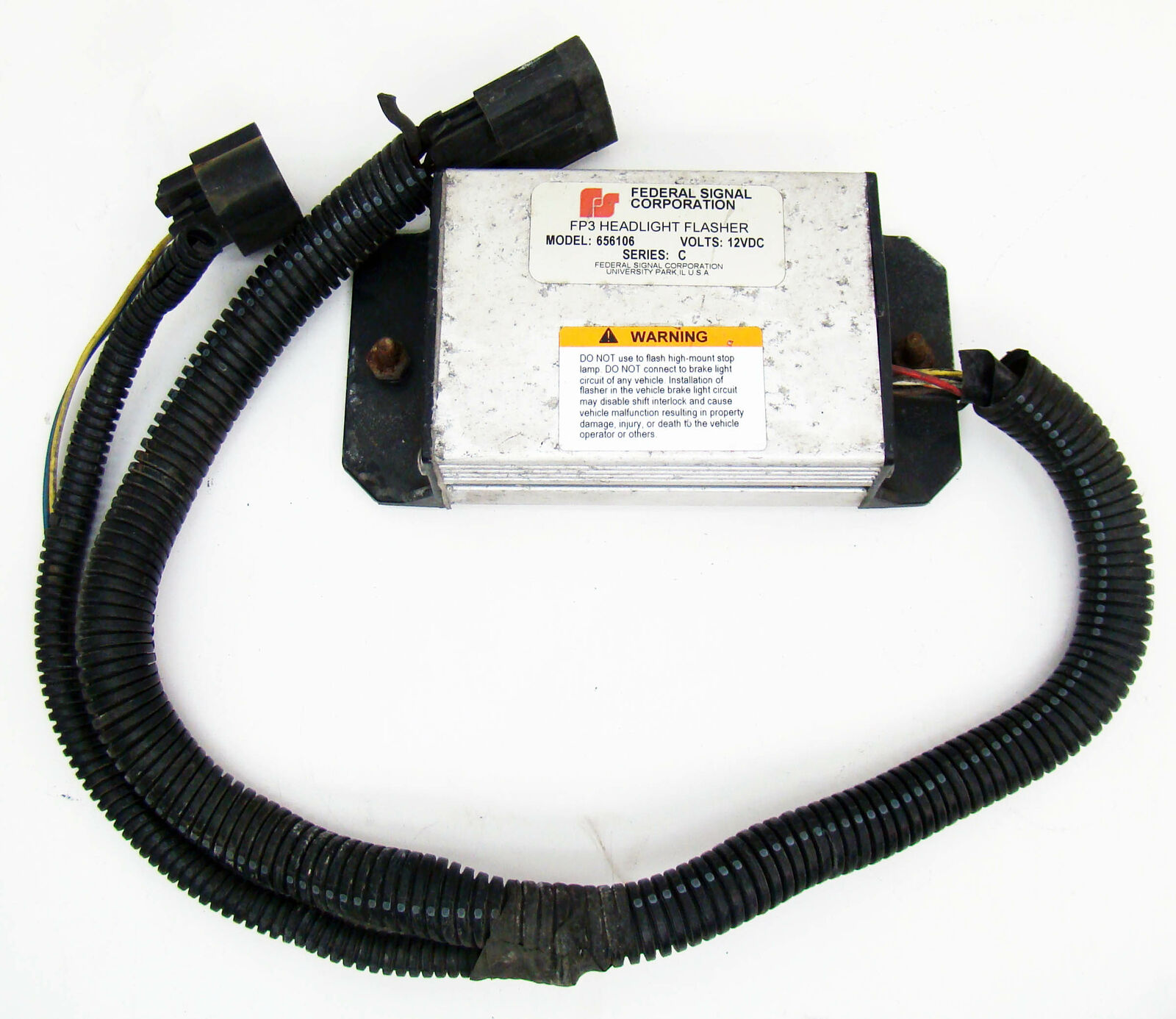

should be a black module with wires, could be aluminum also depending on the module, should look something like this



[Kee Fuller]

take a couple screws out of the passenger side front splash guard between the front wheel and the back of the bumper they should be 7 or 8 mm when you have a couple out you can pull it back and look inside with a flashlight. basically behind the front right headlight.

should be a black module with wires, could be aluminum also depending on the module, should look something like this

View attachment 230879

wonder how much this sells for. I'll take a look and see if mines is still there



[Doubeleive]

wonder how much this sells for. I'll take a look and see if mines is still there

that one was for a Impalla, but there not all that much just depends on the name I guess a few different company's make them and a bunch of china brands out there also.



[Sofi09]

I just got in from the garage. Hi beams are fixed. Fuse compartment was disgustingly filthy and the fuses were loose. Simple easy fix. Thanks guys!!!


Sent from my iPhone using Tapatalk
