Barn Door lock

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

J Farris

Member
Joined
Jun 20, 2019
Posts
33
Reaction score
2
I have keyless entry and every door locks but the back doors I have to push the doors in for them to lock

I've already tried cleaning the contacts its has to be something with the door itself or the actuator


915_Tahoe

Your GM Parts Specialist
Joined
Jul 1, 2018
Posts
1,333
Reaction score
1,851
Location
HELL PASO, TX
did you check for power from the connector, can you hear the actuator trying to engage.


PG01

Supporting Member
Joined
Nov 6, 2016
Posts
14,727
Reaction score
17,770
Location
Up here to the right
I have keyless entry and every door locks but the back doors I have to push the doors in for them to lock

I've already tried cleaning the contacts its has to be something with the door itself or the actuator

Barn doors?

If so your contacts are on a spring and if you have to push for it to ‘lock’ then you spring on those contacts are shot. Dies rear defrost work? That comes thru there too.

OP
OP
J Farris

J Farris

Member
Joined
Jun 20, 2019
Posts
33
Reaction score
2
did you check for power from the connector, can you hear the actuator trying to engage.


It doesn't try to engage unless I press the door in, its as if something is keeping the door from closing all the way but nothing is there except the seal


Kraig

Full Access Member
Joined
Nov 21, 2015
Posts
202
Reaction score
98
When you press the door in, you might be completing the circuit because the contacts aren’t... contacting


Woodblocker55

Full Access Member
Joined
Apr 13, 2019
Posts
644
Reaction score
408
Ruff up them contracts and work for a while . My 1999 has same issue . I just go old school Manuel locks [emoji106]

Sent from my LGL84VL using Tapatalk

OP
OP
J Farris

J Farris

Member
Joined
Jun 20, 2019
Posts
33
Reaction score
2
I got it to work it was some dirt in the connector, cleaned it up and it works fine now

Thanks for the help


dnt1010

Full Access Member
Joined
Dec 2, 2018
Posts
416
Reaction score
258
Location
Tennessee
Once these vehicles get older (10+ yrs and value drops to almost zilch) it is hard to justify buying OEM replacement parts especially on a noncritical item like a electric door lock actuator.
I cheaped out and went with a Fexon 34 dollar part on my 2009 Tahoe rear drivers door. At almost 350 bones for a GM part I could change that puppy out about 10 times LOL Doubt if this +10 year old truck with 220k will outlast this latest elcheapo made in china door lock actuator.

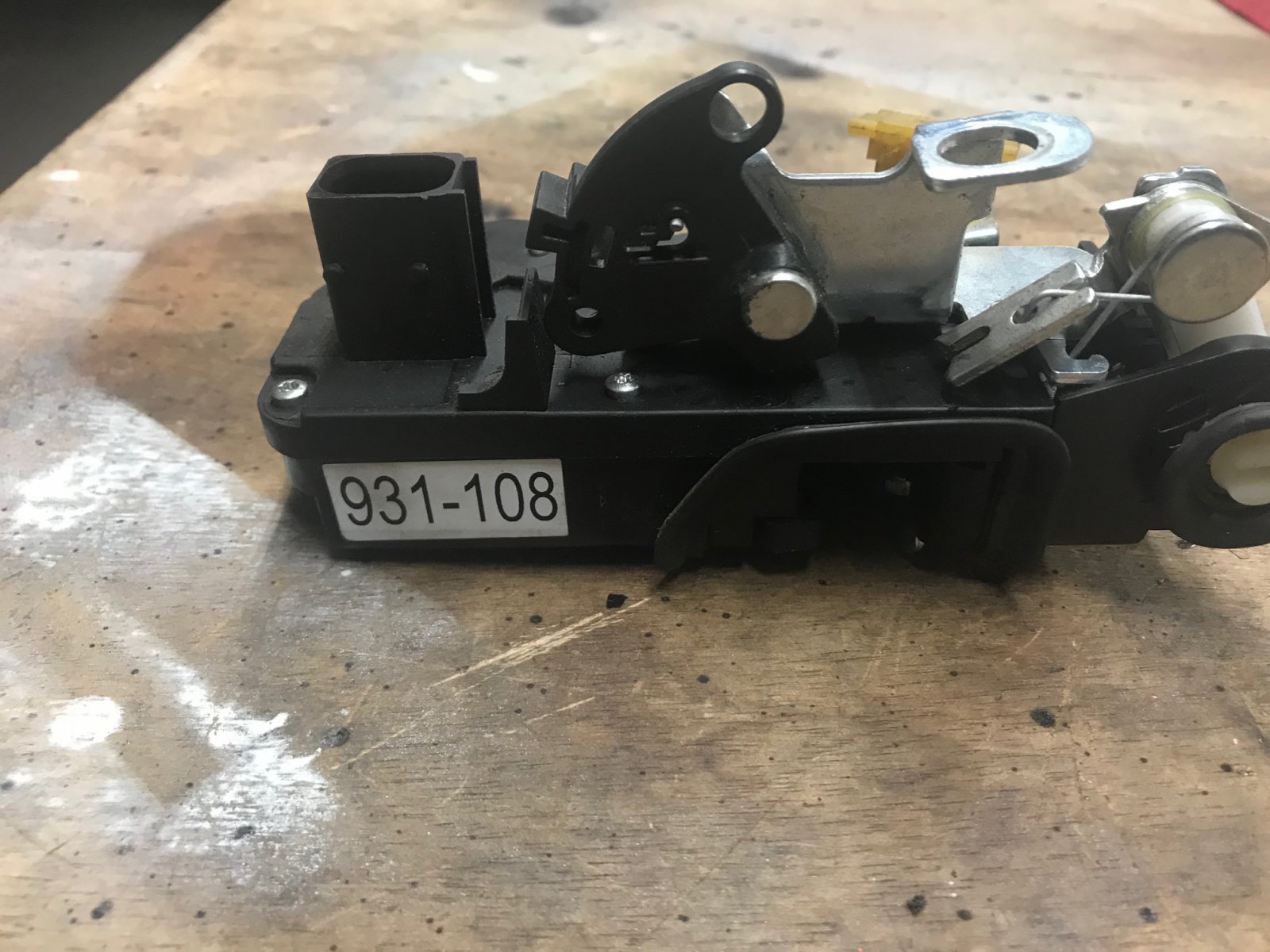

Pic attached of the one that came out and YES it already had an aftermarket in there (made in Taiwan) so only got eight lives left LOL IMG_9307.jpg


89Suburban

Bull in the china shop
Supporting Member
Joined
Jan 10, 2013
Posts
12,829
Reaction score
35,142
Location
SE PA
Once these vehicles get older (10+ yrs and value drops to almost zilch) it is hard to justify buying OEM replacement parts especially on a noncritical item like a electric door lock actuator.
I cheaped out and went with a Fexon 34 dollar part on my 2009 Tahoe rear drivers door. At almost 350 bones for a GM part I could change that puppy out about 10 times LOL Doubt if this +10 year old truck with 220k will outlast this latest elcheapo made in china door lock actuator.
Pic attached of the one that came out and YES it already had an aftermarket in there (made in Taiwan) so only got eight lives left LOL View attachment 239369


Absolutely I don't see the sense in some of these guys spending 2,3,400 bucks on something from GM you can find aftermarket for 35. It's a ******* door lock for Christ sake. Unless you got money falling out of your ass to burn then I can understand...
