ABS controller needed

[Tbruz]

I received and installed the JY ABS controller tonight with no change in the ABS status; the light is still on indicting no ABS function.
Since I can't communicate with two controllers now, I'm at a loss for next steps:
60 amp ABS fuse under hood is confirmed good.
Searching for a willing candidate to swap my Kesley Hayes 310 module into there ride to confirm if my original module is good or bad.
I'm actually contemplating visiting the local GM dealership to let them diagnose with their tools.

Any other ideas appreciated.

While its really no big deal if I don't have ABS, I will admit I am a bit OCD and I like to have all features working as intended. Plus a light on my dash makes me nuts and I cant just remove the bulb out, that's cheating!
Thank in advance
Tbruz



[east302]

What code is being set?

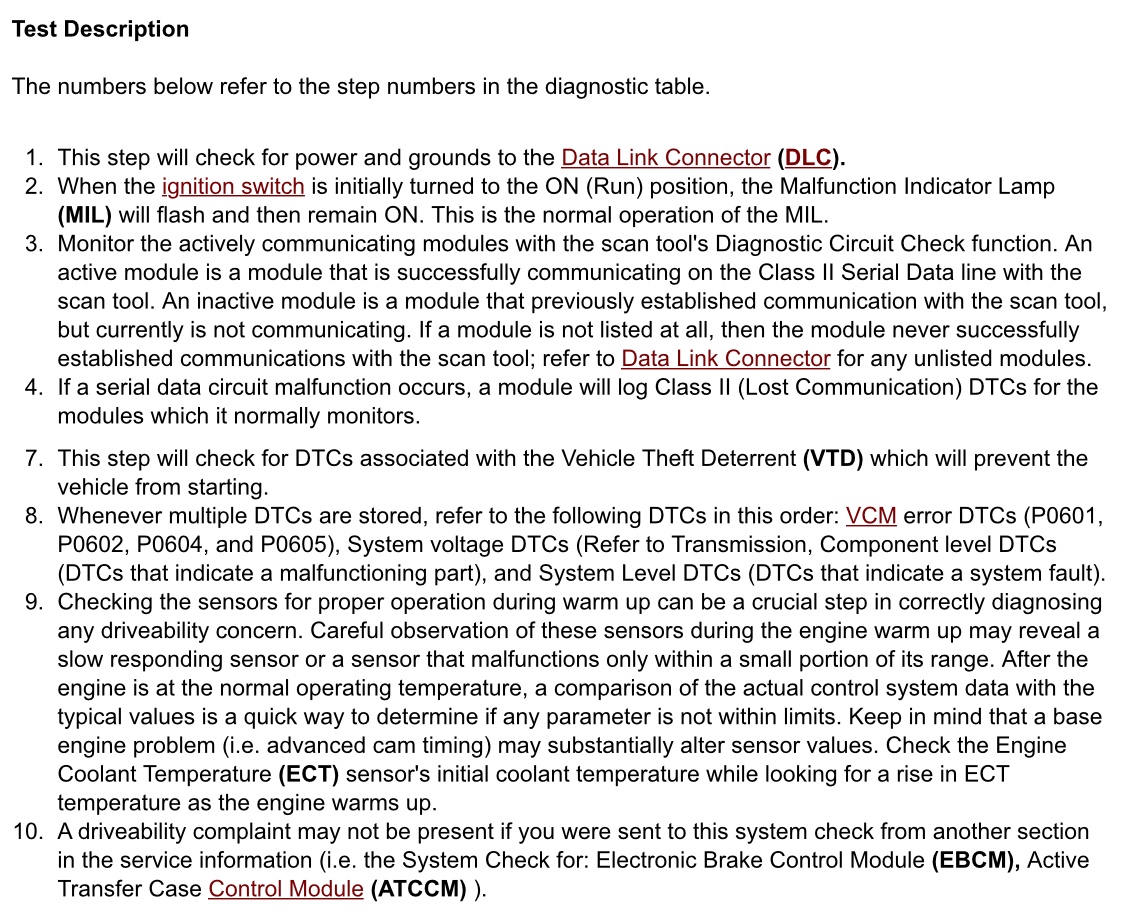

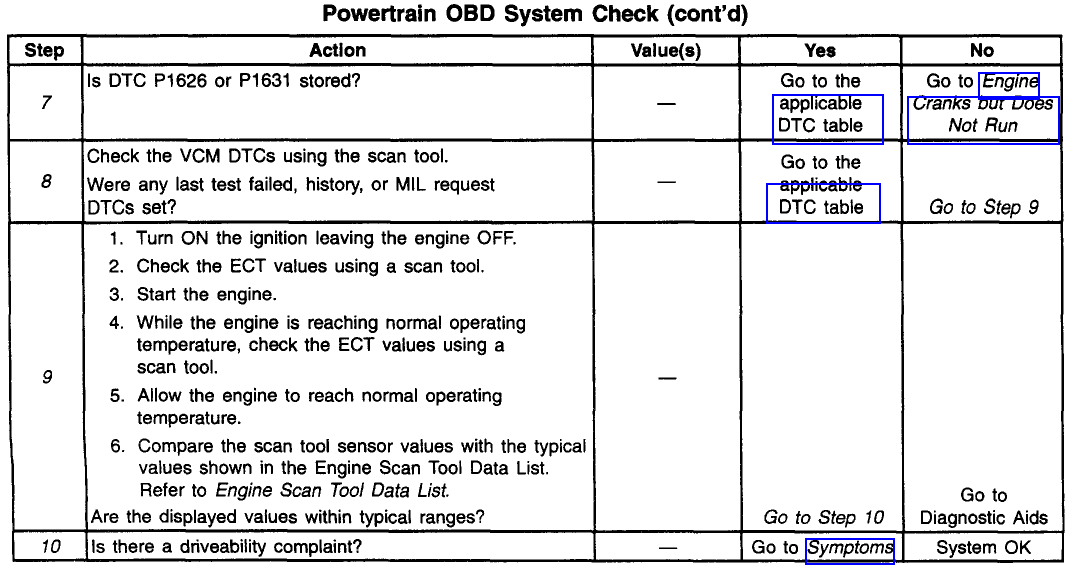

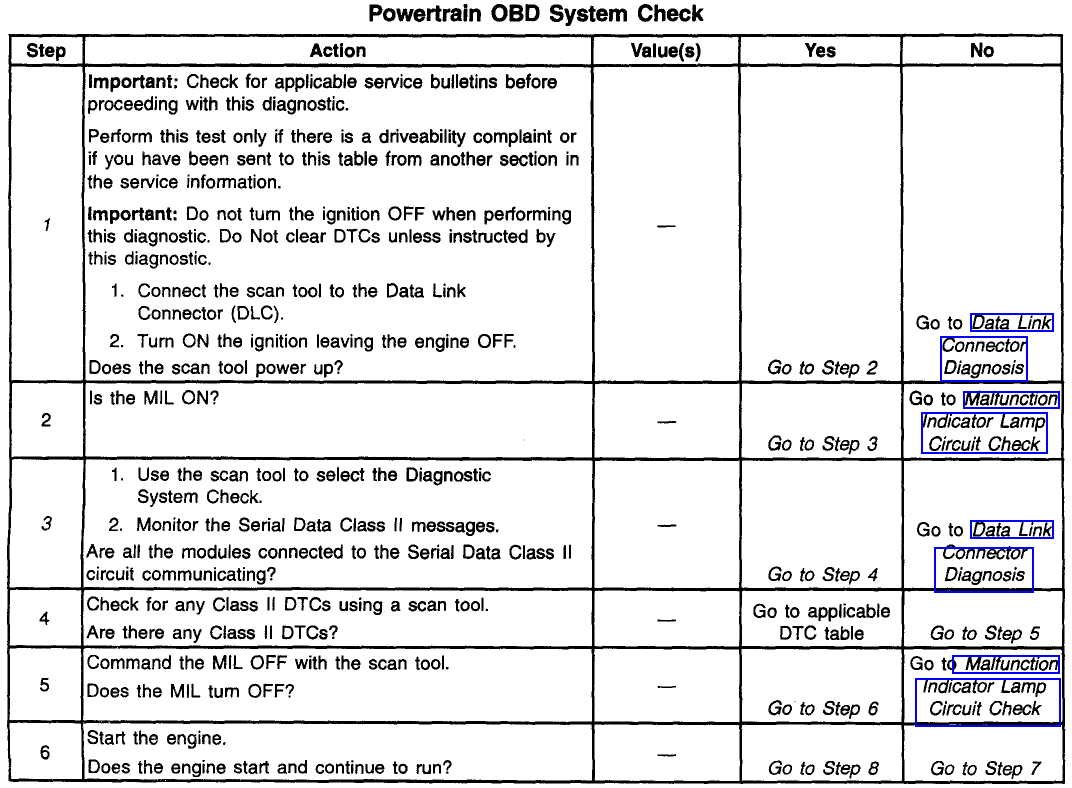

Assuming the scanner cannot communicate with the brake control module, start at step 4 in the table below. Otherwise, let me know what code is being thrown and I’ll pass along the diagnostic tables for that.












Sent from my iPhone using Tapatalk



[Tbruz]

Thanks for the step chart above. No codes are set, only the ABS light is on. There is no communication with the original ABS module or the JY one.
Will try the troubleshooting sequence tomorrow night.
Tbruz



[Tbruz]

So in following the troubleshooting tree above all is good until step 10 where there should be an OL reading between pins A and Ground(J). I'm getting 1.46K ohms. Step chart says go to step 14 and clear the short to ground in CKT 441.
So the next question is where is CKT 441 and whats the best way to find the short.
Thanks again
Tbruz



[east302]

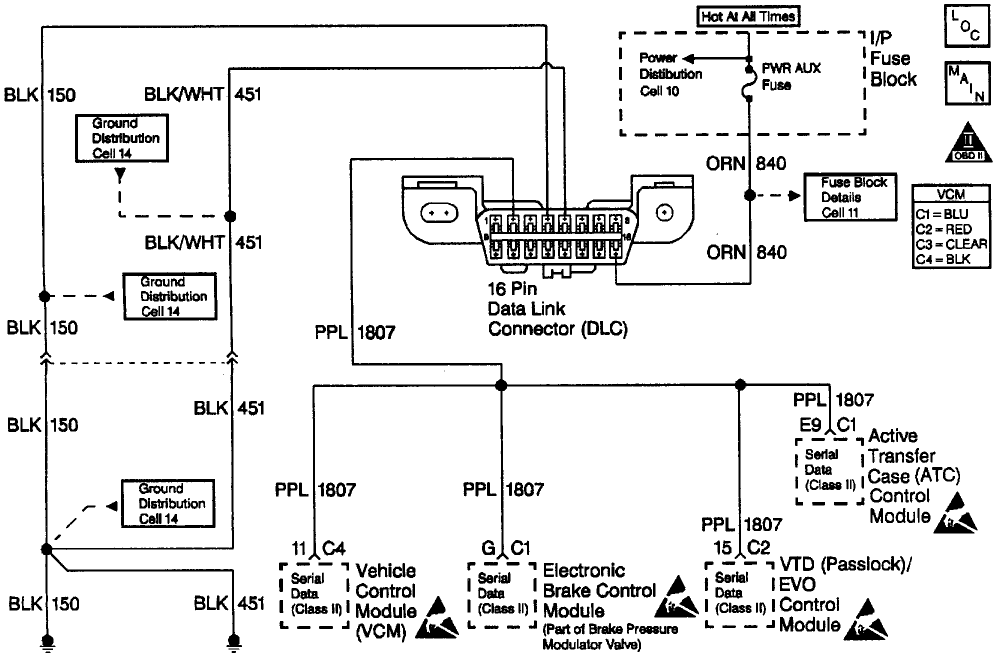

It’s referring to circuit 441...



...so try to follow the brown wire back to the connector at the firewall (C100) and see if you spot any damage - especially where an exposed wire is touching metal. Try wiggling or pushing in the wire at the harness to the EBCM, it may just be loose there. Otherwise, it goes from C100 to the brake switch (connector C227) which is buried up there. The switch is on top of the brake pedal.

Do the brake lights work?

Connector locations:





One way to narrow it down is to disconnect C227 and do step 10 from cavity F to ground. If it’s open loop, then the problem is downstream of it (toward the EBCM) and not between C227 and the fuse. Or, at least, that test would make sense to me. If your brake lights work, then I’d guess that the issue is after this connector. Maybe someone can confirm.

Here’s the pinout for 227. Apparently they had two different types. These diagrams are all for a 1998, by the way, but should still apply to your 97.




Sent from my iPhone using Tapatalk



[Tbruz]

Thanks East302, Lots there for me to absorb.
Brake light work perfectly. and fuse 18 is good as well.

Wondering out loud here but since I cant communicate with the ABS module I also cant see any brake DTCs.
Is it possible that I have a shorted wheel speed sensor as the culprit of all this?
Just learned I can ohm out the WSS and check their operating voltages as well.
Plan on doing that tomorrow night .
Thanks again
Tbruz



[east302]

The wheel speed sensors are supplied power from the EBCM, so they may not be functioning either since the EBCM is not getting voltage (step 4 of the test). It looks like the sensor for the rear wheels may be powered from the VCM, but I’m not sure.

Regardless, that shouldn’t cause your ‘no voltage’ issue at that harness cavity ‘A’ with the ignition in the run position. There’s a problem in the wire between that fuse and its connection to the harness.






Sent from my iPhone using Tapatalk



[Tbruz]

I am getting the proper voltage to EBCM per step 4.
All steps are good until step 10 and fuse 18 is not blown.



[east302]

Oh, so it’s a “yes” at step 4?

When you said that it was a “no” at step 10, I thought it was a “no” at 4 (which leads to step 9) and then a “yes” at 9 (which leads to step 10).




Sent from my iPhone using Tapatalk



[Tbruz]

I should have been more clear, here's the sequence and results
Step 4 yes
Step 5 yes
Step 6 no--jump to step 8
Step 8 reconnect everything
Step 9 yes
step 10 NO jump to step 14
