2016 Yukon SLE > Adding factory wireless charging?

Discussion in 'Audio & Electronics' started by Kittmaster, Feb 22, 2017.

  1. Kittmaster

    Kittmaster Member

    Posts:
    53
    Likes Received:
    4
    Joined:
    Jan 21, 2017
    Name:
    Chris
    I am looking at an SLT harness that has it. Replacing the harness is the only way to do it, besides tapping the lighter plug. I'm looking to have the radio show the charge icon when its active that is a trigger line in the harness to the HMI unit.

  2. cmatt

    cmatt Full Access Member

    Posts:
    113
    Likes Received:
    59
    Joined:
    Apr 29, 2009
    Name:
    Matt
    Please report back about the charging indicator if you replace the harness. I’m curious if any programming of the HMI or BCM is needed for it to work.


    Sent from my iPad using Tapatalk

  3. PAChevy

    PAChevy TYF Newbie

    Posts:
    11
    Likes Received:
    4
    Joined:
    Aug 4, 2017
    Name:
    Bob
    The charger is only powered when the ignition is on, but I assume you've tried that. You may want to check with your local Chevy dealer and see if they will print you a wiring diagram for the charger circuit to determine what powers it. A lot of the accessories on today's vehicles are powered through the Body Control Module and may need reprogramed to configure the wireless charger.

  4. Brando

    Brando TYF Newbie

    Posts:
    1
    Likes Received:
    0
    Joined:
    Mar 12, 2018
    Name:
    Brando

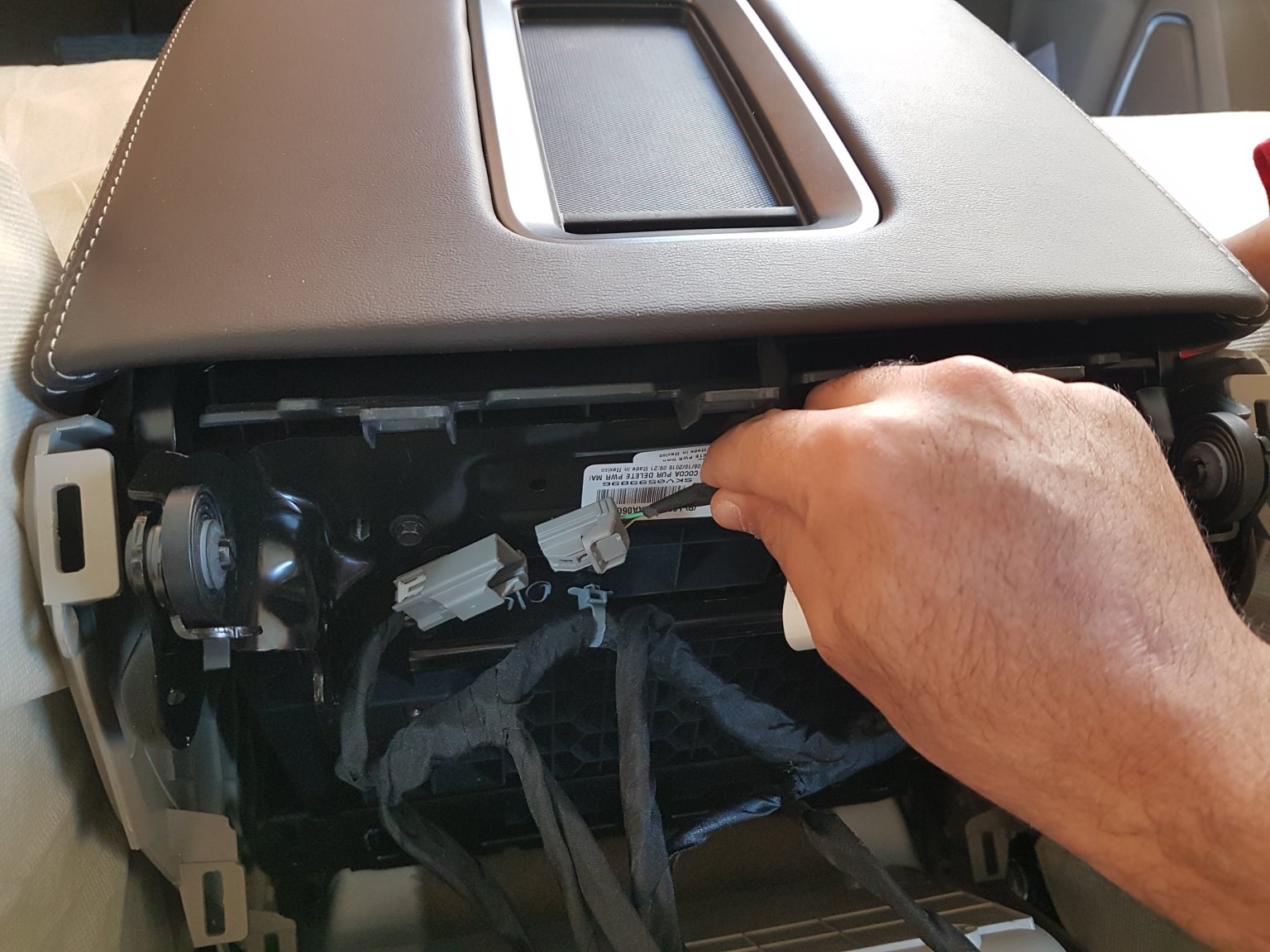

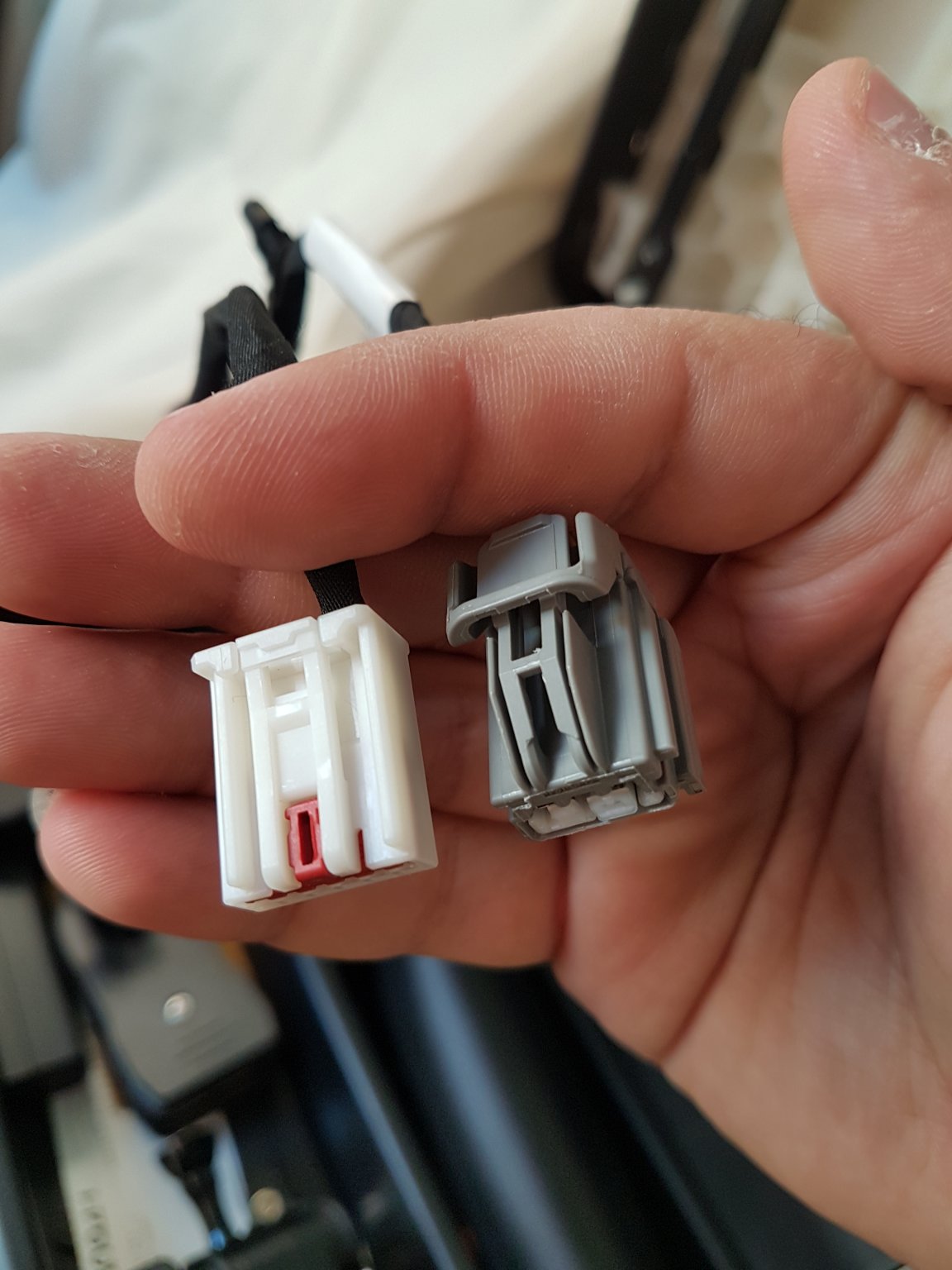

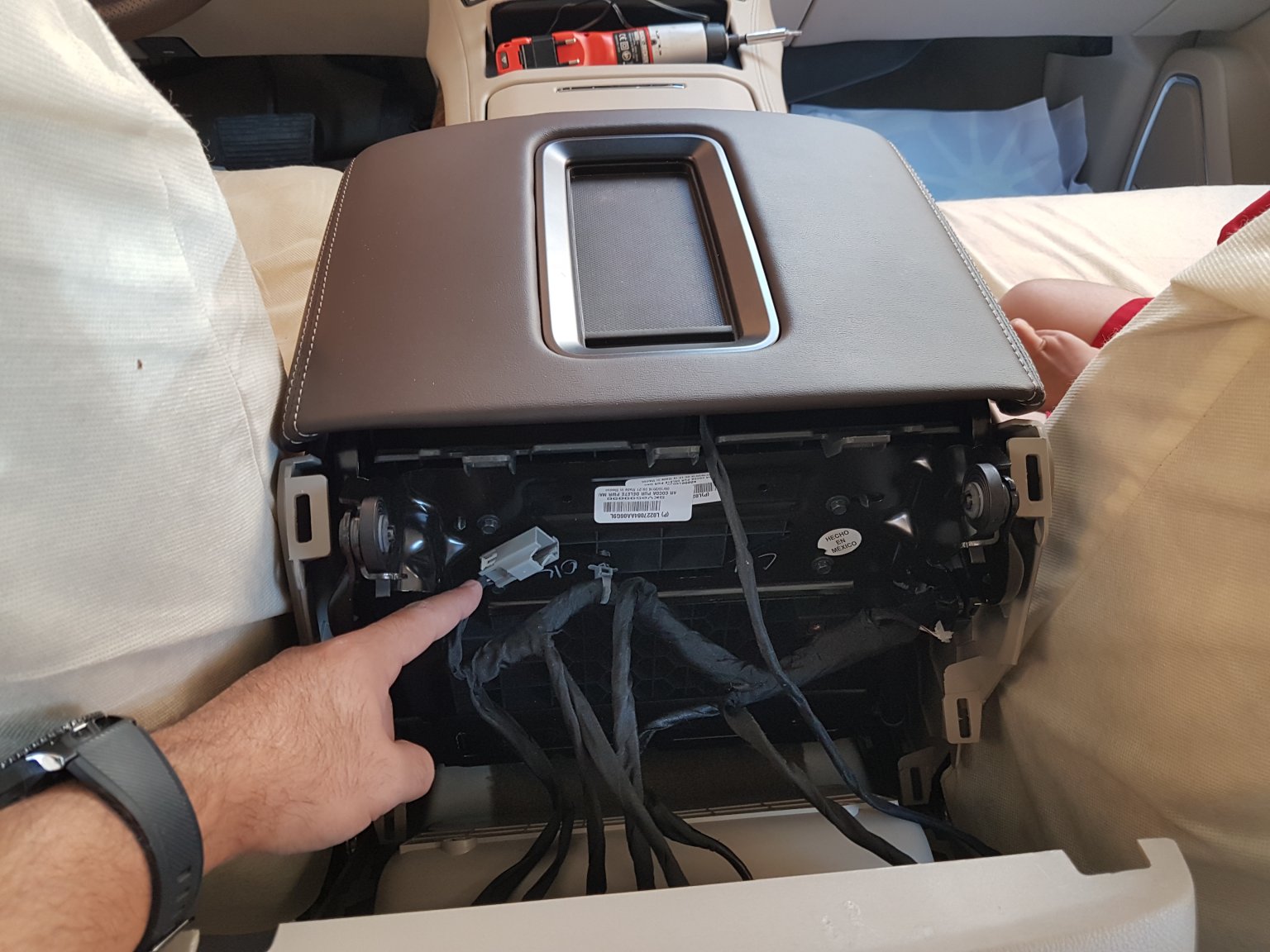

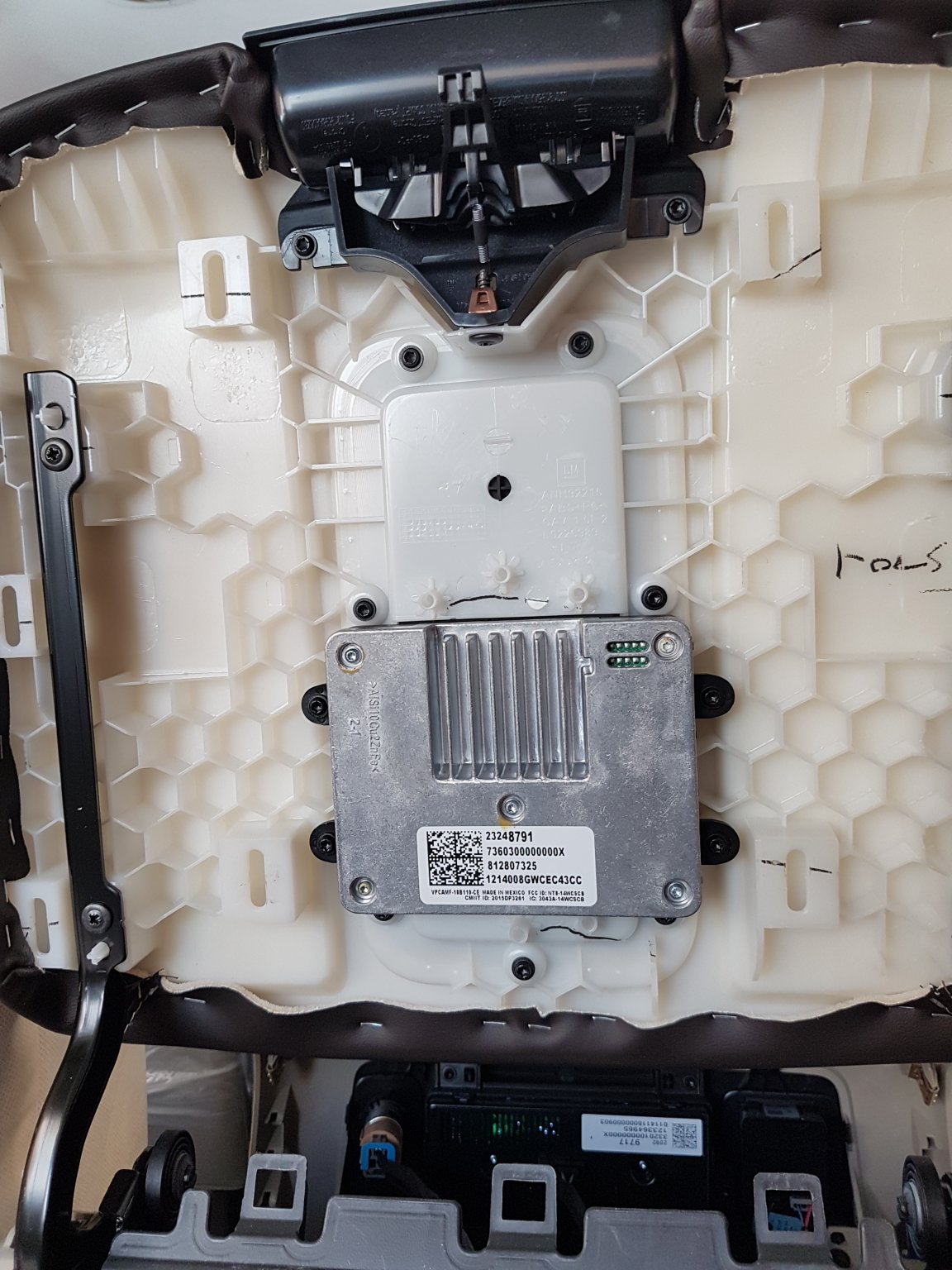

    Hi, This forum has been helpful for me and I successfully replaced the wireless charging with the 2018 OEM parts, including the charging icon showing.... hope this is helpful to others. I have a 2017 Escalade. I purchased the OEM 2018 OEM GM charging module and the 2018 wiring harness for the module. (Part numbers are on other posts and forums but I can share if someone needs them. Replacing the wiring harness requires removing the back of the console and there's alot of electronics back there. I opted to cut the connector for the new module and connect it to the existing wiring harness, worked flawlessly and I have the charging icon and it works great. There's 3 wires (purple/Yellow, Green and Black(Power) I uploaded some pictures. The white connector image is the old wireless charging module connector but it shows the 3 wire colors. Note you need to connect the new Black connector to your existing wiring harness. If anyone has any other questions let me know. Thanks, Brando

    IMG_0551.jpeg IMG_0552.jpeg IMG_0553.jpeg

  5. Kittmaster

    Kittmaster Member

    Posts:
    53
    Likes Received:
    4
    Joined:
    Jan 21, 2017
    Name:
    Chris
    So what did you ask for when you were looking for the new wire harness? An 18 harness is an exact match for a 17? Did the new harness have extra connectors that didn't connect to anything because it had other features that your truck my not have had? Any pics of where the BCM harness location is?

    Thanks and nice work!

  6. cmatt

    cmatt Full Access Member

    Posts:
    113
    Likes Received:
    59
    Joined:
    Apr 29, 2009
    Name:
    Matt
    @Kittmaster here’s the wiring schematic for the wireless charging module.

    You can see where the wires eventually land in the center console connector (X300), then on to the left body harness to I/P connector(X225) and finally break out to a fuse block, the BCM and one of the body grounds.

    [​IMG]

  7. tool2269

    tool2269 Full Access Member

    Posts:
    134
    Likes Received:
    9
    Joined:
    May 13, 2009
    Location:
    SA, TX
    Name:
    Myke

    Did you ever install the oem wireless charger to your Tahoe? I assume yours did not originally come with the wireless option.

    I rather install the oem charger than retrofit.

  8. Kittmaster

    Kittmaster Member

    Posts:
    53
    Likes Received:
    4
    Joined:
    Jan 21, 2017
    Name:
    Chris

    I plan to try to get the needed parts over the summer. I have the full service manuals for my truck, just one of those things that I can't get to soon, but at least it seems like it will work with acquiring the right parts 2018 and forward > and seems like the newer charging mat to allow for wider phones. Been busy and just got a chance to check in on this thread...... :)

  9. cardude2000

    cardude2000 Full Access Member

    Age:
    2
    Posts:
    1,449
    Likes Received:
    519
    Joined:
    Nov 12, 2015
    Name:
    Cardude
    Why do people care about the wireless charging mat? You can only use CarPlay or android whatever when the phone is physically plugged in...which charges it anyway??

  10. Kittmaster

    Kittmaster Member

    Posts:
    53
    Likes Received:
    4
    Joined:
    Jan 21, 2017
    Name:
    Chris
    Why do we care? Because not everyone use things the same way you'd expect. I have a dedicated phone that is attached to USB all the time for nav, but my regular phone on my hip or my wifes phone would do nicely to get a minor charge when put on the mat......YMMV
