@Blackie - Did you have any trouble with your wipers when installing your system? Mine simply don't work. If I put the key in and turn it, they work fine. There must be a separate wire that energizes with the ignition turned that I need to include in my wiring. Everything else seems to be working fine.


Sent from my iPhone using Tapatalk


shreksbrother

Full Access Member
Joined
May 9, 2017
Posts
324
Reaction score
290
Location
Auburn Hills, MI
I found the answer to my issue... There is a brown wire in the ignition wiring that is a 'second accessory' wire. This needs +12v, as well. Interesting that this was not in the wiring I found, but I'm guessing it's because most remote start systems still require the key to be turned on.


Sent from my iPhone using Tapatalk

OP
OP
Blackie

Blackie

Member
Joined
Mar 28, 2011
Posts
69
Reaction score
93
Location
SoCal
AL 1670B


Sent from my iPhone using Tapatalk

According to your install manual, this is the wire you would interface the push to start button kit I used to integrate it into your existing Excaliber alarm system:

"ORANGE WIRE - STARTER INTERRUPT (-) OUTPUT & RELAY
This provides 500mA negative ground while the alarm is armed for starter kill and/or during
remote start for anti-grind operation. The operation is selectable with installer feature #16.
CONNECTION: This wire is connected to the orange input wire on the optional start interrupt relay
socket. Then, locate the vehicle’s (+) starter wire at the ignition switch & cut it. Connect the starter
interrupt relay’s RED wire to the ignition switch side of the cut starter wire. Connect the starter
interrupt relay’s WHITE wire to the starter side of the cut starter wire."

You would still have to do the passlock bypass and the shift interlock bypass mentioned in my first post.

OP
OP
Blackie

Blackie

Member
Joined
Mar 28, 2011
Posts
69
Reaction score
93
Location
SoCal
@Blackie - Did you have any trouble with your wipers when installing your system? Mine simply don't work. If I put the key in and turn it, they work fine. There must be a separate wire that energizes with the ignition turned that I need to include in my wiring. Everything else seems to be working fine.


Sent from my iPhone using Tapatalk

I found the answer to my issue... There is a brown wire in the ignition wiring that is a 'second accessory' wire. This needs +12v, as well. Interesting that this was not in the wiring I found, but I'm guessing it's because most remote start systems still require the key to be turned on.


Sent from my iPhone using Tapatalk

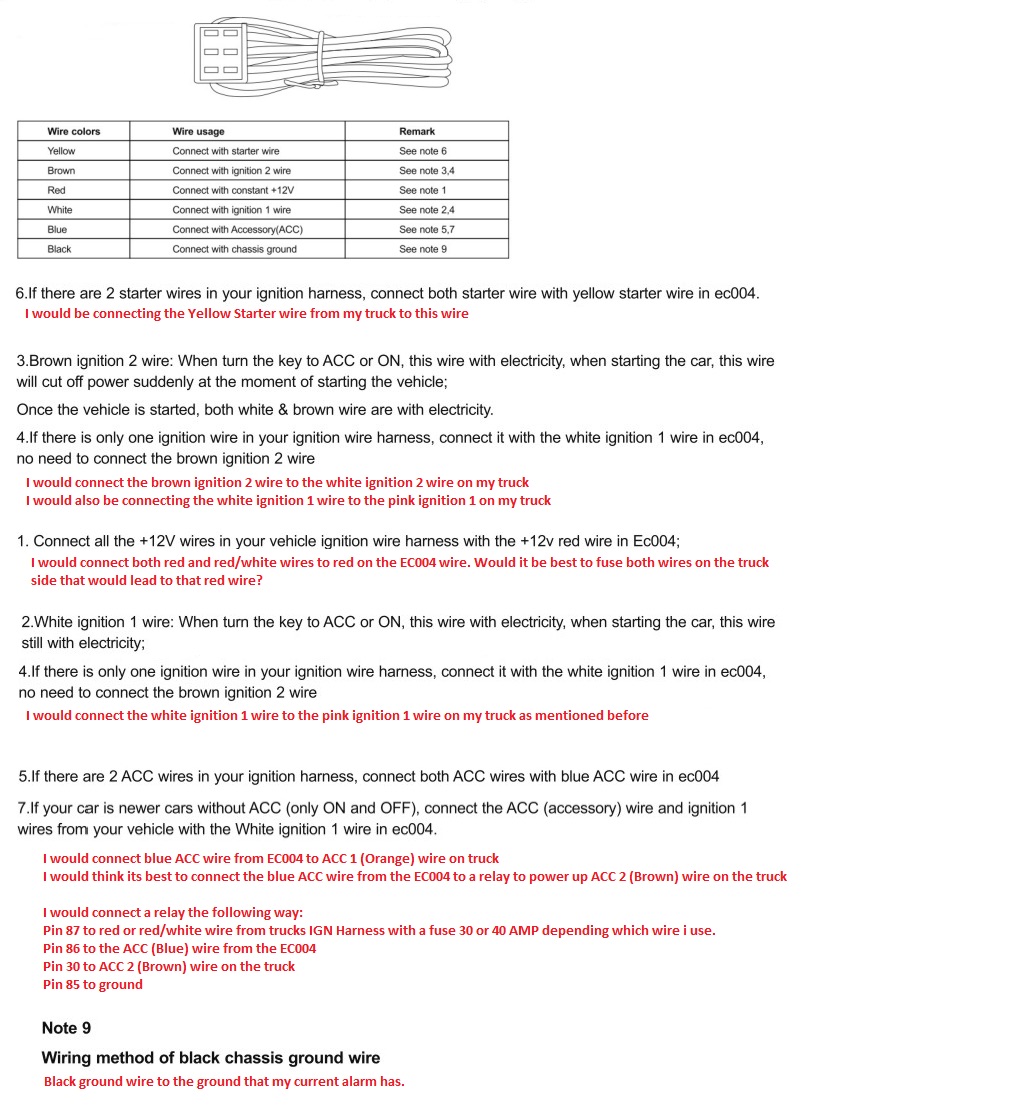

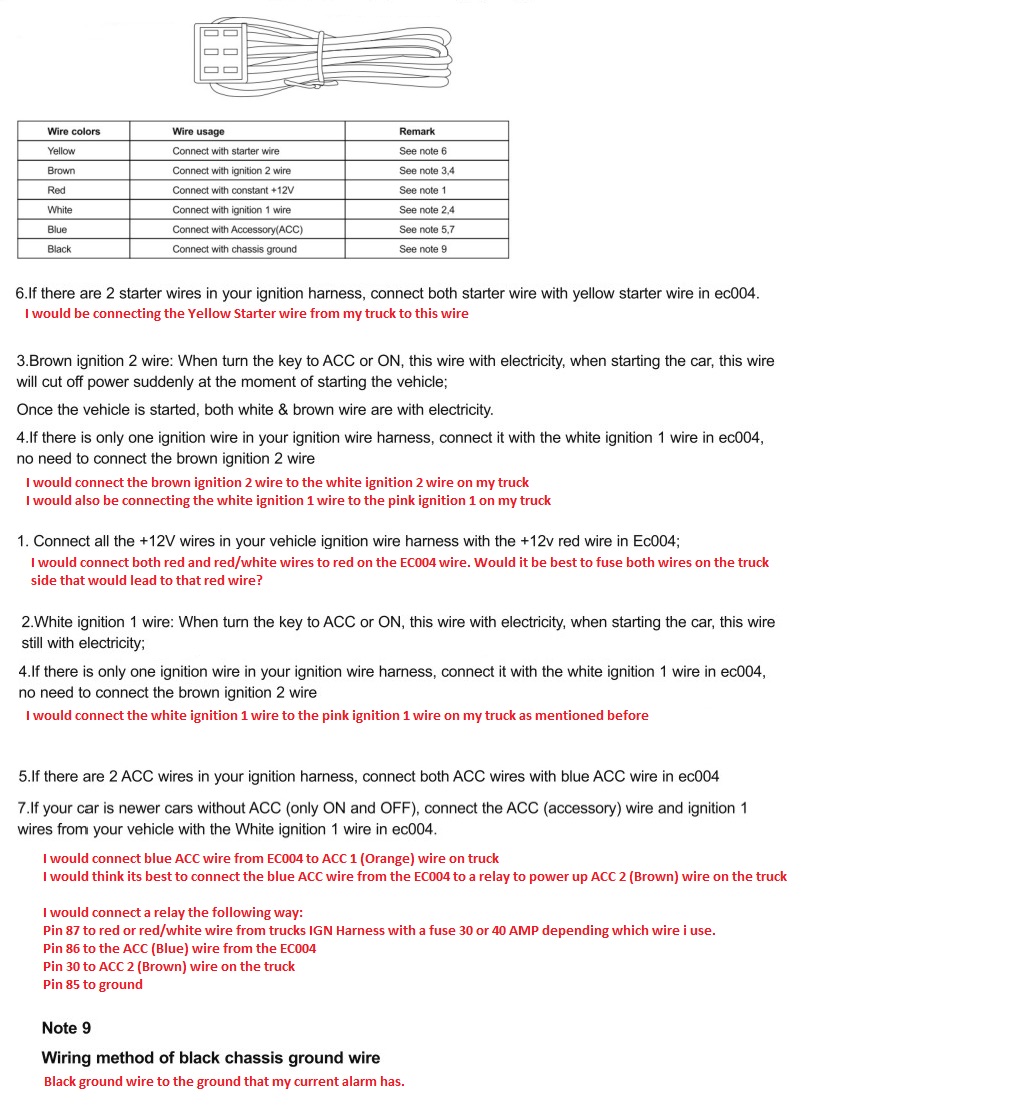

Did you wire up a relay and tap off the ACC output of your push to start kit to energize the second ACC (brown) wire in your truck?


shreksbrother

Full Access Member
Joined
May 9, 2017
Posts
324
Reaction score
290
Location
Auburn Hills, MI
Did you wire up a relay and tap off the ACC output of your push to start kit to energize the second ACC (brown) wire in your truck?
That's exactly what I did.

My next challenge is that the dome lights no longer come on when I unlock the doors or open a door.


Sent from my iPhone using Tapatalk

OP
OP
Blackie

Blackie

Member
Joined
Mar 28, 2011
Posts
69
Reaction score
93
Location
SoCal
That's exactly what I did.

My next challenge is that the dome lights no longer come on when I unlock the doors or open a door.


Sent from my iPhone using Tapatalk

If your bypass module is connected to the data wire at your OBD connector, the dome light on/off should be controlled by the bypass. I'd check there first.


shreksbrother

Full Access Member
Joined
May 9, 2017
Posts
324
Reaction score
290
Location
Auburn Hills, MI
If your bypass module is connected to the data wire at your OBD connector, the dome light on/off should be controlled by the bypass. I'd check there first.

Well you're right that there is a separate control for the dome light. Unfortunately, after a call to the Fortin tech support, they do not support this feature. How ridiculous. The Easyguard does not have a wire for dome light supervision, so I'm not sure what to do at this point.

So the next challenge... How to re-enable the dome light :-(
