Power steering fluid leak

Discussion in 'Engine & Drivetrain' started by Alan Griffin, Nov 1, 2018.

  1. Alan Griffin

    Alan Griffin TYF Newbie

    Posts:
    4
    Likes Received:
    0
    Joined:
    Aug 23, 2018
    Name:
    Alan
    Hello all.

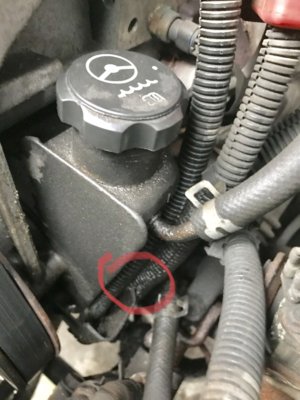

    I’ve been leaking power steering for about three weeks now and trying to diagnose the problem. I did notice a hole in a line and hoping this is the issue. I took pictures of the line. Can anyone provide insight as to what this is?


  2. 07_Tahoe

    07_Tahoe TYF Newbie

    Posts:
    11
    Likes Received:
    14
    Joined:
    Jun 24, 2018
    Name:
    Drew
    Looks to be a high pressure hose

  3. mattbta

    mattbta Full Access Member

    Posts:
    200
    Likes Received:
    91
    Joined:
    Jun 19, 2012
    Name:
    Matt
    The circled area looks to overlap two wire looms. The part with the clamp on it is hose though.

  4. Tonyrodz

    Tonyrodz Full Access Member

    Posts:
    10,589
    Likes Received:
    9,030
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    Are those the lines that go to the pwr steering cooler?

  5. Alan Griffin

    Alan Griffin TYF Newbie

    Posts:
    4
    Likes Received:
    0
    Joined:
    Aug 23, 2018
    Name:
    Alan
    Does anyone from experience know where the leak maybe coming from? Cost to replace?

  6. SnowDrifter

    SnowDrifter Full Access Member

    Posts:
    634
    Likes Received:
    263
    Joined:
    Sep 5, 2016
    Location:
    Wa
    Name:
    Chris
    Clean the shmoo off, drive it for a few days, then look again.

    Leaks can come from any soft part or something with a gasket/seal.

    Really can't help you any more than that. I can't tell where the leak is coming from in the pic as everything is coated in a film

  7. msandli

    msandli TYF Newbie

    Age:
    34
    Posts:
    26
    Likes Received:
    0
    Joined:
    Jan 30, 2015
    Name:
    Matthew
    I am dealing with this same issue. I believe the lower line with the hose clamp is the high pressure feed to the steering box. If you grab it and try to move it, it should actually be a rigid line. That hose clamp might be lose, or the fitting at the reservoir might be loose. You might also be leaking at the pulley. I suppose there's also the small chance that you're leaking at the return line (the line in the upper right part of your picture), or the seal where the pump mates with the reservoir. As you've discovered, it's hard to pinpoint it because there are so many possible places for a leak in such a small area. I'm no expert, but my guesses are a leaking high pressure fitting, or a leaking pulley (simply based on mechanical arguments). IDK if you can pour some UV dye in the reservoir and then shine a black light under your hood to help; I know they do that for AC leaks.

    Also, I've seen replacement videos as I'm thinking of replacing this myself. The job doesn't look too hard - if you can change oil, do breaks, etc., you can replace the pump. However, it just kinda looks like a pain in the ass, because there's a bunch of stuff you have to move to get to it. And then you have to consider the "while I'm in here" jobs, esp the water pump. I don't know where you live, but I figure that tripling your parts cost is a decent estimate for a shop to to the p/s pump ($150 pump = $450 shop job).

  8. eohat

    eohat Black Belt in Procrastination

    Posts:
    110
    Likes Received:
    115
    Joined:
    Nov 14, 2016
    Name:
    Mike
    I just replaced my power steering pump so I'll try to help you out. As others mentioned, you’ll want to degrease the area so that you can see where the leak is, and be able to determine if your fix is successful. After degreasing, remove the power steering pump cap and inspect the gasket under the cap rim, as they tend to harden with age and leak. Check the fluid level to make sure it’s in the correct range.

    Depending on what options you have, there are different power steering pumps. Your pump appears to be set up for hydroboost. Just above and to the right of your red circle is the hose clamp on the end of the hydroboost return line (item 2 next to the pump in the diagram below). I would recommend replacing that factory clamp with a new worm-drive hose clamp. If it still leaks there you may have to replace the rubber return hose. Check any other hose clamp connections to see if they’re leaking, such as the item 7 clamps. As msandli mentioned, check the lower hose connections too. If you do replace the pump you’ll need to buy/rent a power steering puller to remove/install the pulley.


    Here’s a pic of the pump I installed recently. I don’t have hydroboost, so there’s no hydroboost return line on the side of the pump reservoir. I had a twitchy steering wheel on the highway so I did an EVO-delete. I have to admit that replacing the pump wasn’t much fun.
