Escalade Mirror Upgrade Question

[Miami-Dade]

Excellent work!!



[swathdiver]

Thanks for posting this!



[RST Dana]

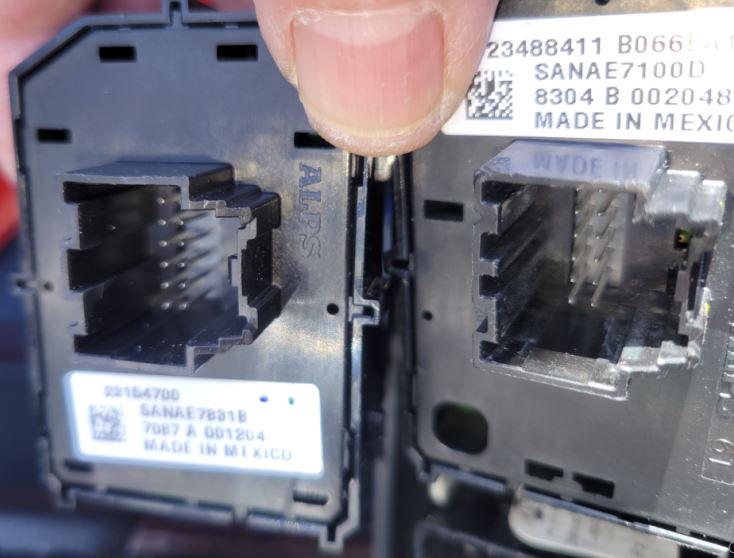

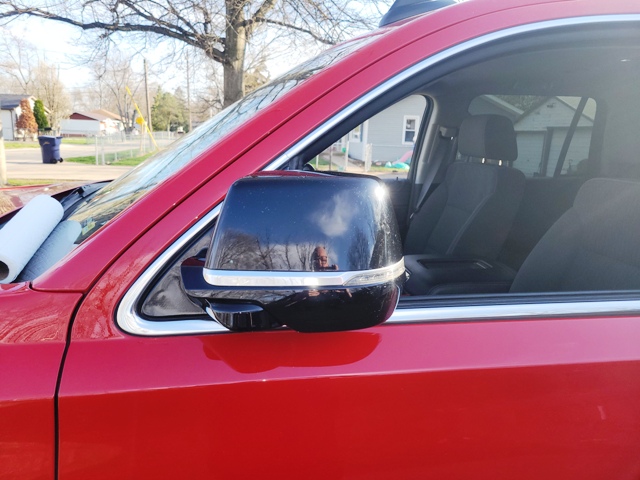

I'm happy to report the DL3 switch: 84643953 I received today worked. My 2017 Yukon SLE DL8 was entirely Plug-N-Play for a DL3 Escalade Mirror Swap. No harness modification was necessary.

View attachment 396534

Sweet. I like this mod. Easy and well worth it.



[Art Contoni]

I do want to give out a special shout out to @cmatt for his help!



[cmatt]

Thanks Art. Glad you got it working.



[Bandit-66]

Bei den Spiegel- und Fensterschaltern hängt es davon ab, ob das Fahrzeug über die Fahrersitz-Memory-Funktion verfügt. Wenn ja, müssen sowohl der Spiegel als auch der Beifahrerfensterschalter ausgetauscht werden. Dies liegt daran, wie die Komponenten miteinander kommunizieren. GM hat einen Datenstromkreis verlegt, der den Beifahrerspiegel über einen bestimmten Fensterschalter anweist, sich anzuklappen. Wenn Sie nur den Spiegelschalter austauschen würden, würde nur der Fahrerspiegel einklappen.

Hallo Matt, ich habe neue Spiegel von TYC eingebaut und jetzt klappt der rechte Spiegel nicht ein, da ich nur den Schalter für die Spiegelsteuerung ausgetauscht habe, welchen Schalter brauche ich für die rechte Seite, hast du da eine Teilenummer?

Danke Dierk



[cmatt]

Hi Matt, I installed new mirrors from TYC and now the right hand mirror won't fold as I just replaced the switch for the mirror control, which switch do I need for the right hand side, do you have a part number?

Hi Dierk, the switches needed for the mirror fold function depend on whether your vehicle has the driver seat memory feature. I suspect yours does as only the right hand mirror won't fold.

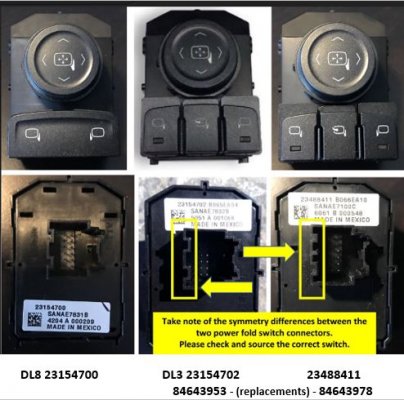

For vehicles with seat memory:

84643978 mirror switch
23488406 passenger window switch

For vehicle without seat memory:

84643953 mirror switch



[Bandit-66]

Hallo Matt, ich habe neue Spiegel von TYC eingebaut und jetzt lässt sich der rechte Spiegel nicht einklappen, da ich gerade den Schalter für die Spiegelsteuerung ausgetauscht habe. Welchen Schalter benötige ich für die rechte Seite? Haben Sie eine Teilenummer?

Hallo Dierk, welche Schalter für die Spiegelanklappfunktion benötigt werden, hängt davon ab, ob Ihr Fahrzeug über die Fahrersitz-Memory-Funktion verfügt. Ich vermute, dass dies bei Ihnen der Fall ist, da sich nur der rechte Spiegel nicht einklappen lässt.

Für Fahrzeuge mit Sitzspeicher :

84643978 Spiegelschalter
23488406 Beifahrerfensterschalter

Für Fahrzeuge ohne Sitzspeicher :

84643953 Spiegelschalter

Vielen Dank für eure Hilfe, habe den 84643978 Spiegelschalter schom verbaut und diesen

More Information for STANDARD MOTOR PRODUCTS DWS1813

Jetzt bestellt, da ich es mit Memory Funtion habe



[cmatt]

That should work. The Rock Auto site shows that passenger mirror switch to interchange with 23488406. Let us know if that solves your issue once you have it installed.



[Bandit-66]

Moin, here's a quick feedback after the switch swap on the passenger side. It worked wonderfully, now both mirrors work, when folding in and out.

Thanks for your help

Now I still have a problem, because I want to use the other functions of the mirrors, such as turn signals and lower lights on the mirrors.

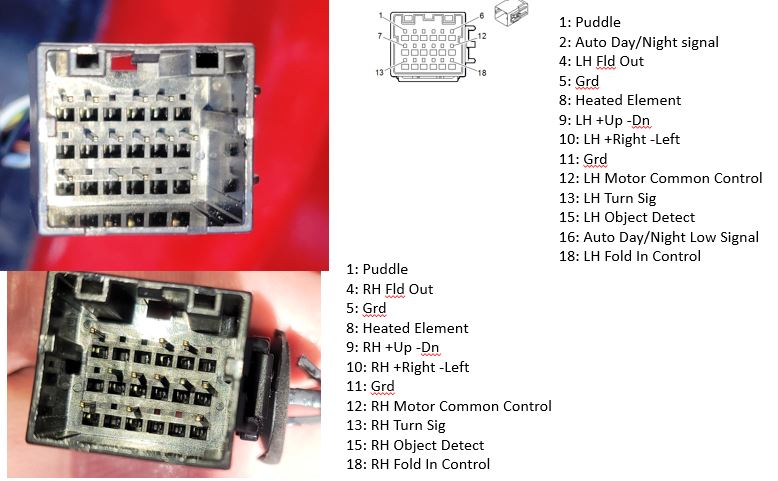

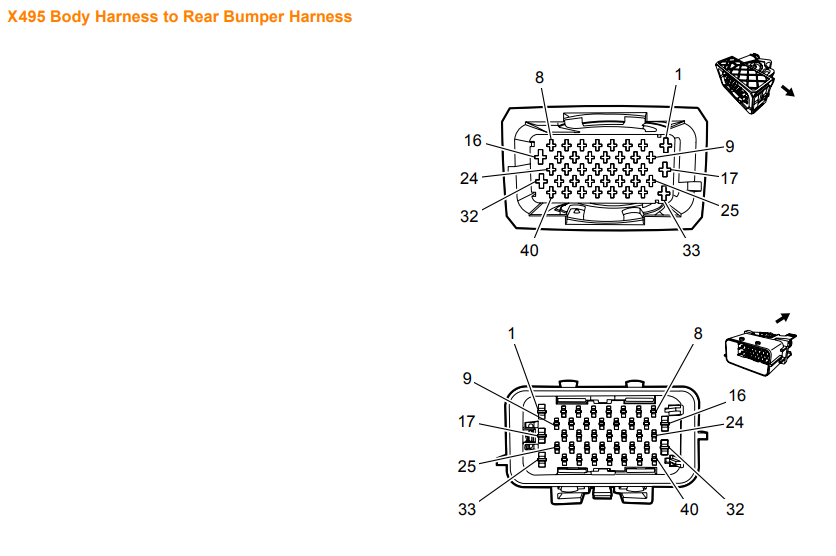

Now I have looked at the wiring diagrams and a few videos and there are four wires missing on each side from the connector of the connection door / body to the connector to the mirrors.

X500 Driver Door Harness to Body Harness

and

X510 OSRVM-Kabelbaum zum Fahrertür-Kabelbaum

now I need for this the pins for these connectors to crimp themselves in male and female
Can someone help me to find the designations for these pins, because I'm not successful here right now.

Thanks for your help and have a nice weekend



[cmatt]

Hi Dierk. I also build a harness that will add those circuits and enable the puddle lamps, turn signals and driver auto dim features. If you'd like to order, send me an email to [email protected]. Thanks.



[JLNwebb0922]

Hi Dierk. I also build a harness that will add those circuits and enable the puddle lamps, turn signals and driver auto dim features. If you'd like to order, send me an email to [email protected]. Thanks.

Thanks for your contributions! Today, I finally installed the brand new Escalade mirrors for my Tahoe (w/ driver seat memory). And I've noticed that all functions work except for the puddle lamps. For context, my stock factory mirrors had puddle lamps, and worked perfectly. Does you harness address the issue of only the puddle lamps not working?



[K2 Kaiju]

Thanks for your contributions! Today, I finally installed the brand new Escalade mirrors for my Tahoe (w/ driver seat memory). And I've noticed that all functions work except for the puddle lamps. For context, my stock factory mirrors had puddle lamps, and worked perfectly. Does you harness address the issue of only the puddle lamps not working?

Are you sure your new mirrors actually have puddle lamps? Some do not, but will fold, have blind spot, and turn signal....



[JLNwebb0922]

Are you sure your new mirrors actually have puddle lamps? Some do not, but will fold, have blind spot, and turn signal....

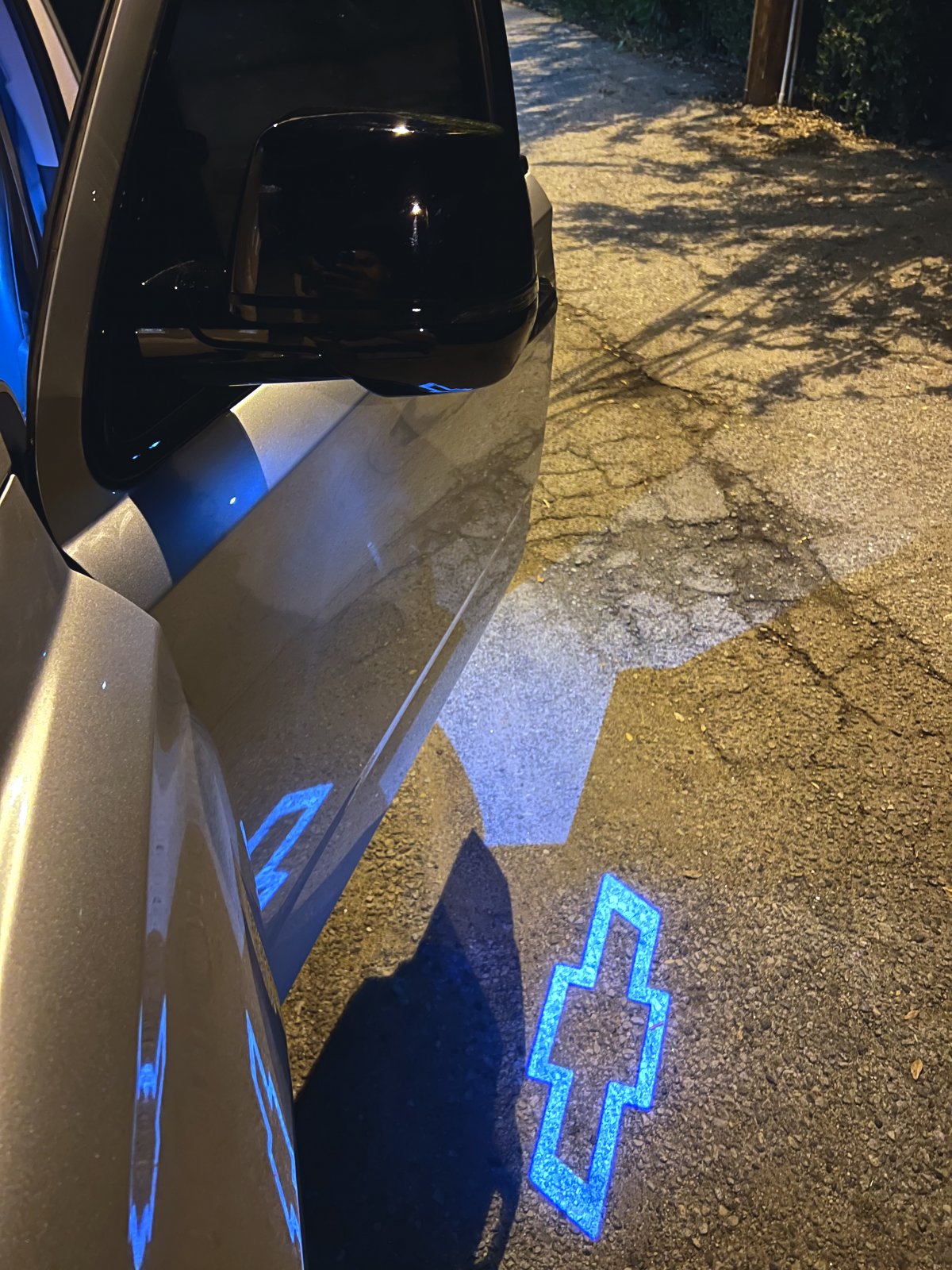

Update: I tried the puddle lights again tonight, and the lights are now working. I’m guessing the lights were just too dim to notice in daylight. But I swapped the standard puddle lights for the OEM Chevy bowtie LEDs. Pleased with the final product. Now debating integrating the cameras…



[RST Dana]

Thanks for your contributions! Today, I finally installed the brand new Escalade mirrors for my Tahoe (w/ driver seat memory). And I've noticed that all functions work except for the puddle lamps. For context, my stock factory mirrors had puddle lamps, and worked perfectly. Does you harness address the issue of only the puddle lamps not working?

If your existing mirrors had puddle lamps, the eskys should work if all your connections are solid AND your eskys have puddle lamps. I’ve seen a variety of options for the eskys. Some with/without puddle, blind spot or heat.



[Vipverbob]

Update: I tried the puddle lights again tonight, and the lights are now working. I’m guessing the lights were just too dim to notice in daylight. But I swapped the standard puddle lights for the OEM Chevy bowtie LEDs. Pleased with the final product. Now debating integrating the cameras…View attachment 407241

Do you have the part numbers for the mirrors you ordered? Thanks



[JLNwebb0922]

Do you have the part numbers for the mirrors you ordered? Thanks

GM

84664799​	F Mirror​	$369.72​	1​	$369.72​
84664800	Driver Side Door Mirror without Cove	$398.41	1	$398.41



[Vipverbob]

Thanks. I however had ordered a set of used ones on Tuesday before your post. Plus with the strike, I doubted I would get them. They are already installed and AWESOME!!!! 1000% better. Thanks though to document the number for future.



[Loki223]

Does anyone have the part # for the bow tie puddle lights? that ones i'm finding on one site say they fit everything 2015+ and other with the same part claim only the newer stuff, knowing GM i'd wager they are the same throughout from 15+ but curious if anyone has the correct verified P/N for me to go off of



[Nutro]

I have a 2020 PPV Tahoe. I wonder if the Escalade features will work on it? I really just want the turn signals and puddle lights or turn signals and power fold.
