Write up: Installing Coilovers on 2007-2014 Suburban/Tahoe/Yukon/XL/Avalanche/Escalade/ESV

Discussion in 'Tech Info' started by 07Burb, Feb 23, 2019.

  1. 07Burb

    07Burb GM fan for life Staff Member Administrator Supporting Member

    Posts:
    41,256
    Likes Received:
    5,145
    Joined:
    Jan 3, 2011
    Name:
    Jacob
    Kit from:
    Atomic Fabrication and Performance
    [email protected]
    Richard Wayne
    @Atomic

    Awesome customer service and always willing to answer questions. He can put together a kit specific for your needs. I would recommend him to anyone.

    This is a write up for installing coilovers on your full size GM SUV in your garage. On a scale of 1-10 (10 being most difficult) I’d give this a 5 or so and can be completed with your basic tools. Before starting this job I’d assemble the coilovers first just to give you one less thing to do during this process.


    I found this vid helpful


    You may notice in the pics that I have my brakes and hub off but you don’t need to do that just for the coilover install. I was doing that project at the same time as this so that’s why all that stuff is removed.
    1. Jack the vehicle up on one side. Make sure you support the vehicle with a jack stand. I also always keep the jack underneath there, too, just in case the jack stand fails.
    2. Remove the wheel and set it to the side

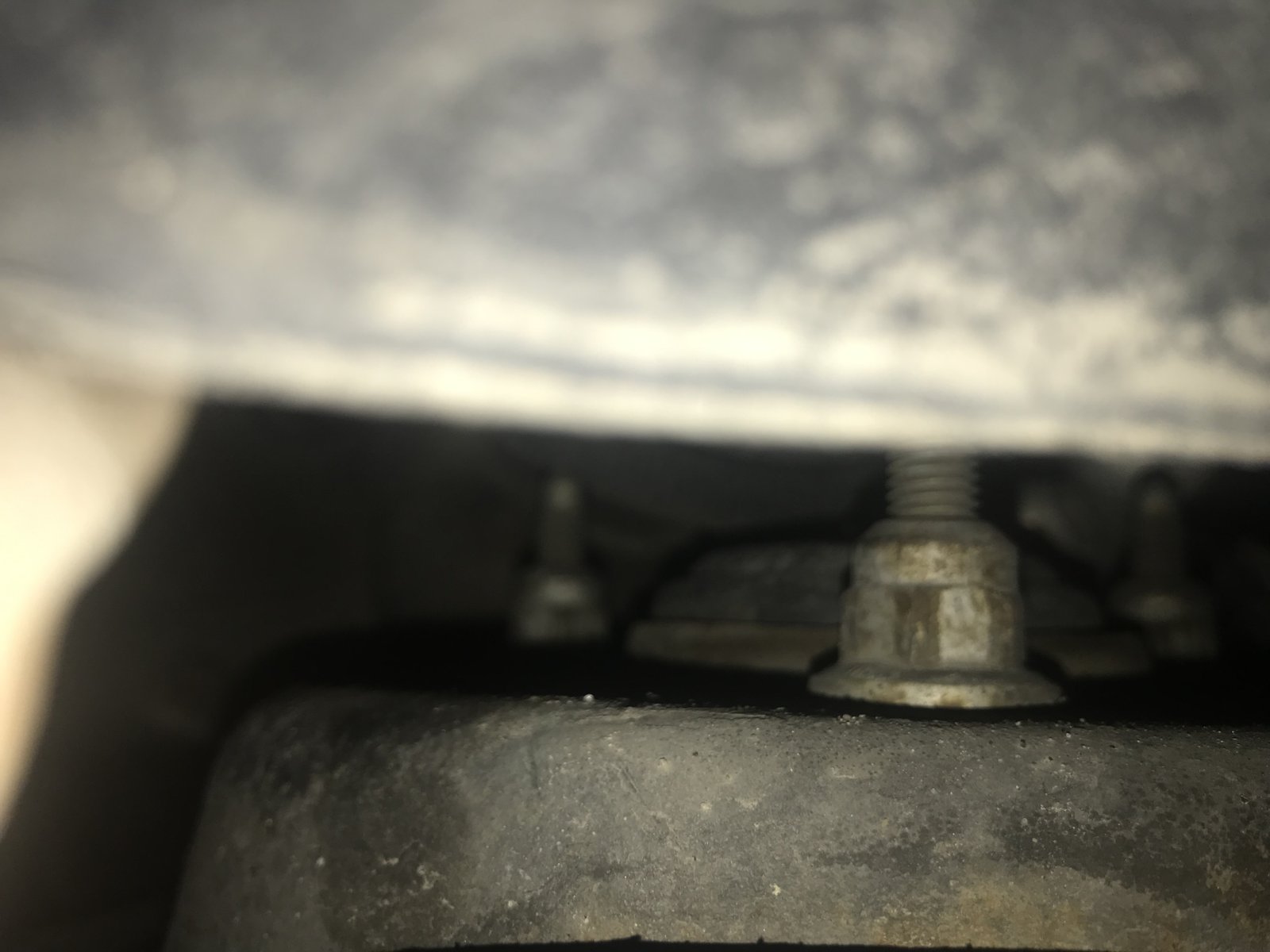

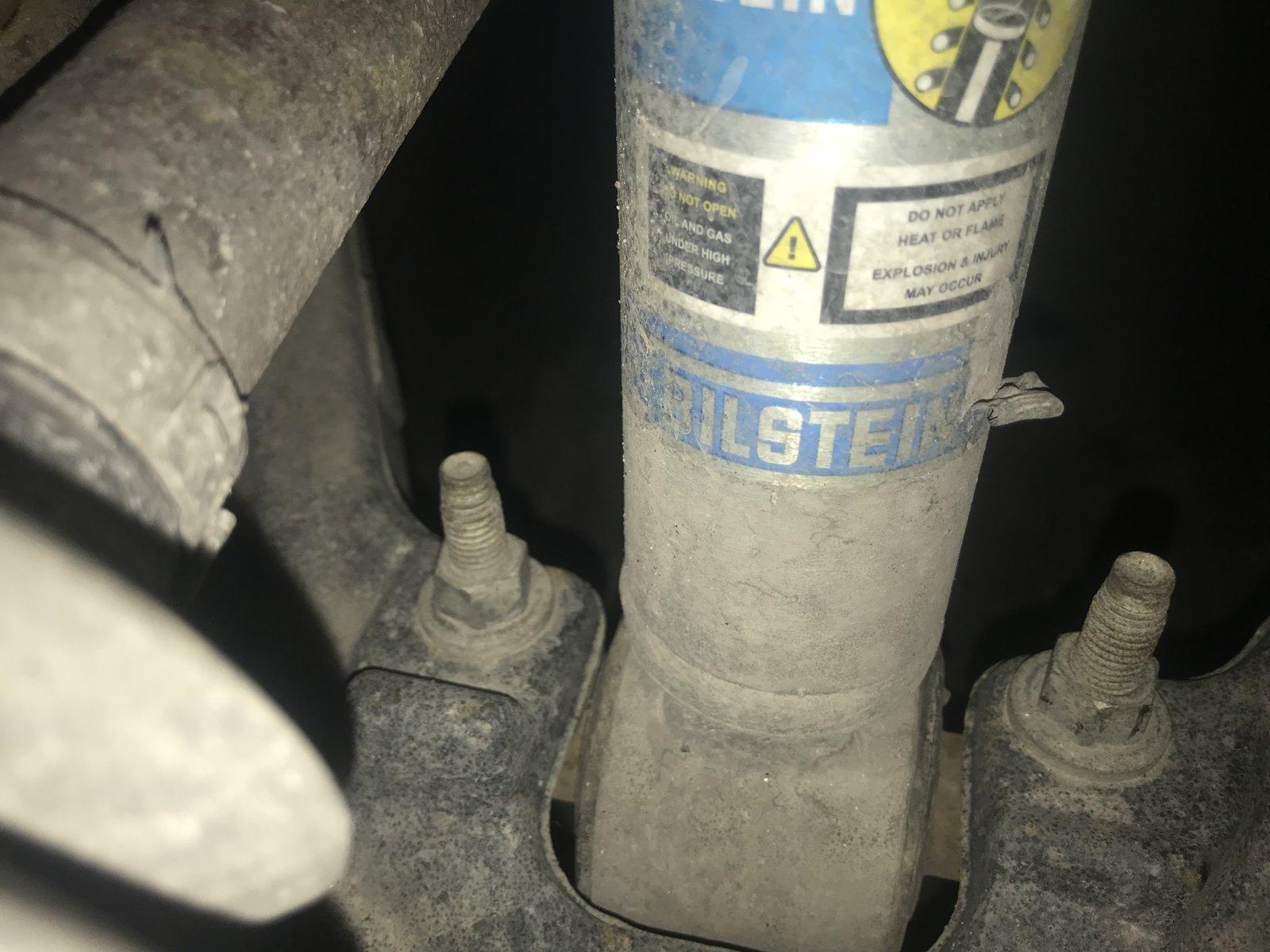

    3. There is a total of 5 nuts to remove to get the old strut assembly out. 2 on the bottom (15mm) and 3 on top (18mm). Remove those. For the top, it might be easier to remove the fender liner but I didn’t because I look for ways to introduce frustration into my life.
    195D8116-BBA7-40A5-9E07-097B932F8210.jpeg 0341E512-2C4B-488B-A564-A6B720E57B27.jpeg 4. Once all 5 nuts are out the assembly will fall. You’ll need to pull it out through the upper control arm

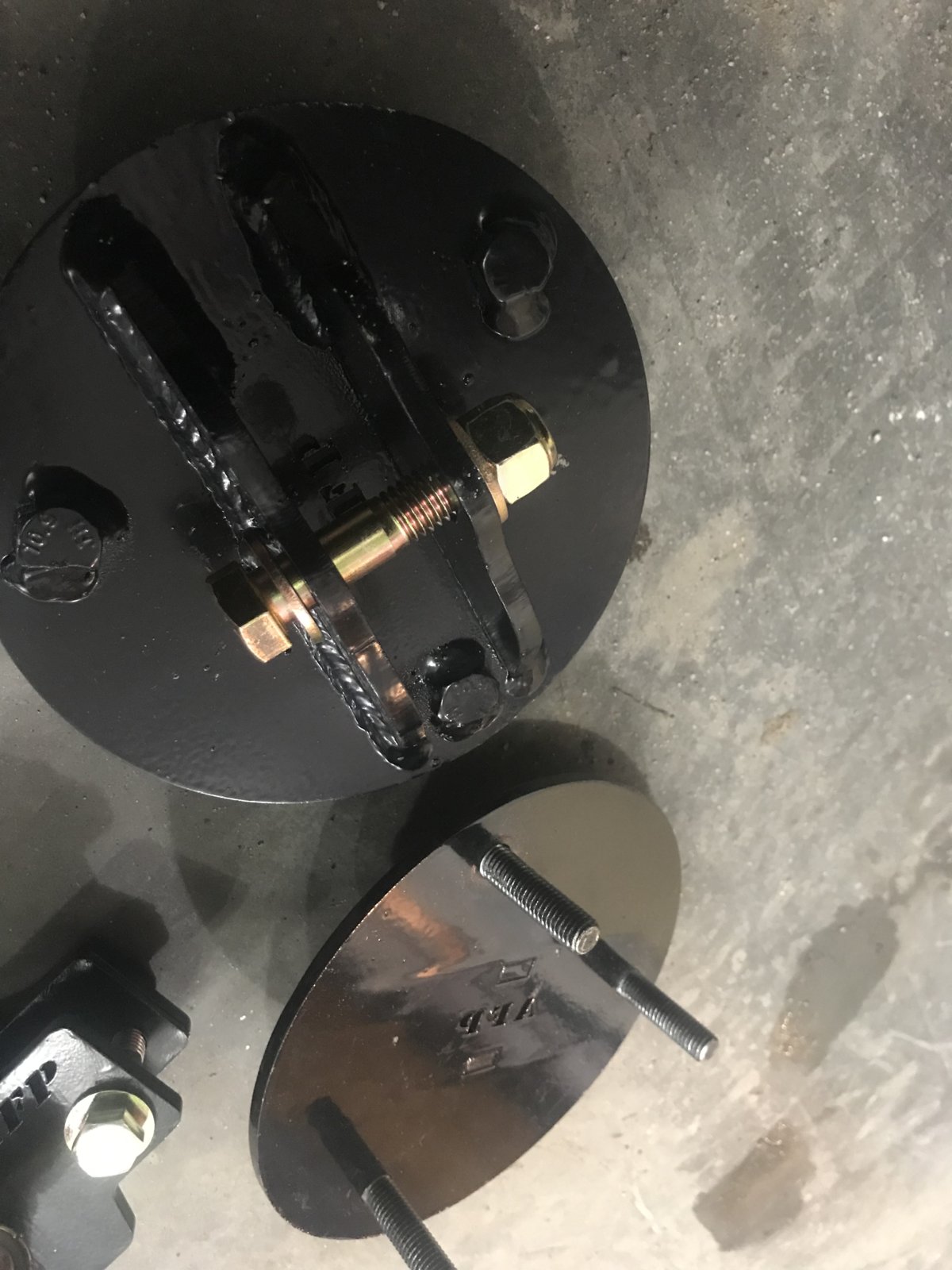

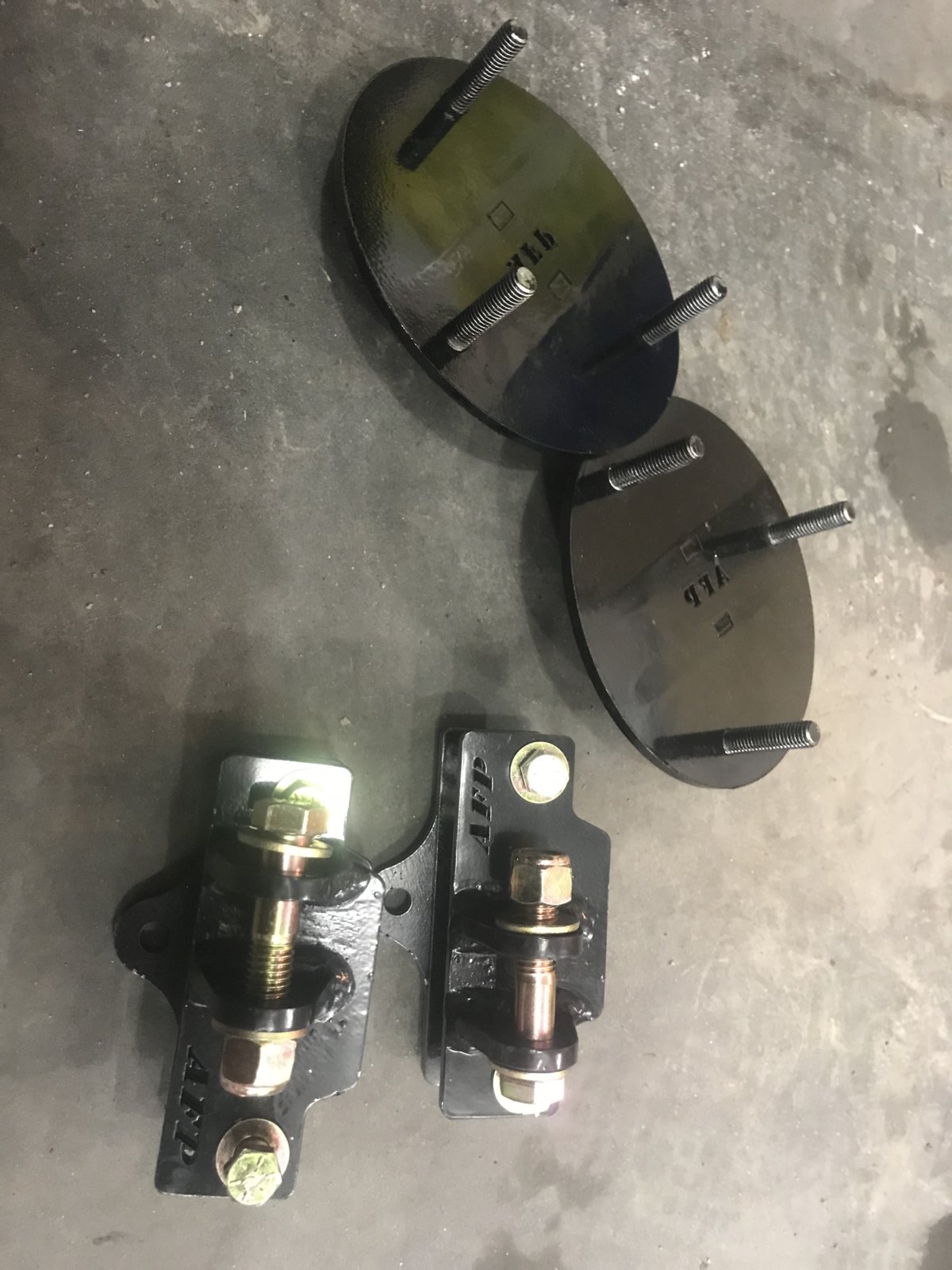

    5. Start by installing the new brackets. The kit I got came with new upper and lower brackets. The uppers are both the same but the lowers are side specific so pay attention and it should be pretty obvious which one fits which side. If I was going to make any suggestions for improving this kit it’d be to label those lower brackets to make it even more “dummy proof” but it wasn’t too big of a deal.

    C5C51376-C397-4CF3-B754-3C43D1362D8F.jpeg DDCDEC3C-B424-4746-A0F1-C686C45B319C.jpeg B4934AAF-36F3-4AD4-9F5B-0DBDB951D923.jpeg

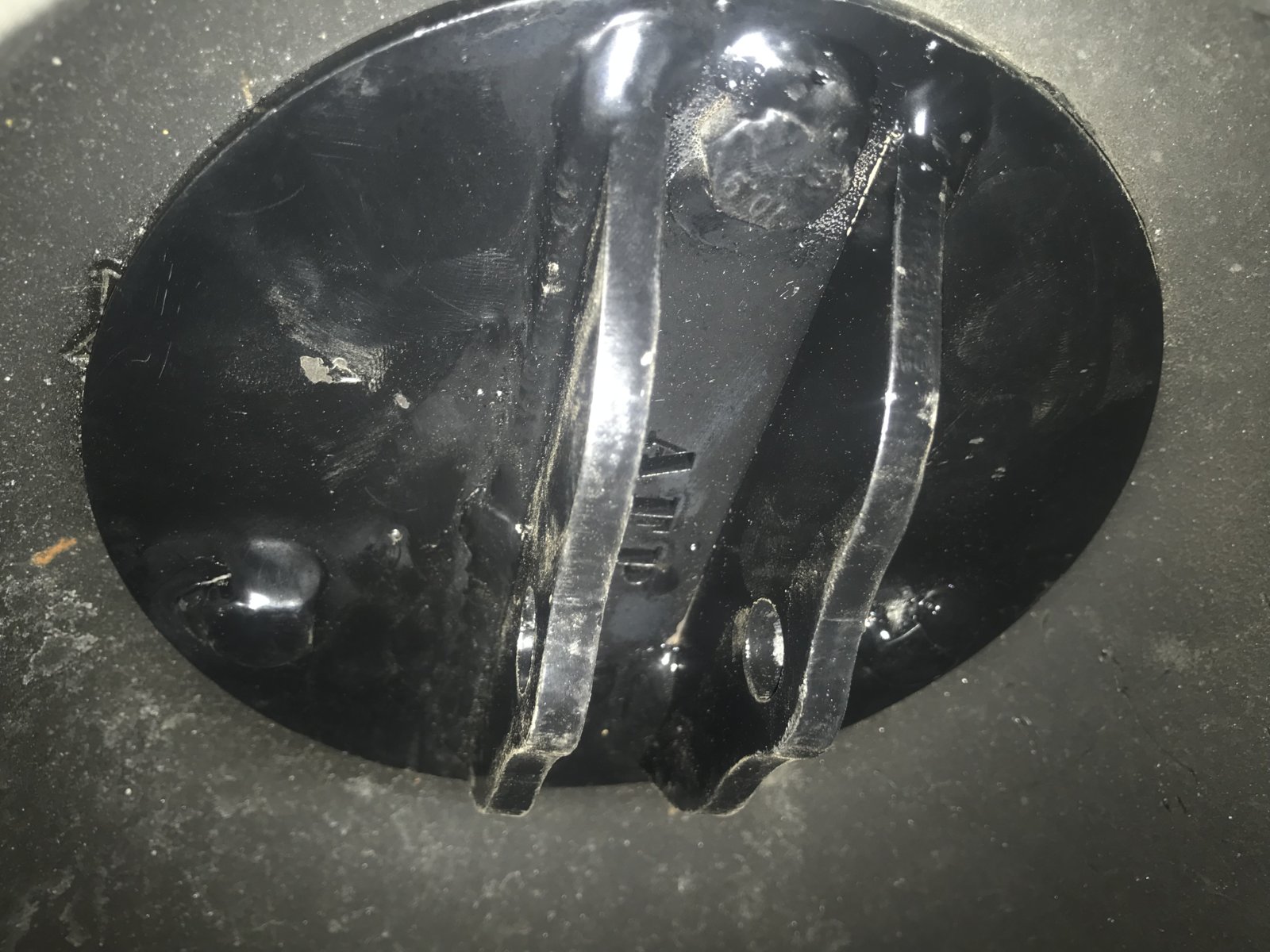

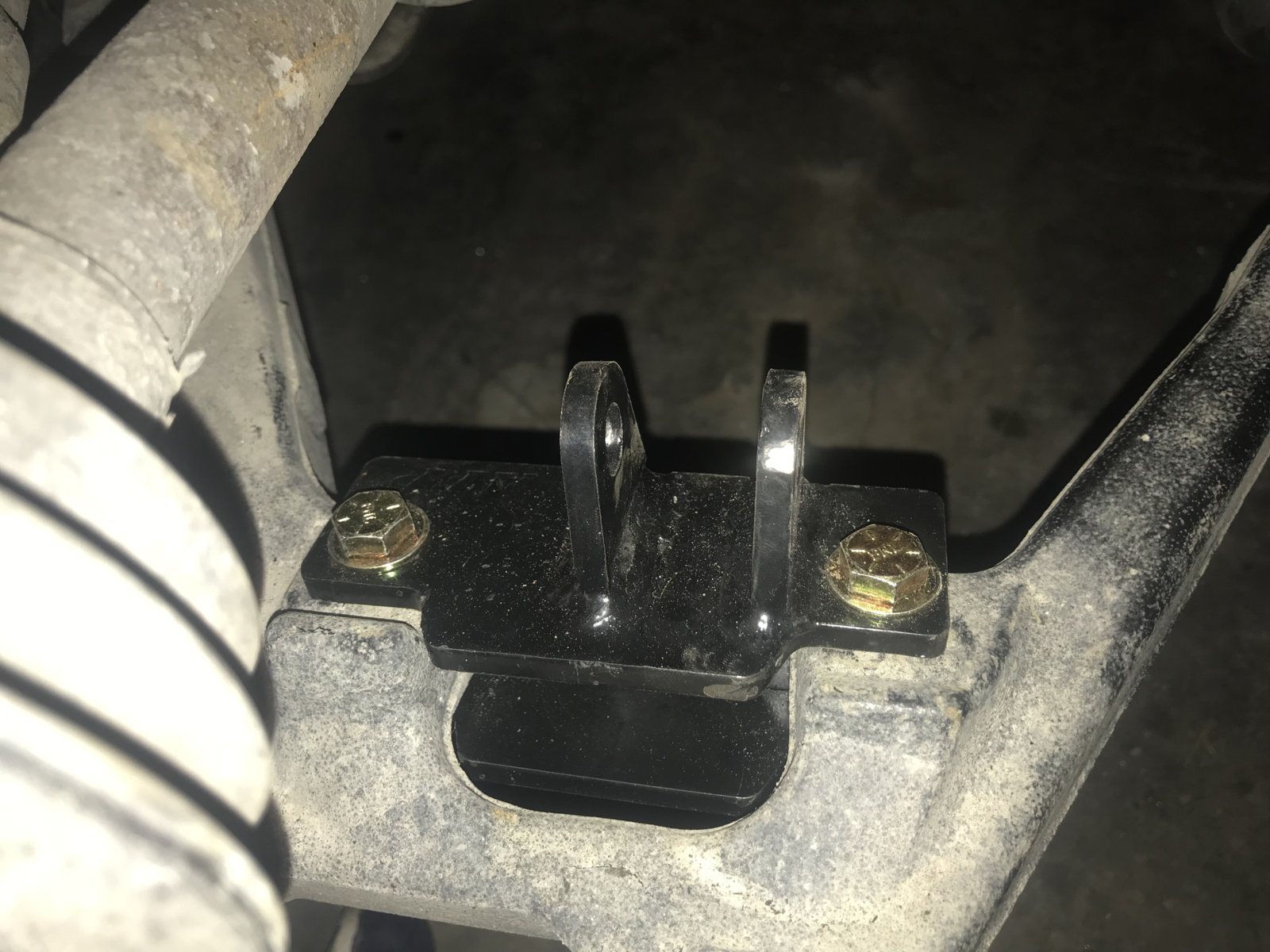

    6. The upper brackets go into the factory holes using the factory 18mm nuts. The lower brackets use the hardware pictured. You’ll need a 15mm socket
    A68A14B4-EFB1-4110-B8AC-21E1F246EE02.jpeg C5D464E5-0FE8-4FEB-B464-AAF34E0135EE.jpeg

    7. Remove the hardware that will hold in the coilovers. You’ll need a couple 3/4” sockets for those. Install the coilover with those bolts.

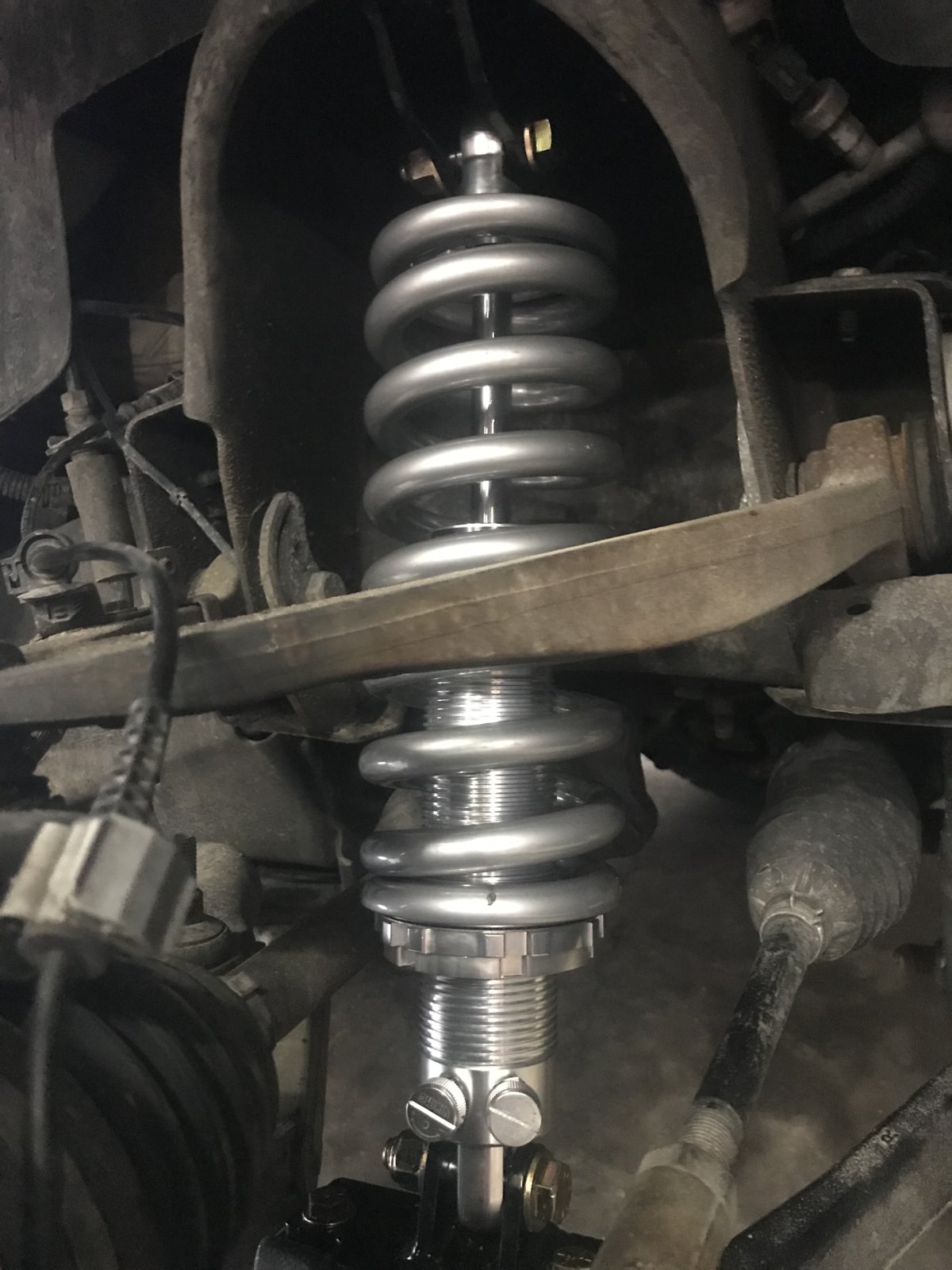

    8. Once the coilover is in place you’ll want to adjust the ride height with the spring nut that is directly below the spring. Below that is a lock nut that tightens everything up once it’s all adjusted. You’ll have to play around with it so be prepared to raise and lower the vehicle a few times til you get it adjusted perfect

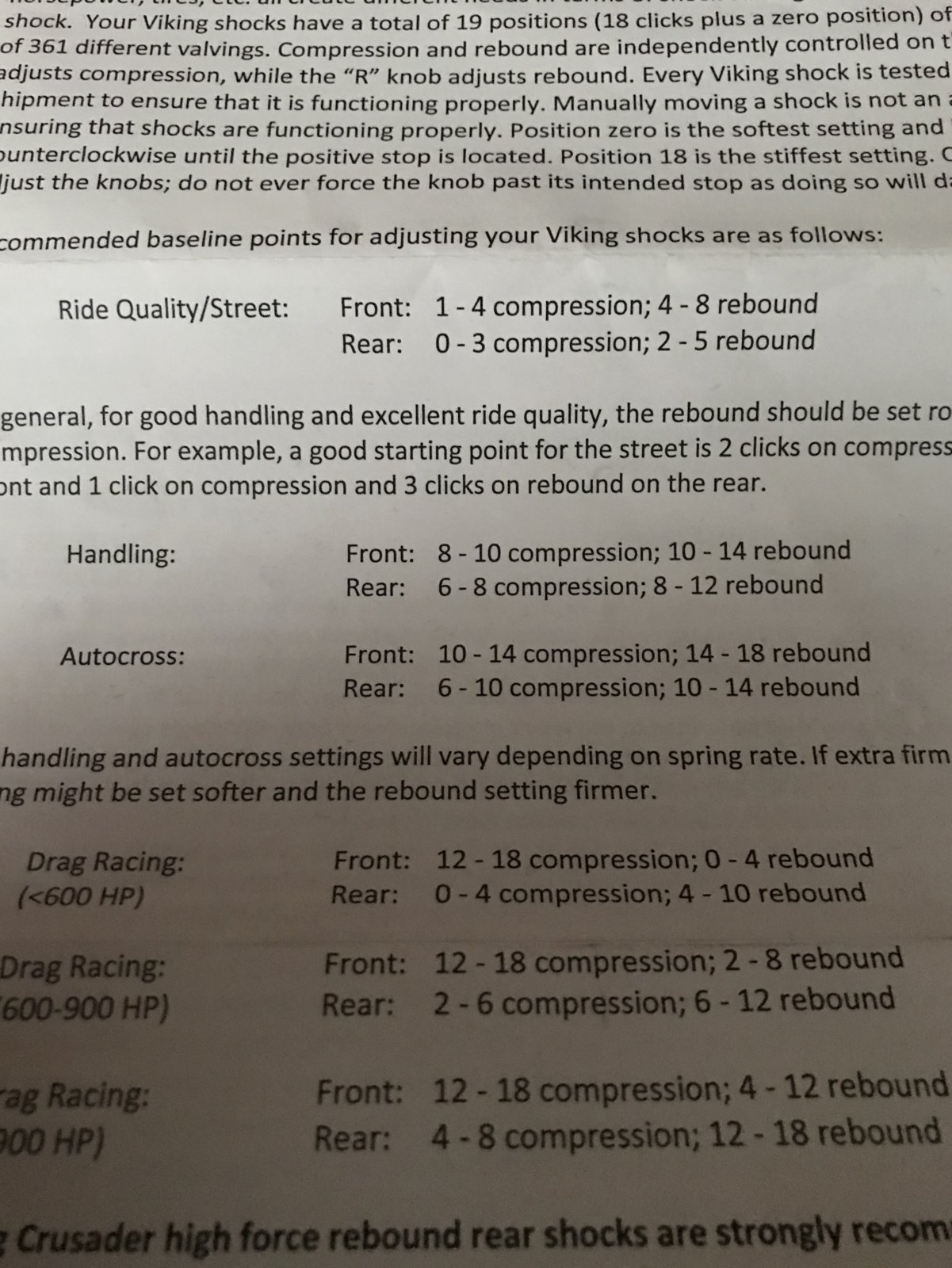

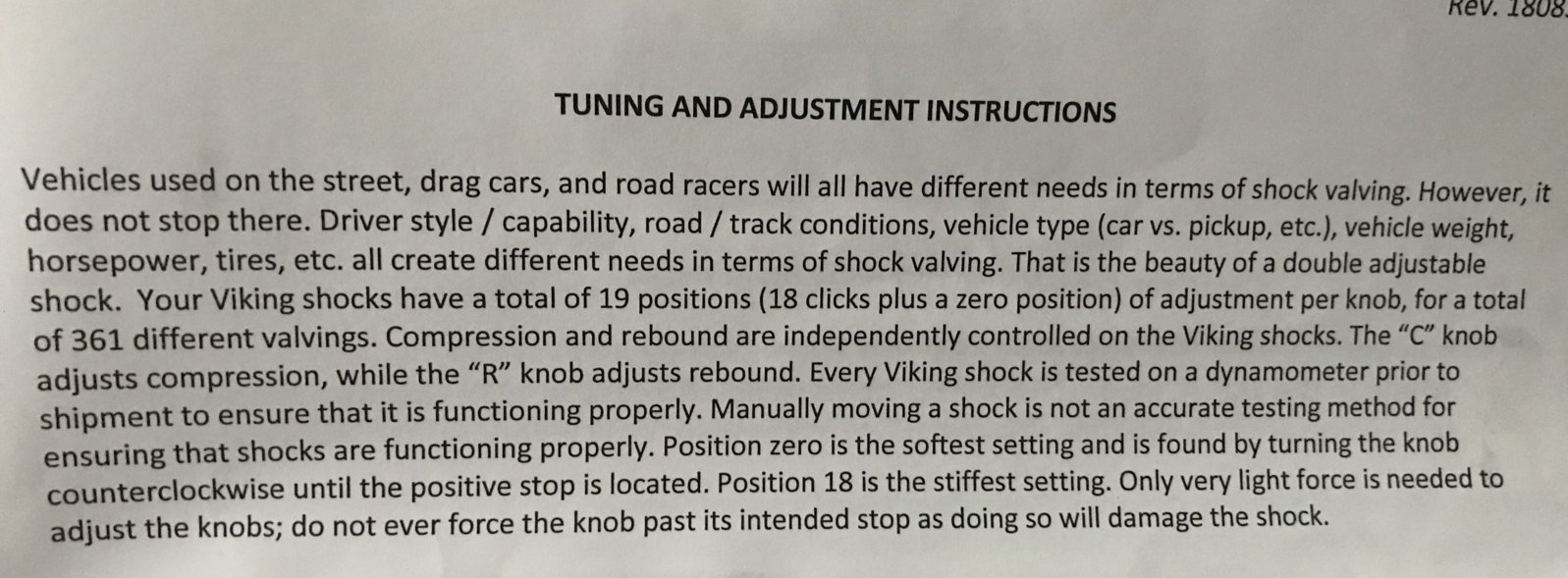

    9. These Viking coilovers are double adjustable so you can adjust compression and rebound. See the pic before for what comes with the instructions. You can make these ride anyway you want the to ride.

    Last edited by a moderator: Feb 23, 2019
    08HoeCD, 89Suburban, Galante and 5 others like this.
  2. NathanJax

    NathanJax Vacation Nathan Staff Member Administrator Supporting Member

    Posts:
    40,147
    Likes Received:
    43,574,836
    Joined:
    May 9, 2009
    Location:
    Jax, Fl
    Name:
    Nathan
    Good write up newbie!!!

  3. LanceD

    LanceD Full Access Member

    Posts:
    319
    Likes Received:
    283
    Joined:
    Jan 16, 2018
    Location:
    Abq
    Name:
    Lance
    How's the ride?

    How much adjustability do they give you from stock height?

    89Suburban likes this.
  4. 07Burb

    07Burb GM fan for life Staff Member Administrator Supporting Member

    Posts:
    41,256
    Likes Received:
    5,145
    Joined:
    Jan 3, 2011
    Name:
    Jacob
    The ride is great!

    Adjustability is substantial. just with the coilover you can go up or down at least a couple of inches.

    08HoeCD and 89Suburban like this.
  5. 89Suburban

    89Suburban Full Access Member

    Age:
    45
    Posts:
    369
    Likes Received:
    367
    Joined:
    Jan 10, 2013
    Location:
    SE PA
    Name:
    Paw Paw
    He doesn't know. His job shipped his ass down to Texas and now his wifey is at home tearing up the town with it and enjoying it. :lol::laughing1::happy175::gathering:

    LanceD and HiHoeSilver like this.
  6. Fosscore

    Fosscore Full Access Member

    Posts:
    7,865
    Likes Received:
    9,282
    Joined:
    Apr 16, 2014
    Location:
    SE Florida
    Name:
    Michael
    Great tech write up for future reference.

    89Suburban and 07Burb like this.
  7. 08HoeCD

    08HoeCD Resto-mod aficionado

    Posts:
    1,876
    Likes Received:
    1,691
    Joined:
    May 6, 2016
    Name:
    DJ
    The only downside to a setup like this, for an OCD head case like me, is that I’d want to tweak the compression/rebound settings after every single drive. :confused:

    kbuskill likes this.
  8. kbuskill

    kbuskill ***CAUTION*** I do my own stunts!

    Posts:
    2,657
    Likes Received:
    2,934
    Joined:
    Mar 11, 2017
    Location:
    NE. FL.
    Name:
    Ken
    This ^^^ is what worries me about getting my new Rancho 9 way adjustable struts put on the Burb...

    Not nearly as adjustable as what Jacob has going on but still enough to keep me guessing... lol
