Window Tint % with pics

Discussion in 'Exterior' started by Awfiretto, Sep 14, 2018.

  1. Awfiretto

    Awfiretto TYF Newbie

    Posts:
    15
    Likes Received:
    15
    Joined:
    Jul 20, 2018
    Name:
    Alex
    So I did a lot of searching and have seen some threads about what percentage to tint. The age old question of how dark/what kind/still see out/can’t see in. And a big one, how dark to tint rear factory privacy glass.

    So I have completed my 07 Tahoe LT (III) yesterday and figured I’d share my findings.

    I have a “reduce heat, increase privacy, still see out safely, don’t give a huge reason to get pulled over” approach.

    I usually do my own tint, but as I grow older, I recognize the value of paying a good shop to do it, and it’s hard to find quality ceramic film at a consumer level. These percentages should apply closely to DIY’ers. But I’d recommend a carbon or premium heat shield tint.

    A local Tint world in KATY TX helped me in my quest and we metered the windows, including the rear to see before and after.

    Windshield - 75% Ceramic IR from tint world + small eyebrow
    Side windows - 30% Carbon film (purchased this way) (metered)
    Rear windows before - 20% factory privacy glass (metered)
    Rear windows after applying 20% ceramic ir tint - 5% (metered)

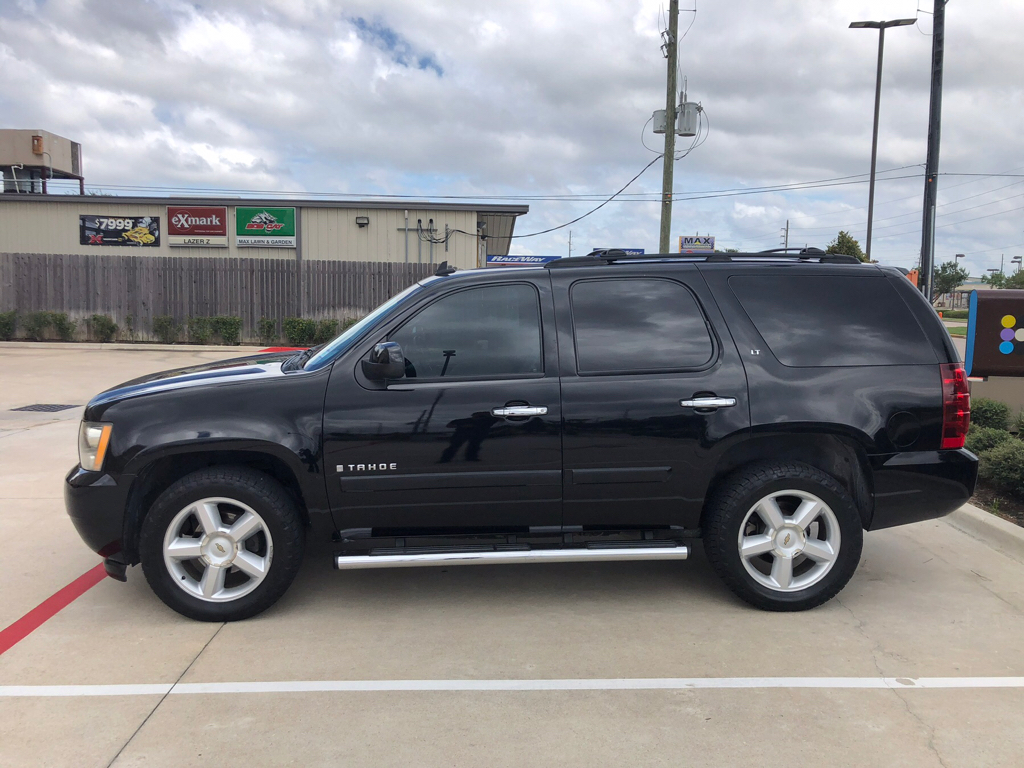

    [​IMG]

    This goes to prove, with quality tint, the math works for tinting over privacy glass. ( 0.2 x 0.2 = 0.4 or 4%)

    I am happy with it so far, have yet to look closely at night but come to think of it I backed into my spot last night and didn’t even realize a difference....but I was ultra tired from work and in a lot parking lot. I’ll update after a week

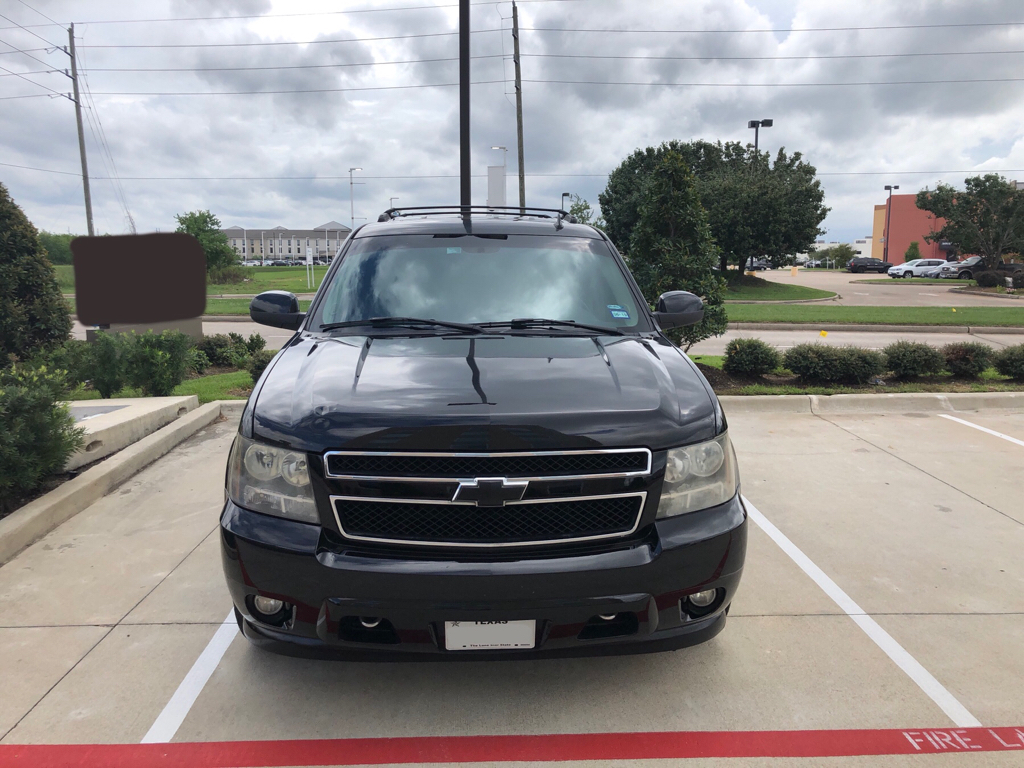

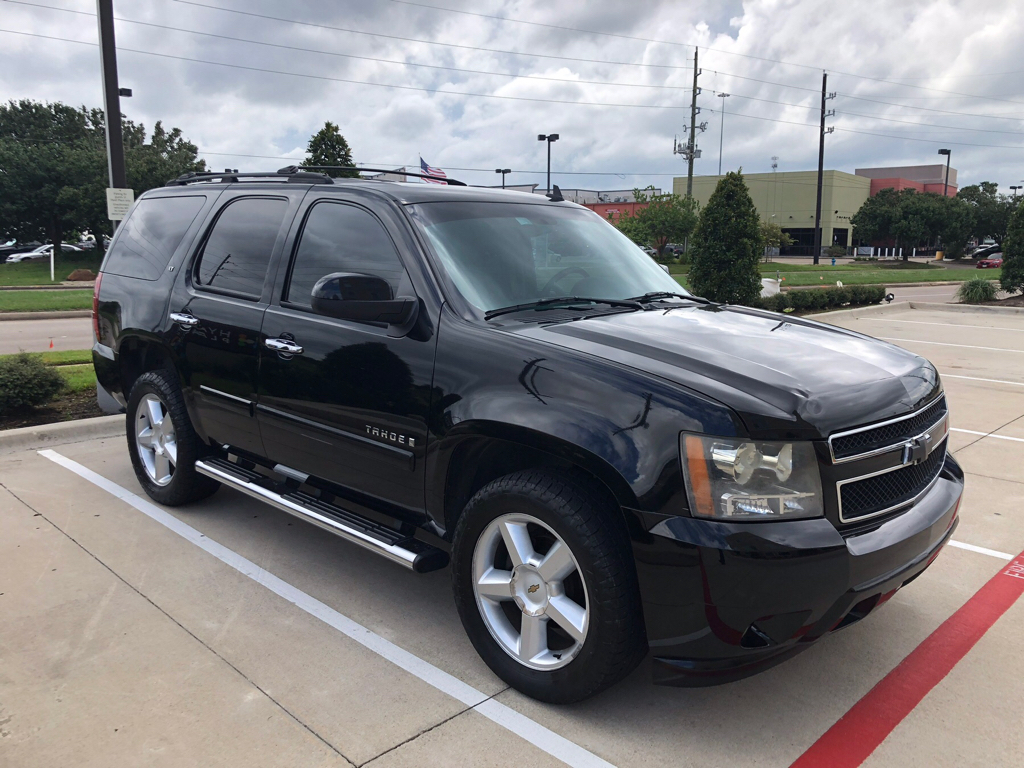

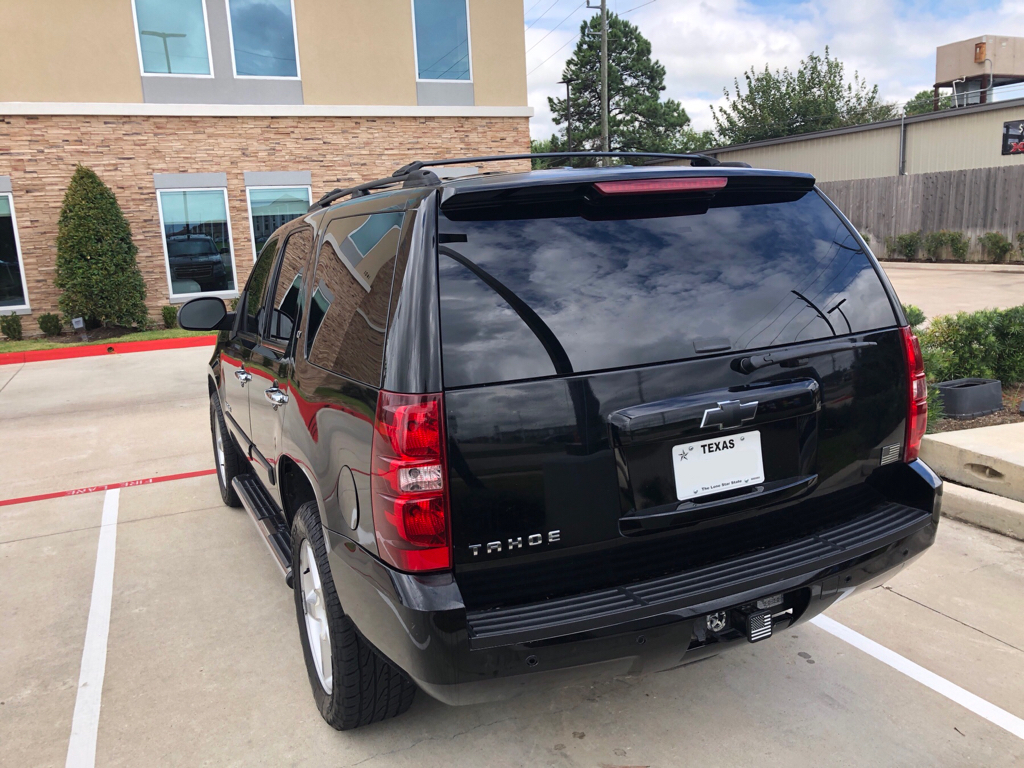

    Here a few pics. The rear really darkened the front up a bit. I know I’ll be pushing it a little locally. But at 30% on the front sides... a ticket will be hard to justify. In a perfect world I would go 25% on the front windows ... but the tint on there is quality and I don’t want to spend the money or time to drop 5%. And if I could go back in time, I would have done 25% over the rear to be just a little lighter from inside out. But still happy!

    Hope this helps. Feel free to ask. (Also posted in general because I couldn’t decided between interior or exterior)

    Last photo is before windshield and rear tint. You could easily see in with the factory at most anytime of the day.

    [​IMG]
    [​IMG][​IMG][​IMG][​IMG][​IMG]



    Sent from my iPad using Tapatalk


    Sent from my iPad using Tapatalk

  2. 93blkongreenpro

    93blkongreenpro Full Access Member

    Age:
    30
    Posts:
    1,258
    Likes Received:
    1,177
    Joined:
    Feb 9, 2016
    Name:
    Darius
    Looks good. I have 70% carbon on the windshield for heat and UV protection, 45% on the front (metered at 36%, 35% is NC Legal Limit) and 5% over factory 20% (metered at dark as hell, lol).

    The back is REALLY dark, but it keeps the temps down in the rear and also keeps the glare out. I would prefer 20% on the front doors and 50% on the windshield, but law enforcement around here likes to pick on tinted SUV's, so I like to stay off of their radar.

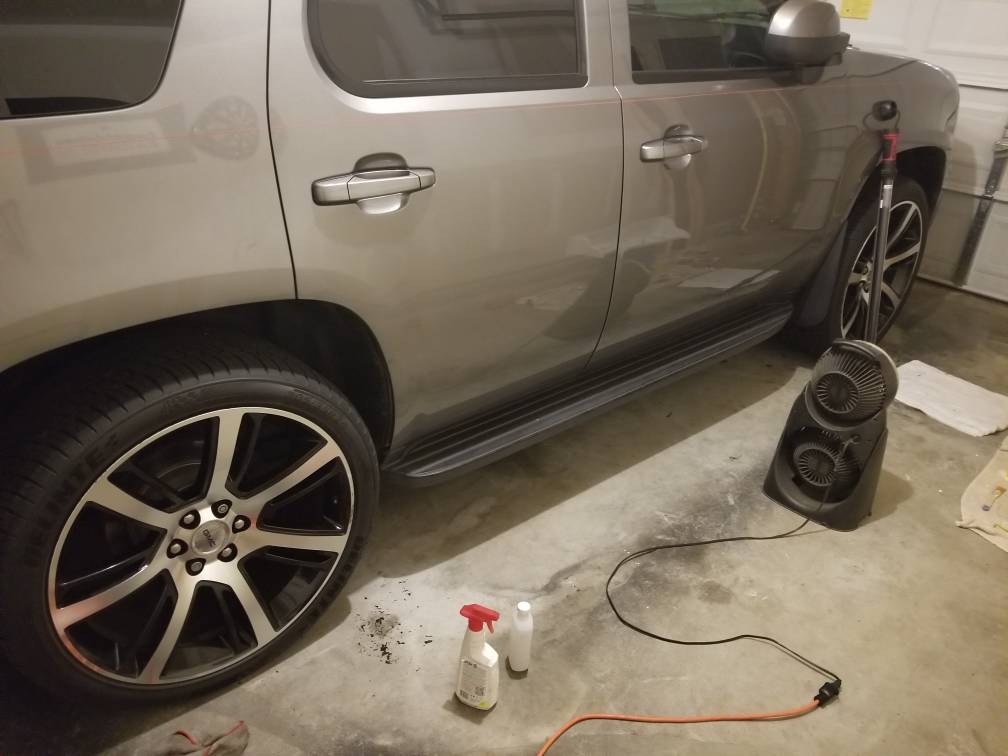

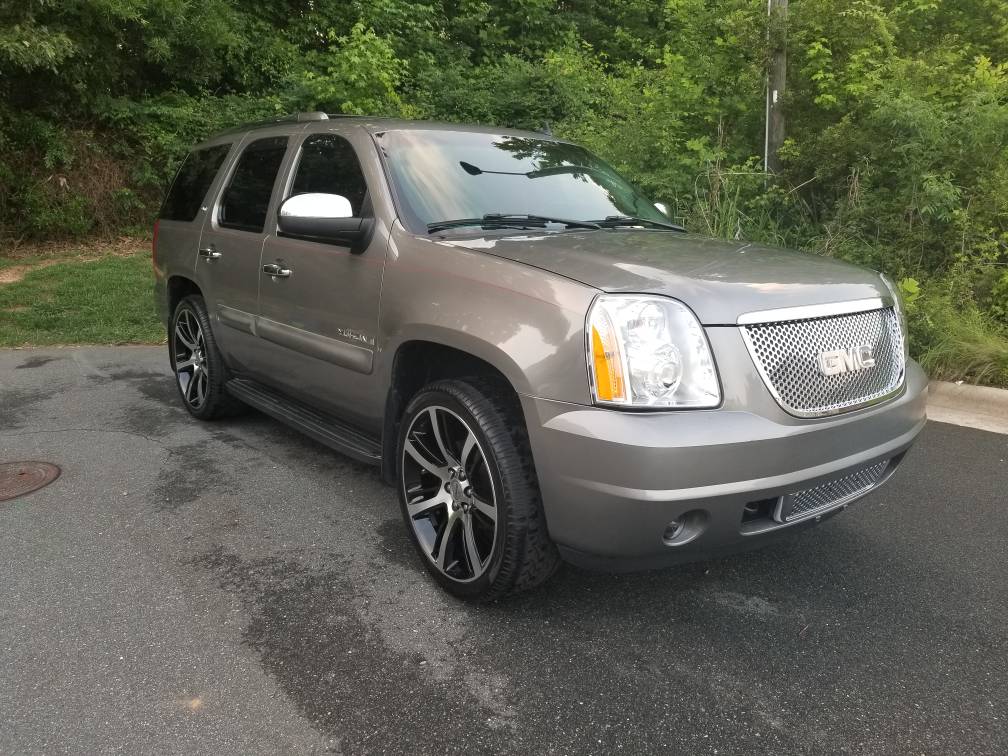

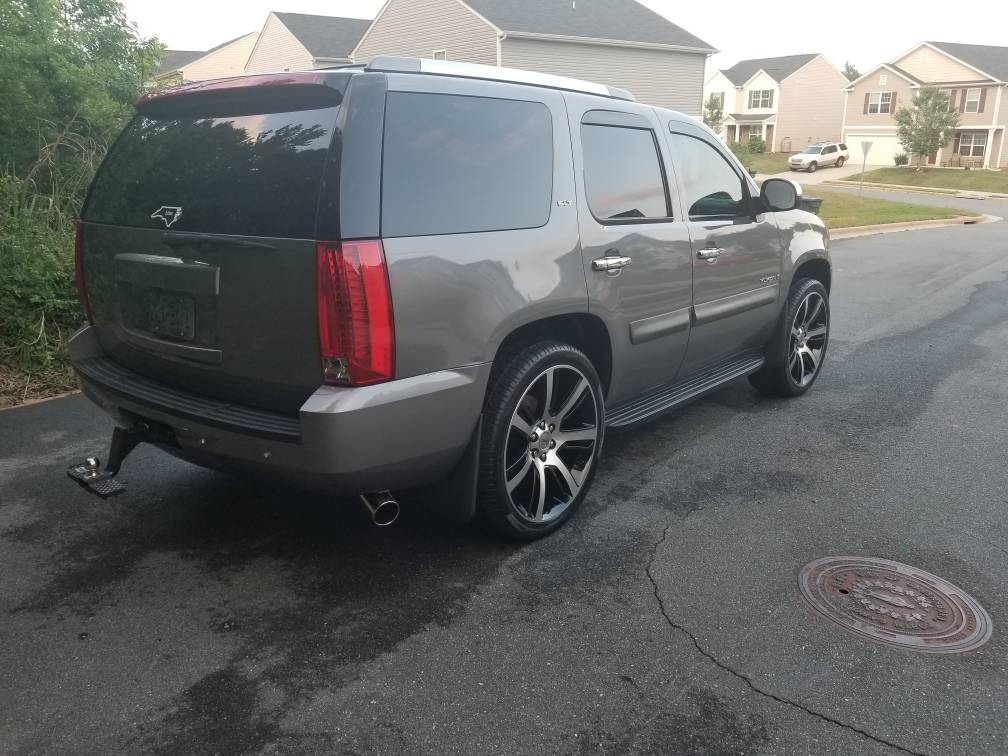

    35% tint metered at like 27% and they gave me a ticket. [​IMG][​IMG][​IMG]

    Sent from my SM-N950U using Tapatalk

  3. bigrhino

    bigrhino Full Access Member

    Posts:
    806
    Likes Received:
    88
    Joined:
    Aug 18, 2009
    Location:
    l.e.s manhattan,nyc
    Name:
    frank
    Those who have tinted windshields, how do you change your inspection stickers/registration stickers without messing up your tint?

    Awfiretto likes this.
  4. Doubeleive

    Doubeleive Elite Member Supporting Member

    Posts:
    3,104
    Likes Received:
    1,818
    Joined:
    Nov 7, 2017
    Location:
    Stockton, Ca.
    Name:
    Wes
    I have 5% on all the back windows, and I think 15-20% on the driver/passenger, nothing on the front window (I like to see what i'm going to hit) lol
    I think California allows only 7% on the fronts, back doesn't matter, for inspection they plug in the obd port, look under the truck to see if you have cat's and then you drive away 5 minutes later, they could care less if you even have 4 wheels

    Awfiretto likes this.
  5. Awfiretto

    Awfiretto TYF Newbie

    Posts:
    15
    Likes Received:
    15
    Joined:
    Jul 20, 2018
    Name:
    Alex
    That’s a good question!


    ***front windshield is 70%*** I miss posted - also to be clear. Front sides are the carbon that was on the truck when I bought it. (The last pic in the city before I added tint). The rear sides and all rear is the 20% ceramic over the factory privacy glass.

    The shop I had mine done at was able to remove and replace 3 window stickers. (EzTag/carwash rfid/inspection). I would imagine some type of sticker remover and some patience will do the trick when the time comes to change em.

    The windshield was tinted with a 70% tint. It hasn’t impacted my vision at night. When you are up on the window you cannot tell it’s tinted unless you look very very close at the dot matrix pattern at the top near the mirror. The main reason I got it done was for heat, and it works! The ceramic IR is supposed to cut 60% of the heat, and I would believe that number. When driving in the sun, you how parts of you in direct sunlight would get hot... that doesn’t happen anymore. “It’s hot out” no longer is said in my truck, it’s “this feels great/ A/C works awesome!”

    The rear was also done with ceramic IR 20% resulting in 5% VLT. And over the past few days I can see out no problems at night. It is much darker during the day though, but doesn’t impact visibility.

    When speaking with the tint shop. The % doesn’t impact heat much at all, only the privacy/glare reduction. It’s the IR / heat shield elements of a tint that reduce the temps in the vehicle.


    Sent from my iPad using Tapatalk

    Last edited: Sep 17, 2018 at 9:51 AM
    kbuskill and bigrhino like this.
  6. Mp619

    Mp619 Member

    Posts:
    37
    Likes Received:
    14
    Joined:
    Dec 28, 2016
    Location:
    Northern Virginia
    Name:
    Mike

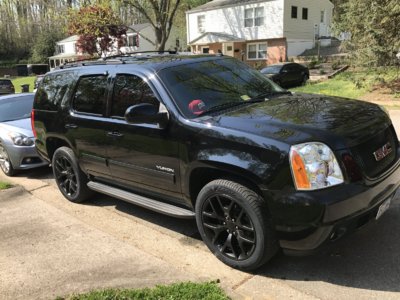

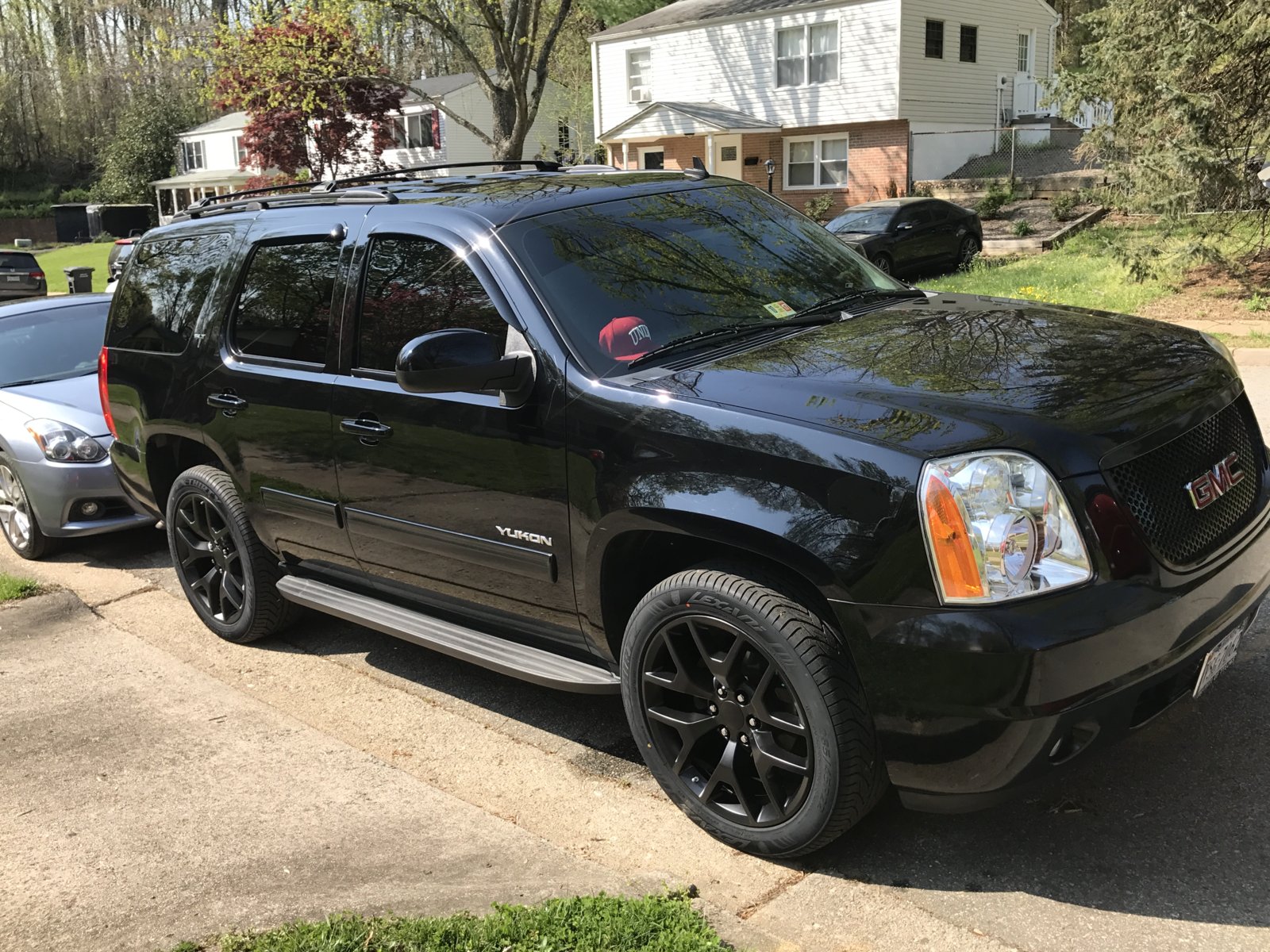

    5% brow on windshield. Front doors 5%, rear doors all the way back 5% on top of the 20% factory tinted glass. I have pics with and without the black 22” wheels. All tint is carbon 978D3842-8170-4608-9552-9B2EC89B52ED.jpeg 1F547C37-1C2F-4800-B28C-7CF8837CC9B3.jpeg 37224899-F13A-4A73-9348-7E3D3009E4CA.jpeg 73661CBD-56A0-41F9-B94E-F0CDCEA0E937.jpeg 37224899-F13A-4A73-9348-7E3D3009E4CA.jpeg

    kbuskill, bigrhino and Awfiretto like this.
  7. bigrhino

    bigrhino Full Access Member

    Posts:
    806
    Likes Received:
    88
    Joined:
    Aug 18, 2009
    Location:
    l.e.s manhattan,nyc
    Name:
    frank

    Thanks.

    Awfiretto likes this.
  8. kbuskill

    kbuskill ***CAUTION*** I do my own stunts!

    Posts:
    1,693
    Likes Received:
    1,706
    Joined:
    Mar 11, 2017
    Location:
    N.E. FL.
    Name:
    Ken

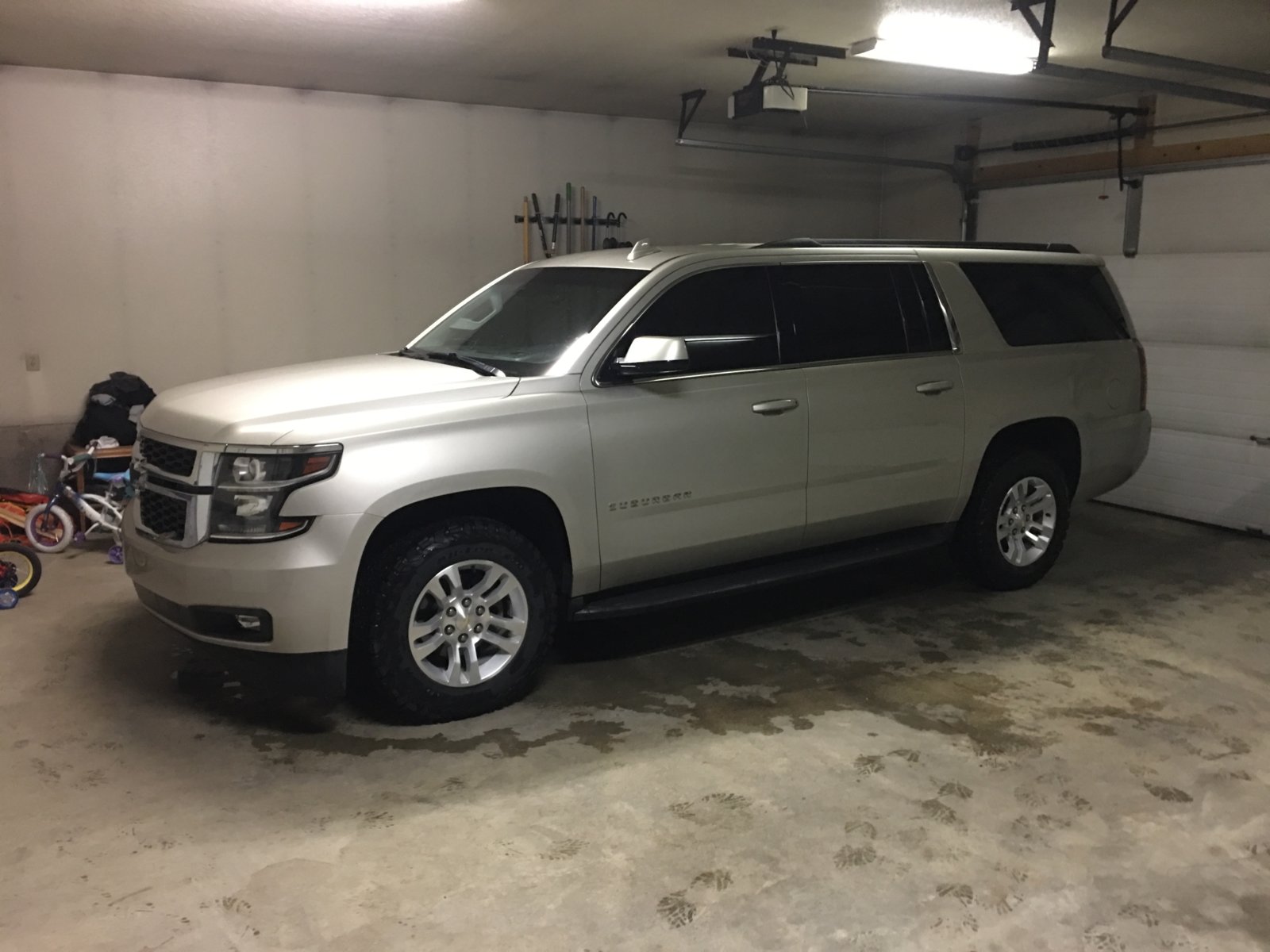

    Guess I will post mine as well...

    70% ceramic film over entire windshield
    5% 8" wide strip/brow at the top
    20% front side windows to match the factory rear tint.
    rps20180917_204431_880.jpg rps20180917_204556_891.jpg

  9. cheyenne383

    cheyenne383 Far North Lurker

    Posts:
    150
    Likes Received:
    268
    Joined:
    Feb 23, 2017
    Location:
    Healy, AK
    Name:
    Michael
    I just match the privacy glass with 20% on the fronts. I can't stand untinted windows, the car I use for work is stock obviously and I feel like I'm in a fishbowl.


    Awfiretto and kbuskill like this.
  10. Shunto

    Shunto Full Access Member

    Posts:
    92
    Likes Received:
    38
    Joined:
    Aug 12, 2014
    Location:
    NY
    Name:
    Shunto
