what is this unused electrical connector; interior fuse box location

Discussion in 'Interior' started by grnphrog, Nov 12, 2018.

  1. grnphrog

    grnphrog TYF Newbie

    Posts:
    8
    Likes Received:
    3
    Joined:
    Jul 16, 2016
    Name:
    Freeman

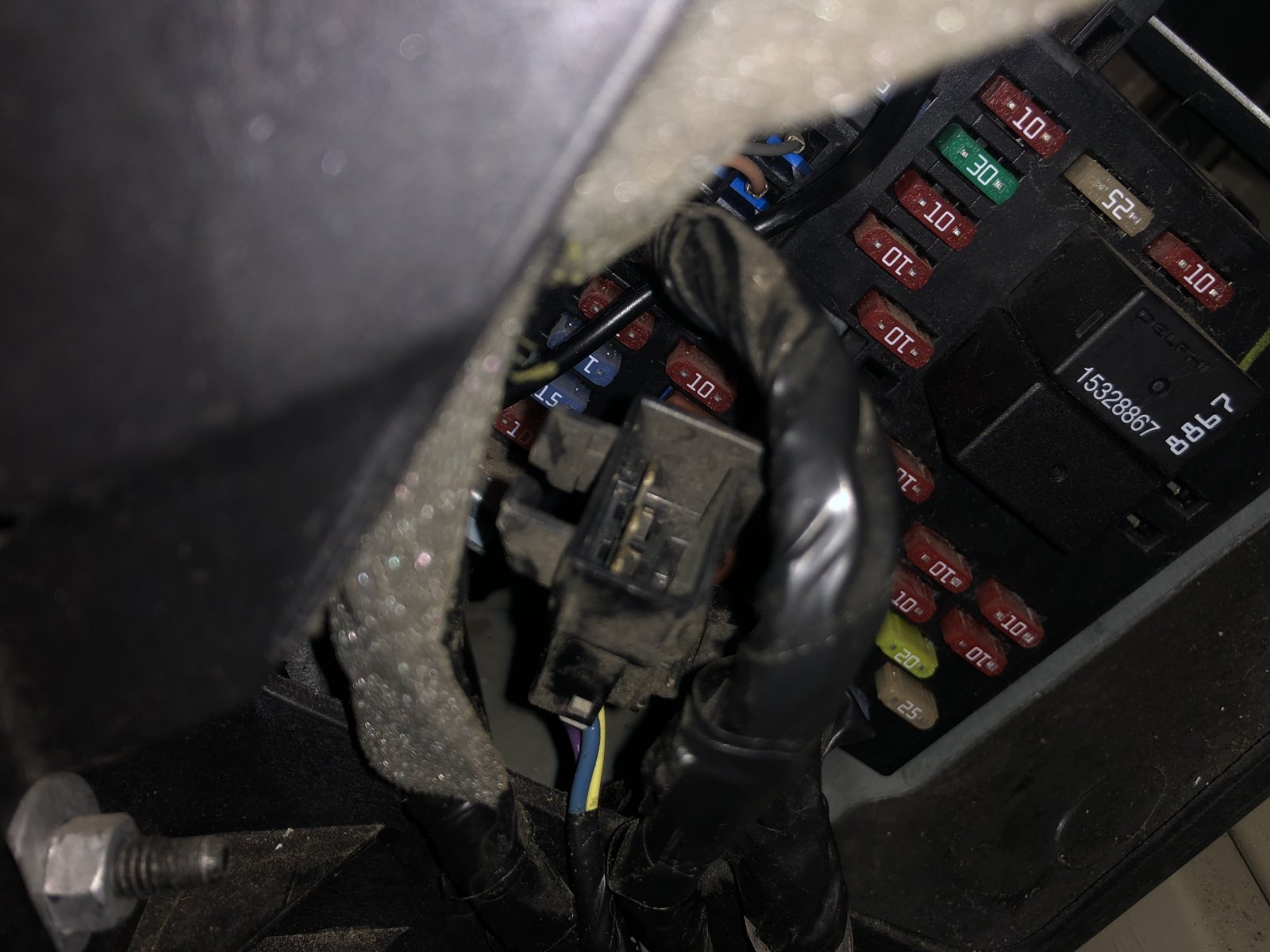

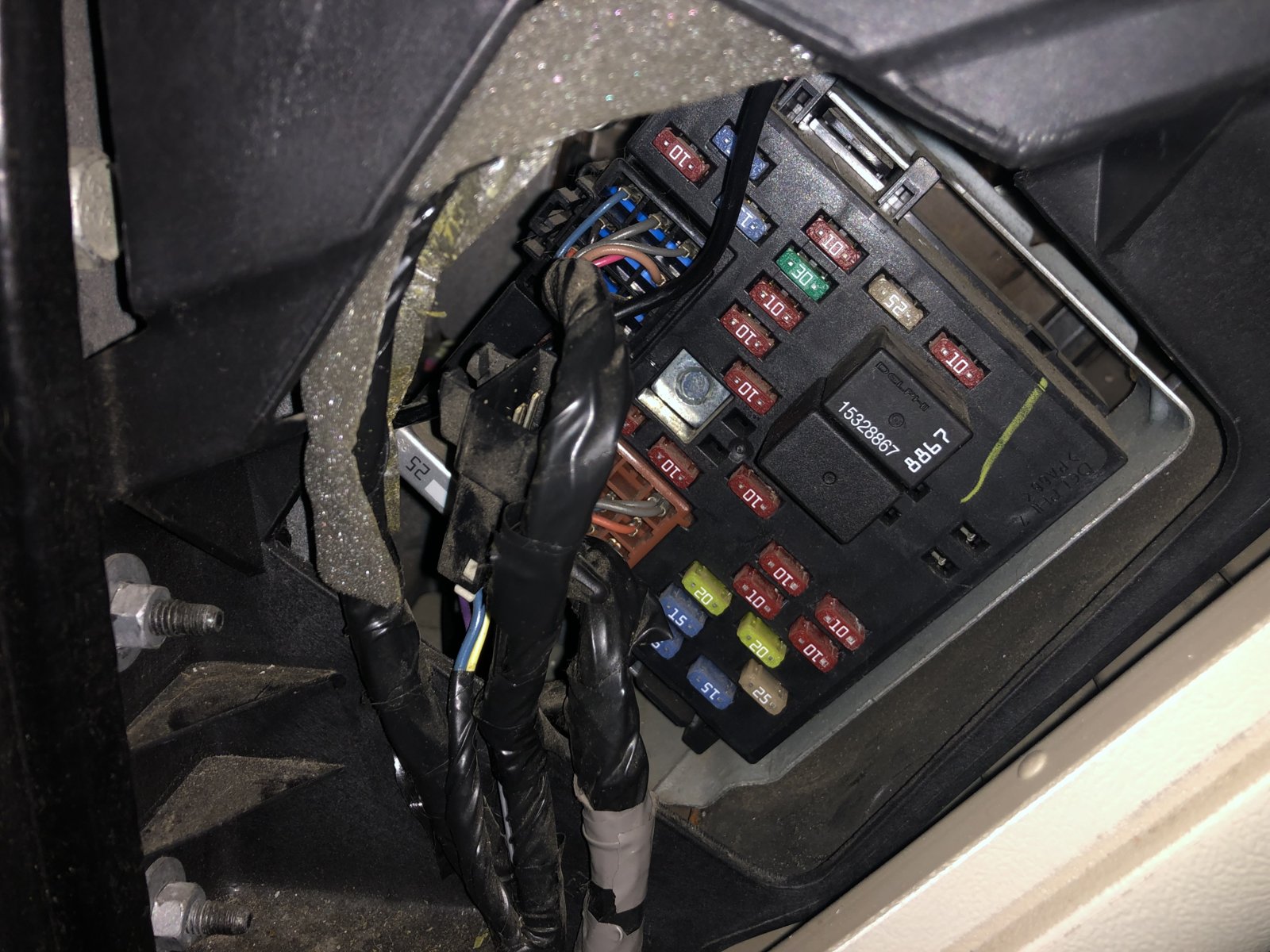

    I have an unused electrical connector found in the interior fuse box... i added a couple of pictures for reference. Thanks for looking =) IMG_3108.jpg IMG_3106.jpg

  2. Tonyrodz

    Tonyrodz Full Access Member

    Posts:
    10,850
    Likes Received:
    9,201
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    Is it constant hot?

  3. adriver

    adriver Full Access Member

    Posts:
    259
    Likes Received:
    89
    Joined:
    Aug 18, 2018
    Name:
    Justin
    My first guess would be something to do with the rear doors. That its something you don't have, such as for a hatch glass open, or wiper, and you have barn doors..



    Purple wire does do speed sensor, and to cruise control..

    Is that purple, yellow gray wires?

  4. grnphrog

    grnphrog TYF Newbie

    Posts:
    8
    Likes Received:
    3
    Joined:
    Jul 16, 2016
    Name:
    Freeman
    Duh... Meant to check that first. Just checked it and no power at all. Checked it with no key installed, key to On position, and with car running. Nada o_O

  5. grnphrog

    grnphrog TYF Newbie

    Posts:
    8
    Likes Received:
    3
    Joined:
    Jul 16, 2016
    Name:
    Freeman
    I do have Rear Glass that opens, and no barn doors.

  6. adriver

    adriver Full Access Member

    Posts:
    259
    Likes Received:
    89
    Joined:
    Aug 18, 2018
    Name:
    Justin
    Any chance yours is a 2wd w/o stabilitrak? I'm thinking maybe that 3 button switch that would be
    purple wire to stabilitrac
    yellow and blue or gray to 4wd high and 4wd low.


    I don't think that's the MBEC, I think that's the LBEC. What about on the cover?
    You could check if your hazards are working.
    Power folding mirrors?
    Rear Blower?

    Is there any chance that's a data link connector?

  7. Tonyrodz

    Tonyrodz Full Access Member

    Posts:
    10,850
    Likes Received:
    9,201
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    Wouldn't be for power folding mirrors.

  8. HiHoeSilver

    HiHoeSilver Away!

    Posts:
    6,258
    Likes Received:
    6,381
    Joined:
    Feb 28, 2017
    Location:
    Chicago
    Name:
    Nate
    I have it too, but it's plugged in. The other half goes up. Not sure how far, but up.

  9. grnphrog

    grnphrog TYF Newbie

    Posts:
    8
    Likes Received:
    3
    Joined:
    Jul 16, 2016
    Name:
    Freeman
    Thank you all for your replies, i really appreciate the efforts :)
    I do have a 4wd without the stabilitrac, i checked for power as mention above but didnt try it with the hazards on.
    i'll do that in a bit.
    i was thinking it might be for heated mirrors, but apparently my rig came standard with them and i checked that they are working correctly.
    so i'm pleased with that as least.
