I *THINK* we finally have it done. About 16 hours into the project in the last 7 days.
We had to modify the CB&D brackets a lot, to swap the projectors upside down, so that the solenoid would be on the bottom of the bracket.
Added the 4 high mod and my brights finally stay on.
All that's left is to aim and test them once it gets dark.
Yeah I didn't do any baking for this set. Might take them out and bake them to pull out that ugly ass yellow reflector tho.
I'm going to be building another set with the 7.0 kit just cus I want to see if all of the problems I encountered were due to user error, or what the deal is lol.
If my mom doesn't want them on her Denali, they'll be up for sale
Wait-the projectors are upside down? How are you going to get a cutoff line? They’re not designed to be upside down. Am I missing something?
dszx13
Full Access Member
- Joined
- Apr 8, 2017
- Posts
- 262
- Reaction score
- 604

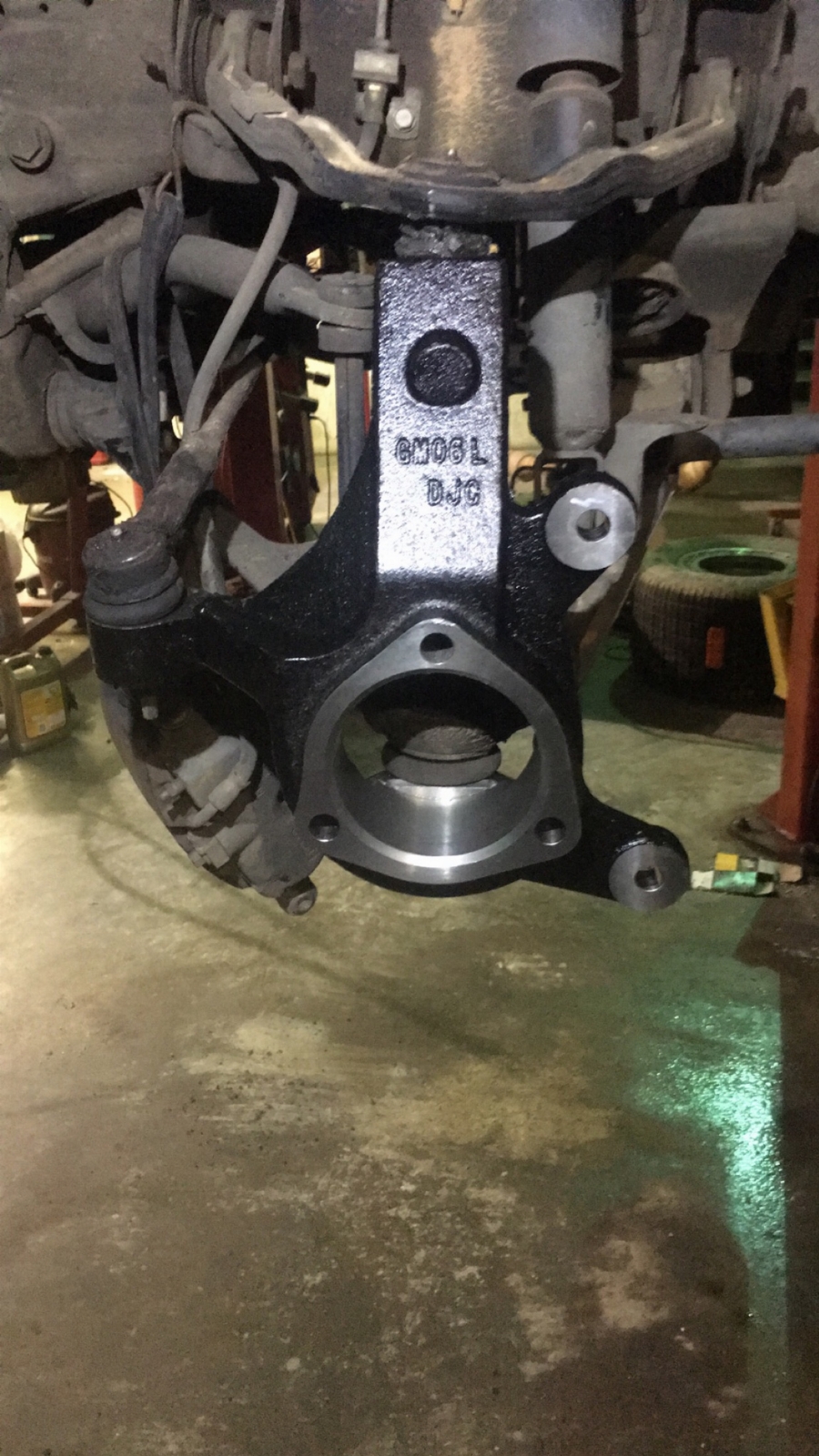

Got the spindles on last night. Turns out my I need all ball joints replaced. I’ll do those and toe rod ends before alignment. Set the toe to get me by for now. Track width is wider up front so I’ll have to get spacers for the rear also. Very happy with it over all
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Tonyrodz
Resident Resident
Were the ball joints on their way out, or did they get messed up in the process?Got the spindles on last night. Turns out my I need all ball joints replaced. I’ll do those and toe rod ends before alignment. Set the toe to get me by for now. Track width is wider up front so I’ll have to get spacers for the rear also. Very happy with it over all
Sent from my iPhone using Tapatalk
dszx13
Full Access Member
- Joined
- Apr 8, 2017
- Posts
- 262
- Reaction score
- 604
On their way out. Tie rod ends are good but all the boots are tore and dried out on everything
Sent from my iPhone using Tapatalk
Tonyrodz
Resident Resident
Good thing you saw them now. Def wouldn't want a ball joint giving out while you're driving.
Galandorian
Full Access Member
dunno man, dunno.
I did all of 30 minutes of research before impulse purchasing all of this stuff, and diving in.
I'll try to explain. My terminology is probably all messed up and that's what's causing the confusion.

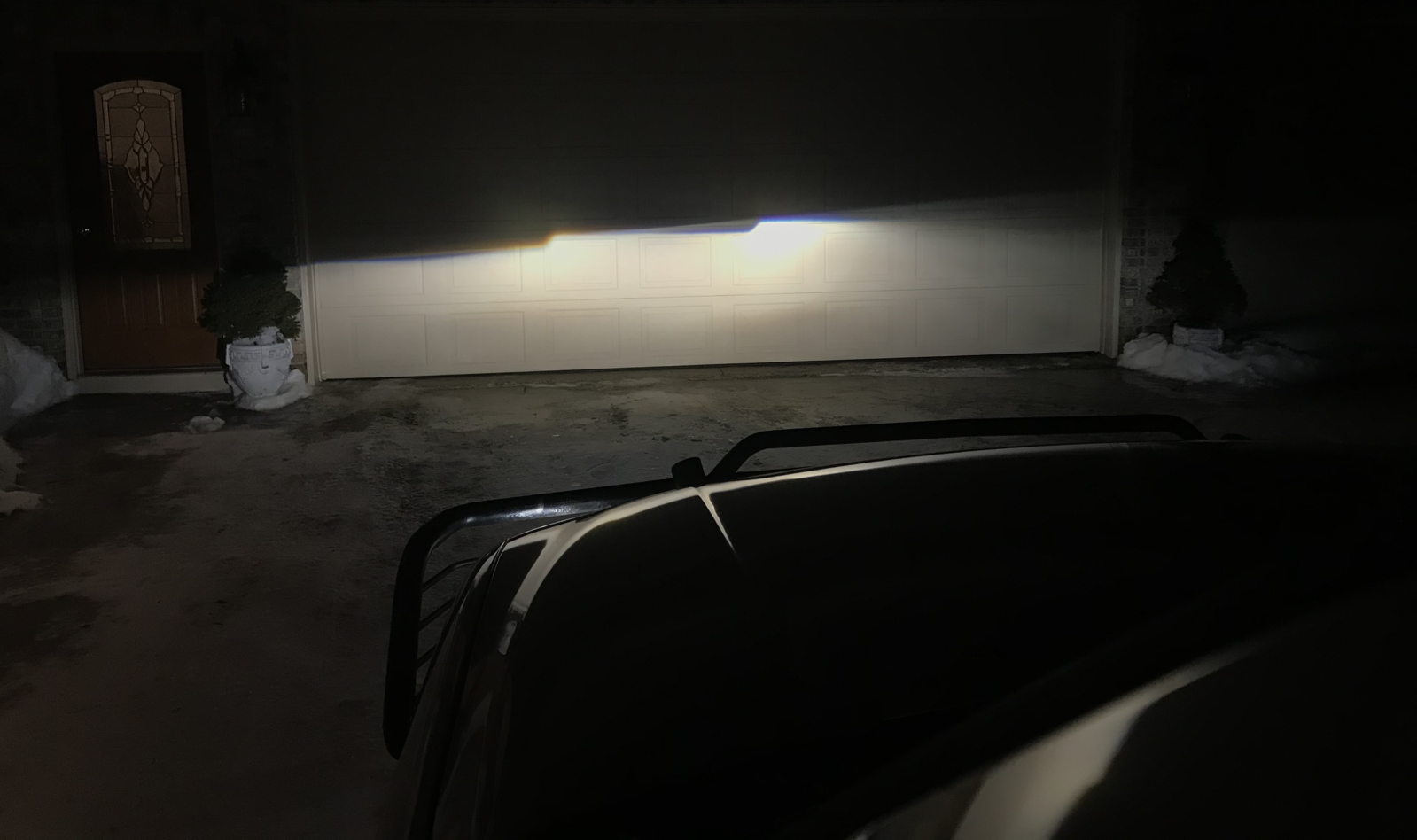

so if you look at this pic, the Solenoid wires are at the top of the light, or bracket, or whatever. because of how the lens reflects light, this meant that the high beams activated downward:
don't mind the date, I haven't taken the time to set it up.

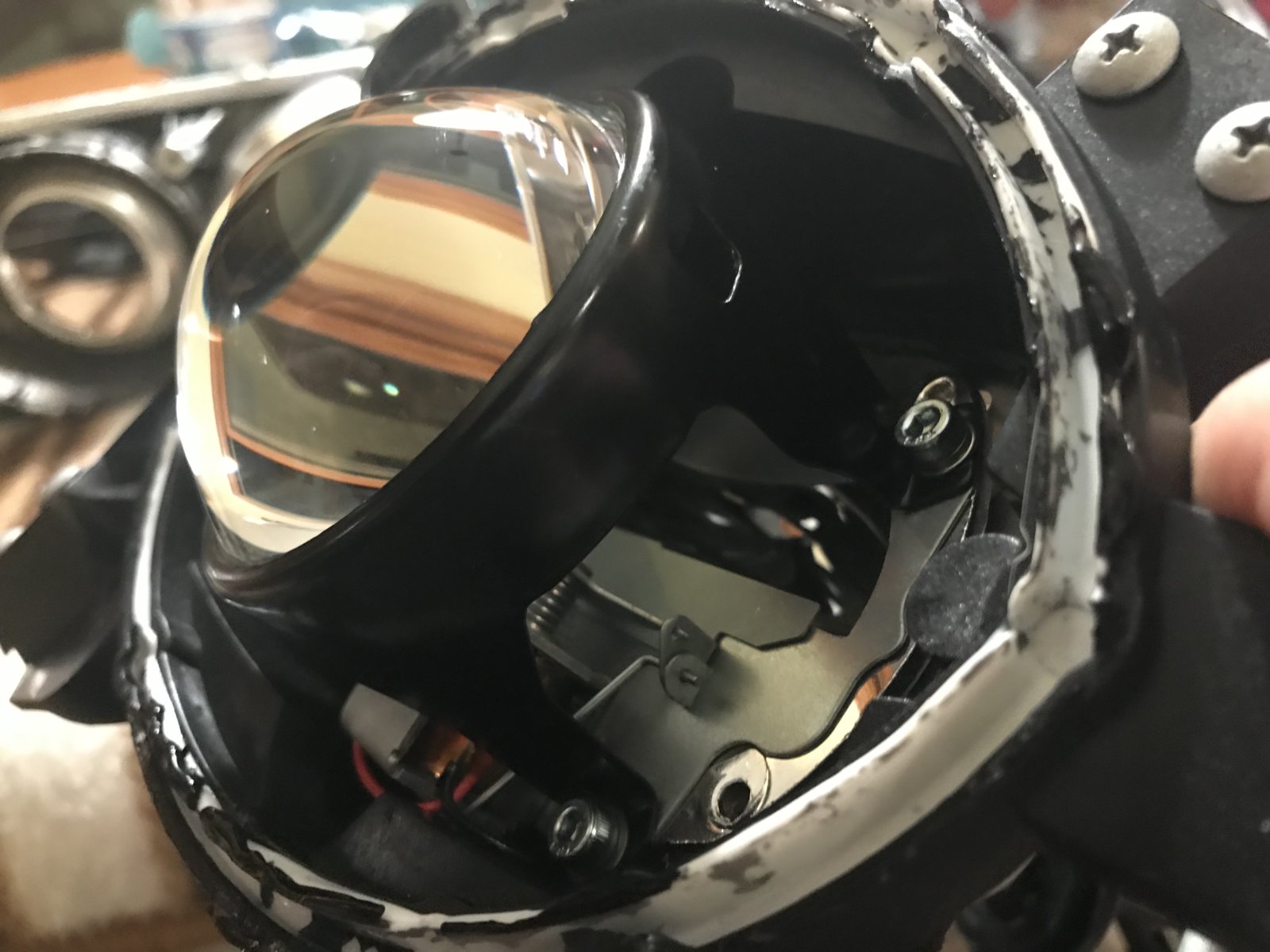

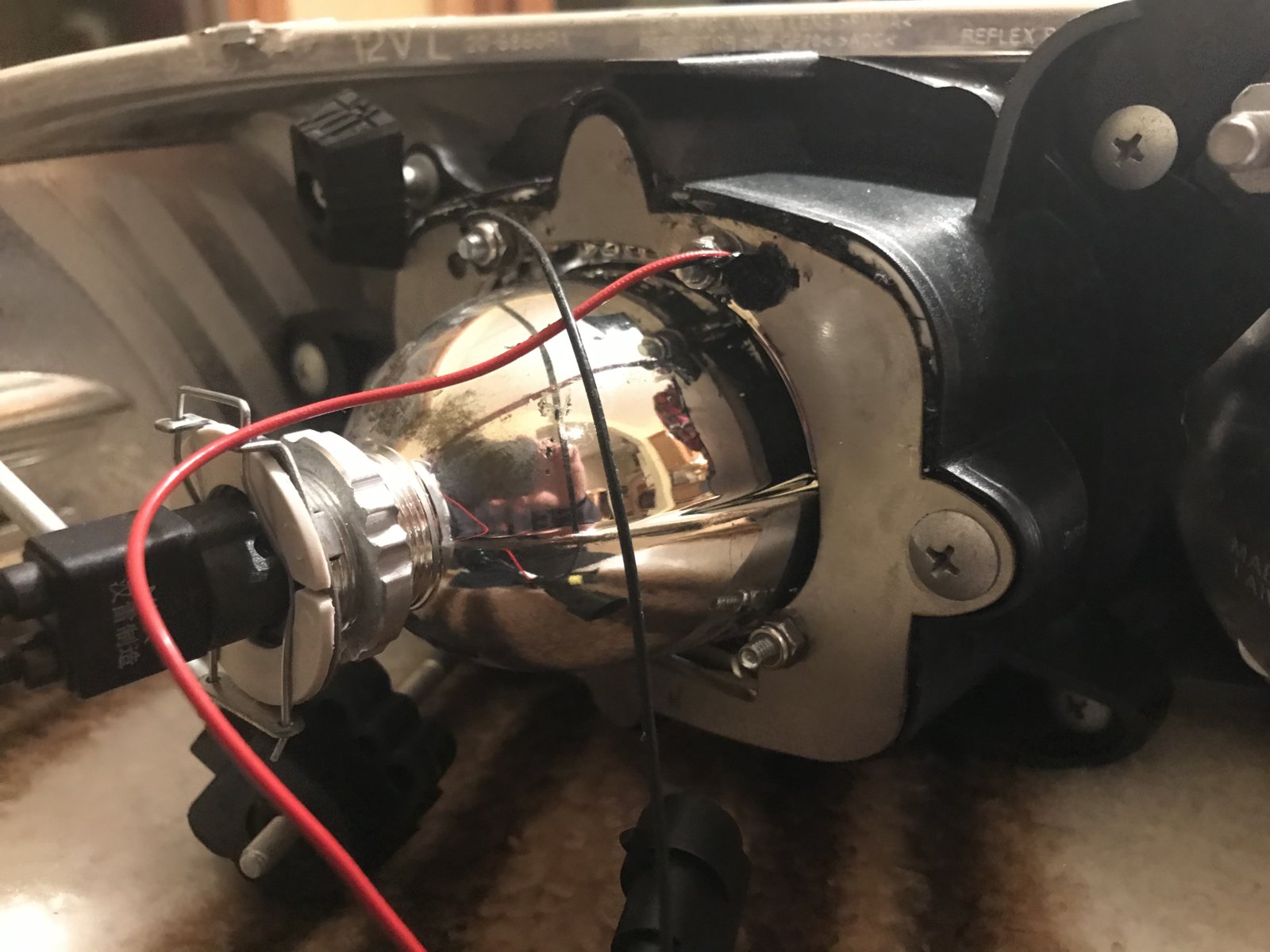

so basically we had to cut the bracket, so that the solenoid would be on the bottom of the housing/light/projector/whatever, as seen here:
Last edited:
Those are definitely upside down, that's not really gonna work plus you'll blind oncoming drivers. There needs to be a clean cutoff at the top so the light doesn't go upward into oncoming traffic. It should be a nice level line with 2 steps up as it goes from left to right like these in my Silverado. That way you can also level the projectors so the lines are all level and then adjust the up and down so the step ups are correct. The left is lower because that's where oncoming traffic is. The right steps up so you can see road signs, etc.
Edit: the solenoid opens up the cutoff bracket so there's no cutoff line and the full light output is unleashed. By having them upside down, it's like having them on high beam constantly only the cutoff brackets are blocking the light from going down in low beam mode and in high beam mode they're lighting up more of the ground. You will definitely blind people plus there's no real way to aim them.
Last edited:
Galandorian
Full Access Member
I don't think they blind people now. I just drove around for 30 minutes and nobody flashed me.
I don't know how you see anything with them aimed that low though, mine sit like halfway up the garage door.
So far I'm very pleased with the results, but there's still a lot of work to be done.
In cutting up the brackets, we made it so the driver side light doesn't line up exactly (projector needs to be rotated).
I'm going to go ahead and buy new lights and a 7.0 kit and try again.
I don't know how you see anything with them aimed that low though, mine sit like halfway up the garage door.
So far I'm very pleased with the results, but there's still a lot of work to be done.
In cutting up the brackets, we made it so the driver side light doesn't line up exactly (projector needs to be rotated).
I'm going to go ahead and buy new lights and a 7.0 kit and try again.
Last edited:
My truck might have been aired out and laying on the ground in that pic, I don’t remember. I do know that I measured the height at 30 feet away or as far away as I could in my driveway and followed the instructions for setting the height at that distance according to The Retrofit Source. And of course you have a lot of output, it’s like they’re on high beam all the time like I said. Just because nobody flashed you doesn’t mean anything, people are scared to do that nowadays with all the cases of road rage. Yes, people might go off on you for something like flashing your brights at them. Go out and have a buddy drive towards you a few times and have them tell you if they’re ok. Please don’t drive with them like that, it’s even worse than those a- holes with hid kits in reflector housings that scatter light and blind you. I don't want to sound like I'm preaching but blinding headlights are dangerous. Oh and BTW mine work awesome, best headlights I've ever driven with.
Galandorian
Full Access Member
Do you think there is still an issue after modifying them?
When I watch cars pass, the low beams remain below the mirrors, which is what all of the videos suggested.
If I aim them as low on the garage as I've seen, then I can't see anything but the immediate foreground ;/
When I watch cars pass, the low beams remain below the mirrors, which is what all of the videos suggested.
If I aim them as low on the garage as I've seen, then I can't see anything but the immediate foreground ;/
Not sure what you mean by after modifying them. They need to be installed with the projectors right side up. As far as how high the light is when cars pass, that doesn’t take into account how high it gets the further away the other cars are. Your light pattern as they’re installed has no cutoff line at the top so the light angles up as it travels away so instead of being 2” higher at 30 feet (or whatever it’s supposed to be, I forget) you’re way way above that, and it goes way up the further away you get. With bi-xenon HID projectors like these the shutter that gives you that flat upper cutoff is supposed to open at high beam and then the light goes high like that. So you’re trying to aim them on your garage door using the bottom of the beam pattern being on the top so that’s why you have to aim them like that. If you aim them way up you should be able to see the flat cutoff line on the bottom instead of the top like it’s supposed to be. They need to be flipped right side up, no way around it. This is mine at ride height, that first pic was aired out.
Galandorian
Full Access Member
I'm not sure what you mean by needing the projectors right side up. That's how they are installed.

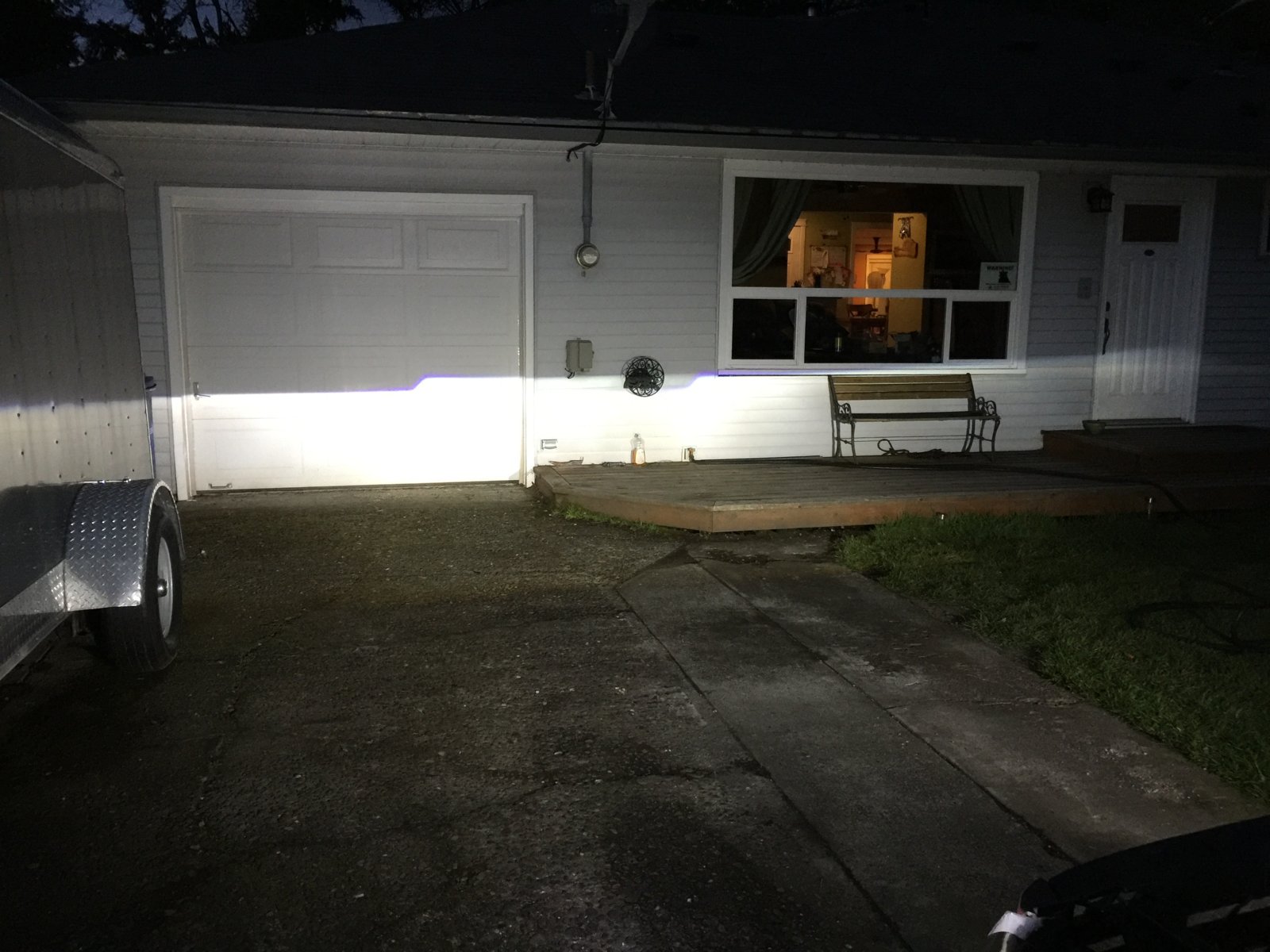

They have a clear cut off:
other than the driver side needing rotated to the right a bit, and raised up a little, it seems to look very close to what you have when aired up
They have a clear cut off:
other than the driver side needing rotated to the right a bit, and raised up a little, it seems to look very close to what you have when aired up
I’m confused; a ways back you said you installed the projectors upside down, then you said the high beams activate downward, then the pic I thought was low beam was actually high beam...never mind,carry on...I have no idea what you have going on lol.
brian.roberts.1293
Full Access Member
Finally gave her a good bath. Tried shine armor for the first time I was impressed. But I think she is looking good
2004 Z71 Suburban Green I have a few upgrades done.
2004 Z71 Suburban Green I have a few upgrades done.
Looks good You're getting there! I went back to my shop today to work on adjusting my lights. When you go back at it to rotate your drivers side make sure you adjust your bulbs hot spot first then do the rotation. Last night mine looked to be out of rotation kinda bad. Today I loosened my bulb holders and moved the bulb around to get that bright circle or hot spot right at the cutoff and 1/3 below. After I got the hot spot close my rotation didnt seem as bad. Needless to say I'vd had enough of headlights for now I'm not blinding anyone so I'm taking a break lol.
Pm me if you have questions about alignment or adjusting the hot spot and shimming your bulbs.
Bombsquad85
Full Access Member
I was thinking the same thing. The shield for the high beam should drop down...
However the solenoid wiring should be on the bottom. I'm so confused by his set up.
Also initial pics looked like they were high beams and upside down. But the latest picture looked correct.
I am not sure what's going on
Bombsquad85
Full Access Member
thanks for reminding me. nevermind, scratch that idea
Yup! My thoughts exactly
