TPMS and Torque app

Discussion in 'Tech Info' started by DougAMiller, May 1, 2019.

Car Parts
  1. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug
    Ever since I installed an Android tablet into the Tahoe for navigation, music, and diagnostics and monitoring, I have wanted to include TPMS in the display. However, the PIDs for the tire pressures don't seem to be anywhere on the internet. So, after a LOT of research, scanning the Class 2 bus, and brute-force testing I have finally got it working. Scanning the bus while my Tech 2 was monitoring the pressures got me in the general vicinity of the PIDs and helped me to work out the correct header, but it reads them differently and in a manner that I couldn't duplicate with Torque. Also, the IPC doesn't seem to request them. Apparently it just picks them up whenever the PDM periodically broadcasts them, again something that I couldn't make Torque do. Since I couldn't find a module that was requesting the information to copy the message from, I had to resort to another way of finding the information. So I decided to go on the assumption that the programmers did build in a request set for the tire pressures and started hunting. After testing MANY, MANY, MANY possible PID values, I finally found a group that had data that matched my tire pressures. I then set up the screen and drove around a bit to see if they matched the DIC as the pressures changed, and they did!


    An interesting side note, at least in some trucks, the spare also has a TPMS sensor. I didn't know this until I was reading tire pressures with the Tech 2 and there is an option to turn on spare tire pressure monitoring. It was quite a while back that I discovered this, so I can't remember if mine was turned on from the factory, or if I turned it on. It probably was already on, otherwise I don't know why they would have included the sensor. But, there is no way of getting it without the Tech 2, until now!

    For anyone who is interested in reading the tire pressures, this is the PID info for Torque:

    Description PID Units Min Max Formula Header
    Left Front Tire Pressure 22248E psi 0 100 A 6CA1F1
    Right Front Tire Pressure 22248F psi 0 100 A 6CA1F1
    Right Rear Tire Pressure 222490 psi 0 100 A 6CA1F1
    Left Rear Tire Pressure 222491 psi 0 100 A 6CA1F1

    and the one they don't show you in the instrument panel

    Spare Tire Pressure 222492 psi 0 100 A 6CA1F1

    You can create your own long and short names to suit your preference.

    SnowDrifter and Tonyrodz like this.
  2. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug
    Drat! It lost the spacing in the PID table, if it's too difficult to read let me know and I'll repost it with better formatting.

  3. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug

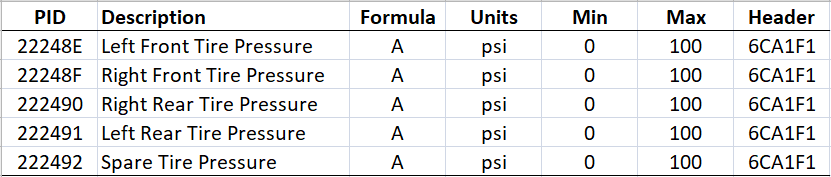

    Here it is formatted so it is more readable:


    kbuskill likes this.
  4. treehan77

    treehan77 TYF Fiend

    Posts:
    871
    Likes Received:
    214
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    Wow impressive. Thanks for doing this, if I ever use torque I'll do this

  5. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug
    Thanks! It was a lot of work figuring it out, but I'm really happy to have finally got it working.

  6. treehan77

    treehan77 TYF Fiend

    Posts:
    871
    Likes Received:
    214
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    Can torque lite do this?

  7. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug
    I'm not sure. I've been using the pro version for so long that I don't remember what the restrictions in the lite version are. What you need is access to the PID editor to create a new PID, but I don't recall if the lite version has that.

  8. Tonyrodz

    Tonyrodz Resident resident

    Posts:
    15,607
    Likes Received:
    15,051
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    How would/could you get access to the PID editor?

  9. DougAMiller

    DougAMiller Full Access Member

    Posts:
    165
    Likes Received:
    194
    Joined:
    Mar 10, 2016
    Location:
    Colorado
    Name:
    Doug

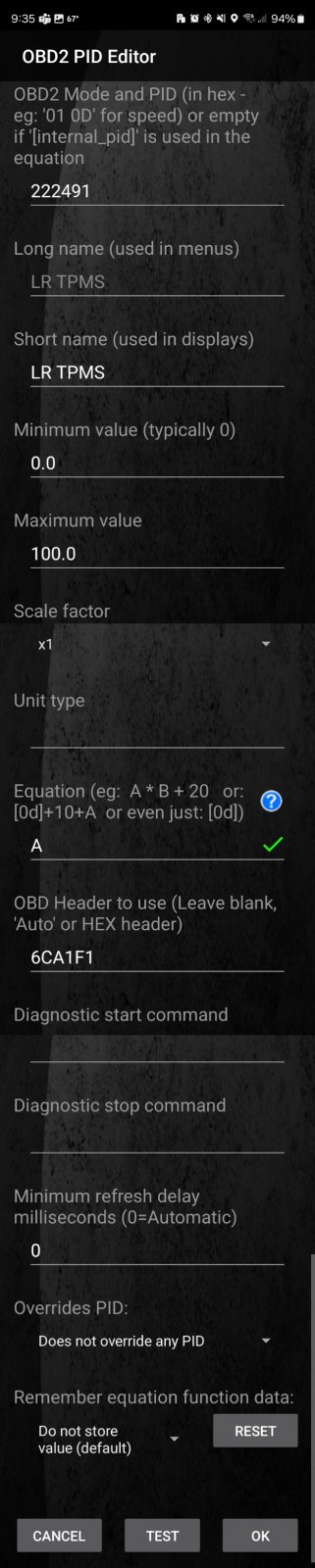

    If you go into settings from the main screen, it's under Manage Extra PIDs/Sensors. From there go to the menu and select Add PID.

    Tonyrodz likes this.
  10. treehan77

    treehan77 TYF Fiend

    Posts:
    871
    Likes Received:
    214
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    Does torque pro have a pid for oil pressure. Oil temp? I enjoy had dash command but can't add PIDs and it doesn't have oil pressure
