Help installing Nbs Dic into obs Yukon

Discussion in 'Audio & Electronics' started by ObsUkon, Dec 8, 2018.

  1. ObsUkon

    ObsUkon TYF Newbie

    Posts:
    10
    Likes Received:
    8
    Joined:
    May 18, 2018
    Location:
    Yakima
    Name:
    Jose
    Hi guys I need some help installing a nbs (01-02) DIC like the ones found in the center console of a nbs Denali. I’ve seen many installs regarding the over head DIC but none with the one I want. Search function didn’t help and google didn’t turn up anything either, any help is greatly appreciated.


    Last edited: Dec 8, 2018
  2. fastpat

    fastpat Full Access Member

    Posts:
    163
    Likes Received:
    69
    Joined:
    Jun 2, 2018
    Location:
    Upcountry South Carolina
    Name:
    Pat
    The 2004 Ford F-350 that I custom ordered came without the overhead console display unit, so I sourced one from the same model year Excursion. Seems Ford, and likely GM, used one wiring harness for the overhead consoles, no matter which options you have. My particular model, with cloth seats I wanted, didn't offer the overhead console with fuel mileage display, compass, and so forth, just the map lights and control for the sun roof I ordered. It took me some months, but I finally found one with all the bells and whistles in the gray color I needed to match, and in the short version for the sun roof. Completely plug and play, with one exception. I haven't found the outside air temperature sensor so far, so that function doesn't work. I'm pretty sure that the wiring is there, just need the sensor.

    It seems to me that your issue is one of too great a time span between the vehicle you have and the tech you want to add. I do look longingly at that blank space usually used for the rear AC controls in Suburbans, but not for an electronic display. I plan to keep on looking, though.

  3. Tonyrodz

    Tonyrodz Resident Resident

    Posts:
    19,480
    Likes Received:
    21,268
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    Ever try to use an air temp sensor from a GM? I retro'd a mirror with compass and outside air temp into my Express cargo van using a sensor from a Tahoe. Works like a champ.

    fastpat likes this.
  4. Bear77

    Bear77 Full Access Member

    Posts:
    277
    Likes Received:
    263
    Joined:
    Aug 9, 2017
    Location:
    South FL
    Name:
    Humberto
    Wondering what kind of help are you looking for?


    Sent from my iPhone using Tapatalk

  5. adventurenali92

    adventurenali92 Full Access Member

    Age:
    28
    Posts:
    5,305
    Likes Received:
    5,203
    Joined:
    Feb 16, 2015
    Location:
    Big Bear Lake, ca
    Name:
    Chase
    I did the same thing on my 99 Dakota, and my 2001 Durango. I wanted the exterior temp and my Dakota didn’t have the overhead console that showed that as it wasn’t a feature until 2001. So I pulled a Center view mirror with the single display line in the glass out of a 98 burb that had the temp display, and replaced my already installed auto dimming mirror. Lol. Also pulled the temp sensor from the burb, put it all together and worked like a champ as. Well haha. Then with the Durango I did the same thing but with an onstar buttoned mirror out of a 2003 slt Yukon that was in the junkyard. Pulled the temp sensor with it and it worked fine. Usually those temp sensors only have two wires going to their power harness.

    Tonyrodz likes this.
  6. Tonyrodz

    Tonyrodz Resident Resident

    Posts:
    19,480
    Likes Received:
    21,268
    Joined:
    Feb 16, 2012
    Location:
    Central Jersey
    Name:
    Tony
    I had to run wires all the way from the sensor to the mirror, then run it to key power. Besides my dd, one of my favorite mods to my work van.

    adventurenali92 likes this.
  7. ObsUkon

    ObsUkon TYF Newbie

    Posts:
    10
    Likes Received:
    8
    Joined:
    May 18, 2018
    Location:
    Yakima
    Name:
    Jose
    Well to start a wiring diagram for the DIC would be awesome, I would assume it’s not too different from the other DIC everyone else likes to use I’m sure I could handle it from there with the pin out. Thanks

  8. ObsUkon

    ObsUkon TYF Newbie

    Posts:
    10
    Likes Received:
    8
    Joined:
    May 18, 2018
    Location:
    Yakima
    Name:
    Jose

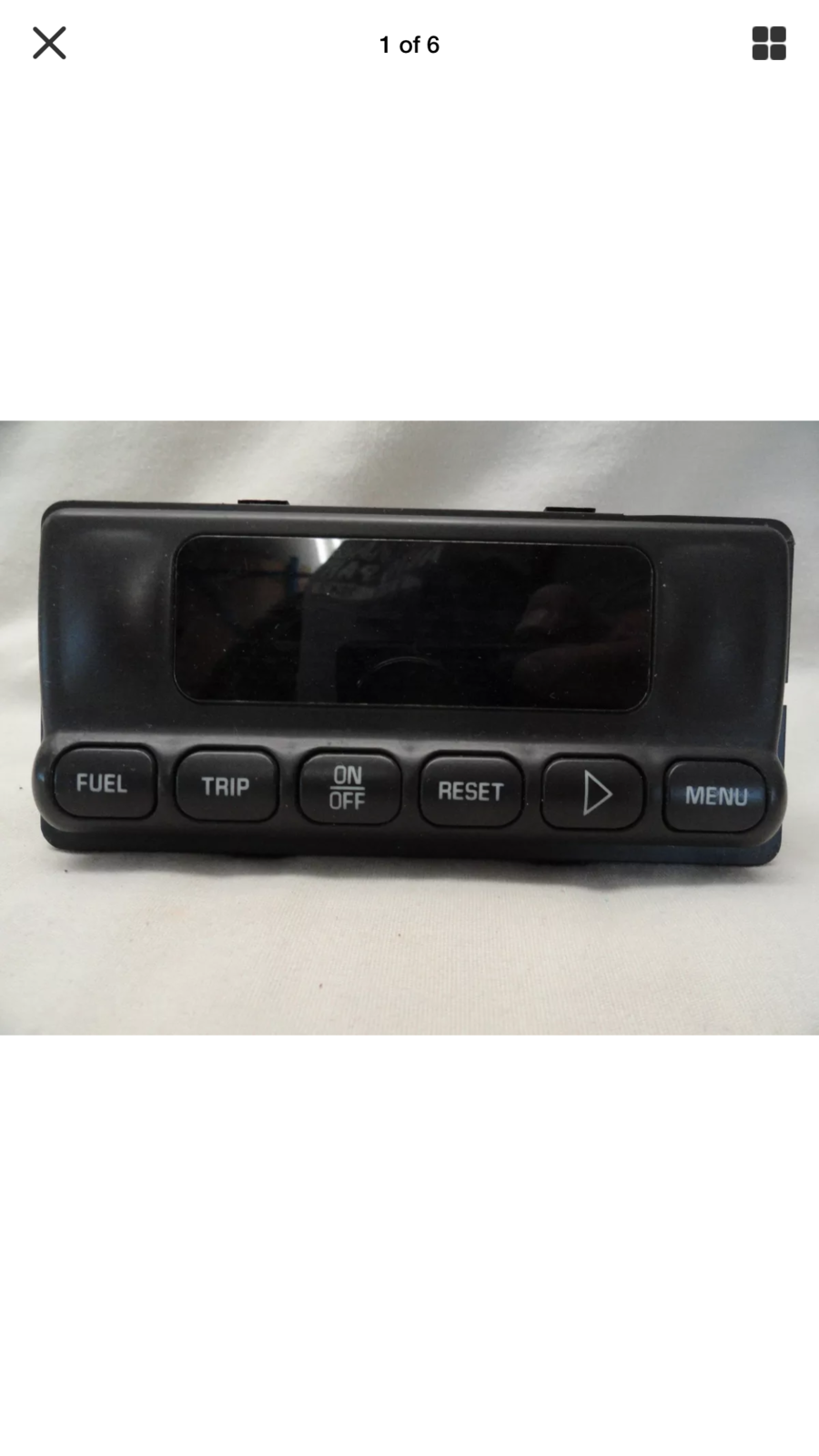

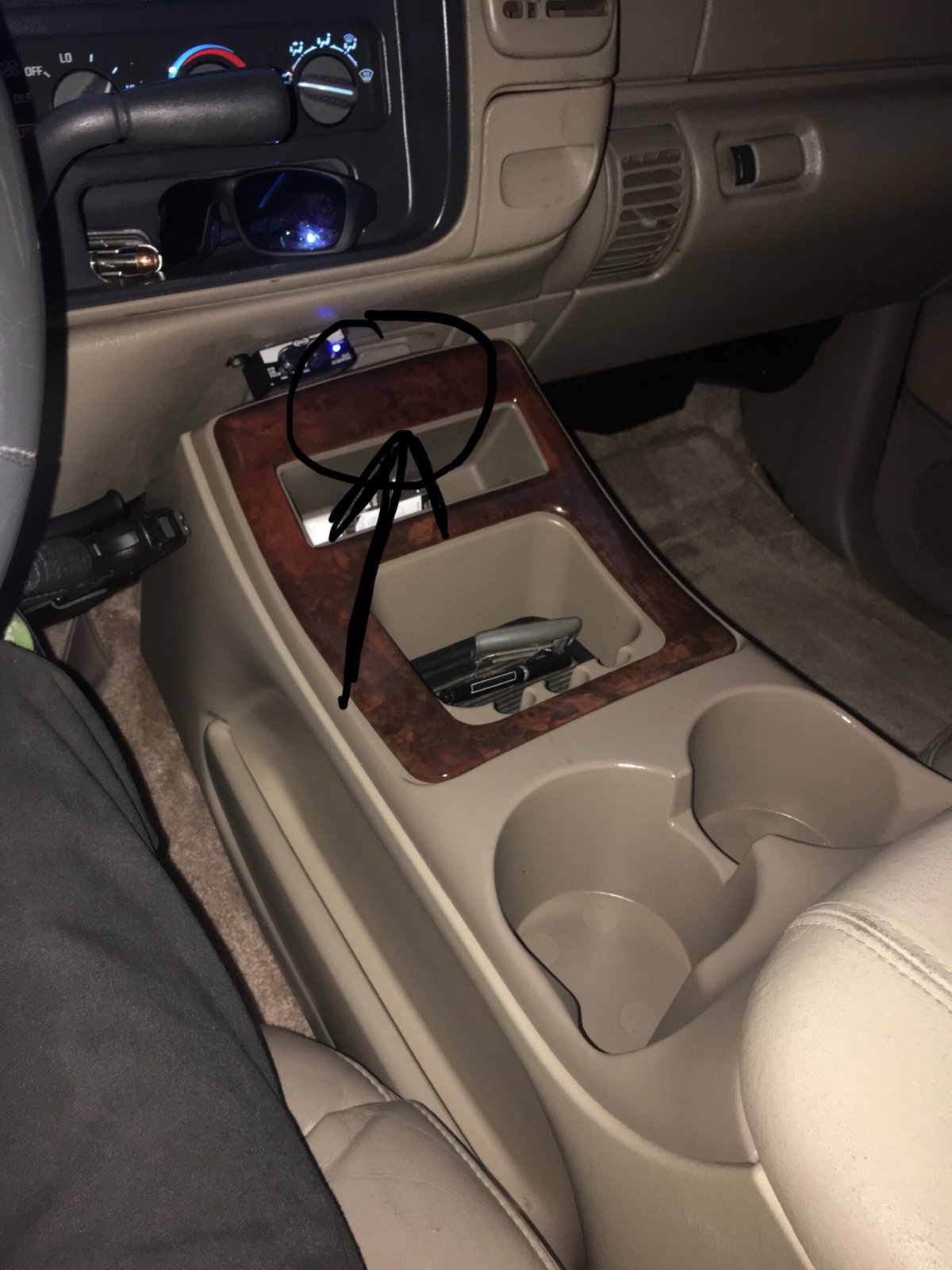

    My Yukon has the rear A/C option which I would like to keep so putting one up in the overhead console isn’t something I would like to do instead I plan on installing it in the center console since I have swapped in a console from a navigator I have a nice little pocket that tends to collect junk... ps don’t mind the circled area that’s where I was thinking of puttting a GMC decal....


    TexasMaq and Tonyrodz like this.
  9. Bear77

    Bear77 Full Access Member

    Posts:
    277
    Likes Received:
    263
    Joined:
    Aug 9, 2017
    Location:
    South FL
    Name:
    Humberto

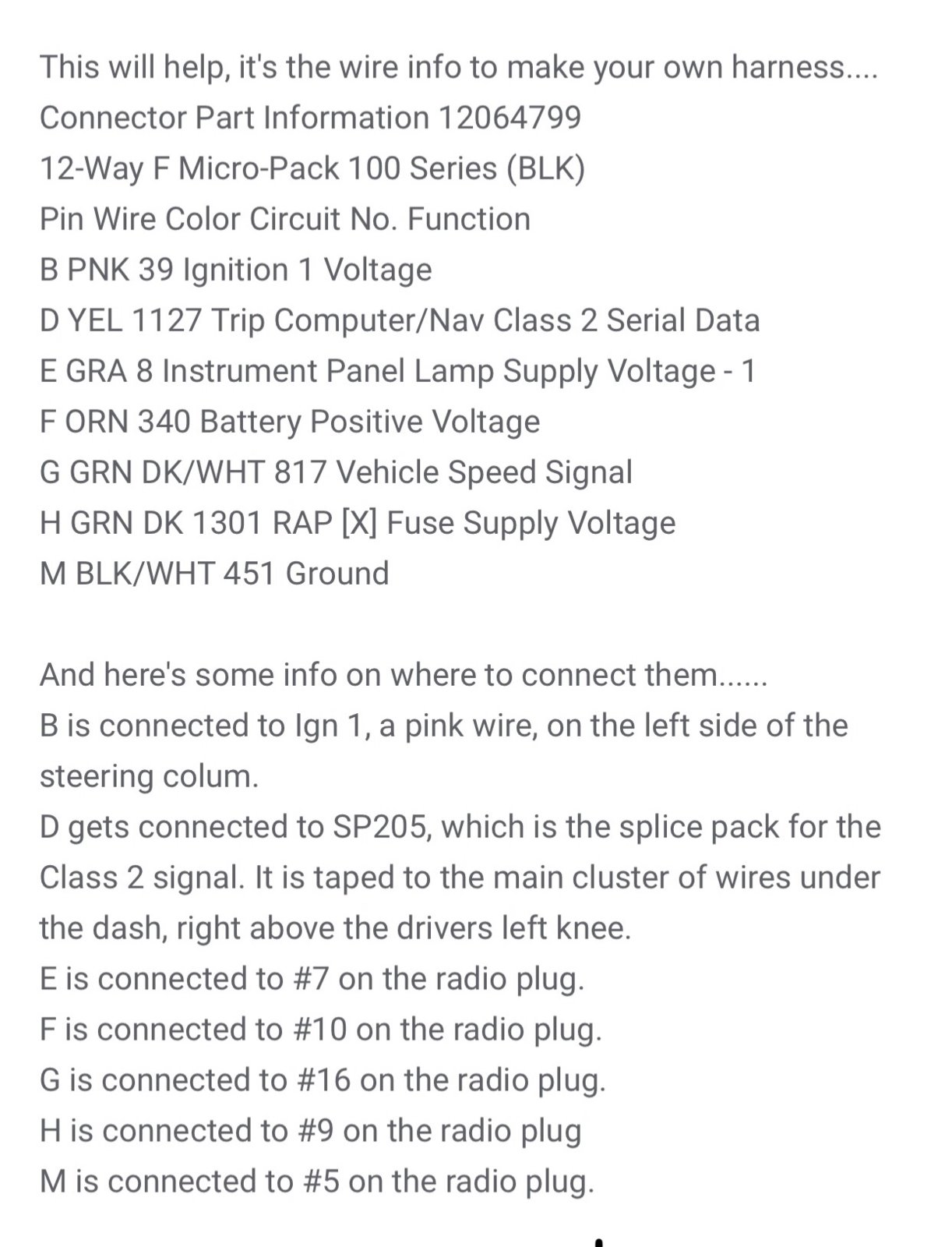

    Nice spot for your Glock? Back to the help you were looking for. When I did mine, was a little hard to understand. Thought I had saved another pic of the wiring, maybe I’m over looking it. I’ve a few drinks in already!
    If you can’t understand it or need more help, feel free to ask for it


    Sent from my iPhone using Tapatalk

    fastpat likes this.
  10. ObsUkon

    ObsUkon TYF Newbie

    Posts:
    10
    Likes Received:
    8
    Joined:
    May 18, 2018
    Location:
    Yakima
    Name:
    Jose
    Lol it’s actually an Xds.... That should be enough information now I’m just waiting for my part to arrive thanks
