My pics do that too. Sometimes it’s because of the resolution choice, others, quien sabe.

I saw mention of 3D printing yesterday on another forum, and it tickled my mind. Your completed bezel might be able to be scanned, then a file created to feed a 3D printer to make more.

Yeah well I’m not pulling my bezel and scanning it lol. There’s pretty much zero interest in **** this mod. I don’t know why but there’s only a handful that have been done.



[Doug118]

My pics do that too. Sometimes it’s because of the resolution choice, others, quien sabe.

I saw mention of 3D printing yesterday on another forum, and it tickled my mind. Your completed bezel might be able to be scanned, then a file created to feed a 3D printer to make more.

scanning it and having more printed is definitely a possibility. As soon as I can find an Escalade bezel, I’m going to attempt to make one and have it scanned



[Doug118]

Yeah well I’m not pulling my bezel and scanning it lol. There’s pretty much zero interest in **** this mod. I don’t know why but there’s only a handful that have been done.

I didn’t realize our stock bezel went over the gauge faces. Thanks for the pictures, that just made things 10x easier



[Rocket Man]

I didn’t realize our stock bezel went over the gauge faces. Thanks for the pictures, that just made things 10x easier

It doesn’t, don’t know where you got that idea. The Tahoe bezel ( in some of those pics it’s a Silverado bezel iirc) gets the bottom cut off on both sides and then the 2 legs going up get cut off. The mounting ears have to end up in the right place, they pop into locators on the dash and there’s a screw on each side. The Esky bezel fits the outer curve of the dash but that’s it. The part of it that goes against the cluster has a compound curve that has to be cut so it lays against the cluster face. Then you have to put both pieces into the truck and line the top and bottom pieces up so they’re on the right planes and right overall height, and you have to temporarily attach them together, pull them out of the truck, and make a jig to hold them like that while you bond them together. Let us know how easy it is once you’ve done one! I can’t wait.



[Doug118]

It doesn’t, don’t know where you got that idea. The Tahoe bezel ( in some of those pics it’s a Silverado bezel iirc) gets the bottom cut off on both sides and then the 2 legs going up get cut off. The mounting ears have to end up in the right place, they pop into locators on the dash and there’s a screw on each side. The Esky bezel fits the outer curve of the dash but that’s it. The part of it that goes against the cluster has a compound curve that has to be cut so it lays against the cluster face. Then you have to put both pieces into the truck and line the top and bottom pieces up so they’re on the right planes and right overall height, and you have to temporarily attach them together, pull them out of the truck, and make a jig to hold them like that while you bond them together. Let us know how easy it is once you’ve done one! I can’t wait.

so you’re telling me that doesn’t go over the gauges?



[Rocket Man]

so you’re telling me that doesn’t go over the gauges?View attachment 267079

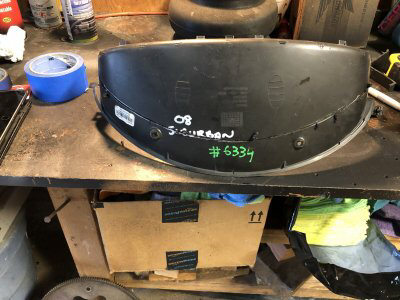

No. The only part of this you use is the very top 2” or so that is like a visor across the top. If you look closely you can see the cut line I just made, you can see the line between the green and white writing. The line you cut has to match the curvature of the clear lens of the cluster. You throw away 80% of this bezel.






.



[Kee Fuller]

I’m glad fiatdale sold me all of his. That bezel looks too complicated. I don’t have the patience



[NathanJax]

Anyone happen to be selling a completed cluster bezel for this swap?

I have the 2 bezels you need that I'll ship you for like $30



[Rocket Man]

scanning it and having more printed is definitely a possibility. As soon as I can find an Escalade bezel, I’m going to attempt to make one and have it scanned

I have the 2 bezels you need that I'll ship you for like $30

Thats a great deal. Now you have no excuse to get started Doug!



[Doug118]

Thats a great deal. Now you have no excuse to get started Doug!

Already picked up a cluster and bezels for $50 for everything but I’m definitely buying extra
