Anyone have the rear junction block they want to sell?

[mikez71]

It's supposed to be located in the jack storage area..
Curious about how it looks and interested in buying.
Should provide 2 x 50A circuits in the back. Thinking one would be nice to hookup an air compressor.



[Sparksalot]

I had that in theothertwin, it wasn’t anything particularly special.

The block had been chopped out of thecopcar, but I do have the two power feeds. I terminated each with a 50 amp Anderson plug, so I can tap power for my fridge and other things.



[mikez71]

Thanks Sparks!
Any pictures of the front battery fuse block (On battery?)

That's what I'm really needing just a fuse holder.. Looking for something factory-ish.. but am leaning towards attaching it to the aux battery because it's more accessible.



[Sparksalot]

Thanks Sparks!
Any pictures of the front battery fuse block (On battery?)

That's what I'm really needing just a fuse holder.. Looking for something factory-ish.. but am leaning towards attaching it to the aux battery because it's more accessible.

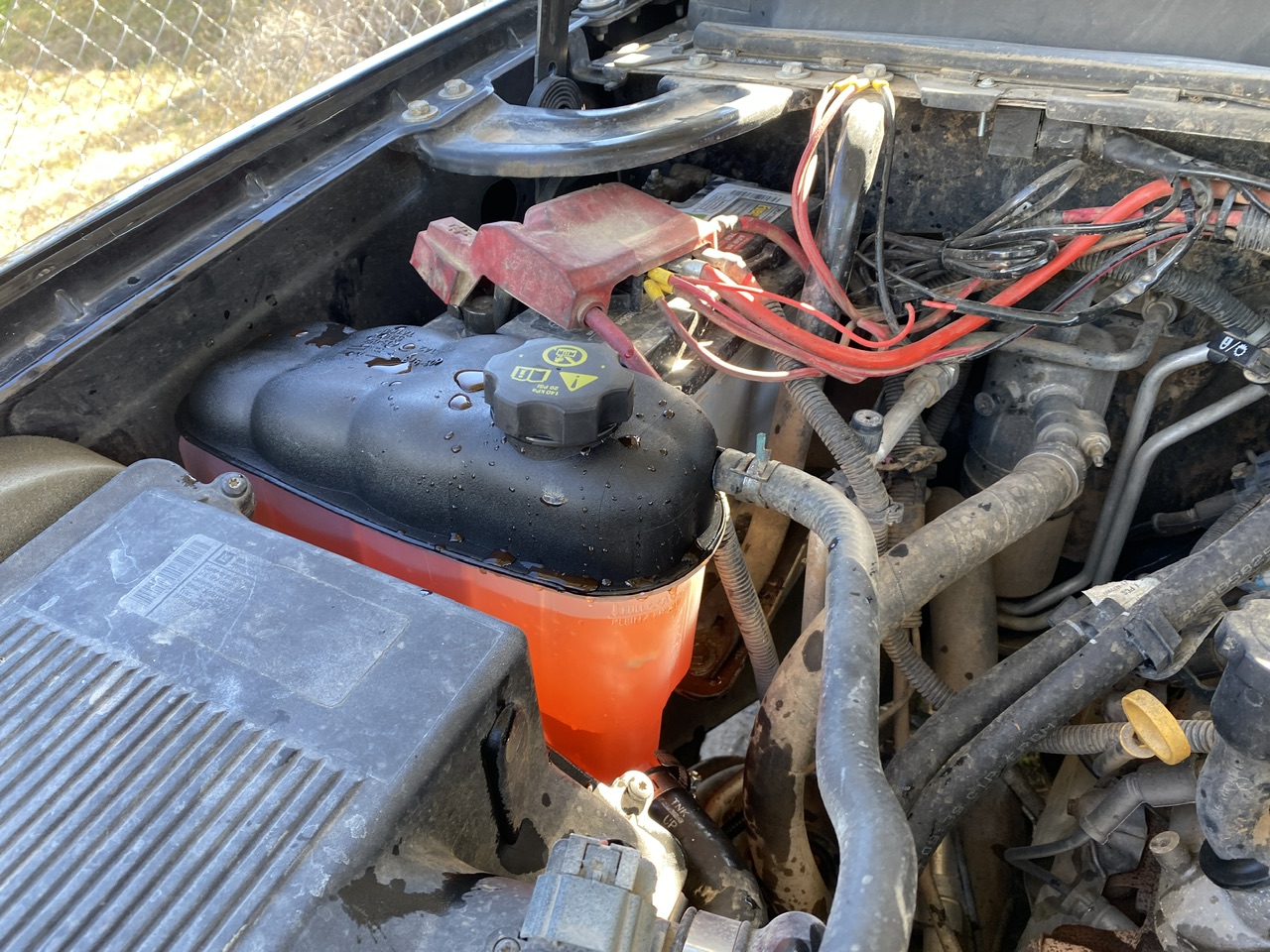

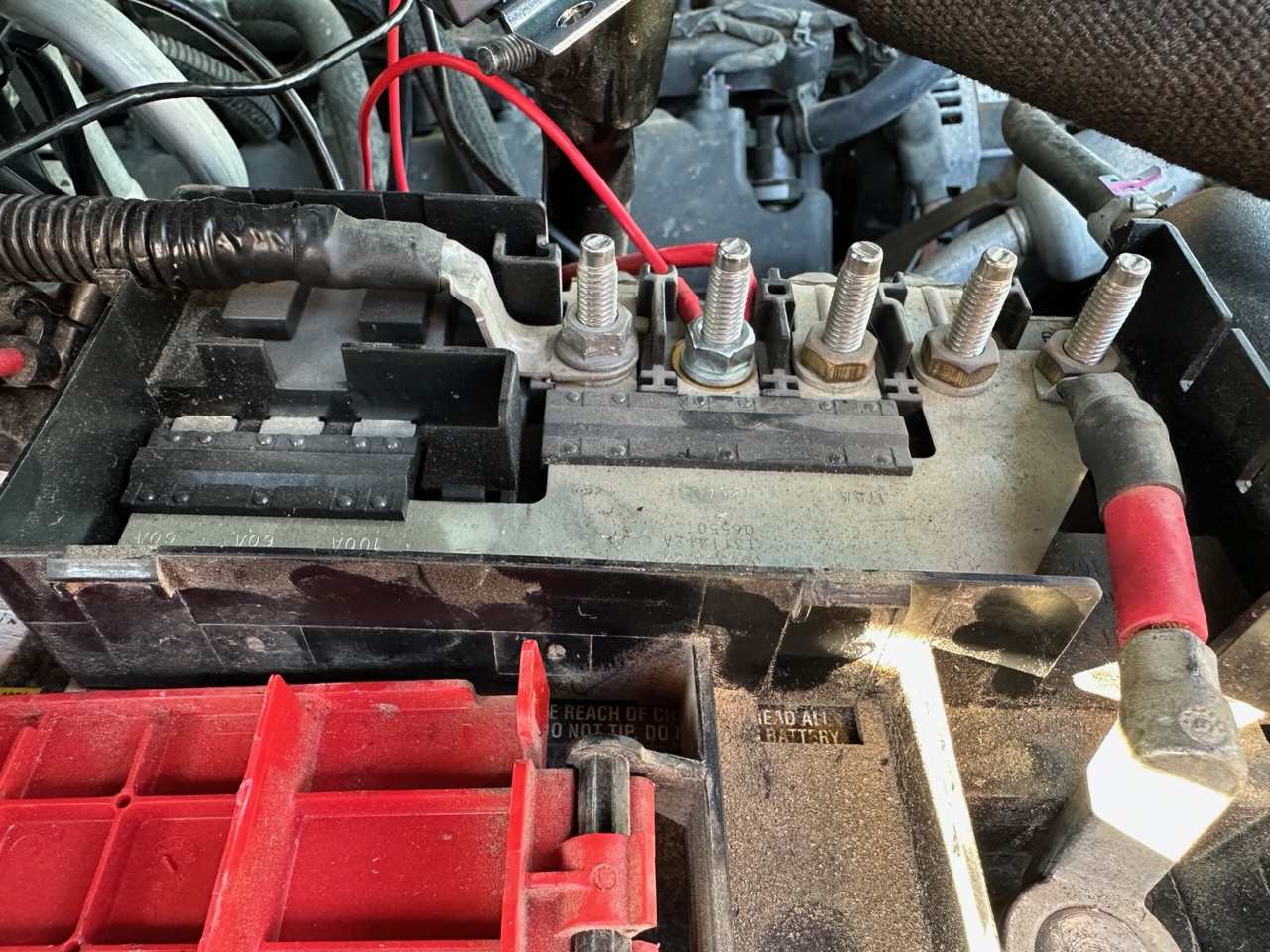

Do you mean this one?



[mikez71]

That's it! Thanks for the photos Sparks.

Haven't found that style of fuse holder anywhere.. Stock one has a single 175 fuse.
Going to try and make/hack something similar but on aux battery..



[opfor2]

That's it! Thanks for the photos Sparks.

Haven't found that style of fuse holder anywhere.. Stock one has a single 175 fuse.
Going to try and make/hack something similar but on aux battery..

Keep us posted on your progress. For I'm looking to do the same thing.



[mikez71]

Bought one of these, they seem to cost about $30-$40

01-04 Mercedes R170 SLK320 Under Hood Fuse Box Junction Relay 1705450301 OEM | eBay

Find many great new & used options and get the best deals for 01-04 Mercedes R170 SLK320 Under Hood Fuse Box Junction Relay 1705450301 OEM at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Similar thing but looks bulkier

Heavy Duty Power Distribution Fuse Box For Mega & Midi Fuses 12v & 24v | eBay

Find many great new & used options and get the best deals for Heavy Duty Power Distribution Fuse Box For Mega & Midi Fuses 12v & 24v at the best online prices at eBay! Free shipping for many products!

www.ebay.com

They also have individual holders that can stack, and you can make a bus bar go across the feed side..

Bussmann Automotive MIDI AMI Interlocking Fuse Holder 200 Amp 12V | eBay

Find many great new & used options and get the best deals for Bussmann Automotive MIDI AMI Interlocking Fuse Holder 200 Amp 12V at the best online prices at eBay! Free shipping for many products!

www.ebay.com

I didn't want individual covers, rather have one cover for all the fuses.. Depends on how many you want to add.

I am only planning on two for now.. Hoping I can cut part of the box away and mount it on the aux battery terminal stud. It's smaller than the main battery terminal stud I think, so if it doesn't fit well or seem strong enough, I might make a bracket from under battery tray to hold it up next to the battery..



[Sparksalot]

That's it! Thanks for the photos Sparks.

Haven't found that style of fuse holder anywhere.. Stock one has a single 175 fuse.
Going to try and make/hack something similar but on aux battery..

All of the K2s have a terminal block on the positive. It should be an easy fit if you go that route.



[mikez71]

Thanks for the pics sparks! The thing I don't like, it's larger than I need, and the fuses are all one piece, so not really configurable.

I think I have a bracket idea for the box I got. I will have to make a short battery cable to it, as it won't be mounted on the battery. I plan on adding an alternator cable anyhow. It seems to me that the charging route for the aux battery is rather long, going to main battery, to starter, to aux battery. Whereas both batteries ground straight to the motor. It sounds like you want the resistance to be the same to both batteries or you will get uneven charging. Being the alternator is closer to the aux battery, I think an extra wire there should hopefully even it out better. (Whatever I gotta tell myself right?) The box I have doesn't sit right on the battery (Would have to make a little buss bar connection with a jog in it for the height difference.. didn't like how my wires would be pointed, and the battery lug connection is kinda small to support it all.)

There was another GM box with battery terminal, but no battery cable. You would have to drill the end and solder slug attach the battery cable..

GM Battery Distribution Fuse Block 23239735 | eBay

Find many great new & used options and get the best deals for GM Battery Distribution Fuse Block 23239735 at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[Sparksalot]

Thanks for the pics sparks! The thing I don't like, it's larger than I need, and the fuses are all one piece, so not really configurable.

I think I have a bracket idea for the box I got. I will have to make a short battery cable to it, as it won't be mounted on the battery. I plan on adding an alternator cable anyhow. It seems to me that the charging route for the aux battery is rather long, going to main battery, to starter, to aux battery. Whereas both batteries ground straight to the motor. It sounds like you want the resistance to be the same to both batteries or you will get uneven charging. Being the alternator is closer to the aux battery, I think an extra wire there should hopefully even it out better. (Whatever I gotta tell myself right?) The box I have doesn't sit right on the battery (Would have to make a little buss bar connection with a jog in it for the height difference.. didn't like how my wires would be pointed, and the battery lug connection is kinda small to support it all.)

There was another GM box with battery terminal, but no battery cable. You would have to drill the end and solder slug attach the battery cable..

GM Battery Distribution Fuse Block 23239735 | eBay

Find many great new & used options and get the best deals for GM Battery Distribution Fuse Block 23239735 at the best online prices at eBay! Free shipping for many products!

www.ebay.com

That’s a nice find.



[mikez71]

The wire diameter's I had mentioned are wrong. Factory diagram is square mm cross section, not diameter! Finally realized this when the alternator cable was listed as 19. (4.35mm diameter) which is a little bigger than 6 gauge wire (4.11mm). The rear 50A circuits are a little smaller than 10 gauge(2.58mm) wire at 2.23mm not 5mm!



[mikez71]

mounted aux power distribution box. Had to drill one hole in battery tray, used one existing hole. box is low enough that aux battery can be removed without issue.

just need some wires.. thinking 4 gauge for battery, 2 gauge or 1/0 for the 15' or so to cargo area.. maybe 6 gauge for alternator...



[mikez71]

Well, 1/0 cable won't fit in that last fuse box, so I ordered this one..

HEAVY DUTY Power Distribution Fuse Box Block Mega & Midi Fuses 12v & 24v | eBay

Find many great new & used options and get the best deals for HEAVY DUTY Power Distribution Fuse Box Block Mega & Midi Fuses 12v & 24v at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Looks a little beefier, still fairly small footprint. Can put in a full size megafuse and 4 midi fuses.



[j91z28d1]

gm uses a nice little block on the c7's. fan alt and stuff like that. I think it's 30$ can get a mount and cover for it.

part number 23173653 I believe



[mikez71]

That's nice and compact!
But I'm a sucker for replaceable fuses without having to buy a special fuse block if one blows..
Also looks like that goes in a special plastic holder..
