2012 yukon link puddle lights to dome lights?

[Doubeleive]

I have a aftermarket alarm system and it does not light the puddle lights when unlocking with the aftermarket key fob.
so I want to tie the puddle lights to the dome lights since it does light the dome lights when unlocking

searched all over and found no definitive answer on which wire/s or where

found that it can be done rather easily on the 2014+ by linking two gray wires at the bcm

does anyone have a definitive answer? or have done the same thing

just trying to avoid having to take more things apart than necessary to figure it out



[swathdiver]

I wonder why they do not come on when the door unlocks? Each puddle light is powered from that door's switch.

Each puddle light's wires are both Orange and White.

The wire leaving each door switch to the computer data lines is Dark Green.

The wire leaving the passenger side door switch to the BCM is Dark Blue and White and can be found at the right instrument panel junction block under the dash on the right.

The wire leaving the driver's side door switch to the BCM is Light Blue and White and can be found at the left instrument panel junction block under the dash on the left.

Hope this helps.



[Doubeleive]

I had the drivers door panel off today to replace the inside door handle and I read that the puddle light wire was either blue, blue/white, or orange white. I tried all 3 with a 9v battery just to see if I could get the puddle light to come on but didn't have any luck (maybe 9v wasn't enough) and I don't really want to start taping wires until I can identify it for sure.
the aftermarket alarm kind of bypasses the bcm so it doesn't turn the puddle lights on and I have read before that the puddle lights are controlled thru the drivers door switch and that they would have to be patched in after the door switch panel, but if they can be tied in from the box under the dash or at the bcm that would make things easier. I just don't want to start putting 12v to random wires and risk screwing something up.

to me it doesn't make sense that you could just link 2 wires together on a 2014+ at the bcm and have it work but supposedly you can't on the 2012



[Doubeleive]

I poked around the web a little more supposedly I can just run a wire from the dome light power to the orange/white wire (on the white connector) and it should work, I will pull the switch panel back off tomorrow and do some more testing, if that works then hopefully I can feed a wire thru the boot in the door jam without having to pull the door panel off



[gooffeyguy]

Maybe when you tested with the 9v, the bulb is just burnt out?

Just remember, If you attach it to the dome wire, it'll come on whenever the dome is turned on

2001 Yukon SLT
2012 Yukon XL Denali
2011 Yukon Denali RIP 5/20/18

Sent from my SM-G930V using Tapatalk



[Doubeleive]

Maybe when you tested with the 9v, the bulb is just burnt out?

Just remember, If you attach it to the dome wire, it'll come on whenever the dome is turned on

2001 Yukon SLT
2012 Yukon XL Denali
2011 Yukon Denali RIP 5/20/18

Sent from my SM-G930V using Tapatalk

the bulb light shouldn't be out i'm thinking I just didn't have a good ground point when I was testing it yesterday, but i'm going to find out later today, have to get kids to school and get some work done first.



[swathdiver]

Did you get my email Wes?



[kbuskill]

When you hooked up the 9v battery to the puddle light where was it grounded???

I assume you hooked one wire to the + and the other to the - of the 9v battery.

Also if I'm not mistaken the BCM just switches the ground side in order to turn things on and off.

If that is the case then the puddle lights should have power all the time and the BCM just connects it to ground to complete the circuit when those lights are called for.



[Doubeleive]

Did you get my email Wes?

yes thank you



[Doubeleive]

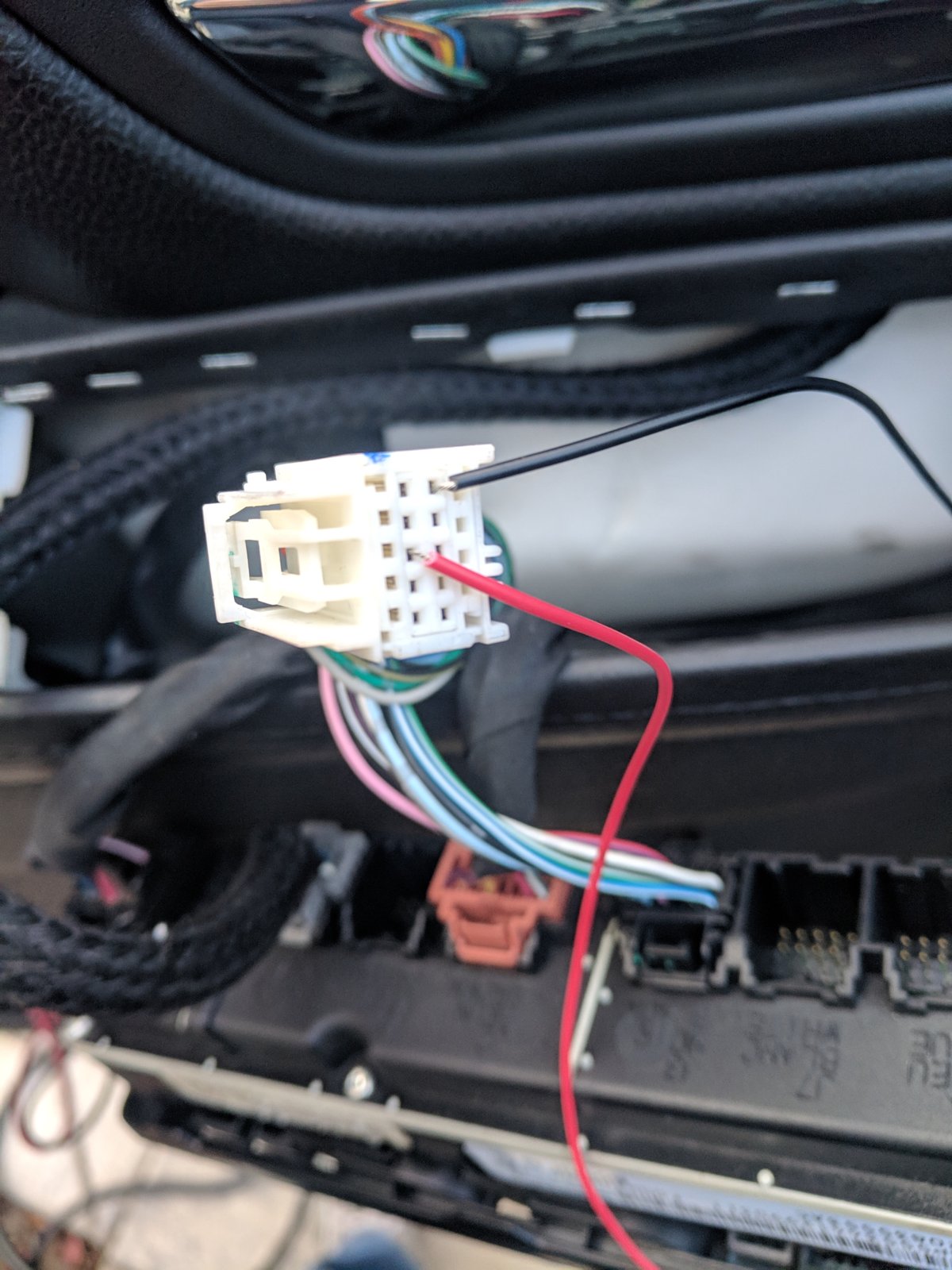

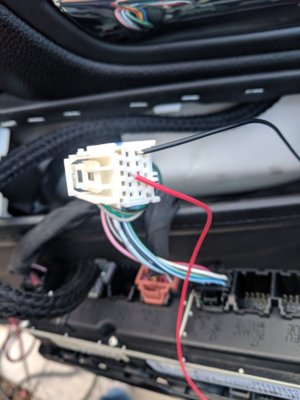

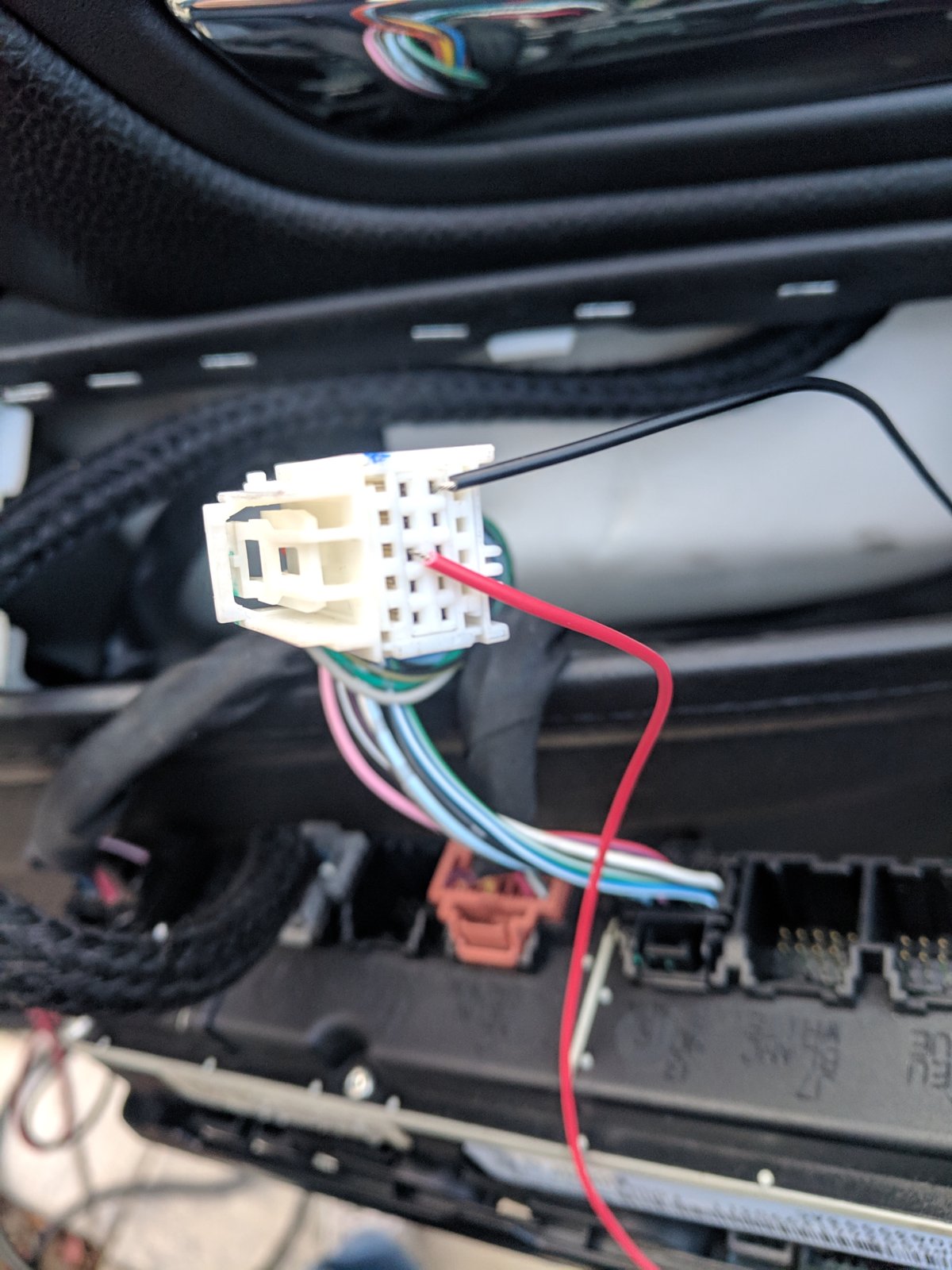

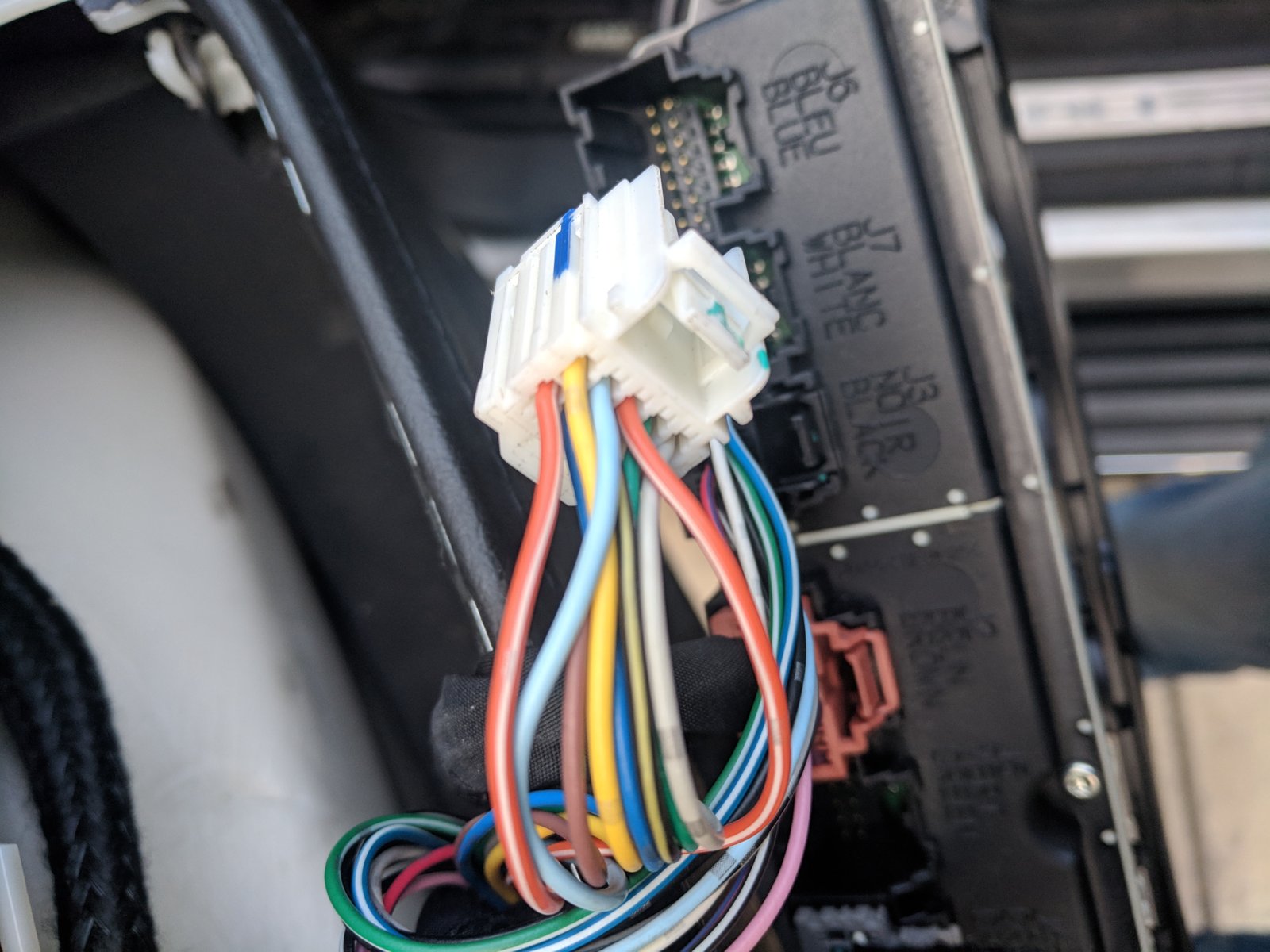

ok, so derrrr there is (2) orange/white wires on the white connector, the one on the corner pin is negative, the one on the center pin is positive (as it is supplied from the door switch) I wanted to be sure to get it right so it wouldn't be shorting out if the OEM fob is used
running out of daylight today, I'll have to pull both the door panels to run wire sometime this weekend



[shreksbrother]

ok, so derrrr there is (2) orange/white wires on the white connector, the one on the corner pin is negative, the one on the center pin is positive (as it is supplied from the door switch) I wanted to be sure to get it right so it wouldn't be shorting out if the OEM fob is used
running out of daylight today, I'll have to pull both the door panels to run wire sometime this weekend

View attachment 212298 View attachment 212299

Nice find. I want to track down the turn signal in the mirror, I guess I could do the same trick.

Sent from my Galaxy Note9 using Tapatalk



[Doubeleive]

Nice find. I want to track down the turn signal in the mirror, I guess I could do the same trick.

Sent from my Galaxy Note9 using Tapatalk

I think the turn signal wire is on the other connector because when I was testing I had the white connector off and the turn signal led was still lighting up



[shreksbrother]

I think the turn signal wire is on the other connector because when I was testing I had the white connector off and the turn signal led was still lighting up

Thanks for the hint. The only thing I'm concerned about is putting the wrong voltage on the auto dim wire... I did that once on a rear view mirror and ruined it.

Sent from my Galaxy Note9 using Tapatalk



[Doubeleive]

Thanks for the hint. The only thing I'm concerned about is putting the wrong voltage on the auto dim wire... I did that once on a rear view mirror and ruined it.

Sent from my Galaxy Note9 using Tapatalk

lol, ya I did the same thing years ago I bought the dim/signal glass to put on my 00 nbs and was going to add the autodim found out in about 1 second that autodim doesnt take 12v.
I didn't even think about that when I was screwing around with this the other day with a 9v battery



[shreksbrother]

lol, ya I did the same thing years ago I bought the dim/signal glass to put on my 00 nbs and was going to add the autodim found out in about 1 second that autodim doesnt take 12v.
I didn't even think about that when I was screwing around with this the other day with a 9v battery

Live and learn. I bought the digital service manual, so I've been trying to decipher it to see if it has a schematic for that for switch.

Alternatively, I have a power fold I pulled at the junkyard with cracked glass I don't mind messing up.

Sent from my Galaxy Note9 using Tapatalk



[Doubeleive]

it would be nice if someone invented a plug in serial bus module so you could just add/delete whatever you wanted, I have a feeling it's going to be a thing in the future with the way things are going with big brother taking over the vehicles, it's already starting with electric steering, electric brake control, etc, onstar is bad enough, soon enough the police will just be able to pull your vehicle over by remote control or you'll just get a ticket via email after some kind of alarm goes off when you passed a road sensor too fast, i'm sure they will be pretty creative with it.



[Doubeleive]

making progress, got the wires hooked up and all dialed in behind the door panels, figured out the easiest way to take off the door panels is to grab it with your fingers just below the mirror closest to the door hinges and pull out and work your way down and around back up to the door lock then it comes right off without having to use any pry tools, now I just need to tie into the dome light wire at the drivers kick panel/box. hardest part was feeding the wire thru the rubber boot in the door hinge area I just pushed a big long zip thru it with the wire attached to the clip end, I used speaker wire since it matched the same thickness of the mirror harness



[Doubeleive]

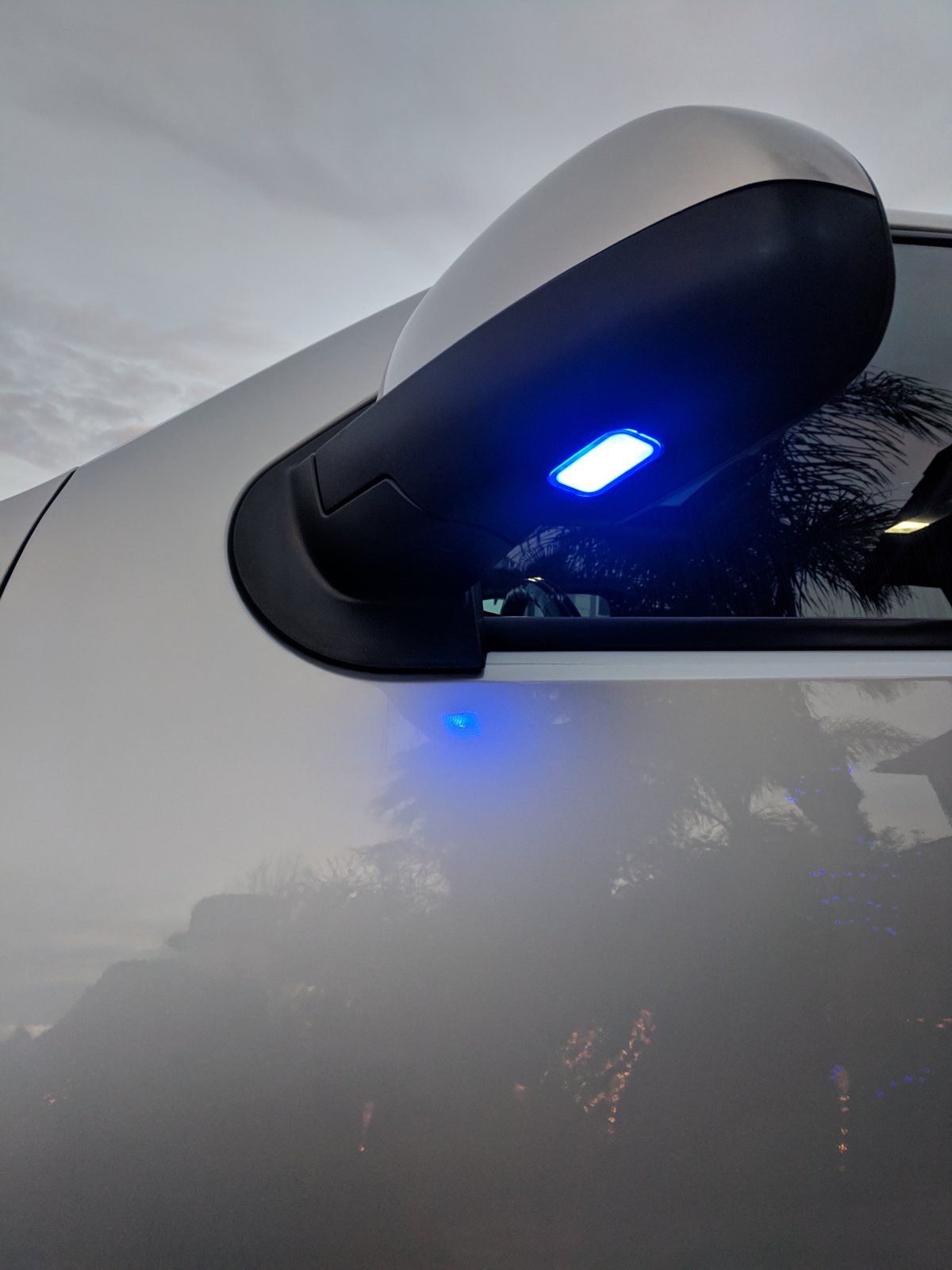

Got em and tossed in blue LED's since I am going to put blue LED's under the running boards as well, made an extra connector to the dome light harness so it will just be plug-n-play



[89Suburban]

Got em and tossed in blue LED's since I am going to put blue LED's under the running boards as well, made an extra connector to the dome light harness so it will just be plug-n-play

View attachment 212414

Nice!



[89Suburban]

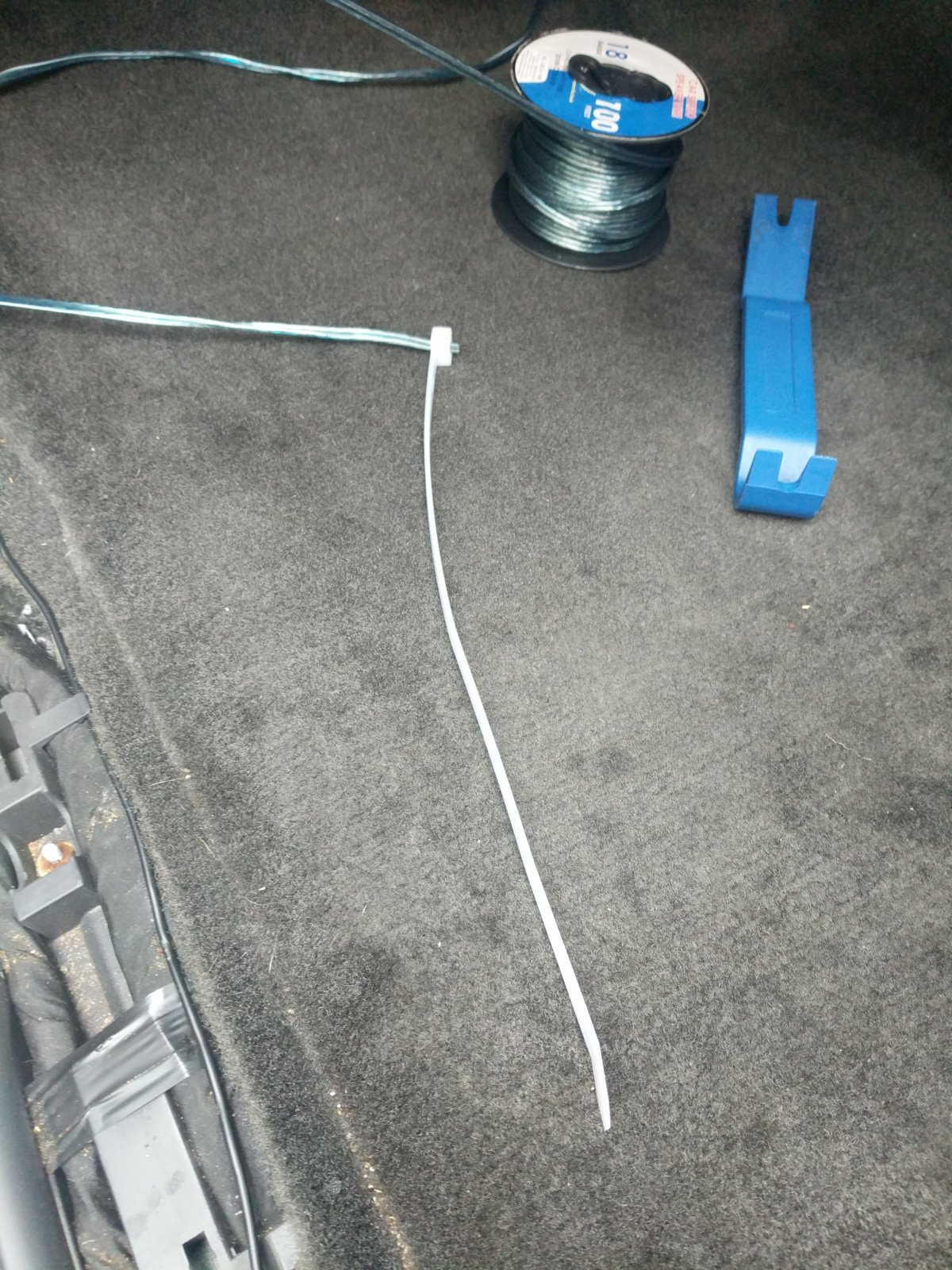

hardest part was feeding the wire thru the rubber boot in the door hinge area I just pushed a big long zip thru it with the wire attached to the clip end,

View attachment 212374

That's a great trick!
