Yukon XL AT4 Lifted

[CCPLuvr]

About 2 years ago my wife started sending me screenshots of lifted Yukon and Escalades from Hurst Autoplex's IG account. We were into another vehicle with issues and couldn't just change course till November. We did purchase a '24 Yukon XL AT4 in November and started planning the mods with quite a bit of help from posts on this forum. To the interior we only added GMC floor and cargo liners, 20% ceramic tint on the front sides, and 80% ceramic tint to the windshield and sunroof panels (mainly for UV protection).

We like the look of 35" tires on the lifted Yukons but prefer that the tires are flush with the body and not poke. We chose to go with Fuel Flux 20" x 9" wheels, 20mm offset. This only moved the wheels outboard 8mm but combined with the Falken AT4W 35" x 11.5" tires it gave us the look we wanted. We bought www.edgymods.com adjustable link rods for the air ride lift, it was really easy to install and adjust for lift and level (the rear is up about 1/4"). The lug nuts were also changed to black. The front and rear GMC emblems were changed to GMs black parts along with the front and rear door Yukon and AT4 emblems. We did leave the fender emblem stock as neither of us liked the look of the all-black part.

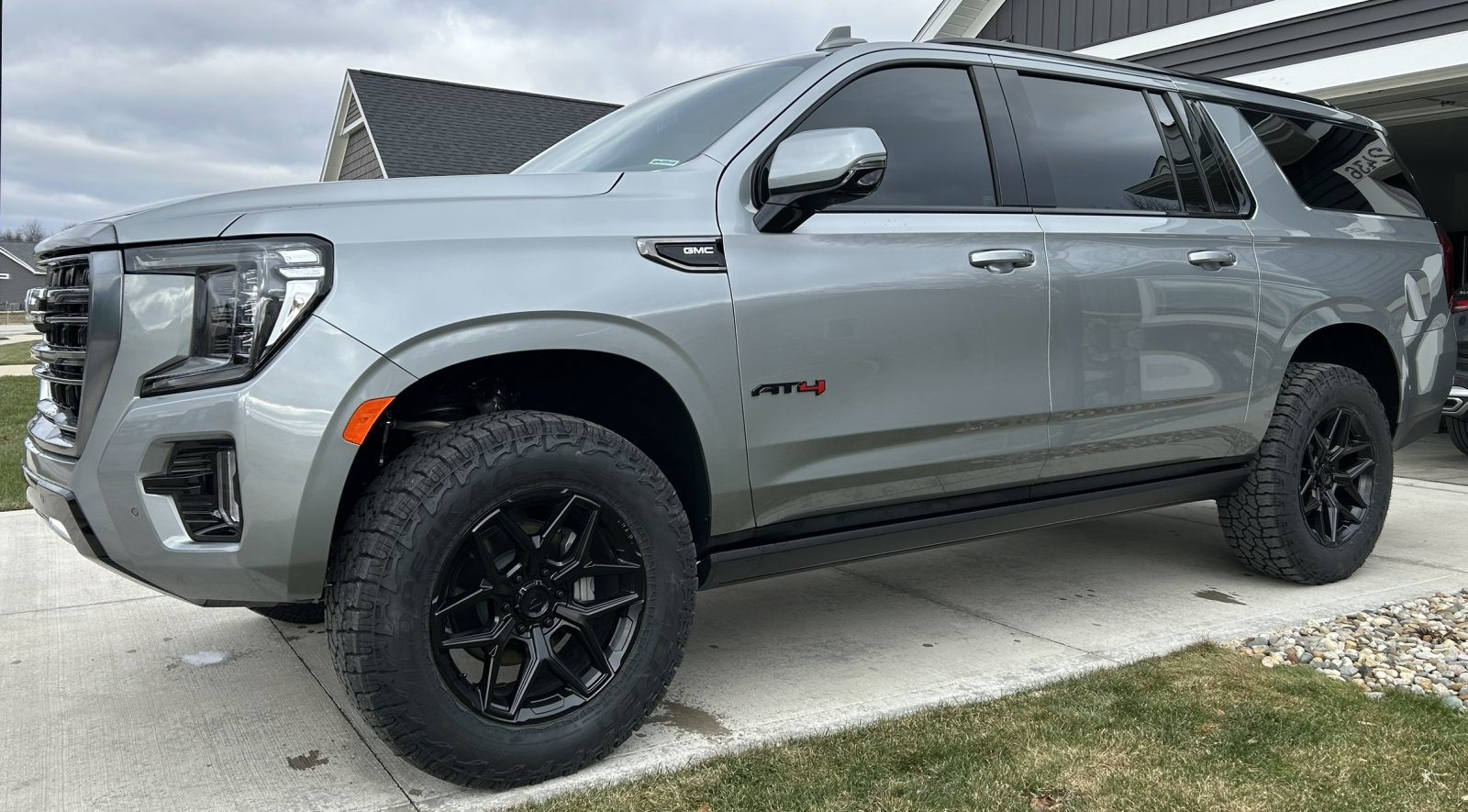

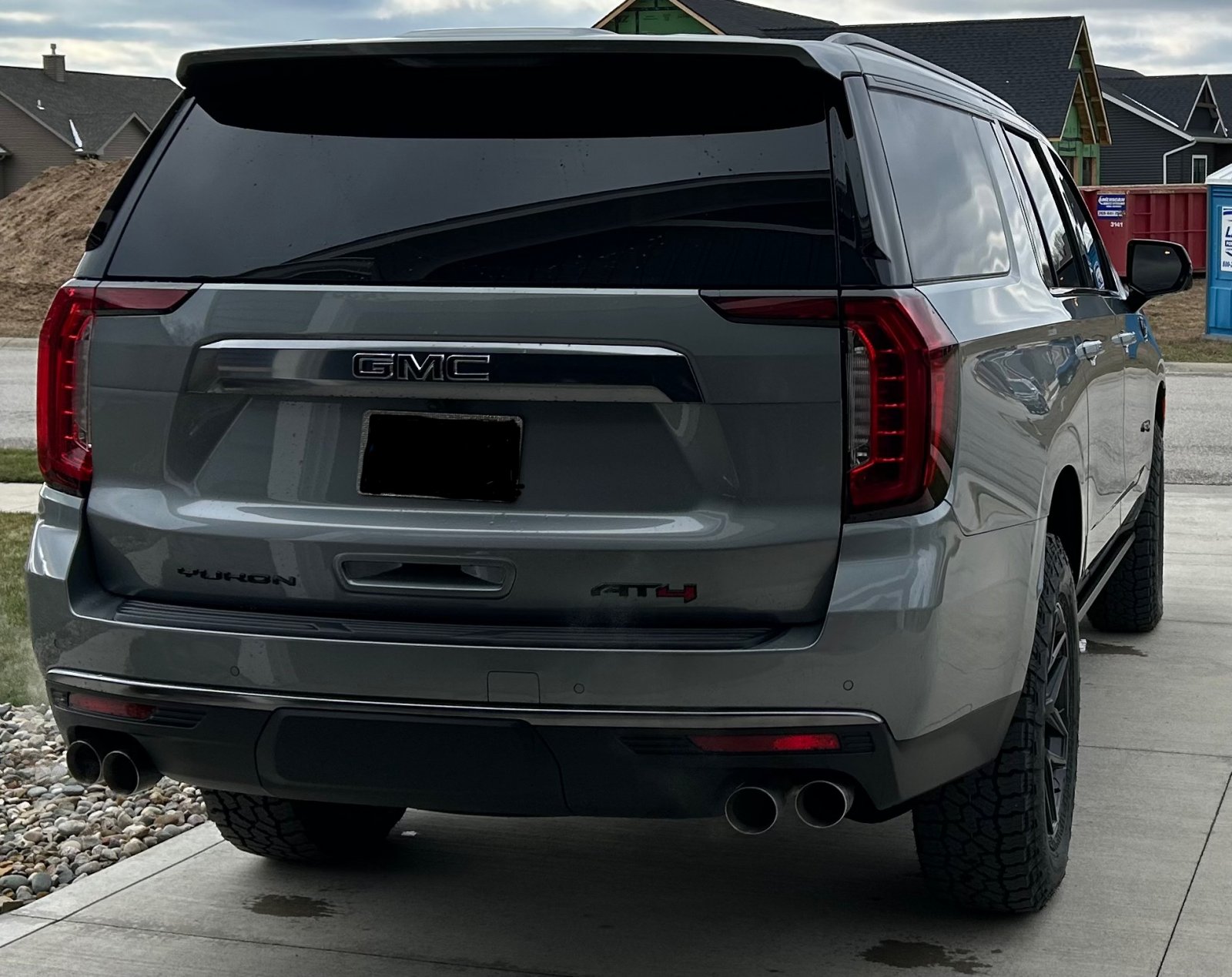

I lack any photography skills but here's how it's turned out. What do you all think?



[CCPLuvr]



[CCPLuvr]

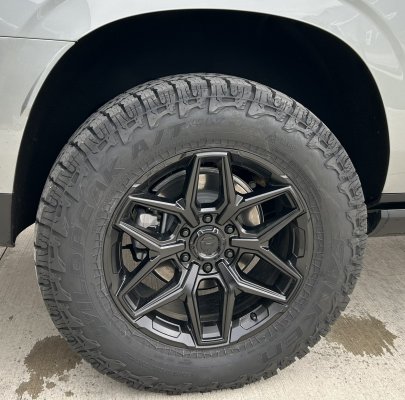

Front and rear of the tires and wheels:



[KMeloney]

Looks fantastic! Enjoy!



[jd08]

Looks great!!!

What height do you have links set at?

I am putting the lift links on our Tahoe tomorrow. Probably going to set them at 1" or 1.5" of lift for now. Currently running stock size LT275/60/20 Falken AT3W on Trailboss rep wheels. Once we go with large tires I will adjust them higher.



[CCPLuvr]

I've got about a 2.5" lift over stock. The front link was nearly maxed out in length.



[CCPLuvr]

From the ground to the inside top of the front fender is 40 1/2", the rear is 40 3/4".



[jd08]

I've got about a 2.5" lift over stock. The front link was nearly maxed out in length.

Thanks.

Max I would go is 2" when I do put 34" tires on it but that might be a year before I do that. But for right now I am going for about 1" to 1.5" and then I can still use the raise and lower functions.



[CCPLuvr]

I almost went with 285/65R20 rather than the 35x11.5. The 285s are about 1/2" smaller in diameter and according to what others have wrote cleared their liners without mods. We turned off the lowering setting and only keep it in Normal now, I believe this height is just a little higher than the +2" that 4LO allows.



[jd08]

Our lowering setting is always turned off,. Only time I use that is if my parents or in-laws ride in it to make it easier for them.

Got links installed and got exactly 1" lift all around the first time. Perfect height for stock size tires. Was the easest leveling kit I ever installed and I did alot. Will go up to 2" whenever we think about going to 34" tires.



[PMB 73]

Wow! That Looks Awesome!! Wheels and tires look perfect. I have a couple questions. Did you have to do any trimming? Also, how's the ride after adding the links? Do you like the air ride lifted?
Thanks



[CCPLuvr]

If you look at the thread you first posted in there's a link for the trimming and ride impressions.



[gerardojr83]

Looks good! I want to do similar to mine. Question about the exhaust, is that stock?



[CCPLuvr]

Yes, it's the stock 6.2 exhaust.



[redhat9]

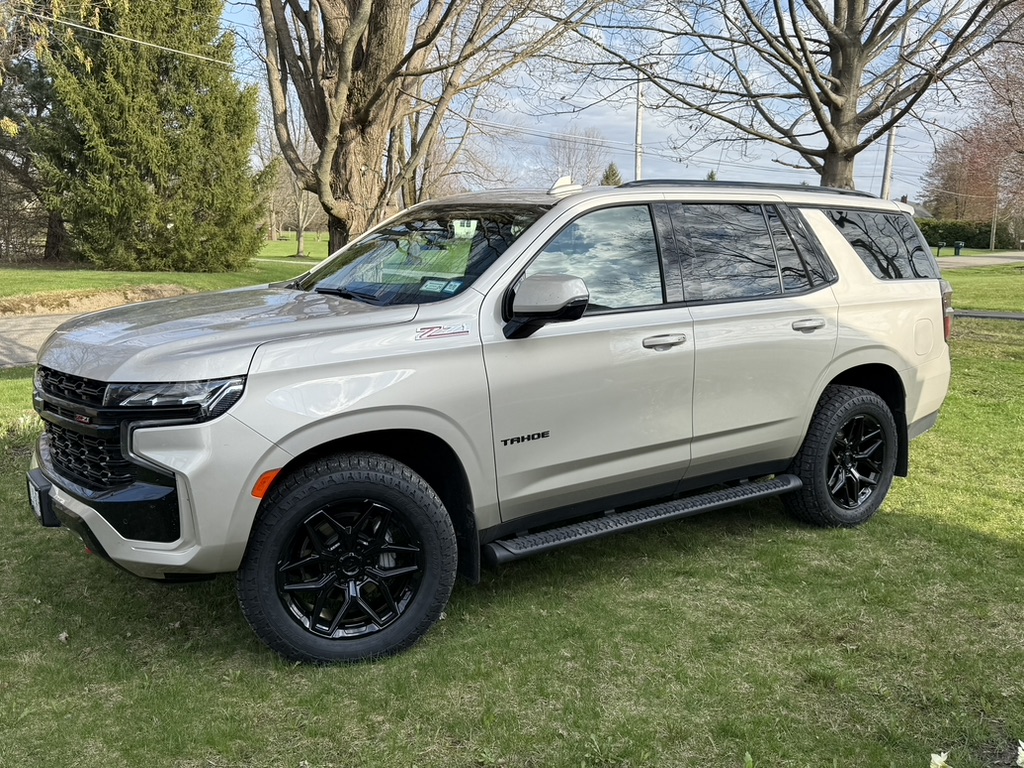

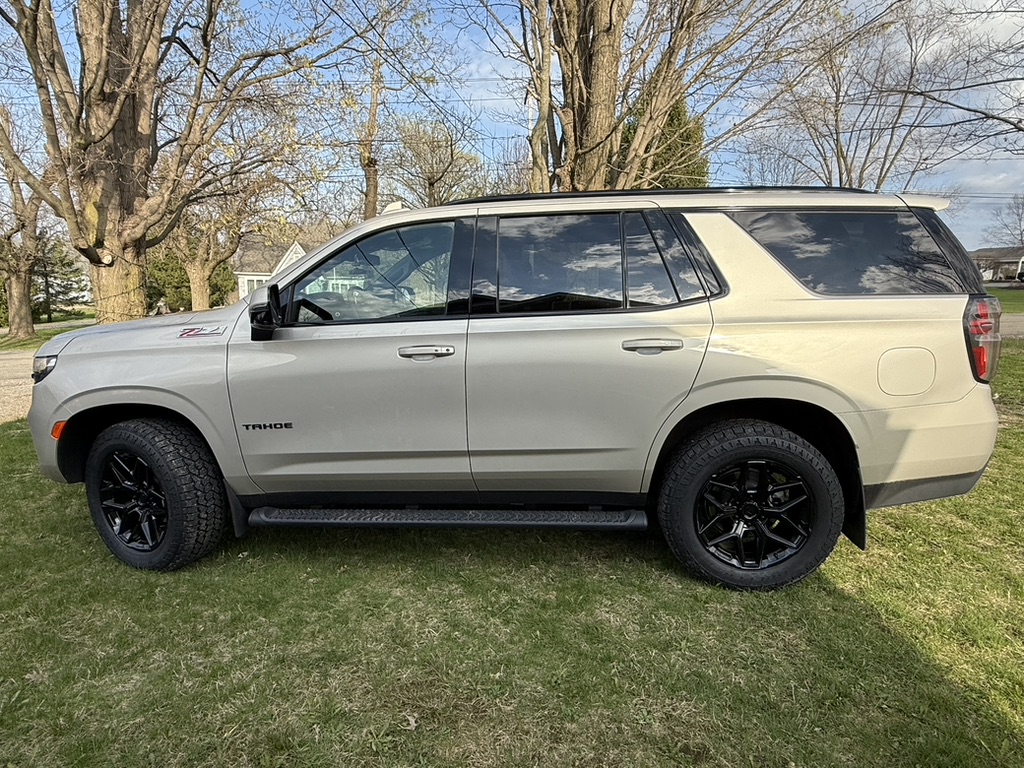

OP -- I loved how these looked on yours and I needed new wheels so I went with a set of Gloss Black Flux 6. Same as yours, 20x9 +20mm offset. I am a stock ride height Z71 so I wrapped them in the OE tire size 275/60/20 Bridgestone Dueler A/T Ascent. I love the look. They seem like a very nice wheel.



[CCPLuvr]

OP -- I loved how these looked on yours and I needed new wheels so I went with a set of Gloss Black Flux 6. Same as yours, 20x9 +20mm offset. I am a stock ride height Z71 so I wrapped them in the OE tire size 275/60/20 Bridgestone Dueler A/T Ascent. I love the look. They seem like a very nice wheel.

View attachment 455625

View attachment 455626

Looks great!



[WVBKW]

OP -- I loved how these looked on yours and I needed new wheels so I went with a set of Gloss Black Flux 6. Same as yours, 20x9 +20mm offset. I am a stock ride height Z71 so I wrapped them in the OE tire size 275/60/20 Bridgestone Dueler A/T Ascent. I love the look. They seem like a very nice wheel.

View attachment 455625

View attachment 455626

I have been looking for these tires on a Tahoe. I think i am going to purchase them. You have had them for awhile now. What is your thoughts? Thanks!



[JoeBlobs]

Just about a perfect setup if you ask me. Very nice!!



[redhat9]

I have been looking for these tires on a Tahoe. I think i am going to purchase them. You have had them for awhile now. What is your thoughts? Thanks!

I really like this tire. I have put about 8k miles on them. They’re quiet, smooth, great in the rain and they seem to be wearing excellent. I have no clue how well they will actually perform in the snow, but I am hoping well.



[olyelr]

I really like this tire. I have put about 8k miles on them. They’re quiet, smooth, great in the rain and they seem to be wearing excellent. I have no clue how well they will actually perform in the snow, but I am hoping well.

They worked very well for me in the snow, 35x12.5/17 on my power wagon.
