Heim joint replacements for outer tie rod ends

Discussion in 'Lifted Supension - Z71 & 4x4' started by NotBabb, May 20, 2018.

  1. NotBabb

    NotBabb TYF Newbie

    Posts:
    22
    Likes Received:
    37
    Joined:
    May 7, 2018
    Name:
    Justin
    So after replacing tie rod ends every year because of my lift and me going off road more than I should on a daily I finally decided to replace the factory outer tie rods with a set of 3/4" heim joints.

    Bought some left hand thread tie rods and a pipe with an inner diameter of 1/2" and outer diameter of 1 1/8".

    Drilled out one side for the factory right hand thread 16mm inner tie rod and tapped it 2" into the pipe.

    Then drilled out the other end for the 3/4" heim and tapped it for left hand thread 2" into the pipe.

    I used 5/8" misalignment bushings and a 4" 5/8" - 18 bolt. I did have to drill out the hole for the bolt since factory tie rods are tapered. If I thought about it before I think I would have gotten a full thread 5/8 bolt and taped the hole all the way through just for extra strength.

    Originally the pipe was 4" long but I ended up having to cut off a 1/4" off each end for it to fit with the rough country lift kit.

    These pictures are before I found some castle nuts, but I did get a pair and drill a hole for the cotter pin.

    I may get some shorter misalignment bushings soon and also thinking about welding on a L bracket sothe bolt can go through on the top.

    Next project is making some inner tie rods out of heim joints.

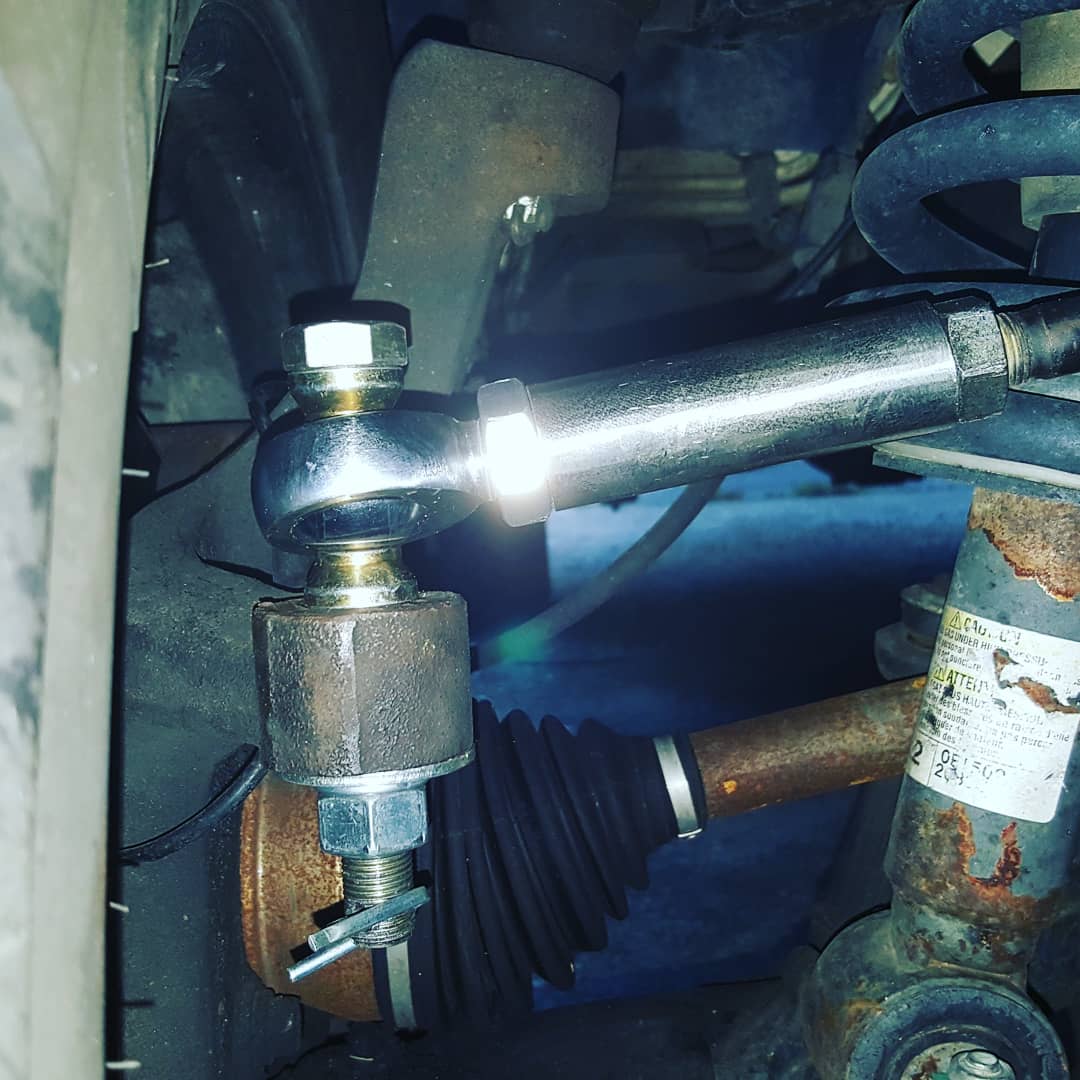

    IMG_20180519_070042_865.jpg IMG_20180519_070042_867.jpg

    Last edited: May 20, 2018
    xHELLHOUNDx likes this.
  2. cmc76

    cmc76 Full Access Member

    Posts:
    652
    Likes Received:
    294
    Joined:
    Sep 5, 2014
    Name:
    C
    Good work.
    I used then on a dodge plow truck that was eating front end parts

  3. bottomline2000

    bottomline2000 Full Access Member

    Posts:
    1,581
    Likes Received:
    793
    Joined:
    Oct 21, 2009
    Location:
    Dallas, TX
    Name:
    Big G
    I run a heim setup on my truck from FFR. The only difference is my tube replaces the inner and outer tierods, the bolt is tapered to fit like factory and I have boots to protect the heims. It's a stout setup for running big wheels on the street, but guys do off-road them. [​IMG]

    Sent from my SAMSUNG-SM-T377A using Tapatalk

    xHELLHOUNDx likes this.
  4. NotBabb

    NotBabb TYF Newbie

    Posts:
    22
    Likes Received:
    37
    Joined:
    May 7, 2018
    Name:
    Justin

    Where did you get the covers for your heim joints?

  5. 08grey

    08grey Elite Member Supporting Member

    Posts:
    4,271
    Likes Received:
    437
    Joined:
    Jun 17, 2012
    Name:
    joe
    Is that a red head steering box with some sort of bistein stabilizer?

    Sent from my SM-G950U using Tapatalk

  6. bottomline2000

    bottomline2000 Full Access Member

    Posts:
    1,581
    Likes Received:
    793
    Joined:
    Oct 21, 2009
    Location:
    Dallas, TX
    Name:
    Big G

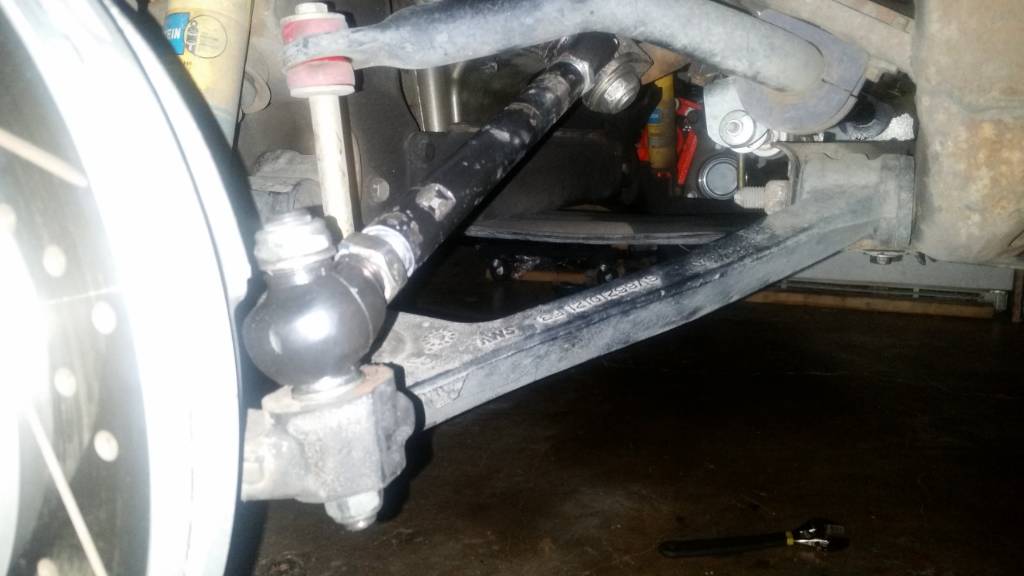

    Got them off Amazon. One of my first set of heims developed a click from dirt getting in them. These boots fit perfect and seem to do their job so far, [​IMG]

    Sent from my SAMSUNG-SM-T377A using Tapatalk

    xHELLHOUNDx likes this.
  7. bottomline2000

    bottomline2000 Full Access Member

    Posts:
    1,581
    Likes Received:
    793
    Joined:
    Oct 21, 2009
    Location:
    Dallas, TX
    Name:
    Big G
    The red/Orange you see is my brake caliper or you see the bilstein shocks. I have a factory replacement ac delco steering box. It's not as tight as I would like, but doesn't wander or anything. I wanted to get a redhead but couldnt find a direct replacement. I later found a guy on here that used one from a 2500 or something. Thats a kyb stabilizer.

    Sent from my SAMSUNG-SM-T377A using Tapatalk
